1. Introdución
This manual provides essential instructions for the safe and efficient use of your All-Clad PC8 Precision Stainless Steel 8.4-Quart Stove-top Pressure Cooker. Designed for rapid cooking, this appliance utilizes high pressure to significantly reduce cooking times. Please read this manual thoroughly before first use and retain it for future reference.
The All-Clad PC8 features a durable stainless steel construction, a 5-point safety system, and a removable smart timer with sound alerts. It includes four optimized cooking programs for vegetables, grains, meat/poultry, and seafood, along with a steamer basket for delicate foods.
Image 1: The All-Clad PC8 Precision Stainless Steel Pressure Cooker with its lid closed, showcasing o seu elegante deseño.
2. Información importante de seguridade
AVISO: O incumprimento destas instrucións de seguridade pode provocar lesións graves ou danos materiais.
- Read all instructions carefully before operating the pressure cooker.
- Non toque superficies quentes. Use asas ou botóns.
- É necesaria unha estreita supervisión cando se usa a ola a presión preto dos nenos.
- Non coloque a ola a presión nun forno quente.
- Teña moito coidado ao mover unha ola a presión que conteña líquidos quentes.
- Non empregue a olla a presión para fins distintos aos previstos.
- Este electrodoméstico cociña a presión. O uso inadecuado pode provocar queimaduras. Asegúrese de que a unidade estea ben pechada antes de usala.
- Never force the pressure cooker open. Ensure pressure is completely released before opening.
- Do not fill the unit more than 2/3 full. When cooking foods that expand during cooking, such as rice or dried vegetables, do not fill the unit more than 1/2 full.
- Use only All-Clad genuine replacement parts.
- The 5-point safety system is designed to prevent unsafe operation. Do not attempt to bypass or modify any safety features.
3. Compoñentes Overview
Your All-Clad PC8 Pressure Cooker consists of the following main components:
- Olla de presión: Stainless steel base with riveted handles.
- Montaxe da tapa: Features the smart timer, pressure release valve, and locking mechanism.
- Cesta para vapor: For steaming delicate foods.
- Temporizador intelixente: Removable digital timer with sound alerts for monitoring cooking progress.
- Gasket/Sealing Ring: Garante un selo hermético durante a cocción a presión.

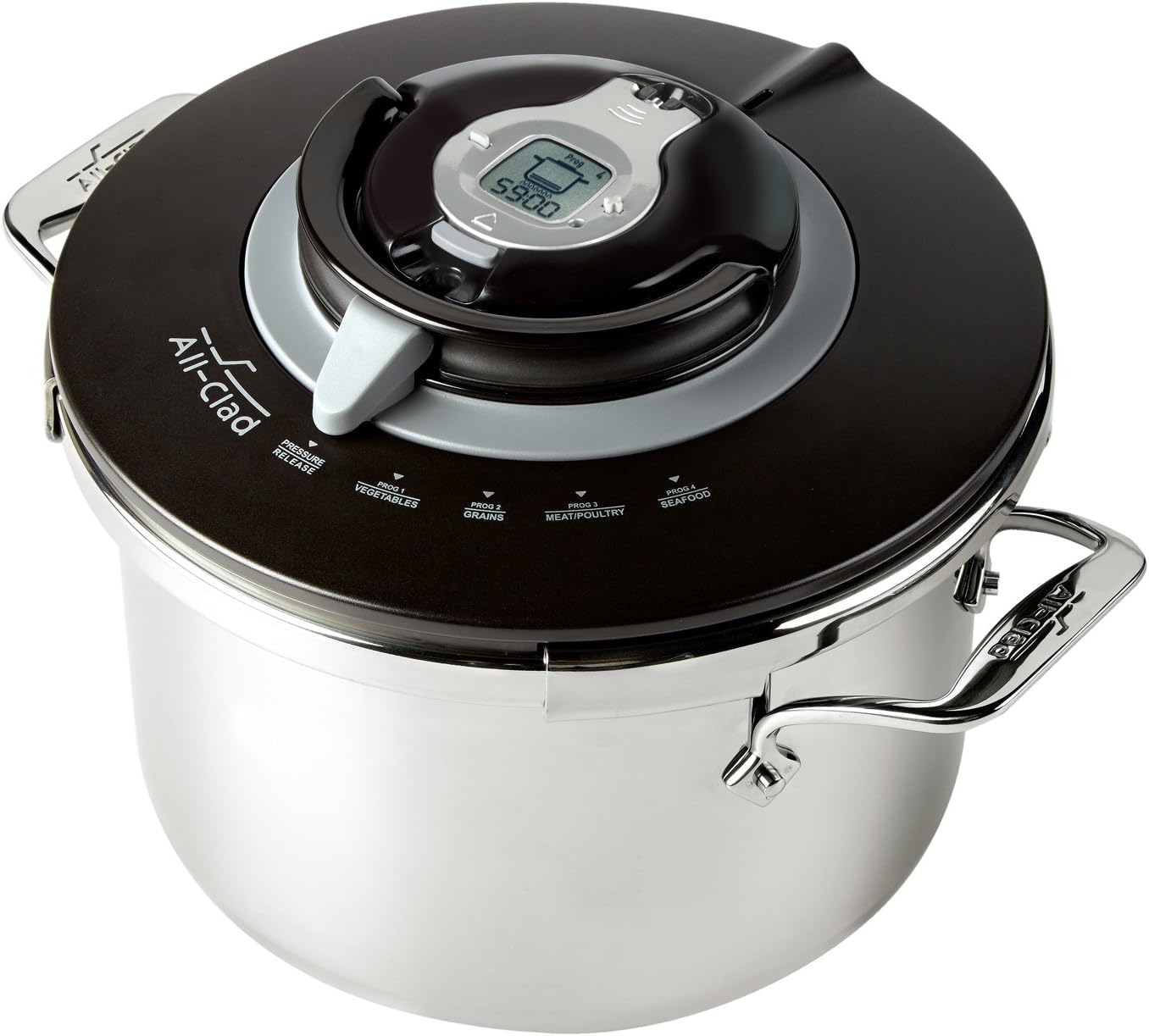

Image 2: Close-up of the lid assembly, highlighting the smart timer and control buttons.
4. Configuración e primeiro uso
4.1 Desembalaxe e limpeza inicial
- Remove all packaging materials, stickers, and labels from the pressure cooker.
- Wash the pot, lid, and steamer basket thoroughly with warm, soapy water. Rinse well and dry completely.
- Inspect the sealing ring for any damage or cracks. Ensure it is properly seated in the lid.
4.2 Assembling the Lid
Ensure the lid's components (smart timer, pressure release valve) are correctly assembled and securely in place before use. Refer to the diagrams in the quick start guide for detailed assembly instructions if needed.
5. Instrucións de funcionamento
5.1 Adding Ingredients and Liquid
- Always add at least 1 cup (250ml) of liquid to the pot for pressure to build.
- Do not fill the pot more than 2/3 full with food and liquid combined.
- For foods that expand (e.g., rice, beans), do not fill more than 1/2 full.
5.2 Fixación da tapa
- Place the lid onto the pot, aligning the arrows or indicators on the lid and pot handles.
- Rotate the lid clockwise until it locks securely into place. The smart timer will indicate when the lid is properly sealed.
Image 3: The All-Clad PC8 pressure cooker positioned on a stovetop, ready for cooking.
5.3 Selecting a Cooking Program and Setting the Timer
The PC8 offers four optimized programs: Vegetables, Grains, Meat/Poultry, and Seafood.
- Place the pressure cooker on a suitable heat source (gas, electric, ceramic, or induction).
- Use the controls on the smart timer to select the desired cooking program.
- Adjust the cooking time as needed according to your recipe.
- Apply high heat to bring the cooker to pressure. The smart timer will beep to indicate when pressure is reached and cooking begins.
- Reduce heat to maintain pressure once cooking starts. The smart timer will alert you when cooking is complete.
5.4 Pressure Release Methods
After cooking, pressure must be released before opening the lid.
- Liberación natural: Remove the cooker from heat and allow pressure to dissipate naturally. This is suitable for foods that benefit from continued cooking, such as meats and stews. The smart timer will indicate when pressure is fully released.
- Liberación rápida: Carefully activate the pressure release valve to vent steam rapidly. Use caution as hot steam will be released. This method is ideal for delicate foods like vegetables to prevent overcooking.
AVISO: Never attempt to open the lid until all internal pressure has been released.
6. Mantemento e Limpeza
6.1 Limpeza diaria
- After each use, allow the pressure cooker to cool completely.
- Wash the pot, lid, and steamer basket with warm, soapy water.
- The pot and steamer basket are dishwasher safe. The lid assembly, including the smart timer, should be hand-washed to protect electronic components.
- Ensure the sealing ring is clean and free of food particles. Remove it periodically for thorough cleaning and inspect for wear.
- Seque todos os compoñentes antes do almacenamento.
Image 4: The stainless steel pot and steamer basket are shown inside a dishwasher, illustrating their dishwasher-safe feature.
6.2 Almacenamento
Store the pressure cooker with the lid inverted or slightly ajar to prevent odors and maintain the sealing ring's shape.
7 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| Presión que non se acumula | Lid not properly sealed; insufficient liquid; sealing ring damaged or misplaced. | Ensure lid is locked correctly. Add more liquid. Inspect and reposition/replace sealing ring. |
| Fuga de vapor pola tapa | Sealing ring dirty, damaged, or improperly seated; food debris on rim. | Clean or replace sealing ring. Clean pot rim. Ensure lid is correctly aligned and locked. |
| Non se pode abrir a tapa despois de cociñar | Internal pressure has not fully released. | Do not force open. Allow more time for natural pressure release or use the quick release method. |
| Food is undercooked/overcooked | Incorrect cooking time or heat setting. | Adjust cooking time and heat according to recipe and food type. Ensure pressure was maintained throughout cooking. |
8. Especificacións
- Marca: Todo-Vestido
- Número de modelo: 11644314422 (PC8)
- Capacidade: 8.4 cuartos (7.95 litros)
- Material: Aceiro inoxidable
- Cor: Prata
- Tipo de acabado: Aceiro inoxidable
- Características especiais: Dishwasher Safe (pot and steamer basket), Removable Smart Timer, 4 Optimized Programs
- Compatibilidade: Gas, Electric, Ceramic, and Induction Stovetops
- Apto para forno: Up to 600°F (without lid)
- Dimensións do produto: 38.1 x 25.4 x 30.48 cm
- Peso do artigo: 4.6 kg (10.14 libras)
- Método de control: Touch (on smart timer)
- Modo de operación: Manual

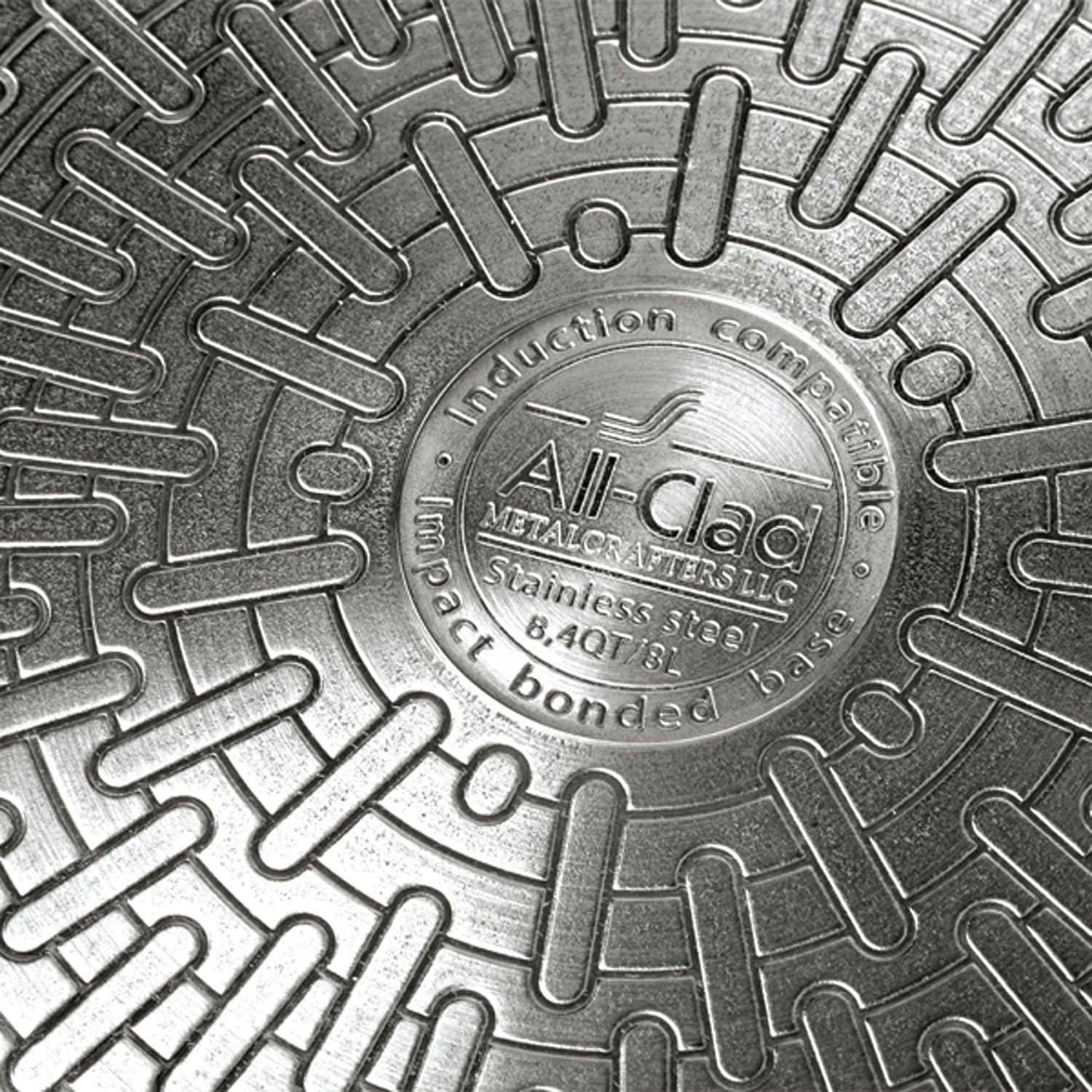

Image 5: The base of the pressure cooker, indicating its induction compatibility and stainless steel construction.
9. Garantía e soporte
For warranty information and customer support, please refer to the warranty card included with your product or visit the official All-Clad websitio. Garde o recibo da compra como xustificante da mesma.
If you encounter any issues not covered in this manual, please contact All-Clad customer service for assistance.
