1. Produto rematadoview
The Bosch D203 Security Enclosure is designed to provide a secure and protective housing for various Bosch modules. This enclosure ensures that sensitive electronic components are shielded from environmental elements and unauthorized access, whether installed in close proximity to the main control panel or at a remote location.

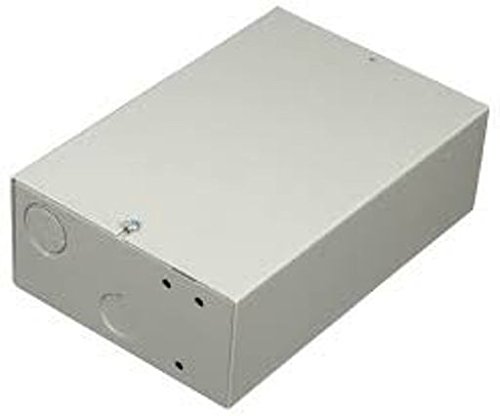

Figure 1: Bosch D203 Security Enclosure. This image displays the Bosch D203 Security Enclosure. It is a robust, gray rectangular housing unit, typically used to protect sensitive electronic modules from environmental factors and tampering. The enclosure features a clean design, suitable for various installation environments.
2. Información de seguridade
Please read all safety instructions before installing or operating the Bosch D203 Security Enclosure. Failure to follow these instructions may result in damage to the product, property, or personal injury.
- Ensure all power is disconnected from modules before installation or maintenance.
- Só persoal cualificado debe realizar a instalación e o mantemento.
- Mount the enclosure securely to a stable surface to prevent accidental dislodgement.
- Do not expose the enclosure to extreme temperatures, moisture, or corrosive environments beyond its specified operating conditions.
- Empregar as ferramentas e o equipo de protección individual axeitados durante a instalación.
3. Contido do paquete
Comprobe que todos os elementos estean presentes no paquete antes de continuar coa instalación:
- Bosch D203 Security Enclosure
- Ferraxes de montaxe (parafusos, ancoraxes - a cantidade pode variar)
- Manual de instrucións (este documento)
4. Configuración e instalación
4.1 Montaxe da caixa
- Seleccione un lugar axeitado: Choose a flat, stable surface, such as a wall, that can support the weight of the enclosure and its contents. Ensure adequate space for ventilation and access.
- Marcar os puntos de perforación: Use the enclosure as a template to mark the desired drilling points for the mounting hardware.
- Perforar orificios piloto: Drill pilot holes appropriate for the mounting screws and anchors.
- Secure the enclosure: Attach the enclosure to the mounting surface using the provided hardware. Ensure it is firmly secured and level.
4.2 Instalación de módulos
- Open the enclosure: Carefully open the enclosure door or cover.
- Mount modules: Follow the specific instructions for each Bosch module to securely mount them within the enclosure. The D203 is designed to accommodate various module types.
- Conectar o cableado: Route all necessary wiring through the designated knockouts or cable entry points. Ensure proper strain relief and secure all connections according to module specifications.
- Close the enclosure: Once all modules are installed and wired, securely close the enclosure door or cover.
5. Consideracións operativas
The Bosch D203 is a passive enclosure designed to protect internal modules. Proper operation primarily involves ensuring the enclosure remains sealed and its environment is suitable for the housed electronics.
- Protección ambiental: Ensure the enclosure remains closed to protect modules from dust, debris, and splashes.
- Control de acceso: Keep the enclosure secured to prevent unauthorized access to the internal modules.
- Ventilación: While the enclosure provides protection, ensure that the overall installation environment allows for adequate heat dissipation from the housed modules.
6. Mantemento
Regular maintenance helps ensure the longevity and continued protection provided by the D203 enclosure.
- Inspección periódica: Annually inspect the enclosure for any signs of damage, corrosion, or loose mounting hardware.
- Limpeza: Limpar o exterior da carcasa cun pano suave eamp pano. Evite produtos de limpeza abrasivos ou solventes que poidan danar o acabado.
- Integridade do selo: Check the integrity of any seals or gaskets to ensure continued environmental protection.
7 Solución de problemas
This section addresses common issues related to the enclosure itself. For issues with internal modules, refer to their respective manuals.
| Problema | Causa posible | Solución |
|---|---|---|
| Enclosure door does not close securely. | Obstruction, damaged hinge/latch, or improper module placement. | Check for obstructions. Inspect hinges and latches for damage. Ensure modules are correctly seated and not protruding. |
| Enclosure feels loose on mounting surface. | Loose mounting hardware or damaged mounting points. | Tighten mounting screws. If mounting points are damaged, relocate or reinforce the mounting surface. |
| Visible damage to the enclosure. | Impact or environmental stress. | Assess the extent of damage. If structural integrity or environmental protection is compromised, replace the enclosure. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | D203 |
| Fabricante | Bosch |
| Dimensións do paquete | 10 x 7 x 3 polgadas |
| Peso do elemento | 1 libra |
| ASIN | B014BWD2N4 |
| UPC | 782695022016 |
| Data de primeira dispoñibilidade | 23 de agosto de 2015 |
9. Garantía e soporte
For warranty information and technical support regarding your Bosch D203 Security Enclosure, please refer to the official Bosch website or contact Bosch customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Recursos en liña: Visita o sitio web oficial de Bosch websitio web con documentación do produto, preguntas frecuentes e información de contacto de soporte.
Atención ao cliente: Contact details for customer support can typically be found on the Bosch webno sitio ou dentro dos materiais de embalaxe.
