Introdución
Thank you for choosing the DB Drive 8-inch Pro Audio Midrange Car Stereo Component Speaker System. This manual provides essential information for the proper installation, operation, and maintenance of your new audio system. Please read this manual thoroughly before attempting installation or use to ensure optimal performance and safety.
Contido do paquete
Verifique que todos os elementos que se indican a continuación estean presentes no seu paquete:
- Two (2) DB Drive 300 Watts 8-inch Pro Audio Midrange Speakers
- Two (2) 1-inch (25mm) Aluminum Pro Audio Tweeters
- Two (2) 12dB per Octave Passive Crossover Networks
Image: All components of the DB Drive 8-inch Pro Audio Midrange Car Stereo Component Speaker System, including two midrange speakers, two tweeters, and two passive crossover networks.
Información importante de seguridade
Observe as seguintes precaucións de seguridade durante a instalación e o funcionamento:
- Seguridade eléctrica: Always disconnect the vehicle's battery negative terminal before beginning any electrical work to prevent short circuits and electrical shock.
- Instalación profesional: If you are unsure about any aspect of the installation, consult a qualified professional car audio installer.
- Protección auditiva: Prolonged exposure to high volume levels can cause permanent hearing damage. Operate your audio system at moderate levels.
- Ventilación: Ensure adequate ventilation around all components, especially amplifiers, to prevent overheating.
- Montaxe segura: Securely mount all speakers and components to prevent them from becoming projectiles in the event of a sudden stop or collision.
Guía de instalación
Unha instalación axeitada é fundamental para un rendemento óptimo. Siga estes pasos atentamente.
Antes de Comezar
- Gather necessary tools: wire strippers, crimpers, screwdrivers, drill, mounting hardware.
- Plan your speaker placement to ensure proper sound staging and clearance.
- Desconecta a batería do vehículo.
Mounting the Midrange Speakers
The 8-inch midrange speakers require a suitable mounting location, typically in door panels or custom enclosures. Ensure the mounting surface is rigid and free from obstructions.
- Carefully mark the cutout diameter for the speaker.
- Cut the opening using appropriate tools, ensuring a clean edge.
- Position the speaker in the opening and mark the screw holes.
- Perforar orificios piloto para os parafusos de montaxe.
- Secure the speaker using the provided mounting screws, ensuring it is flush and tight. Do not overtighten.
Imaxe: Side profile of a DB Drive 8-inch midrange speaker, illustrating its shallow mount design and cloth edge surround.

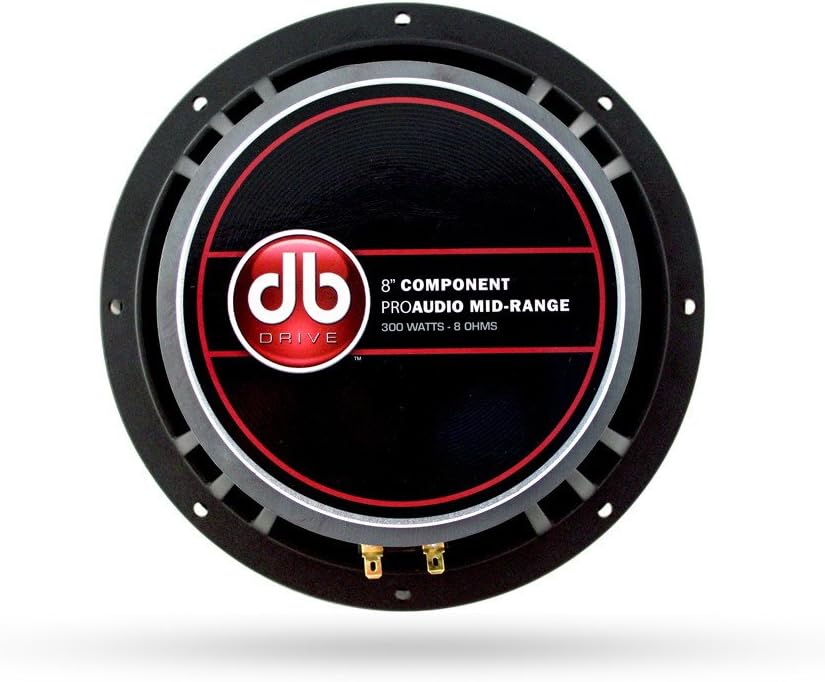

Imaxe: Traseira view of a DB Drive 8-inch midrange speaker, showing the mounting frame and speaker terminals for wiring connections.
Montaxe dos tweeters
The 1-inch tweeters can be flush-mounted or surface-mounted depending on your vehicle's interior and desired sound dispersion. Refer to the tweeter's specific mounting hardware for detailed instructions.
Wiring the Crossover Network
The passive crossover network separates the audio signal into appropriate frequency ranges for the midrange speaker and tweeter. Each crossover has clearly labeled input and output terminals.
- AMP Entrada: Connect the speaker output wires from your amplifier to the 'AMP' input terminals on the crossover. Observe correct polarity (+ to + and - to -).
- WOOFER Output: Connect the wires from the 'WOOFER' output terminals on the crossover to the 8-inch midrange speaker.
- TWEETER Output: Connect the wires from the 'TWEETER' output terminals on the crossover to the 1-inch tweeter.
Asegúrate de que todas as conexións estean seguras e debidamente illadas para evitar curtocircuítos.
Conectando ao Ampmáis vivo
Conecta o 'AMP' input of the crossover network to the corresponding speaker output channels of your car amplificador. Garantir o amplifier is capable of handling the speaker system's power requirements (300 Watts peak power). Refer to your amplifier's manual for specific wiring diagrams and settings.
Operando o seu sistema de altofalantes
Once installed, reconnect your vehicle's battery. Power on your car stereo and amplifier. Start with the volume at its lowest setting and gradually increase it to a comfortable listening level. Adjust your amplifier's gain and crossover settings according to its manual and your personal preference for optimal sound quality.
Coidados e Mantemento
To ensure the longevity and performance of your DB Drive speaker system, follow these maintenance guidelines:
- Limpeza: Use a soft, dry cloth to wipe down the speaker grilles and surrounds. Avoid using harsh chemicals or abrasive cleaners.
- Evitar a humidade: Keep the speakers dry. While designed for car environments, excessive moisture can damage components.
- Extremos de temperatura: Avoid exposing the speakers to extreme temperatures for prolonged periods, as this can affect material integrity.
- Conexións seguras: Periodically check all wiring connections to ensure they remain tight and free from corrosion.
Solución de problemas comúns
If you experience problems with your speaker system, consult the following table before seeking professional assistance.
| Problema | Causa posible | Solución |
|---|---|---|
| Non hai son dos altofalantes |
|
|
| Son distorsionado |
|
|
| Son intermitente |
|
|
Especificacións técnicas
Detailed specifications for the DB Drive 8-inch Pro Audio Midrange Car Stereo Component Speaker System:
| Característica | Especificación |
|---|---|
| Marca | DB DRIVE |
| Tipo de altofalante | Surround Sound Component System |
| Tamaño do altofalante | 8 Inches (Midrange) |
| Diámetro do tweeter | 1 polgada (25 mm) |
| Potencia de saída máxima do altofalante | 300 vatios |
| Bobina de voz | 1.5-inch (38mm) High Temperature |
| Material envolvente | Bordo de tea |
| Material da cesta | Aluminio fundido a presión |
| Rede cruzada | 12dB per Octave Passive |
| Tipo de montaxe | Shallow Mount Application |
| Número de elementos | 2 (Set of 2 Speakers) |
| Usos recomendados para o produto | Audio de coche |
Información da garantía
This DB Drive speaker system comes with a Un ano de garantía from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, negligence, or unauthorized modification. Please retain your proof of purchase for warranty claims.
Atención ao cliente
For technical assistance, warranty service, or general inquiries, please contact DB Drive customer support through their official website or the retailer where the product was purchased. Have your product model number and proof of purchase ready when contacting support.
