Manual do usuario da miniluz con sensor de movemento LED MR BEAMS MB700

1. Introdución

The MR BEAMS MB700 LED Motion Sensor Mini Light is a versatile, battery-operated lighting solution designed for various indoor applications. Its compact size allows for easy installation in areas such as bathrooms, hallways, and staircases. The integrated motion and light sensors ensure that the light activates only when needed in dark environments, providing a gentle illumination without disturbing others.

2. Características do produto

• Activación do sensor de movemento: Detects movement up to 4.5 meters.
• Apagado automático: Light turns off 20 seconds after motion ceases.
• Sensor de luz: Activates only in dark conditions to conserve battery life.
• Fluxo luminoso: Provides 15 lumens of light.
• Funciona con pilas: Requires 4 AAA batteries (sold separately).
• Longa vida LED: Aproximadamente 30,000 horas.
• Material duradeiro: Constructed from ABS resin.

3. Contido do paquete

• MR BEAMS MB700 Mini Light Unit

Note: 4 AAA batteries are required and sold separately.

4. Configuración e instalación

4.1 Instalación da batería

1. Locate the battery compartment on the back of the light unit.
2. Abra a tapa do compartimento da batería.
3. Insira 4 pilas AAA novas, asegurándose de manter a polaridade correcta (+/-).
4. Pecha a tapa do compartimento da batería de forma segura.

4.2 Colocación

The MR BEAMS MB700 Mini Light can be installed in various indoor locations where supplemental lighting is desired. Common areas include:

• Corredores
• Escaleiras
• Baños
• Armarios
• Under cabinets or shelves

Ensure the placement allows the motion sensor to have a clear line of sight to the area where movement is expected. Avoid placing the light in direct sunlight or near heat sources, as this may affect sensor performance.

Imaxe: The MR BEAMS MB700 Mini Light shown installed in a bookshelf, a hallway, and on a staircase, demonstrating its versatility for various indoor lighting needs.

5. Instrucións de funcionamento

The MR BEAMS MB700 Mini Light operates automatically based on ambient light and motion detection.

1. Activación automática: The built-in light sensor detects ambient light levels. The motion sensor will only become active when the surrounding environment is dark enough.
2. Detección de movemento: Once active, the motion sensor will detect movement within its range (up to 4.5 meters).
3. Iluminación: Upon detecting motion in a dark environment, the light will turn on, providing 15 lumens of illumination.
4. Apagado automático: If no further motion is detected for 20 seconds, the light will automatically turn off to conserve battery power.

Imaxe: Unha fronte directa view of the MR BEAMS MB700 Mini Light, highlighting the central motion sensor and the LED light panel.

Imaxe: Un ángulo view of the MR BEAMS MB700 Mini Light, showing its compact profile and the side design details.

6. Mantemento

6.1 Limpeza

To clean the light unit, gently wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or electronic components.

6.2 Substitución da batería

When the light output becomes dim or the unit stops activating, it is time to replace the batteries. Follow the battery installation steps outlined in Section 4.1.

Note: Battery life varies depending on the frequency of operation.

7 Solución de problemas

• A luz non se acende:
  • Asegúrate de que as baterías estean instaladas correctamente e que non estean esgotadas. Substitúeas se é necesario.
  • Check ambient light. The light sensor prevents activation in bright conditions. Test in a completely dark environment.
  • Verify that the motion sensor is not obstructed and that movement is occurring within its detection range.
• A luz permanece acesa continuamente:
  • Check for continuous motion within the sensor's detection area.
  • Ensure the light is not placed near a heat source or air vent that could trigger the sensor.
• A luz é tenue:
  • Substitúa as 4 pilas AAA por unhas novas.

8. Especificacións

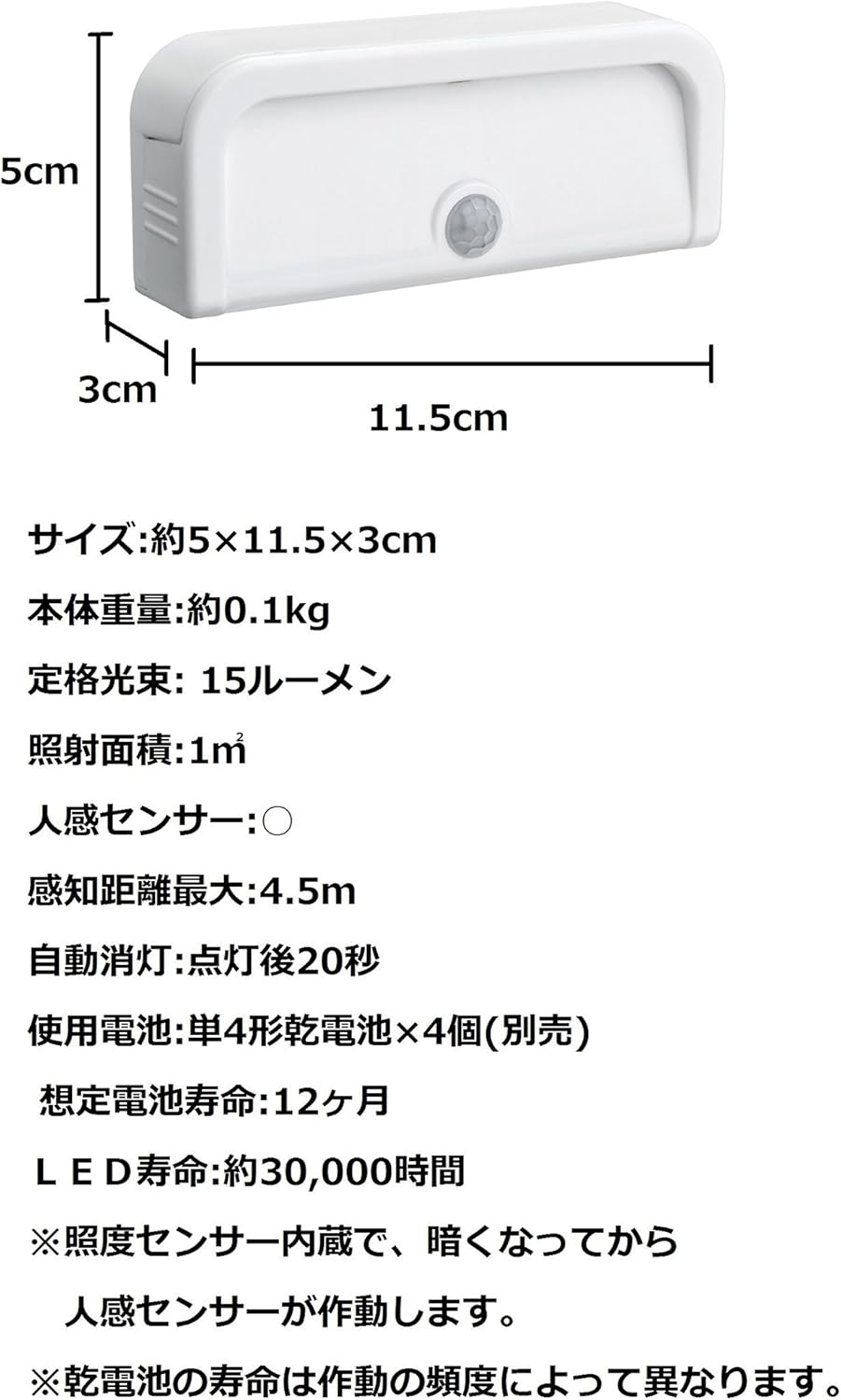

Imaxe: A visual representation of the MR BEAMS MB700 Mini Light with its dimensions (5cm height, 11.5cm width, 3cm depth) and key specifications listed in Japanese, which are translated below.

Imaxe: A diagram of the MR BEAMS MB700 Mini Light highlighting its features such as 15 lumens, motion sensor, 4.5m sensing distance, 1m² irradiation area, 20-second auto-off, and requirement for 4 AAA batteries.

9. Garantía e soporte

Para obter información sobre a garantía ou asistencia técnica, consulte a embalaxe do produto ou póñase en contacto co vendedor onde o comprou. Garde o comprobante de compra para calquera reclamación de garantía.
