Introdución
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Alfresco ALXE-56BFGC-NG 56-inch Natural Gas Grill. Please read all instructions thoroughly before assembly or operation to ensure proper use and to prevent potential hazards. Keep this manual for future reference.
Información de seguridade
AVISO: Só para uso exterior.
ADVERTENCIA: Unha instalación, un axuste, unha alteración, unha revisión ou un mantemento incorrectos poden causar lesións ou danos materiais. Lea atentamente as instrucións de instalación, funcionamento e mantemento antes de instalar ou realizar a revisión deste equipo.
- Asegúrese sempre dunha ventilación axeitada ao usar a grella.
- Manteña os nenos e as mascotas lonxe da grella durante o funcionamento.
- Non almacene nin use gasolina ou outros vapores e líquidos inflamables nas proximidades deste ou de calquera outro aparello.
- Always check for gas leaks before each use, especially after connecting or reconnecting the gas supply.
- Maintain proper clearances from combustible materials as specified in the setup section.
- Never attempt to repair or alter the grill's gas components yourself. Contact a qualified service technician.
Configuración
1. Desembalaxe e inspección
Carefully remove all packaging materials. Inspect the grill for any shipping damage. If damage is found, do not attempt to assemble or operate the grill. Contact your dealer immediately.
2. Placement and Clearances
The grill must be placed on a level, non-combustible surface. Ensure sufficient clearance from combustible materials:
- Rear: Minimum 12 inches (30.5 cm)
- Sides: Minimum 12 inches (30.5 cm)
- Above: Minimum 48 inches (122 cm)
Do not install the grill under unprotected combustible overhead constructions.
3. Gas Connection (Natural Gas)
This grill is designed for use with Natural Gas only. Connection must be performed by a qualified gas technician in accordance with local codes and ordinances. Ensure the gas supply line is properly sized for the grill's BTU requirements.
- The grill requires a 1/2 inch NPT supply line.
- Install a manual shut-off valve in an accessible location upstream of the grill.
- Perform a leak test using a soap and water solution on all connections before initial use. Never use an open flame to check for leaks.
4. Conexión eléctrica
The grill requires a 120V AC electrical supply for the rotisserie motor, ignition system, and internal lighting. Ensure the outlet is a properly grounded, dedicated circuit.
- Connect the grill's power cord to a grounded 3-prong outlet.
- Non use cables de extensión.
5. Identificación de compoñentes
Familiarize yourself with the grill's components.
Image: The Alfresco ALXE-56BFGC-NG 56-inch Natural Gas Grill on its cart, showing overall dimensions of 56 inches width, 28.25 inches depth, and 51.12 inches height. This image provides a full view of the grill's exterior and its freestanding configuration.
Imaxe: Primeiro plano view of the stainless steel grill grates with refractive ceramic briquettes visible underneath. These briquettes ensure even heat distribution across the cooking surface.
Instrucións de funcionamento
1. Comprobacións previas á operación
- Asegúrese de que a válvula de subministración de gas estea aberta.
- Check that the electrical cord is plugged in.
- Clean cooking grates if necessary.
2. Ignition Procedures
Image: A close-up of the grill's control panel, showing three push-button controls: one for ignition (lightning bolt symbol), one for internal lights (light bulb symbol), and one for the rotisserie motor (circular arrow symbol).
Image: Two stainless steel control knobs on the grill's front panel, illuminated by internal lights, indicating they are in use or ready for operation. The 'A' logo of Alfresco is visible on each knob.
Queimadores principais:
- Abre a capota da grella.
- Push and turn a main burner control knob to the HIGH position.
- Immediately press and hold the ignition button (lightning bolt symbol) until the burner ignites. You should hear a clicking sound.
- Once ignited, release the ignition button. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes for gas to dissipate, and repeat the process.
- Adjust the flame to the desired cooking temperature.
Sear Zone Burner:
Imaxe: Primeiro plano view of the infrared sear zone burner, glowing intensely red, indicating high heat output for searing food.
- Abre a capota da grella.
- Push and turn the Sear Zone control knob to the HIGH position.
- Press and hold the ignition button until the burner ignites. The ceramic surface will begin to glow red.
- Allow 5-10 minutes for the Sear Zone to reach optimal temperature.
Rotisserie Burner:
Image: The interior of the grill showing the rotisserie spit assembly in place, positioned in front of the infrared rotisserie burner at the rear of the cooking chamber.
- Abre a capota da grella.
- Push and turn the Rotisserie burner control knob to the ON position.
- Manteña premido o botón de acendido ata que se acenda o queimador.
- Unha vez acendido, solte o botón de acendido.
3. Using the Rotisserie System

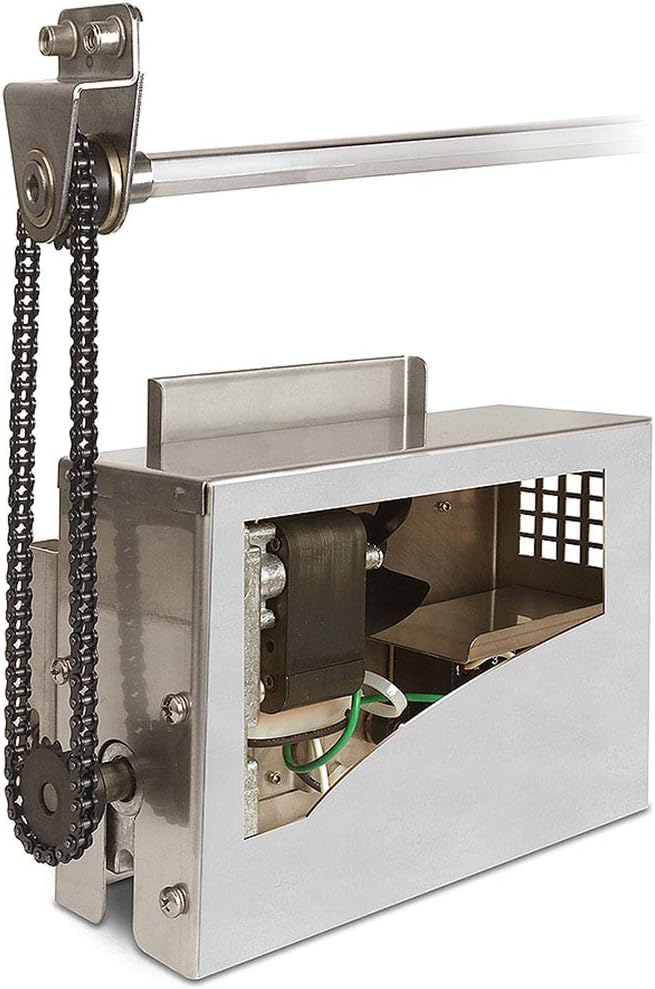

Imaxe: Unha detallada view of the rotisserie motor assembly, featuring a chain drive mechanism that rotates the rotisserie spit for even cooking.
- Securely attach food to the rotisserie spit forks.
- Insert the spit into the rotisserie motor drive and support bracket.
- Ignite the rotisserie burner as described above.
- Press the rotisserie motor button (circular arrow symbol) to start rotation.
- Close the grill hood for optimal cooking.
4. Using the Integrated Wood Smoker and Herb Infusion System
Image: A pull-out drawer, part of the integrated wood smoker and herb infusion system, filled with wood chips, rosemary, and other herbs, ready for smoking.
Image: A close-up of two control knobs on the grill's front panel, with the label 'SMOKER' visible below one of the knobs, indicating its function for the integrated smoker system.
- Pull out the smoker drawer.
- Fill the drawer with desired wood chips (soaked in water for 30 minutes, then drained) or herbs. Do not overfill.
- Push the drawer back into its position.
- Push and turn the SMOKER control knob to the ON position.
- Press and hold the ignition button until the smoker burner ignites.
- Close the grill hood to allow smoke to infuse the food.
5. Apagar a grella
- Xire todas as perillas de control do queimador á posición OFF.
- Turn off the gas supply at the main shut-off valve.
- Desenchufe o cable eléctrico da toma de corrente.
- Allow the grill to cool completely before covering or cleaning.
Mantemento
1. Limpeza
Reixas de cociña:
After each use, once the grill has cooled, brush off food residue with a stiff wire brush. For stubborn residue, remove grates and wash with warm, soapy water.
Queimadores:
Periodically inspect burner ports for blockages (e.g., food debris, insect nests). Use a wire brush or a paper clip to clear any obstructions. Ensure gas ports are clear for even flame distribution.
Exterior:
Clean stainless steel surfaces with a soft cloth and a stainless steel cleaner. Always wipe in the direction of the grain to prevent scratching. Avoid abrasive cleaners.
Smoker Box:
Empty and clean the smoker box after each use to prevent residue buildup and ensure proper airflow for future smoking sessions.
2. Storage and Winterization
If storing the grill for an extended period or during winter months:
- Limpar a fondo todos os compoñentes.
- Disconnect the gas supply and electrical power.
- Cover the grill with a weather-resistant cover.
- Store in a dry, protected area if possible.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O queimador non se acenderá | Sen subministración de gas Blocked burner port Faulty igniter electrode | Check gas supply valve Limpar os portos do queimador Contacte co técnico de servizo |
| Calor desigual | Portos do queimador bloqueados Improper briquette placement | Limpar os portos do queimador Ensure briquettes are evenly distributed |
| Rotisserie motor not turning | Non conectado Sobrecarga do motor Motor defectuoso | Comprobar a conexión eléctrica Reduce food weight Contacte co técnico de servizo |
| Smoker not producing smoke | Sen virutas de madeira Smoker burner not lit O caixón non está totalmente pechado | Engade lascas de madeira Re-ignite smoker burner Ensure drawer is fully seated |
Especificacións
- Número de modelo: ALXE-56BFGC-NG
- Tipo de combustible: Gas Natural
- Potencia total en BTU: 82,500 BTU
- Superficie total de cocción: 998 polgadas cadradas.
- Número de queimadores principais: 3
- Características especiais: Sear Zone, Rotisserie System, Integrated Wood Smoker and Herb Infusion System
- Material: Aceiro inoxidable
- Dimensións (ancho x profundo x alto): 56" x 28.25" x 51.13"
- Peso do artigo: 547 libras
- Tipo de instalación: Libre Standing
Garantía e Soporte
For warranty information, please refer to the separate warranty document included with your purchase or visit the official Alfresco website. For technical support, parts, or service inquiries, please contact your authorized Alfresco dealer or the manufacturer's customer service department.
It is recommended to have your model number (ALXE-56BFGC-NG) and serial number available when contacting support.
