Lenovo ThinkPad P50 20EN0013US Laptop Instruction Manual

1. Introdución

The Lenovo ThinkPad P50 20EN0013US is a powerful 15.6-inch mobile workstation designed for demanding professional tasks. It features robust hardware, including an Intel Core i7-6700HQ processor, NVIDIA Quadro M1000M dedicated graphics, and a durable chassis. This manual provides essential information to help you get started and make the most of your device.

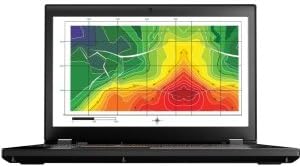

Figura 1: Fronte view of the Lenovo ThinkPad P50 laptop with its screen displaying a graphical map.

2. Configuración inicial

2.1 Unpacking and Connecting Power

Carefully remove the laptop and all accessories from the packaging. Connect the AC adapter to the power connector on the laptop and then to a power outlet. The laptop is designed to operate on 240 Volts.

2.2 First Boot and Operating System Configuration

Press the power button to turn on your ThinkPad P50. The laptop comes with Windows 7 Professional 64-bit preinstalled, with downgrade rights from Windows 10 Pro. Follow the on-screen prompts to complete the initial operating system setup, including language selection, user account creation, and network connection.

2.3 Conexión de periféricos

Utilize the available ports to connect external devices such as a mouse, external keyboard, or monitor. The ThinkPad P50 features multiple USB 3.0 ports, a Thunderbolt 3 port, HDMI, and Mini DisplayPort for versatile connectivity.

Figura 2: Lado esquerdo view of the ThinkPad P50, highlighting the various ports for peripheral connections.

3. Características e compoñentes principais

3.1 Design and Build

The ThinkPad P50 features a robust, matte black chassis, weighing approximately 8.85 pounds and measuring over an inch thick. This design prioritizes durability and functionality, providing ample space for powerful components and extensive port selection.

Figura 3: En ángulo view of the ThinkPad P50, illustrating its professional and robust design.

3.2 Visualización

The laptop is equipped with a 15.6-inch LED display with a native resolution of 1920 x 1080 pixels (1080p). It features a non-gloss finish, which helps reduce reflections and eye strain during prolonged use.

Figure 4: Close-up of the ThinkPad P50's 15.6-inch display.

3.3 Keyboard and Pointing Devices

The ThinkPad P50 features a full-size, backlit QWERTY keyboard with a dedicated numeric keypad. The keys offer significant key travel for a comfortable and tactile typing experience. For navigation, it includes both a responsive touchpad and the classic ThinkPad TrackPoint.

3.4 Conectividade

The laptop offers extensive connectivity options:

• 4 x portos USB 3.0
• 1 x porto Thunderbolt 3
• Saída HDMI
• Mini DisplayPort
• Porto Ethernet RJ-45
• Bluetooth and Wi-Fi (Intel 8260)
• Conector combinado de auriculares/micrófono

Batería 3.5

The ThinkPad P50 is powered by a 6-cell Lithium Polymer battery with a 90 Watt-Hour energy content. This battery is user-replaceable, allowing for extended usage with spare batteries.

3.6 Características de seguridade

For enhanced security, the laptop includes a Fingerprint Recognition biometric security feature.

3.7 Integrado Webleva

A 720P HD camera is integrated for video conferencing and other applications.

4. Operating Your ThinkPad P50

4.1 Encendido/apagado

To power on the laptop, press the power button located above the keyboard. To shut down, click the Start button in Windows, then select Power > Shut down.

4.2 Using the Keyboard and Pointing Devices

The keyboard provides a comfortable typing experience. Utilize the touchpad for cursor control and gestures, or the TrackPoint (red dot in the center of the keyboard) for precise navigation. The dedicated numeric keypad simplifies data entry.

4.3 Axustar a configuración da pantalla

Display brightness can be adjusted using the function keys (Fn + F5/F6) or through Windows display settings. Ensure your display drivers are up to date for optimal functionality.

4.4 teclas de función

The function keys (F1-F12) provide quick access to various system functions when pressed in combination with the Fn key. These include volume control, screen brightness, Wi-Fi toggle, and more. If function keys are not responding as expected, ensure the appropriate Lenovo hotkey drivers are installed and updated.

5. Mantemento e actualizacións

5.1 Limpeza do portátil

Regularly clean the screen with a soft, lint-free cloth and a screen-safe cleaning solution. Use a soft brush or compressed air to clear dust from the keyboard and ventilation grilles to maintain optimal airflow and prevent overheating.

5.2 Coidado coa batería

While the battery is user-replaceable, proper care can extend its lifespan. Avoid extreme temperatures and fully discharging the battery frequently. If you experience significantly reduced battery life, consider replacing the battery with an official Lenovo part.

5.3 RAM Upgrades

The ThinkPad P50 has 4 SO-DIMM memory slots, allowing for significant RAM upgrades beyond the standard 8GB. Two slots are typically located under the keyboard, and two are accessible from the bottom panel. Refer to the detailed service manual for specific instructions on accessing and upgrading memory modules.

5.4 Storage Upgrades

The laptop comes with a 500GB 7200rpm Hard Drive. It supports multiple storage configurations, including 2.5-inch drives and up to two M.2 SSDs. An adapter may be required for additional M.2 drives. Consult the service manual for safe installation procedures.

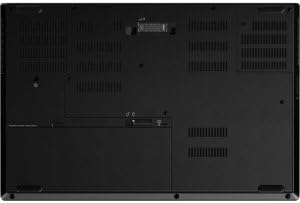

Figura 5: Abaixo view of the ThinkPad P50, indicating user-accessible areas for maintenance and upgrades.

6. Solución de problemas comúns

6.1 Display Brightness or Function Key Issues

If display brightness cannot be adjusted or function keys are unresponsive, ensure all system drivers, especially display and hotkey drivers, are updated to the latest versions from the Lenovo support website. A BIOS update may also resolve such issues.

6.2 Bluetooth Connectivity Problems

If Bluetooth devices frequently disconnect or the Bluetooth hardware disappears from Device Manager, try updating your Bluetooth drivers. Restarting the Bluetooth service or the laptop can also help. Ensure no physical obstructions are interfering with the signal.

6.3 Sluggish Performance or Fan Noise

Sluggish performance can be caused by outdated drivers, excessive background processes, or insufficient RAM/storage. Ensure your operating system and drivers are updated. If the fan is constantly spinning at high RPMs and the laptop feels hot, check for dust accumulation in the vents and clean them. Monitor CPU usage to identify any runaway processes.

6.4 External Monitor Issues

If you encounter difficulties with external monitors, ensure the correct display drivers are installed. Verify the cable connections (HDMI, Mini DisplayPort, Thunderbolt 3). The ThinkPad P50 supports external displays, but specific configurations might require driver updates or adjustments in display settings.

6.5 Laptop Not Sleeping Properly

If the laptop does not enter sleep mode when the lid is closed or overheats in its case, check your power management settings in Windows. Ensure that closing the lid is configured to initiate sleep. Update BIOS and power management drivers.

7. Especificacións técnicas

8. Produto rematadoview Vídeo

Mira este vídeo para obter unha visión xeralview of the Lenovo ThinkPad P50's design, features, and connectivity options.

Video: A visual demonstration of the Lenovo ThinkPad P50 laptop, highlighting its physical attributes and key functionalities.

9. Garantía e soporte

9.1 Información da garantía

The Lenovo ThinkPad P50 20EN0013US comes with a 3-year limited depot warranty. Please retain your proof of purchase for warranty claims.

9.2 Atención ao cliente

For further assistance, technical support, or to download the latest drivers and manuals, please visit the official Lenovo support website. You can also find information regarding service centers and contact options there.
