SoBuy FKW24-N Rubber Wood Kitchen Trolley Cart Instruction Manual

1. Produto rematadoview

The SoBuy FKW24-N is a versatile kitchen trolley designed to provide additional storage and workspace. Constructed from durable rubber wood, it features two drawers, two shelves, and wheels for easy mobility. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and effective use of your kitchen trolley.

Image 1: SoBuy FKW24-N Kitchen Trolley Cart. This image displays the complete assembled kitchen trolley, highlighting its natural wood finish, two drawers, and two slatted shelves, all mounted on wheels.

2. Información de seguridade

• Asegúrese de que todas as pezas estean presentes e non danadas antes da montaxe.
• Monte a unidade sobre unha superficie suave e limpa para evitar rabuñaduras.
• Non aperte demasiado os parafusos durante a montaxe para evitar danar a madeira.
• Distribute weight evenly on shelves and drawers. Do not exceed the maximum load capacity.
• Lock the wheels when the trolley is in a stationary position to prevent accidental movement.
• Manteña as pezas pequenas lonxe dos nenos durante a montaxe.

3. Instrucións de montaxe

The SoBuy FKW24-N kitchen trolley is delivered flat-packed and requires self-assembly. Please follow these instructions carefully. It is recommended to have a second person assist with assembly.

3.1. Desembalaxe e identificación das pezas

• Carefully unpack all components and hardware from the box.
• Lay out all parts on a clean, soft surface (e.g., a blanket or carpet) to prevent damage.
• Consulte a lista de pezas e os diagramas incluídos para identificar cada compoñente. Nota: Some hardware may not be clearly marked; verify against the diagrams before use.
• Count all screws and fittings to ensure no parts are missing. If any parts are missing or damaged, contact customer support before proceeding.

3.2. Montaxe paso a paso

1. Attach the wheels to the bottom of the four vertical support legs. Ensure the locking wheels are positioned as desired for accessibility. Tighten securely but do not overtighten.
2. Connect the side frames and back support beams to the vertical legs using the provided screws. Ensure all connections are firm.
3. Slide the bottom shelf into its designated grooves or attach it to the support beams.
4. Assemble the drawer boxes according to the diagrams. Insert the drawer slides onto the side panels of the trolley frame.
5. Install the assembled drawers into the slides.
6. Place the top shelf (countertop) onto the assembled frame and secure it with the appropriate fasteners.
7. Attach the metal handles to the drawers.
8. Once fully assembled, gently test the stability of the trolley and the smooth operation of the drawers and wheels.

Image 2: Dimensions of the SoBuy FKW24-N Kitchen Trolley. This image illustrates the overall dimensions of the trolley, including length (80cm), width (40cm), and height (90cm), along with internal measurements for drawers and shelf spacing.

Troubleshooting Assembly Issues: If screw holes do not align perfectly, gently adjust the components or use a small drill bit to slightly widen the pilot hole if necessary. Avoid forcing screws, as this can damage the wood. If wheels are not level, ensure they are fully tightened and the trolley is on a flat surface. Loosen and re-tighten if needed.

4. Instrucións de funcionamento

4.1. Almacenamento e Organización

• The two drawers are suitable for storing smaller kitchen utensils, cutlery, or other accessories.
• The two open shelves provide space for larger items such as pots, pans, dishes, or small appliances like a Nespresso machine or microwave.
• The top surface can serve as an additional countertop for food preparation or serving.

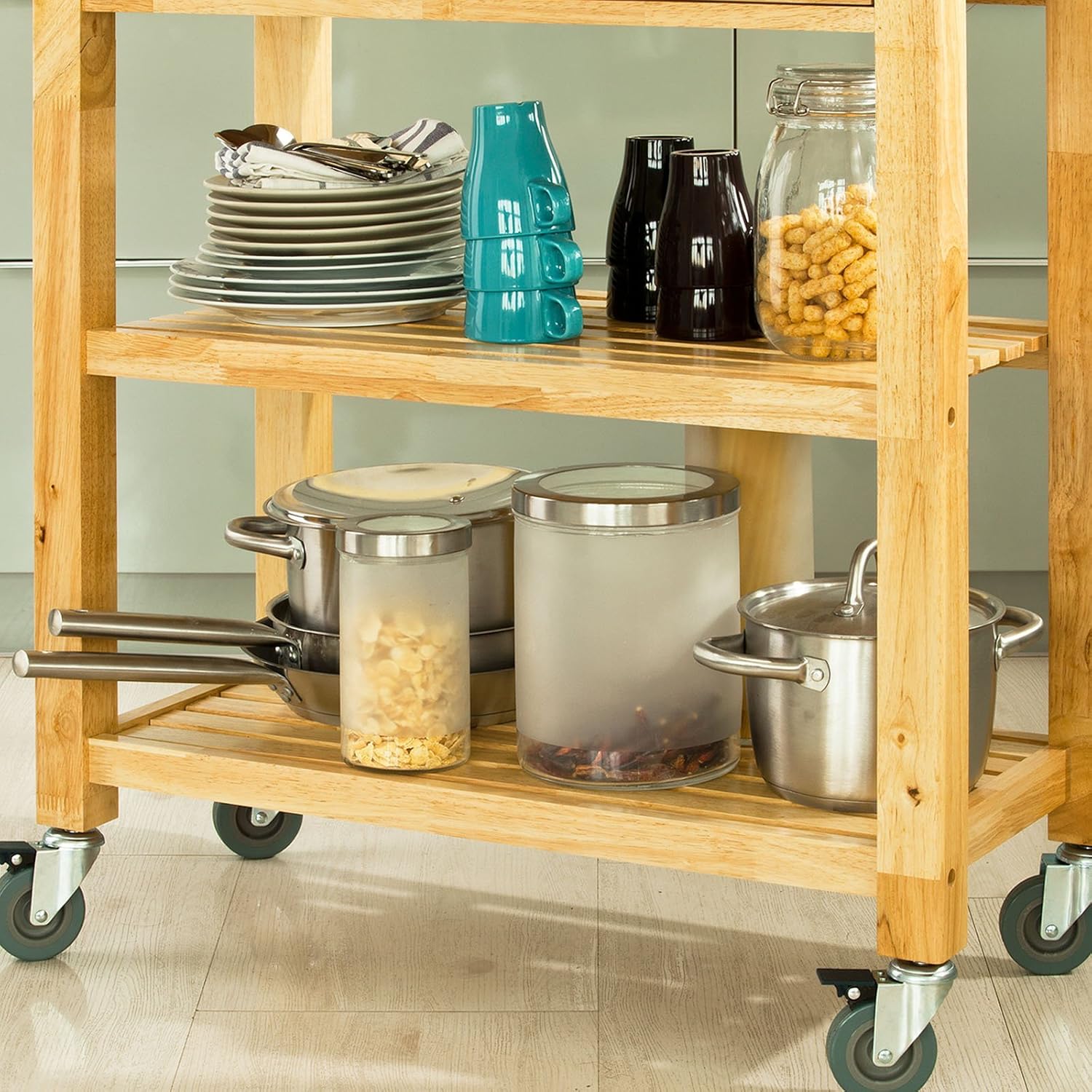

Image 3: SoBuy FKW24-N Kitchen Trolley in use. This image shows the trolley with various kitchen items on its shelves and countertop, demonstrating its storage capacity and utility.

4.2. Mobilidade e estabilidade

• To move the trolley, unlock all four wheels by disengaging the wheel locks.
• Push the trolley gently to its desired location.
• Once positioned, engage the wheel locks on at least two wheels to secure the trolley and prevent unintended movement.

Image 4: Close-up of a SoBuy FKW24-N Kitchen Trolley wheel with its locking mechanism. This image details the design of the castor wheel and the lever used to engage or disengage the brake.

4.3. Capacidade de carga

The maximum load capacity for the entire trolley is 30 kg (66.14 lbs). Ensure weight is distributed evenly. Avoid placing excessively heavy items on a single shelf or drawer, as the capacity per shelf may be lower than the overall unit capacity.

5. Mantemento e coidados

To ensure the longevity and appearance of your SoBuy FKW24-N kitchen trolley, follow these simple maintenance guidelines:

• Limpeza: Limpe as superficies cun suave, damp cloth. For stubborn stains, use a mild soap solution and immediately dry with a clean cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the wood finish.
• Coidado da madeira: The rubber wood is varnished for protection. To maintain its finish, avoid prolonged exposure to direct sunlight or extreme humidity. Periodically check and tighten any loose screws to maintain structural integrity.
• Mantemento de caixóns: If drawers become stiff, apply a small amount of silicone spray or wax to the drawer slides.
• Coidado das rodas: Keep wheels free of debris. If wheels become difficult to roll, clean any accumulated dust or hair from the axles.

6 Solución de problemas

• Pezas que faltan: If you discover missing parts upon unpacking, refer to the parts list and contact the retailer or manufacturer's customer service for assistance. Do not attempt to assemble with incomplete parts.
• Dificultade de montaxe:
  • Screws not aligning: Ensure components are oriented correctly. If minor misalignment occurs, gently adjust or slightly widen pilot holes if comfortable doing so. Do not force screws.
  • Wheels not level: Verify all wheels are fully inserted and tightened. Ensure the trolley is on a flat, even surface. Loosen and re-tighten wheel attachments if necessary.
  • Damaged screws: If screws snap or strip, stop assembly and obtain replacement hardware.
• Caixóns atascados: Check that drawer slides are correctly installed and free of obstructions. Apply a lubricant like silicone spray if needed.
• Trolley unstable: Ensure all screws and fasteners are securely tightened. Verify the trolley is on a level surface and wheel locks are engaged when stationary.

7. Especificacións

8. Garantía e soporte

Specific warranty information for the SoBuy FKW24-N kitchen trolley is typically provided at the point of purchase or within the product packaging. Please refer to your purchase receipt or the documentation included with your product for details regarding warranty coverage and duration.

For technical support, missing parts, or any other inquiries, please contact the retailer from whom you purchased this product. You may also visit the official SoBuy websitio web con información xeral sobre produtos e contactos de atención ao cliente.

When contacting support, please have your model number (FKW24-N) and proof of purchase readily available.
