1. Información importante de seguridade
Before using the TOORX BRX-85 exercise bike, please read this manual thoroughly. Keep this manual for future reference. Failure to follow these instructions may result in injury or damage to the equipment.
- Consulte co seu médico antes de comezar calquera programa de exercicios.
- Asegúrese de que todas as pezas estean correctamente montadas e apertadas antes de cada uso.
- Place the exercise bike on a stable, level surface. Use a protective mat if necessary.
- Manteña os nenos e as mascotas lonxe do equipo durante o seu funcionamento.
- Non exceda o peso máximo do usuario de 125 kg (275 lb).
- Usar roupa e calzado deportivo axeitados.
- Deixar de facer exercicio inmediatamente se se sente mareado, débil ou con dor.
2. Configuración e montaxe
The TOORX BRX-85 exercise bike requires some assembly. Follow the instructions provided in the separate assembly guide for detailed steps. Ensure all components are present before beginning assembly.
2.1 Colocación
Choose a location with sufficient space around the exercise bike for safe entry and exit. The surface should be flat and stable to prevent wobbling during use.
2.2. Saddle Adjustment
Adjust the saddle height to ensure a comfortable and efficient pedaling position. When seated, your knee should have a slight bend at the bottom of the pedal stroke.

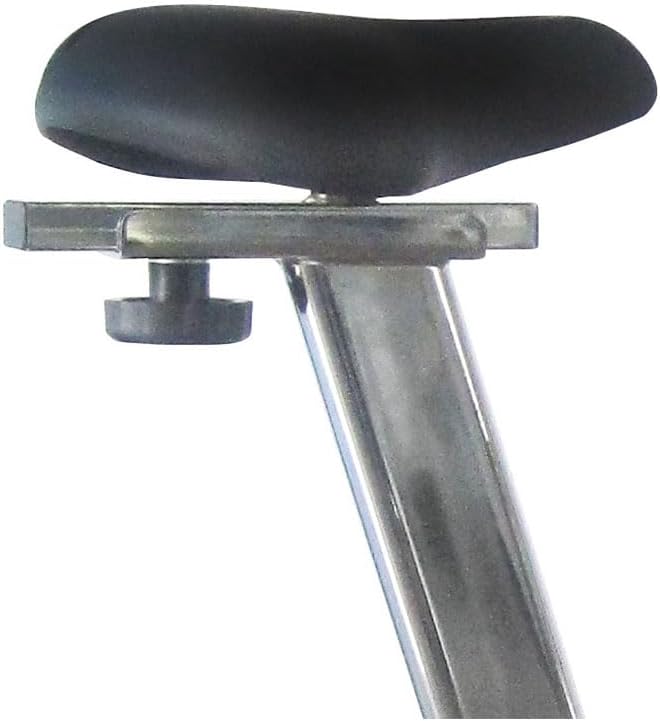

Figura 1: The saddle adjustment mechanism allows users to customize the seat height for optimal comfort and ergonomic positioning during workouts.
2.3. Handlebar Adjustment
The handlebars can be adjusted for inclination to suit your preferred riding posture. Loosen the adjustment knob, set the desired angle, and tighten securely.
3. Instrucións de funcionamento
3.1. Powering On the Console
The console is battery-powered (requires 2 AA batteries, not included). It will automatically turn on when you start pedaling or press any button. It will turn off automatically after a period of inactivity.
Figura 2: The LCD console displays various workout metrics and features control buttons for setting and resetting values.
3.2. Axuste da resistencia
The BRX-85 features a magnetic braking system with 8 levels of manual resistance adjustment. Turn the resistance knob clockwise to increase resistance and counter-clockwise to decrease it.
Figura 3: The resistance knob allows for manual adjustment of the magnetic braking system, offering 8 distinct levels of workout intensity.
3.3. Console Functions
The LCD console displays the following workout data:
- Distancia: Distancia total percorrida durante o adestramento actual.
- Tempo: Duración do adestramento actual.
- Calorías: Calorías queimadas estimadas.
- Pulso: Heart rate reading from the hand pulse sensors.
- Velocidade: Velocidade actual do ciclismo.
- RPM: Revolucións por minuto (cadencia do pedal).
- Recuperación: Measures your heart rate recovery after exercise.
Use the "MODE", "SET", and "RESET" buttons on the console to navigate through display modes, set target values, and clear workout data.
3.4. Hand Pulse Sensors
Grip the hand pulse sensors on the handlebars firmly with both hands to measure your heart rate. Ensure your hands are clean and dry for an accurate reading.
4. Mantemento
Regular maintenance ensures the longevity and optimal performance of your TOORX BRX-85 exercise bike.
- Limpeza: Limpe a bicicleta cun anuncioamp un pano despois de cada uso para eliminar a suor e o po. Evite produtos de limpeza ou solventes abrasivos.
- Inspección: Comprobe periodicamente que todos os parafusos, porcas e pezas móbiles estean ben axustados. Aperte calquera elemento de fixación solto.
- Lubricación: No specific lubrication is required for the magnetic braking system. Refer to the assembly guide for any specific lubrication points if mentioned.
- Substitución da batería: Replace the console batteries (2 AA) when the display becomes dim or unresponsive.
5 Solución de problemas
If you encounter issues with your TOORX BRX-85, refer to the following common troubleshooting tips:
- A consola non mostra:
- Check if the batteries are correctly installed and not depleted. Replace with new AA batteries if necessary.
- Asegúrate de que todas as conexións dos cables á consola estean ben conectadas.
- Lectura inexacta da frecuencia cardíaca:
- Ensure both hands are firmly gripping the pulse sensors.
- Make sure your hands are clean and dry.
- Ruídos pouco comúns:
- Check all bolts and nuts for tightness, especially around the pedals, crank arms, and frame.
- Ensure the bike is on a level surface.
- Resistencia sen cambios:
- Verify that the resistance knob is turning freely and engaging the magnetic system.
- Se o problema persiste, póñase en contacto co servizo de atención ao cliente.
6. Especificacións
| Número de modelo | BRX-85 |
| Sistema de resistencia | Sistema de freado magnético |
| Niveis de resistencia | 8 (manual adjustment) |
| Peso do volante | 9 kg |
| Peso máximo do usuario | 125 kg |
| Dimensións do produto (L x W x H) | 89 x 53 x 140 cm |
| Peso do produto | 33 kg |
| Pantalla da consola | LCD |
| Métricas mostradas | Distance, Time, Calories, Pulse, Speed, RPM, Recovery |
| Monitorización da frecuencia cardíaca | Sensores de pulso manuais |
| Fonte de enerxía | 2 AA batteries (for console) |
| Características axustables | Saddle height, Handlebar inclination |
7. Información da garantía
Specific warranty details for the TOORX BRX-85 exercise bike are not provided in this document. Please refer to the warranty card included with your purchase, or visit the official Toorx website for comprehensive warranty terms and conditions. Keep your proof of purchase for any warranty claims.
8. Atención ao cliente
For further assistance, technical support, or spare parts, please contact Toorx customer service. Specific contact information is not available in this manual. We recommend visiting the official Toorx website or contacting your retailer for the most up-to-date support details.
