Urmet 1750/4 Mirro Color Monitor

1. Introdución

Thank you for choosing the Urmet 1750/4 Mirro Color Monitor. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new monitor. Please read this manual thoroughly before use and retain it for future reference.

The Urmet 1750/4 Mirro Color Monitor is designed to provide clear video and audio communication for your intercom system. It features intuitive controls for adjusting display settings and can be integrated with Yokis radio series products for enhanced home automation capabilities.

2. Información de seguridade

• Seguridade eléctrica: Installation and wiring must be performed by a qualified electrician in accordance with local electrical codes. Disconnect power before performing any installation or maintenance.
• Ambiente: Do not expose the monitor to extreme temperatures, humidity, or direct sunlight. Avoid installing in areas with excessive dust or vibrations.
• Limpeza: Use un pano suave e seco para a limpeza. Non use produtos de limpeza ou disolventes abrasivos.
• Modificacións: Do not attempt to open or modify the monitor. Unauthorized modifications can void the warranty and pose safety risks.

3. Contido do paquete

Comprobe o contido do paquete para asegurarse de que estean presentes todos os elementos:

• Urmet 1750/4 Mirro Color Monitor
• Soporte de montaxe
• Parafusos e tacos
• Manual de usuario (este documento)
• (Note: Additional accessories like power supply or specific wiring may be sold separately depending on your system configuration.)

4. Configuración e instalación

4.1 Montaxe do monitor

1. Choose a suitable location for the monitor, typically near the entrance or in a central living area, ensuring it is at an appropriate viewing altura.
2. Secure the mounting bracket to the wall using the provided screws and wall plugs. Ensure the bracket is level and firmly attached.
3. Refer to the wiring diagram provided with your intercom system for connecting the monitor. Connect all necessary cables (power, video, audio, data) to the terminals on the back of the monitor.
4. Carefully attach the monitor to the mounting bracket, ensuring it clicks securely into place.

4.2 Encendido inicial

Once installation is complete and all connections are secure, restore power to the intercom system. The monitor should power on and display a standby screen or the video feed from the outdoor unit.

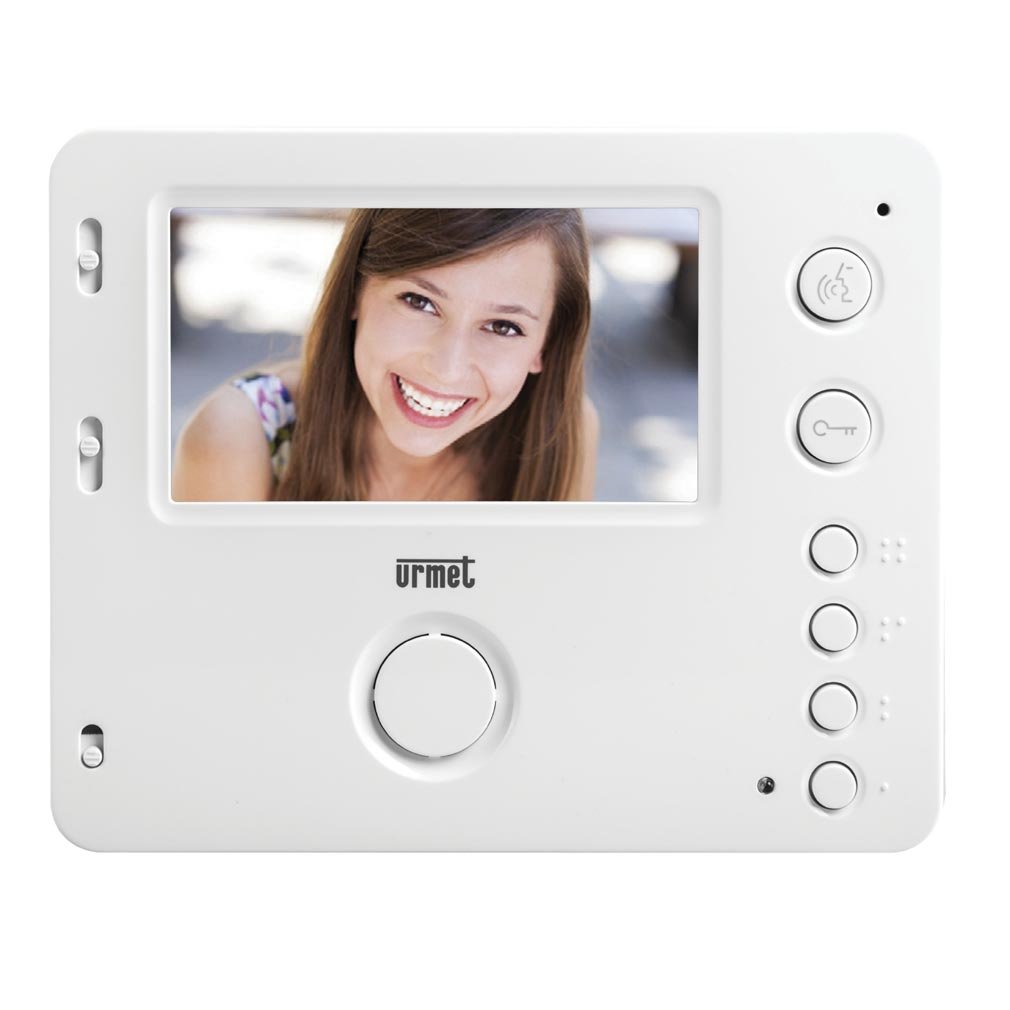

Figura 1: Fronte view of the Urmet 1750/4 Mirro Color Monitor. This image shows the display screen and control buttons, illustrating the sleek design and user interface.

5. Instrucións de funcionamento

The Urmet 1750/4 Mirro Color Monitor offers straightforward operation for daily use.

5.1 Funcións básicas

• Respondendo a unha chamada: When a visitor presses the call button on the outdoor unit, the monitor will ring and display the visitor's image. Press the Resposta button (typically marked with a telephone icon) to establish communication.
• Abrindo a porta: Durante unha chamada, prema o botón Solta da porta button (typically marked with a key icon) to unlock the entrance.
• Seguimento: Preme o Monitor button (typically marked with a camera icon) to view the outdoor camera feed without an incoming call.

5.2 Adjusting Display and Ringtones

The monitor features scroll wheels, usually located on the side or bottom edge, for adjusting settings:

• Volume do ton de chamada: Use the dedicated scroll wheel to increase or decrease the ringtone volume.
• Contraste: Adjust the contrast scroll wheel to modify the difference between light and dark areas on the screen.
• Brillo: Adjust the brightness scroll wheel to control the overall luminance of the display.

5.3 Yokis Radio Series Integration (Optional)

The Urmet 1750/4 monitor is compatible with products from the Yokis radio series. By adding a wireless e4bpp transmitter (sold separately), you can initiate home automation commands directly from the monitor.

• e4bpp Transmitter: Connect the e4bpp transmitter according to its specific installation guide.
• Botóns de comando: Once integrated, two separate buttons on the monitor can be configured to trigger specific Yokis scenarios, such as turning lights on/off or activating a central control for home entry/exit. Refer to the e4bpp transmitter manual for configuration details.

6. Mantemento

Regular maintenance ensures the longevity and optimal performance of your Urmet 1750/4 Mirro Color Monitor.

• Limpeza da pantalla: Limpe a pantalla con suavidade cun pano suave e sen pelusa. Para marcas difíciles, d lixeiramenteampen the cloth with water. Do not spray cleaning solutions directly onto the screen.
• Limpeza do Casing: Use un pano suave e seco para limpar o monitor casing. Evita o uso de produtos químicos agresivos ou materiais abrasivos.
• Ventilación: Ensure that the ventilation openings on the monitor (if any) are not blocked to prevent overheating.

7 Solución de problemas

Se tes problemas co monitor, consulta os seguintes problemas e solucións comúns:

If the problem persists after attempting these solutions, please contact Urmet technical support or a qualified service technician.

8. Especificacións

Below are the technical specifications for the Urmet 1750/4 Mirro Color Monitor:

• Marca: Urmet
• Número de modelo: 1750/4
• Tamaño da pantalla: 4.3 polgadas
• Display Surface Description: Brillante
• Frecuencia de actualización: 120 Hz
• Características especiais: Home automation integration, high refresh rate
• Tecnoloxía de conectividade: HDMI (Note: This might refer to internal components or specific system connections, not necessarily a user-facing HDMI port for external devices.)
• Número de portos HDMI: 1
• Interface de hardware: HDMI
• Pantalla en cor: Si
• Peso do artigo: 330.69 Pounds (Note: This weight seems unusually high for a monitor. Please verify product specifications if this is critical. It might be a data entry error.)

9. Garantía e soporte

Urmet products are manufactured to high-quality standards and are covered by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Urmet websitio.

For technical assistance, troubleshooting, or service inquiries, please contact Urmet customer support. Contact information can typically be found on the Urmet websitio web ou na embalaxe do produto.

Urmet Official Websitio: www.urmet.com
