Shure UA844+SWB/LC Five-way Active Antenna Splitter & Power Distribution System User Manual

Introdución

This manual provides detailed instructions for the setup, operation, and maintenance of your Shure UA844+SWB/LC Five-way Active Antenna Splitter and Power Distribution System. This system is designed to enhance the performance of QLX-D, ULX, ULX-D, SLX, and BLX (BLX4R only) wireless receivers by providing efficient antenna signal splitting and power distribution. Please read this manual thoroughly before using the product to ensure optimal performance and safety.

Información de seguridade

Ensure the device is connected to a power source that matches the specified voltage e requisitos actuais.
Non expoña a unidade á auga nin a humidade excesiva.
Evite bloquear as aberturas de ventilación para evitar o sobrequecemento.
Empregue só os accesorios e complementos especificados polo fabricante.
Encargue toda a reparación a persoal de servizo cualificado.

Contido do paquete

Shure UA844+SWB/LC Five-way Active Antenna Splitter and Power Distribution System
Front-mounting antenna hardware
Hardware de montaxe en rack
Power supply (15V, 2.5A max)
Note: Antenna cables and locking power cables are excluded.

Produto rematadoview

The Shure UA844+SWB/LC is a central unit for managing antenna signals and power for multiple wireless receivers. It features inputs for external antennas and multiple outputs to connect to your wireless receiver units.

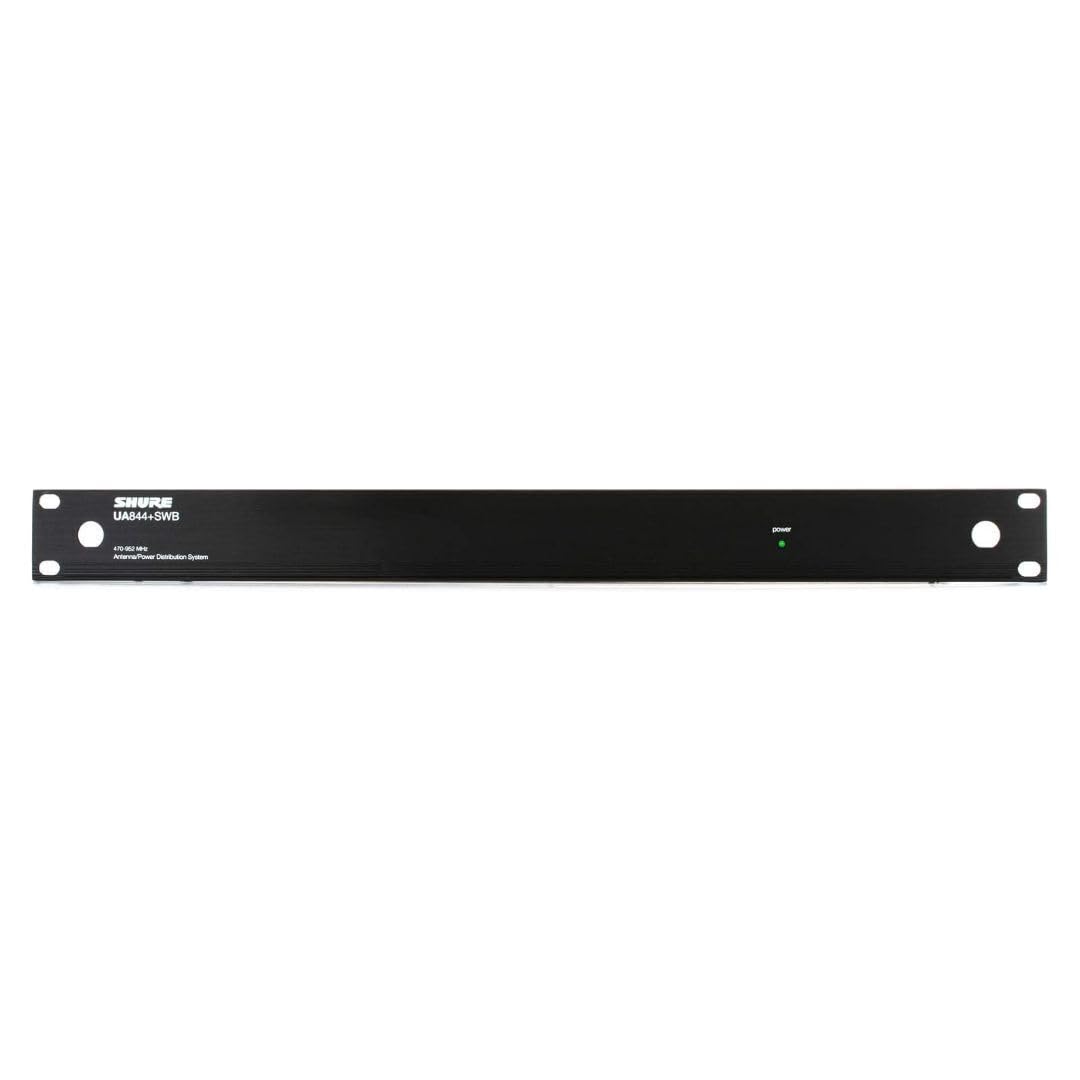

Shure UA844+SWB/LC Five-way Active Antenna Splitter and Power Distribution System — Fronte view of the Shure UA844+SWB/LC, a five-way active antenna splitter and power distribution system.

Traseira view of Shure UA844+SWB/LC showing antenna and power connections — Traseira view of the Shure UA844+SWB/LC, illustrating the various antenna and power output connections.

Configuración

1. Conexión de antenas

Connect your external antennas to the BNC connectors on the Shure UA844+SWB/LC unit. Ensure connections are secure to maintain signal integrity. The system supports active antennas for boosted signal reception.

2. Conexión da fonte de alimentación

Connect the provided power supply to the UA844+SWB/LC unit and then to a suitable power source. The unit also provides 4 DC power feeds for your receivers (15V, 2.5A max), eliminating the need for individual power bricks for each receiver.

3. Conectando receptores

Connect your QLX-D, ULX, ULX-D, SLX, or BLX4R receivers to the antenna outputs and DC power feeds on the UA844+SWB/LC. Use appropriate coaxial cables for antenna connections and locking power cables if available for secure power delivery.

4. Network Setup for QLX-D Systems

For QLX-D systems, network your receivers together using Cat 5e or Cat 6 Ethernet cables connected from the back of each receiver to a network switch. This enables features like Network Scan for coordinated frequency management. Ensure your network uses a DHCP-enabled router for automatic IP address assignment. Manual IP address setup is also possible. Receivers must be on the same subnet.

Video: Learn how to set up your Shure QLX-D Wireless Systems, including antenna, power, and audio output connections. This video provides a visual guide to the initial physical setup of your wireless microphone system components.

Video: This tutorial demonstrates how to use the Network Scan function on Shure QLX-D systems to identify clean and compatible frequencies when working with multiple QLX-D units. It covers networking receivers and initiating a network scan.

En funcionamento

1. Finding an Open Channel (QLX-D)

On your QLX-D receiver, press the 'menu' button to access the scan function. Press 'enter' to initiate a scan for available frequencies. The group and channel will appear on the display once the scan is complete.

2. Syncing Transmitters (QLX-D)

Install batteries into your transmitter and turn it on. Press the 'sync' button on the receiver and align the transmitter's IR window about 6 inches away from the receiver's IR port. 'Good' will display on the receiver when sync is complete, and the blue RF LED will illuminate.

3. Checking Levels (QLX-D)

During a sound check, monitor the audio meter and LED on the receiver. The meter should display at least three bars, and the LED should be green. Adjust the gain using the arrow buttons on the front of the receiver if necessary to achieve optimal audio levels without clipping.

4. Using Network Scan (QLX-D)

Once receivers are networked, select a group or custom group on the receiver to initiate the Network Scan. Press the 'menu' button until 'Network Scan' appears and is flashing, then press 'enter'. The front panel LEDs of all receivers will blink when frequencies have been assigned. If full deployment does not occur due to insufficient open frequencies, select another group and re-scan. Consult the Shure online Wireless Frequency Finder tool if you are unsure which group is best to use.

Mantemento

Manteña a unidade limpa e libre de po. Use un pano seco e suave para limpar.
Regularly check all cable connections for wear and tear.
Almacene a unidade nun lugar fresco e seco cando non estea en uso.

Resolución de problemas

Sen sinal: Check all antenna connections and ensure receivers are powered on and synced. Verify that the antennas are positioned correctly and unobstructed.
Sinal intermitente: Re-scan for open frequencies, especially in environments with high RF interference. Ensure all components are securely connected.
Problemas de enerxía: Confirm the power supply is correctly connected and functioning. Check all DC power feeds to receivers.
Network Scan Not Appearing: Ensure all QLX-D receivers are properly networked together and recognized by the system.

Especificacións

Característica	Detalle
Peso do elemento	8.51 libras
Dimensións do produto	23.2 x 16.4 x 4 polgadas
Número de modelo do artigo	UA844 + SWB / LC
Cor	Negro
Tipo de antena	Radio
Número de canles	5
UPC	042406461535
Fabricante	Shure

Garantía e Soporte

For warranty information, technical support, or further assistance, please visit the official Shure websitio web ou póñase en contacto co servizo de atención ao cliente. Garde o recibo de compra para reclamacións de garantía.
