Avantree Roxa Plus

1. Introdución

The Avantree Roxa Plus is an aptX Low Latency Bluetooth audio receiver designed to enable wireless audio streaming to your home stereo system, speakers, or other audio devices. It connects to an AC outlet for power and features a USB charging port for convenience.

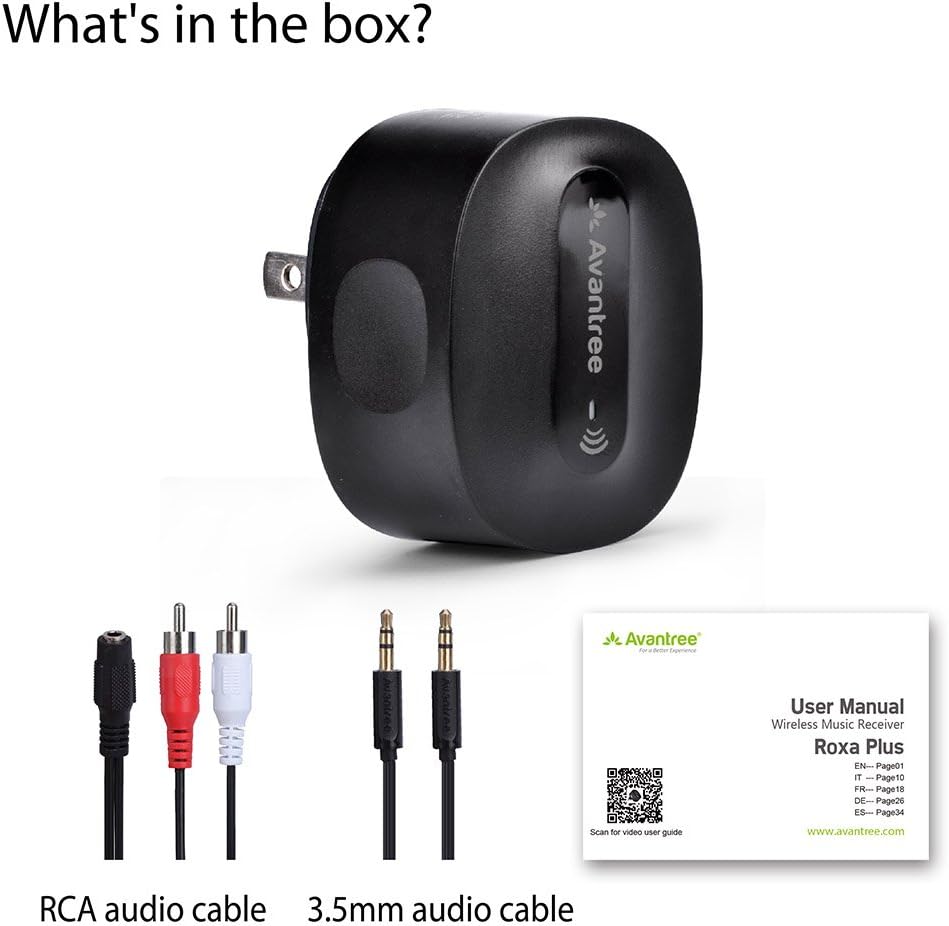

2. Contido do paquete

• Avantree Roxa Plus Bluetooth Receiver
• Cable de audio de 3.5 mm
• RCA Audio Cable (3.5mm female to split RCA plugs)
• Guía de inicio rápido

The package includes the Avantree Roxa Plus Bluetooth receiver, an RCA audio cable, a 3.5mm audio cable, and a quick start guide to assist with setup.

3. Produto rematadoview

Características principais:

• Bluetooth-Enable Your Audio System: Stream audio wirelessly from any Bluetooth-enabled device to your home stereo or speakers.
• Plug & Play: Simple setup with automatic connection after initial pairing.
• Alimentado por CA: No internal battery, ensuring continuous operation without the need for charging.
• aptX Baixa latencia: Reduces Bluetooth audio delay for synchronized sound, ideal for watching TV and movies.
• Porto de carga USB: Charge your mobile devices simultaneously while using the receiver.

4. Configuración

4.1 Conexión ao sistema de son

1. Plug the Avantree Roxa Plus directly into a standard AC wall outlet. The device will power on automatically.
2. Connect the Roxa Plus to your home stereo system or speakers using one of the provided audio cables:
   • For a 3.5mm AUX input on your audio system, use the 3.5mm to 3.5mm audio cable.
   • For RCA (red/white) inputs on your audio system, use the 3.5mm female to split RCA cable.

The Avantree Roxa Plus allows you to stream audio wirelessly from your Bluetooth-enabled device to your home stereo or speaker system.

4.2 Emparellamento cun dispositivo Bluetooth

1. Once powered on, the Roxa Plus will automatically enter pairing mode. The LED indicator will flash to show it is ready to connect.
2. On your Bluetooth-enabled device (e.g., smartphone, tablet, PC), go to the Bluetooth settings and search for new devices.
3. Select "RoxaPlus" from the list of available devices to connect.
4. Once connected, the LED indicator on the Roxa Plus will turn solid, and you can begin streaming audio.

Setting up the Roxa Plus is straightforward. Plug it into an AC outlet, connect it to your audio system using the provided AUX or RCA cable, and then pair it with your smartphone via Bluetooth.

5. Instrucións de funcionamento

5.1 Funcionamento básico

• After initial pairing, the Roxa Plus will automatically reconnect to the last paired device when both are powered on and within range.
• Control audio playback (play/pause, skip tracks) and volume directly from your connected Bluetooth device.

5.2 Uso do porto de carga USB

The Roxa Plus features a USB charging port (5V/1A output) on its side. You can use this port to charge your smartphone, tablet, or other USB-powered devices while the Roxa Plus is plugged into an AC outlet and functioning as an audio receiver.

The Roxa Plus includes a convenient USB charging port, allowing you to charge your smartphone, tablet, or other USB-powered devices while the receiver is in use.

5.3 aptX Low Latency Audio

The Roxa Plus supports aptX Low Latency, which significantly reduces audio delay when paired with an aptX Low Latency enabled Bluetooth transmitter (e.g., Avantree Oasis). This ensures that audio and video are synchronized, providing a better experience for watching movies or playing games.

Featuring aptX Low Latency technology, the Roxa Plus minimizes audio delay, ensuring synchronized sound for an optimal viewing or listening experience, especially when paired with an aptX Low Latency transmitter.

6. Mantemento

• Manteña o dispositivo seco. A humidade pode danar os circuítos internos.
• Non expoña o dispositivo a temperaturas extremas.
• Limpa o dispositivo cun pano suave e seco. Non empregues produtos químicos agresivos nin deterxentes.
• Garda o dispositivo nun lugar fresco e seco cando non estea en uso.

7 Solución de problemas

7.1 Non se pode emparellar cun dispositivo Bluetooth

• Ensure the Roxa Plus is powered on and in pairing mode (LED flashing).
• Make sure your Bluetooth device is within range (up to 33 feet) and its Bluetooth function is enabled.
• Turn off Bluetooth on any other nearby devices that might be trying to connect to the Roxa Plus.
• Try restarting both the Roxa Plus (unplug and replug) and your Bluetooth device.

7.2 Sen son

• Verify that the Roxa Plus is successfully paired with your Bluetooth device.
• Check that the audio cable is securely connected between the Roxa Plus and your audio system.
• Ensure your audio system is set to the correct input source (e.g., AUX, RCA).
• Adjust the volume on both your Bluetooth device and your audio system.

7.3 Retraso de audio

• For minimal audio delay, ensure your transmitting Bluetooth device also supports aptX Low Latency.
• Environmental factors or interference can sometimes cause minor delays. Try moving devices closer or away from other wireless electronics.

8. Especificacións

9. Información de seguridade

• Manexa o dispositivo con coidado. Evita deixalo caer nin sometelo a impactos fortes.
• Non intente desmontar nin modificar o dispositivo. Isto podería anular a garantía e causar danos.
• Keep the device away from water, fire, and high voltage equipos.
• Dispose of the device responsibly according to local regulations. Do not dispose of with household waste.
• This device may cause interference with other wireless devices. Maintain a reasonable distance from other electronics to prevent disruption.

10. Garantía e soporte

Avantree products come with a manufacturer's warranty. For detailed warranty information, technical support, or to register your product, please visit the official Avantree websitio web ou póñase en contacto directamente co servizo de atención ao cliente.

Official Avantree Support: www.avantree.com/support
