Manual do usuario da antena de TV para exteriores monofónica One for All SV 9357

1. Introdución

This manual provides comprehensive instructions for the installation, operation, and maintenance of your One for All SV 9357 Mono Outdoor TV Antenna. This antenna is designed to receive digital terrestrial television (DVB-T, DVB-T2) and digital audio broadcasting (DAB, DAB+) signals. Please read this manual carefully before installation and use to ensure optimal performance and safety.

2. Información de seguridade

• Instalación exterior: Exercise extreme caution when installing the antenna outdoors, especially on rooftops or near power lines. Consider hiring a professional installer if you are not comfortable with heights or electrical work.
• Condicións meteorolóxicas: Avoid installation during stormy weather, high winds, or when lightning is present.
• Conexión a terra: Ensure the antenna and mast are properly grounded according to local electrical codes to protect against lightning strikes.
• Xestión de cables Secure all cables to prevent tripping hazards and damage from wind or animals.
• Fonte de alimentación: Se usa un amplified version or external amplifier, ensure the power supply is correctly connected and rated for outdoor use if applicable.

3. Contido do paquete

Comprobe que todos os compoñentes estean presentes no paquete antes de comezar a instalación.

Figure 1: One for All SV 9357 antenna packaging box, showing the antenna and product details.

• One for All SV 9357 Mono Outdoor TV Antenna
• Mounting hardware (e.g., clamps, bolts, nuts)
• Manual de instrucións (este documento)
• Note: Coaxial cable and mast are typically sold separately.

4. Configuración e instalación

Proper installation is crucial for optimal signal reception.

4.1 Antenna Assembly

1. Desembale con coidado todos os compoñentes da caixa.
2. Extend the antenna elements as shown in the diagram. Ensure all elements click into place securely.
3. Attach the reflector elements (if separate) to the main boom.

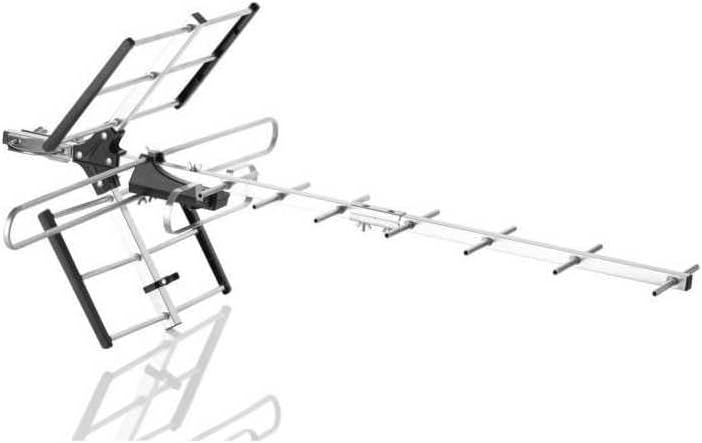

Figure 2: Fully assembled One for All SV 9357 antenna, ready for mounting.

4.2 Localización de montaxe

Choose a mounting location that is as high as possible and has a clear line of sight to the broadcast towers. Avoid obstructions like buildings, trees, or hills.

• Terraza: Provides the best elevation and clear line of sight.
• Ático: Can be an option in strong signal areas, but may reduce signal strength.
• Wall/Chimney: Ensure secure mounting to a sturdy structure.

Figure 3: The SV 9357 antenna is designed for outdoor use and is resistant to various weather conditions.

4.3 Antenna Mounting

1. Attach the antenna to a mast using the provided mounting hardware. Ensure the antenna is level and securely fastened.
2. Mount the mast to your chosen location (rooftop, wall, chimney) using appropriate brackets and fasteners.
3. Connect a high-quality coaxial cable (F-type connector) to the antenna's output port.
4. Route the coaxial cable neatly and securely down to your television or set-top box, avoiding sharp bends or kinks. Use cable clips to secure the cable.
5. Connect the other end of the coaxial cable to the "Antenna In" or "RF In" port on your television or digital receiver.

Figure 4: Basic tools like a screwdriver may be required for assembly and mounting.

5. Instrucións de funcionamento

5.1 Escaneo de canles

1. Acenda o televisor ou o receptor dixital.
2. Access the TV's menu and navigate to the "Channel Setup," "Antenna Setup," or "Scan" section.
3. Select "Antenna" or "Air" as the input source.
4. Initiate an "Auto Scan" or "Auto Program" to search for available channels. This process may take several minutes.
5. Once the scan is complete, your TV should display the received channels.

5.2 Orientación da antena

For optimal reception, the antenna should be pointed towards the local broadcast towers. You can find the direction of your local towers using online resources or signal finder apps.

• Adjust the antenna's direction incrementally.
• Perform a channel scan after each adjustment to check for improved signal strength and more channels.
• Fine-tune the direction until you achieve the best possible reception for all desired channels.

Figure 5: Use a signal meter or smartphone app to assist with antenna orientation for optimal signal reception.

Figure 6: The antenna includes technology to filter out interference from 5G mobile signals.

6. Mantemento

• Inspección periódica: Periodically inspect the antenna, mast, and cables for any signs of damage, corrosion, or loose connections, especially after severe weather.
• Limpeza: Gently clean the antenna elements with a soft cloth and mild detergent if necessary. Avoid abrasive cleaners or solvents.
• Integridade do cable: Ensure coaxial cables are not frayed, cracked, or exposed to excessive moisture. Replace damaged cables promptly.

7 Solución de problemas

8. Especificacións

9. Garantía e soporte

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official One For All websitio. Garda o comprobante de compra para reclamacións de garantía.
