Introdución
This manual provides detailed instructions for the installation, operation, and maintenance of your Amazon Basics Blackout Roller Blind. Designed for privacy and light blocking, this thermal roller blind is made from 100% UV-resistant polyester fabric. Please read these instructions carefully before installation and retain them for future reference.
Figure 1: Amazon Basics Blackout Roller Blind, fully extended.
Información de seguridade
- Keep the pull cord out of reach of small children and pets to prevent entanglement hazards.
- Asegúrate de que todos os accesorios de montaxe estean ben fixados para evitar que a persiana caia.
- Do not attempt to modify the blind or its components, as this may compromise its functionality and safety.
Contido do paquete
Antes de comezar a instalación, comprobe que estean presentes todos os compoñentes:
- Blackout Roller Blind (1)
- Clips de montaxe (2)
- Roller Mechanism with Pull Cord (1)
- Tapa de extremo (1)
Configuración e instalación
The Amazon Basics Blackout Roller Blind is designed for easy installation without the need for drilling. Follow these steps:
- Prepare the Window Frame: Ensure the window frame is clean and free from obstructions. The blind is suitable for window depths between 1.5 cm and 2 cm.
- Coloque clips de montaxe: Secure the two mounting clips to the top of your window frame. These clips are designed to grip the frame without drilling. Ensure they are spaced appropriately to support the roller blind mechanism.
- Install the Roller Mechanism: Insert the roller mechanism (with the pull cord) into one of the mounting clips. The bracket width for the supports is 2 cm.
- Attach the End Cap: Insert the plain end cap into the other mounting clip. Ensure both ends are securely seated in their respective clips.
- Verificar a instalación: Gently pull the cord to ensure the blind rolls up and down smoothly and is securely attached to the window frame.
Figure 2: Close-up of the mounting clip installation.
Figure 3: Roller mechanism inserted into the mounting clip.
Figure 4: Installed roller blind, partially open.

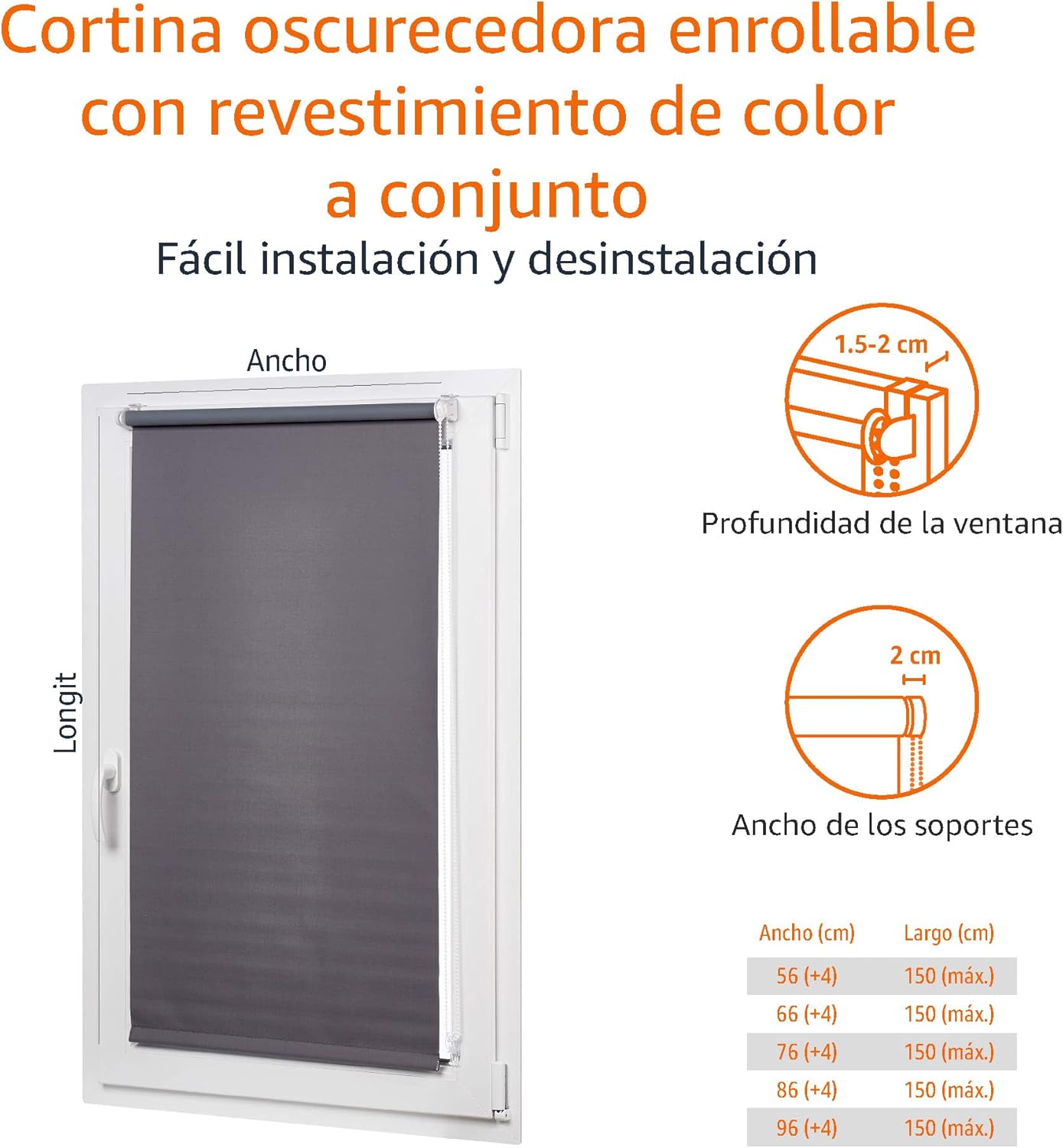

Figure 5: Installation diagram showing window depth (1.5-2 cm) and bracket width (2 cm).
Instrucións de funcionamento
The Amazon Basics Blackout Roller Blind operates manually using a pull cord system.
- Para baixar o cego: Gently pull the cord downwards until the blind reaches the desired position.
- Para levantar o cego: Gently pull the cord downwards and slightly towards the center of the blind, then release slowly to allow the blind to retract upwards. Control the speed of retraction by maintaining a slight tension on the cord.
- The blind is designed for smooth and controlled movement. Avoid sudden or forceful pulling of the cord.
Mantemento
To ensure the longevity and appearance of your Amazon Basics Blackout Roller Blind, follow these maintenance guidelines:
- Limpeza: The blind is made from 100% UV-resistant polyester fabric. For light cleaning, gently wipe the fabric with a soft, damp cloth. For more stubborn marks, use a mild soap solution and a soft cloth, then wipe clean with a damp cloth and allow to air dry completely before rolling up.
- Desempolvado: Regularly dust the blind with a soft brush or vacuum cleaner with a brush attachment to prevent dust buildup.
- Mecanismo: The roller mechanism is designed for durability. Avoid applying lubricants or harsh cleaning agents to the mechanism.
- Resistencia á decoloración: The fabric is color-fade resistant, but prolonged exposure to direct, intense sunlight may still affect its appearance over many years.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| A persiana non sobe nin baixa con suavidade. |
|
|
| Blind falls from window frame. |
|
|
| Blind fabric appears creased or uneven. |
|
|
Especificacións
- Marca: Conceptos básicos de Amazon
- Número de modelo: TEX-17701-13
- Dimensions (W x L): 96 cm x 150 cm
- Material: Tecido 100% poliéster
- Cor: Branco
- Opacidade: Apagón
- Modo de operación: Manual (Pull Cord)
- Características especiais: Thermal, UV-resistant, Color-fade resistant, No-drill installation (with clips)
- Peso do produto: Aproximadamente 346.54 g
Garantía e Soporte
For warranty information or product support, please refer to the Amazon Basics official website or contact Amazon customer service directly. Keep your purchase receipt for warranty claims.
Podes visitar o Amazon Basics Store para máis información.
