1. Introdución
The Godox VC-18 charger is specifically designed for recharging the Godox VB18 Li-ion battery packs used with Godox VING V860II series camera flashes. This charger provides a reliable and efficient way to power your flash units. It supports both AC power and car charging for versatile use.
Nota importante sobre compatibilidade: This charger is compatible with Godox VING V860II-C, V860II-N, V860II-S, V860II-O, and V860II-F series flashes. It is non compatible with V860III series or V850III series batteries and chargers (e.g., VC26 charger).

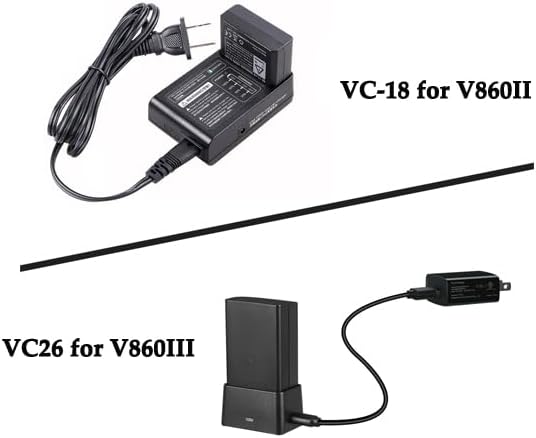

Image 1.1: Comparison showing the VC-18 for V860II and VC26 for V860III, highlighting compatibility differences.
2. Información de seguridade
- Read this instruction manual thoroughly before using the charger for the first time.
- Use only the supplied charger with specified battery packs. Failure to do so will invalidate the charger warranty and may cause damage.
- Non expoña o cargador á choiva nin á humidade.
- Non desmonte nin modifique o cargador.
- Manter fóra do alcance dos nenos.
- Desconecte o cargador da fonte de alimentación cando non o use ou antes de limpalo.
3. Produto rematadoview
The Godox VC-18 charger is a compact unit designed for convenience and portability. It features a dedicated slot for the VB18 Li-ion battery and clear charging indicators.
Image 3.1: The Godox VC-18 charger, power cable, and retail box.
Compoñentes:
- Ranura para batería: For inserting the VB18 Li-ion battery.
- Charging Indicators (LEDs): Display charging status (20%, 50%, 80%, 100%).
- Errors Indicator (LED): Illuminates if a charging error occurs.
- Entrada de enerxía CA: Para conectar o cable de alimentación CA.
- Entrada do cargador de coche: For connecting a VING-only car charger cable (sold separately).
Imaxe 3.2: Detallada view of the battery slot and charging indicators on the VC-18 charger.
Imaxe 3.3: Lateral view of the VC-18 charger, indicating the input for a VING-only car charger.
4. Configuración
4.1 Connecting to AC Power:
- Insert the AC power cable into the AC input port on the charger.
- Plug the other end of the AC power cable into a standard wall outlet (100-240V, 50/60Hz).
- O cargador xa está listo para o seu uso.
Image 4.1: The VC-18 charger with the AC power cable connected.
4.2 Connecting to Car Power (Optional):
- Obtain a compatible VING-only car charger cable (not included with standard package).
- Insert the car charger cable into the dedicated car charger input port on the side of the VC-18 charger.
- Plug the other end of the car charger cable into your vehicle's 12V accessory outlet.
5. Instrucións de funcionamento
5.1 Charging a VB18 Li-ion Battery:
- Ensure the VC-18 charger is connected to a power source (AC or car power).
- Carefully insert the Godox VB18 Li-ion battery into the battery slot on the charger, ensuring proper orientation.
- The charging indicator LEDs will illuminate to show the current charge level.
- Charging typically takes approximately 2.5 hours for a fully depleted battery.
- Once all four charging indicator LEDs (20%, 50%, 80%, 100%) are steadily lit, the battery is fully charged.
- Remove the battery from the charger once charging is complete.
Image 5.1: The VC-18 charger with a VB18 battery inserted, showing the charging progress indicators.
5.2 Charging Indicators:
- LED intermitentes: Indicate active charging. The LEDs will flash sequentially to show progress.
- LEDs sólidos: Indicate the corresponding charge level has been reached. When all four LEDs are solid, the battery is fully charged.
- 'ERRORS' LED: If this LED flashes, it indicates a charging error. Refer to the troubleshooting section.
6. Mantemento
- Manteña o cargador limpo e libre de po. Use un pano suave e seco para limpalo.
- Evite deixar caer o cargador ou sometelo a impactos fortes.
- Garda o cargador nun lugar fresco e seco cando non estea en uso.
- Do not use harsh chemicals or abrasive cleaners on the charger.
7 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O cargador non acende. | Sen fonte de alimentación; conexión solta. | Check if the power cable is securely connected to both the charger and the wall outlet. Try a different outlet. |
| Battery not charging / 'ERRORS' LED flashing. | Battery not inserted correctly; incompatible battery; faulty battery; charger malfunction. | Ensure the VB18 battery is inserted correctly. Verify the battery is a compatible VB18 model. Try another compatible battery if available. If the issue persists, the battery or charger may be faulty. |
| Carga lenta. | Power source issue; battery condition. | Ensure the power source is stable. Battery performance can degrade over time. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Modelo | VC-18 |
| Entrada | CA 100-240V, 50 / 60Hz, 0.3A |
| Saída | 12.6V/0.85A |
| Batería compatible | Godox VB18 Li-ion Battery Pack (for VING V860II series) |
| Tempo de carga | Approx. 2.5 hours (for AV charging) |
| Dimensións | Not specified in provided data, typically compact. |
| Peso | 170 gramos |
9. Garantía e soporte
Para obter información sobre a garantía, asistencia técnica ou consultas sobre o servizo, consulte a tarxeta de garantía incluída co produto ou visite o sitio web oficial de Godox. websitio. Garde o recibo da compra como xustificante da mesma.
Godox oficial Websitio: http://www.godox.com/CN/
