Crown CT21056LBMC 18V Cordless Drill Driver

1. Introdución

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Crown CT21056LBMC 18V Cordless Drill Driver. Please read these instructions carefully before using the tool and keep them for future reference. This drill driver is designed for drilling into wood, metal, and plastics, and for driving screws.

2. Instrucións de seguridade

Siga sempre as precaucións de seguridade básicas para reducir o risco de incendio, descarga eléctrica e lesións persoais ao usar ferramentas eléctricas.

• Seguridade na zona de traballo: Manteña a súa área de traballo limpa e ben iluminada. As zonas desordenadas ou escuras invitan aos accidentes. Non manexe ferramentas eléctricas en atmosferas explosivas, como en presenza de líquidos, gases ou po inflamables.
• Seguridade eléctrica: Evite o contacto corporal con superficies conectadas á terra ou con toma de terra, como tubaxes, radiadores, fogóns e frigoríficos. Non expoña as ferramentas eléctricas á choiva nin á humidade.
• Seguridade persoal: Use sempre protección ocular. Use protección auditiva cando traballe durante períodos prolongados. Vístase axeitadamente; evite roupa folgada ou xoias. Sujete o cabelo longo.
• Uso e coidado da ferramenta: Non force a ferramenta eléctrica. Empregue a ferramenta eléctrica axeitada para a súa aplicación. Desconecte a batería da ferramenta eléctrica antes de facer axustes, cambiar accesorios ou gardar ferramentas eléctricas.
• Seguridade da batería: Recharge only with the charger specified by the manufacturer. Do not incinerate the battery pack even if it is severely damaged.

3. Contido do paquete

Carefully unpack all items and check against the list below. If any parts are missing or damaged, contact your retailer.

• 1 x Crown CT21056LBMC Cordless Drill Driver
• 2 x 18V Lithium-Ion Batteries (1.5 Ah)
• 1 x cargador de batería
• 1 x Manual de instrucións (este documento)
• 1 x Maletín de transporte

Image 1: The complete Crown CT21056LBMC kit, showing the drill driver, two batteries, charger, and the durable carrying case.

4. Produto rematadoview

Familiarize yourself with the components of your drill driver before operation.

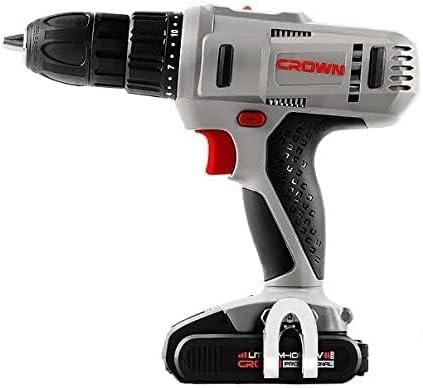

Imaxe 2: Lateral view of the drill driver, illustrating key components such as the chuck, torque adjustment collar, speed selector switch, and trigger.

• Portabrocas sen chave: Para cambios de brocas rápidos e sinxelos.
• Aro de axuste de torque: Selects the desired torque setting for driving screws or drill mode.
• Interruptor selector de velocidade: Allows selection between two mechanical speed ranges.
• Interruptor de avance/retroceso: Cambia o sentido de rotación do mandril.
• Interruptor de disparo: Activa a furadeira e controla a velocidade.
• Luz de traballo LED: Ilumina a área de traballo.
• Batería: Proporciona enerxía á ferramenta.
• Botón de liberación da batería: For removing the battery pack.

5. Configuración

5.1. Cargando a batería

The battery pack is not fully charged at the time of purchase. It must be fully charged before first use.

1. Conecta o cargador a unha toma de corrente estándar.
2. Slide the battery pack onto the charger base. Ensure it clicks into place.
3. The charging indicator light on the charger will show the charging status. A full charge takes approximately 45 minutes for a 1.5 Ah battery.
4. Unha vez cargada completamente, desconecte a batería do cargador e desconecte o cargador da toma de corrente.

5.2. Instalación e extracción da batería

• Para instalar: Align the battery pack with the base of the drill driver and slide it in until it clicks securely into place.
• Para eliminar: Press the battery release button and slide the battery pack out from the tool.

Image 3: The drill driver with a fully installed battery pack, ready for use.

5.3. Instalación e extracción de brocas/brocas de chave

1. Rotate the keyless chuck counter-clockwise to open the jaws.
2. Insert the drill bit or driver bit into the chuck, ensuring it is centered.
3. Rotate the keyless chuck clockwise to tighten the jaws firmly around the bit. Do not overtighten.
4. Para retirar, xire o mandril en sentido antihorario ata que poida sacar a broca.

6. Instrucións de funcionamento

6.1. Selección da velocidade

The drill driver features two mechanical speed settings:

• Velocidade 1 (Baixa velocidade, 0-350 RPM): Ideal for driving screws, larger drilling diameters, or applications requiring higher torque.
• Velocidade 2 (alta velocidade, 0-1350 rpm): Suitable for smaller drilling diameters and faster drilling.

To change speed, slide the speed selector switch located on top of the drill. Ensure the tool is stopped before changing speeds.

6.2. Adjusting Torque

The torque adjustment collar has 18 torque settings plus a drill mode (indicated by a drill bit symbol).

• Axustes de par (1-18): Use these settings for driving screws. Lower numbers are for smaller screws or softer materials, higher numbers for larger screws or harder materials. The clutch will disengage when the set torque is reached, preventing overtightening or stripping.
• Drill Mode (Drill Bit Symbol): Provides maximum torque for drilling applications without the clutch disengaging.

Rotate the torque adjustment collar to select the desired setting.

6.3. Rotación cara adiante/cara atrás

The forward/reverse switch is located above the trigger. Push it to the left for forward rotation (for drilling and driving screws) and to the right for reverse rotation (for removing screws or freeing jammed bits). Position the switch in the center to lock the trigger and prevent accidental starting.

6.4. Operating the Trigger Switch and LED Light

Squeeze the trigger switch to start the drill. The speed is variable depending on how far the trigger is pressed. The integrated LED work light will illuminate when the trigger is pressed, providing visibility in dimly lit areas.

7. Mantemento

Un mantemento regular garante un rendemento óptimo e prolonga a vida útil da súa ferramenta.

• Limpeza: Manteña as aberturas de ventilación limpas e libres de po. Use un pano suave eamp pano para limpar a ferramenta casing. Non empregue solventes nin produtos de limpeza abrasivos.
• Coidado da batería: Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
• Almacenamento: Store the drill driver, batteries, and charger in the provided carrying case in a dry, secure location out of reach of children.
• Inspección: Regularly inspect the power tool for any signs of damage, loose screws, or worn parts. If damage is found, have it repaired by a qualified service technician.

8 Solución de problemas

Before attempting any repairs, ensure the battery is removed from the tool.

9. Especificacións

10. Garantía e soporte

For warranty information, service, or technical support, please refer to the warranty card included with your product or contact your point of purchase. Keep your purchase receipt as proof of purchase for any warranty claims.
