Power Zone EH-4604A Mount Garage Heater User Manual

Instrucións de seguridade importantes

Please read all instructions carefully before installing or using this heater. Failure to follow these instructions may result in fire, electric shock, serious injury, or property damage. Retain this manual for future reference.

• Seguridade eléctrica: This heater operates on 240V. Ensure proper electrical wiring and a dedicated circuit are used. All electrical connections must comply with local electrical codes.
• Protección contra sobrecalentamento: The heater is equipped with a safety overheat control. If the heater overheats, it will automatically shut off. A caution light indicates this condition. Allow the unit to cool before resetting.
• Colocación: Mount the heater securely to the ceiling using the provided 3-way bracket. Maintain adequate clearance from combustible materials. Do not block air intake or exhaust vents.
• Supervisión: Do not leave the heater unattended while in operation. Keep children and pets away from the heater.
• Proposición 65 Advertencia: Este produto pode expoñelo a produtos químicos que o Estado de California sabe que causan cancro e defectos de nacemento ou outros danos reprodutivos. Para máis información vai a www.P65Warnings.ca.gov.

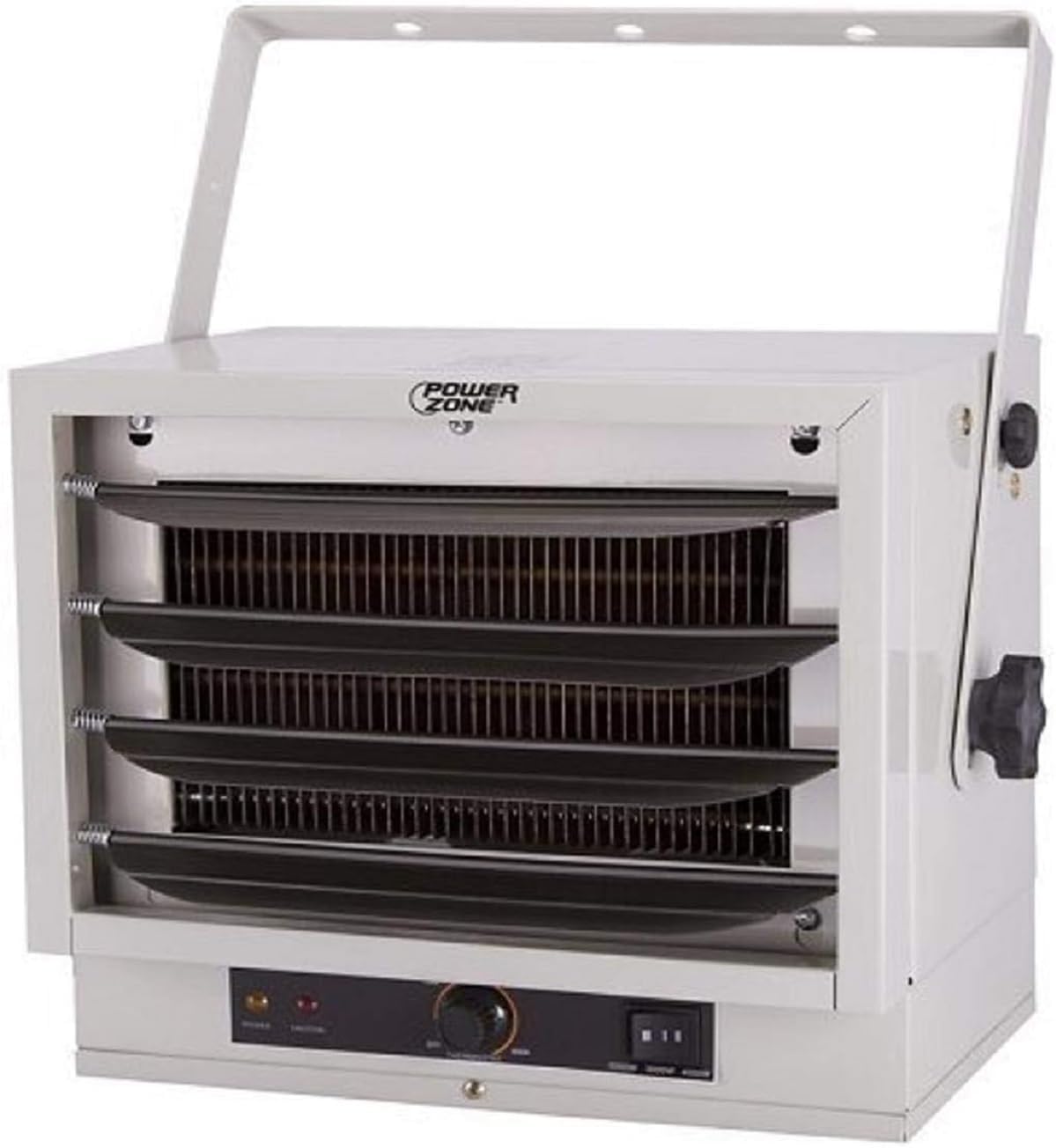

Produto rematadoview

Características clave

• Ceiling-mount design for efficient space heating.
• Three adjustable heat settings: 3000 W, 4000 W, and 5000 W.
• Operates on 240 V electrical supply.
• Durable steel-sheathed tubular heating element.
• Integrated safety overheat control with a caution light.
• Power indicator light for operational status.
• Automatic thermostat for consistent temperature control.
• Adjustable thermostat knob for easy temperature selection.
• Includes a 3-way bracket for versatile ceiling mounting.
• ETL/cETL certified for safety standards.

Compoñentes

The Power Zone EH-4604A Mount Garage Heater is designed for robust performance in garage environments. Its primary components include the heating elements, a fan for heat distribution, a control panel for operation, and a mounting bracket for installation.

Configuración e instalación

Instrucións de montaxe

The EH-4604A heater is designed for ceiling-mount installation. Use the included 3-way bracket to securely attach the unit to a sturdy ceiling joist or support structure. Ensure the mounting location allows for proper air circulation and is away from any obstructions or flammable materials. Refer to the detailed installation diagrams in the separate installation guide for specific measurements and hardware requirements.

Conexión eléctrica

This heater requires a 240V electrical supply. It draws approximately 20.83 Amps at its maximum 5000W setting. A dedicated circuit with appropriate overcurrent protection (circuit breaker) is mandatory. Consult a qualified electrician for proper wiring and connection to ensure compliance with all local and national electrical codes.

Instrucións de funcionamento

Controis

• Mando do termostato: Located on the front panel, this knob controls the desired room temperature. Rotate it clockwise to increase the temperature setting and counter-clockwise to decrease it. It also serves as the ON/OFF switch.
• Wattage Interruptor selector: A toggle switch allows selection between 3000W, 4000W, and 5000W heat output settings.
• Luz indicadora de potencia: Illuminates when the heater is receiving power and operating.
• Caution Light: Illuminates if the safety overheat control has been activated, indicating the heater has temporarily shut down due to excessive temperature.

Operación Inicial

1. Ensure the heater is properly installed and connected to a 240V power supply.
2. Turn the thermostat knob to the 'OFF' position.
3. Seleccione o wat desexadotage usando o wattage selector switch (e.g., 4000W for general use).
4. Rotate the thermostat knob clockwise past the 'OFF' position towards 'HIGH'. The power indicator light should illuminate, and the fan will begin to operate, followed by the heating elements.
5. Allow the heater to run for a few minutes to ensure proper function and heat output.

Axuste da configuración de calor

To adjust the heat output, use the wattage selector switch. Lower wattage settings (3000W, 4000W) consume less power and are suitable for smaller spaces or milder conditions. The 5000W setting provides maximum heat for larger areas or colder temperatures.

Automatic Thermostat Function

Once the desired room temperature is reached, the automatic thermostat will cycle the heating elements on and off to maintain that temperature. The fan may continue to run to circulate air. If the room temperature drops below the set point, the heating elements will reactivate.

Mantemento

Regular maintenance ensures optimal performance and longevity of your heater. Always disconnect power to the unit before performing any maintenance.

• Limpeza: Limpar periodicamente o exterior do quentador cun pano suave eamp cloth. Do not use abrasive cleaners or solvents. Ensure the air intake and exhaust vents are free from dust and debris.
• Inspección: Annually inspect the power cord for any signs of damage. Check mounting hardware for tightness.
• Limpeza interna: For internal cleaning, it is recommended to consult a qualified service technician.

Resolución de problemas

If you experience issues with your Power Zone EH-4604A heater, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, contact Power Zone customer support for assistance.

Especificacións técnicas

Garantía e Soporte

For warranty information or technical support, please refer to the documentation included with your purchase or contact Power Zone customer service directly. Keep your purchase receipt and model number (EH-4604A) readily available when contacting support.
