HOMCOM Mobile Storage Cabinet and Printer Stand

1. Introdución

Thank you for choosing the HOMCOM Mobile Storage Cabinet and Printer Stand. This versatile unit is designed to enhance your office or home workspace with its compact size, ample storage, and convenient mobility. Featuring a top shelf, a spacious drawer, and a lower cabinet, it provides organized storage for various office supplies. Its wheeled design allows for easy repositioning, while two locking casters ensure stability when needed. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product.

Figure 1.1: HOMCOM Mobile Storage Cabinet and Printer Stand in use.

2. Información de seguridade

Siga as seguintes pautas de seguridade para evitar lesións ou danos ao produto:

• Always use the cabinet on a flat, stable surface to prevent tipping.
• Keep the cabinet away from heat sources and direct sunlight to prevent material degradation.
• Never place heavy objects on the top shelf that exceed the specified weight capacity of 55 lbs (25 kg).
• Be cautious when opening and closing drawers and cabinet doors to avoid pinching fingers.
• Always engage the brakes on the casters when the cabinet is stationary to prevent unintended movement.
• Asegúrese de que todos os parafusos e elementos de fixación estean ben axustados durante a montaxe e comprobe periodicamente se están frouxos.
• This product is not designed for children to climb on or play with.

3. Contido do paquete

Before beginning assembly, please verify that all components and hardware are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Cabinet Panels (Top, Bottom, Sides, Back, Shelf)
• Drawer Front, Sides, and Bottom
• Porta do armario
• Rodas (4 unidades, 2 con freos)
• Deslizadores para caixóns
• Handles (2 units)
• Bisagras
• Ferraxes de montaxe (parafusos, tarugos, peches de leva, etc.)

4. Instrucións de montaxe

Assembly is required for this product. Please follow the provided instructions carefully. It is recommended to have a second person for assistance during certain steps.

1. Preparar o espazo de traballo: Clear a spacious, clean, and flat area for assembly. Lay out all components and hardware.
2. Fixar rodas: Secure the four casters to the bottom panel of the cabinet using the provided screws. Ensure the two locking casters are positioned at the front for easy access.
3. Montar paneis laterais: Attach the side panels to the bottom panel using dowels and cam locks.
4. Instalar os deslizadores do caixón: Mount the drawer glides to the interior side panels according to the instructions. Pay close attention to the orientation of the glides.
5. Montar o caixón: Construct the drawer box by attaching the sides and bottom to the drawer front. Install the drawer handles.
6. Inserir caixón: Carefully slide the assembled drawer onto the installed glides.
7. Instalar estante: Secure the middle shelf panel into place using the designated hardware.
8. Fixar a porta do armario: Mount the hinges to the cabinet door and then attach the door to the cabinet frame. Adjust hinges for proper alignment.
9. Fixar o panel superior: Place the top panel onto the assembled structure and secure it with the remaining hardware.
10. Comprobacións finais: Ensure all connections are tight and the cabinet is stable. Test the drawer and door for smooth operation.

Figura 4.1: Example of panel connection during assembly.

Figure 4.2: Detail of cabinet door hinge.

5. Uso

The HOMCOM Mobile Storage Cabinet is designed for versatile use in various settings:

• Soporte para impresora: The sturdy tabletop is ideal for holding most standard printers, freeing up valuable desk space.
• Estante de almacenamento aberto: Use the open shelf for frequently accessed items such as paper reams, small books, or decorative items.
• Almacenamento de caixóns: The pull-out drawer provides concealed storage for office supplies, stationery, or personal items.
• Armario inferior: The enclosed cabinet offers additional storage for larger items, binders, or other office essentials.
• Mobilidade: Utilize the four omnidirectional wheels to easily move the cabinet around your workspace. Engage the two locking brakes when the cabinet is in its desired position to prevent movement.
• Under-Desk Fit: Its compact dimensions allow it to fit conveniently under most standard desks, providing discreet storage.

Figura 5.1: Máisview of storage features.

Figure 5.2: Cabinet designed to fit under most desks.

Figure 5.3: Detail of casters with locking brakes for easy mobility.

Figure 5.4: Important note: This cabinet is not designed for hanging files; files should be laid flat.

6. Mantemento

To maintain the appearance and functionality of your storage cabinet, follow these simple maintenance tips:

• Limpeza: Limpe as superficies cun suave, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the melamine finish.
• Desempolvado: Limpa o po do armario con regularidade para evitar acumulacións.
• Verificación de hardware: Comprobe periodicamente todos os parafusos e elementos de fixación para asegurarse de que permanecen axustados. Volva a apertalos se é necesario para manter a integridade estrutural.
• Coidado das rodas: Keep casters free of debris (hair, dust, etc.) to ensure smooth rolling. Lubricate if necessary.
• Evitar a sobrecarga: Do not exceed the specified weight capacity for any part of the cabinet to prevent damage.

7 Solución de problemas

If you encounter any issues with your HOMCOM Mobile Storage Cabinet, refer to the following common problems and solutions:

• Problema: Drawers or cabinet door do not open/close smoothly.
  Solución: Check that the drawer glides and hinges are correctly installed and free of obstructions. Ensure all assembly screws are tightened. Adjust hinges if necessary.
• Problema: O armario treme ou é inestable.
  Solución: Verify that the cabinet is on a flat, level surface. Check all assembly connections and tighten any loose screws.
• Problema: Casters are not rolling smoothly or locking.
  Solución: Clean any debris from the caster wheels. Ensure the locking mechanism is fully engaged or disengaged. If a caster is damaged, it may need replacement.
• Problema: Pezas que faltan ou compoñentes danados á chegada.
  Solución: Do not proceed with assembly. Contact HOMCOM customer support immediately for assistance and replacement parts.

8. Especificacións

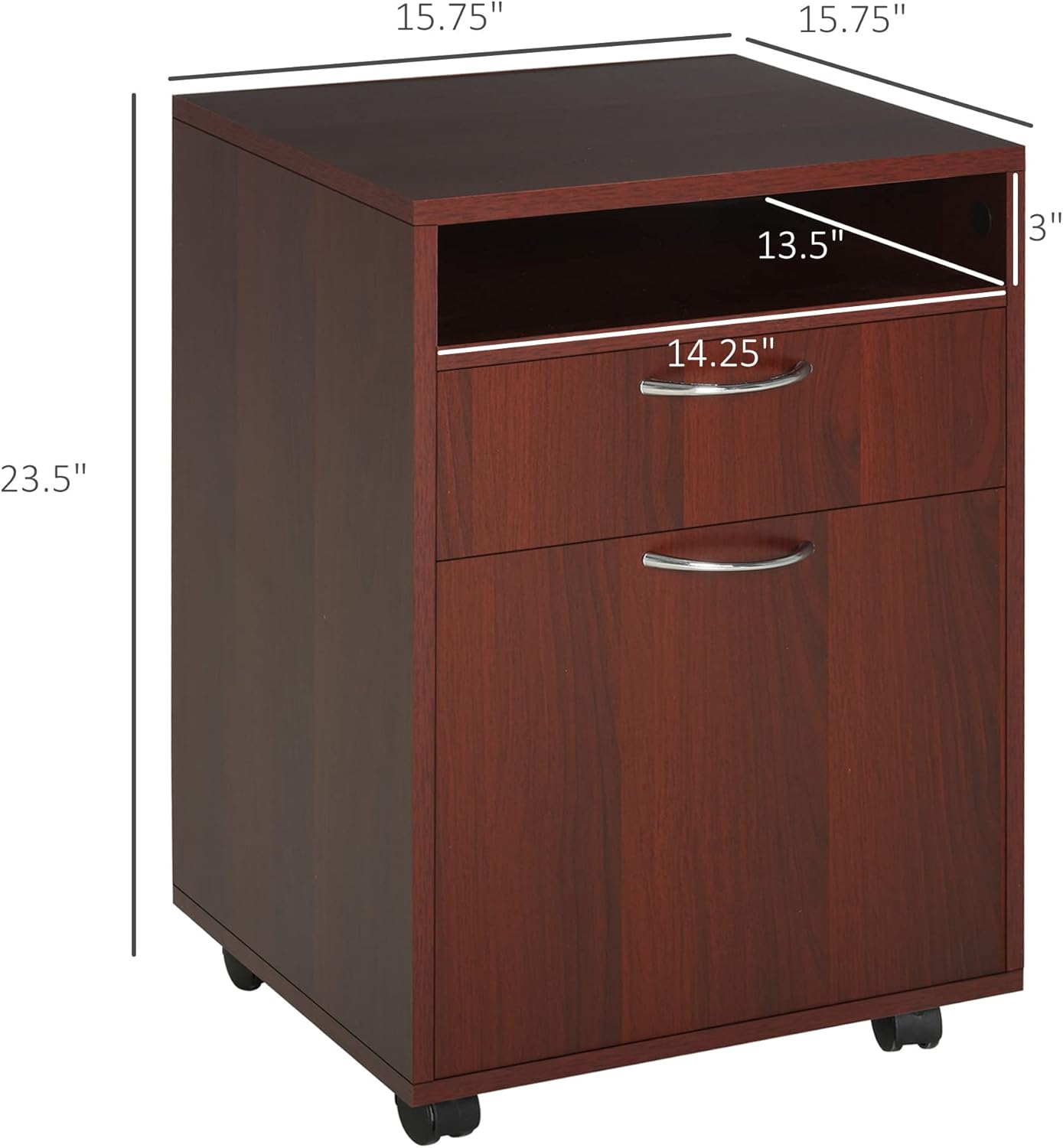

Figura 8.1: Dimensións do produto.

9. Garantía e soporte

HOMCOM products are manufactured with quality and care. For warranty information, technical support, or to order replacement parts, please contact HOMCOM customer service. Keep your purchase receipt and model number (836-027CF) handy for faster service.

Fabricante: Aosom LLC
