Nora NLPR-56 PRISM Smart LED Retrofit Downlight User Manual

Introdución

This manual provides comprehensive instructions for the safe installation, efficient operation, and proper maintenance of your Nora NLPR-56 PRISM Smart LED Retrofit Downlight. Please read this manual thoroughly before proceeding with installation or use to ensure optimal performance and safety.

Información de seguridade

AVISO: Risk of electric shock. Disconnect power at the circuit breaker or fuse box before installation or servicing. Failure to do so may result in serious injury or death.

• Lea atentamente todas as instrucións antes de comezar a instalación.
• Este produto é adecuado para damp localizacións.
• Do not use this fixture with fully enclosed recessed luminaires unless specifically rated for such use.
• Minimum starting temperature for operation is -20°C (-4°F).
• Este dispositivo non está pensado para usar con saídas de emerxencia ou iluminación de emerxencia.
• Proposición 65 Advertencia: Este produto pode conter produtos químicos que o estado de California sabe que causan cancro e defectos de nacemento ou outros danos reprodutivos.

Contido do paquete

Comprobe que todos os compoñentes estean presentes antes de comezar a instalación:

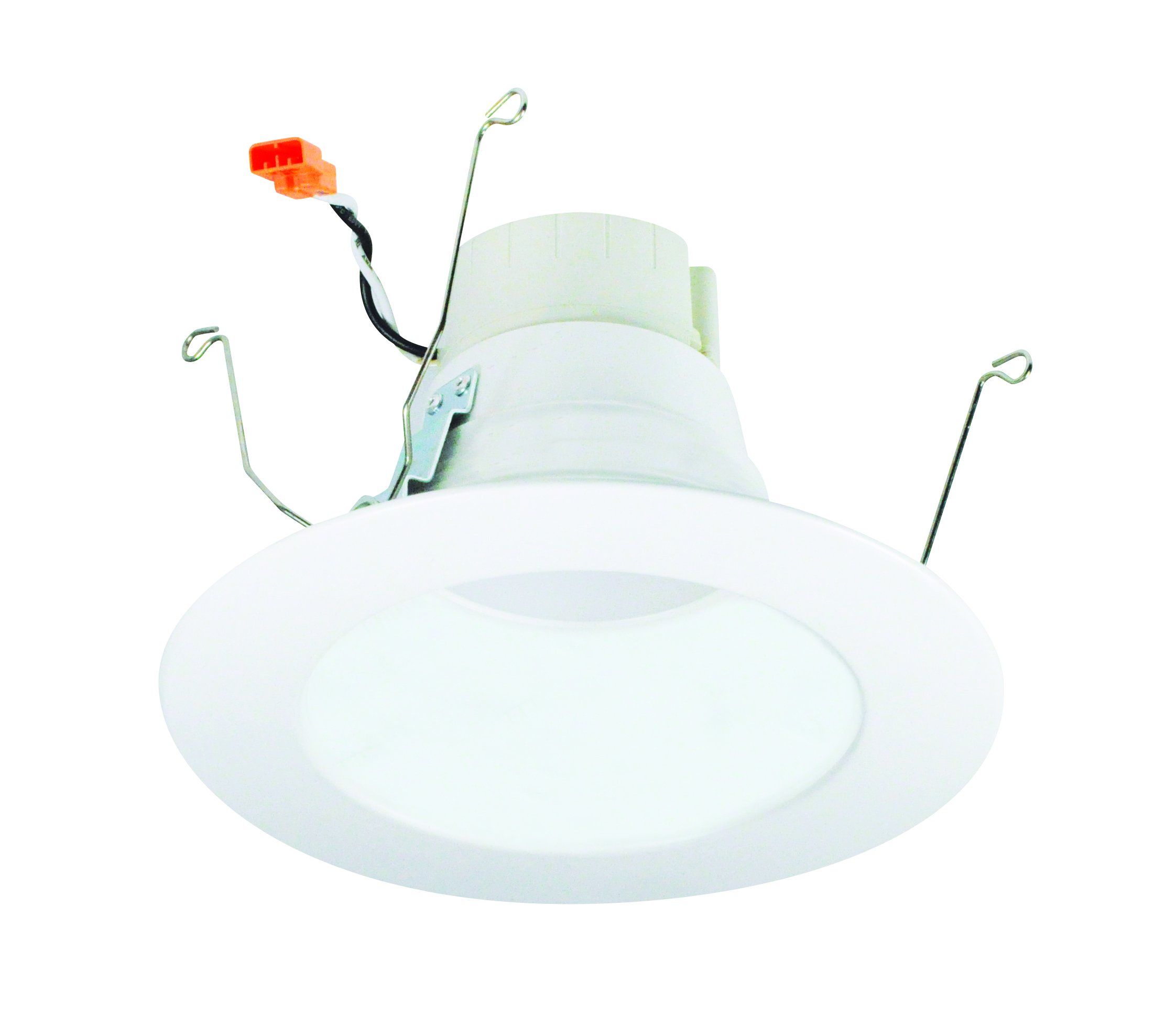

• 1 x Nora NLPR-56 PRISM Smart LED Retrofit Downlight
• 1 x Reflector Trim (integrated)
• 1 x manual de instrucións

Configuración e instalación

This retrofit downlight is designed for easy installation into existing 5-inch or 6-inch recessed housings.

1. Desconectar a enerxía: Ensure the power supply to the recessed housing is completely disconnected at the circuit breaker before starting.
2. Eliminar dispositivo existente: Carefully remove the existing trim and light bulb from the recessed housing.
3. Install Socket Adapter: Screw the provided E26 socket adapter into the existing light bulb socket within the recessed housing.
4. Conectar cableado: Connect the male connector from the retrofit downlight to the female connector of the socket adapter. Ensure a secure connection.
5. Insert Downlight: Gently push the retrofit downlight into the recessed housing. The torsion springs on the sides of the downlight will compress and then expand to secure the fixture firmly in place. Ensure the trim is flush with the ceiling.
6. Restaurar enerxía: Unha vez que o downlight estea instalado de forma segura, restableza a alimentación no disyuntor.

This diagram illustrates the physical dimensions of the Nora NLPR-56 retrofit downlight, indicating its compatibility with standard recessed housings. The overall diameter is 7-1/2 inches, the visible aperture is 5 inches, and the height is 4-5/8 inches.

Instrucións de funcionamento

The Nora NLPR-56 PRISM Smart LED Retrofit Downlight features advanced smart technology for versatile lighting control.

• Encendido inicial: Upon first power-up, the downlight will typically illuminate in a default white light setting.
• Control remoto: This fixture is designed for control via a compatible remote control. Refer to the specific instructions provided with your Nora remote control for pairing and operation.
• Funcionalidade regulable: The downlight is fully dimmable. Adjust brightness levels using the remote control or a compatible smart home system.
• Axuste da temperatura da cor: The fixture offers adjustable white light color temperatures ranging from 2700K (warm white) to 4000K (cool white). Use the remote or smart home app to select your desired white light.
• Cambio de cor RGBW: Explore a wide spectrum of colors with the RGBW (Red, Green, Blue, White) capabilities. Select custom colors to suit your mood or environment via the control interface.
• Integración do fogar intelixente: The NLPR-56 is Smart Home Compatible. For detailed instructions on connecting to your smart home system (e.g., Wi-Fi pairing, app control), please refer to the separate PRISM Smart Technology guide or the Nora Lighting websitio.

Mantemento

Proper maintenance ensures the longevity and performance of your downlight.

• Limpeza: Always ensure the power is disconnected before cleaning the fixture. Use a soft, dry, or slightly damp cloth to wipe the surface. Do not use abrasive cleaners, solvents, or cleaning agents containing alcohol, as these can damage the finish or electrical components.
• Non hai pezas reparables polo usuario: The LED light source and internal components are not user-serviceable. Do not attempt to open or repair the fixture. Contact qualified personnel for any issues beyond basic troubleshooting.

Resolución de problemas

If you encounter issues with your downlight, refer to the following common problems and solutions:

• A luz non se acende:
  • Verify that the power supply to the fixture is active at the circuit breaker.
  • Comprobe todas as conexións eléctricas para asegurarse de que estean seguras.
  • If using a remote, ensure its batteries are functional and it is properly paired with the downlight.
• A luz parpadea ou se atenúa de xeito inconsistente:
  • Ensure the downlight is connected to a compatible dimmer switch if using a wall dimmer.
  • Comprobe as conexións de cableado soltas.
• Smart features (color change, app control) are not working:
  • Refer to the PRISM Smart Technology guide for detailed pairing and network connection instructions.
  • Ensure your Wi-Fi network is active and the downlight is within range.
  • Confirm the smart home app is updated to the latest version.

Especificacións

Información da garantía

This Nora product is covered by the manufacturer's standard limited warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the official Nora Lighting website or contact their customer support department directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Apoio

For technical assistance, troubleshooting beyond this manual, or customer service inquiries, please visit the official Nora Lighting website or contact their support team. Contact information can typically be found on the manufacturer's websitio ou embalaxe do produto.
