1. Introdución e finalview
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kichler Winslow 44030OZ Chandelier. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Figure 1: Kichler Winslow 5-Light Chandelier (Model 44030OZ)
The Winslow 19.75" 5-light chandelier features a classic design with an Olde Bronze finish and clear seeded glass. It is suitable for various aesthetic environments, including traditional and transitional settings, and is ideal for dining rooms, living rooms, or bedrooms.
2. Información de seguridade
WARNING: RISK OF ELECTRIC SHOCK. Always disconnect power at the main circuit breaker panel or main fuse box before starting installation or performing any maintenance.
- Asegúrese de que todas as conexións eléctricas cumpran cos códigos e ordenanzas locais, así como co Código Eléctrico Nacional (NEC).
- Se non está familiarizado coa instalación eléctrica, consulte cun electricista cualificado.
- Use un vol. sen contactotagun probador electrónico para confirmar que a alimentación está desconectada antes de tocar ningún cable.
- Non exceda a potencia máximatage especificado para as lámpadas.
- Manexa os compoñentes de vidro con coidado para evitar que se rompan.
3. Contido do paquete
Verify that all parts are present before beginning installation. If any parts are missing or damaged, do not attempt to install the fixture. Contact Kichler customer service for assistance.
- Correa de montaxe
- Parafusos de montaxe da correa
- Porcas hexagonales
- Pezón
- Collar de parafuso
- Bucle
- Canopy
- Nuts de arame
- (5) Glass Shades
- Cadea
Bulb(s) not included. Requires five medium E26 up to 75W equivalent bulbs.
4. Configuración e instalación
Before installation, ensure you have the necessary tools, including a ladder, wire strippers, screwdriver, and a voltage tester. It is recommended to have an additional person for assistance when lifting the fixture.
4.1 Disconnecting Power and Removing Old Fixture
- Turn off the electricity at the main circuit breaker panel or fuse box.
- Use un voltage tester to confirm that the power is completely off at the junction box.
- Carefully remove the existing light fixture, disconnecting all wires.
Video 1: Chandelier Installation Guide. This video demonstrates the general steps for installing a Kichler chandelier, including power disconnection and mounting bracket attachment.
4.2 Montaxe do aparello
- Attach the new mounting bracket to the junction box on your ceiling using the provided screws.
- Attach the fixture's chain or rod to the mounting bracket.
- Thread the fixture wires up through the mounting box and chain/rod.
4.3 Conexións eléctricas
- Connect the ground wire (usually bare copper or green) from the fixture to the ground wire from the ceiling using a wire nut. Secure the ground wire to the mounting bracket's ground screw.
- Conecta o cable branco (neutro) da luminaria ao cable branco (neutro) do teito usando unha porca para cables.
- Connect the black (hot) wire from the fixture to the black (hot) wire from the ceiling using a wire nut.
- Carefully tuck all connected wires into the junction box, ensuring no wires are pinched.
Video 2: Kichler Chandelier Installation. This video provides a step-by-step guide for wiring and securing a Kichler chandelier, ensuring proper electrical connections.
4.4 Securing the Canopy and Adding Shades/Bulbs
- Raise the canopy to the ceiling and secure it with the included mounting hardware (e.g., screw collar ring).
- Carefully place the clear seeded glass shades onto the fixture.
- Install five medium E26 base bulbs (not included), up to 75W equivalent, into the sockets.

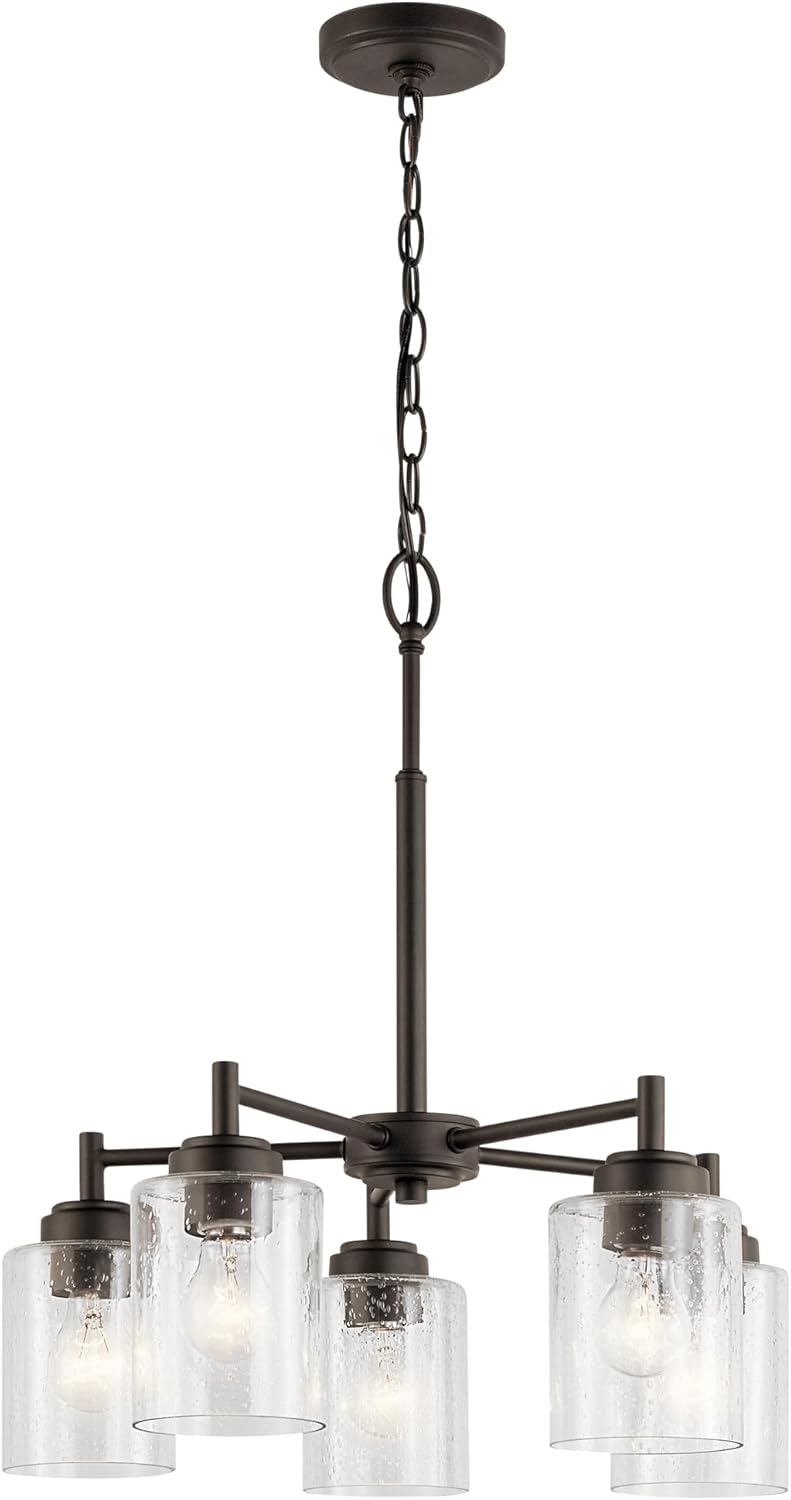

Figure 2: Detail of Clear Seeded Glass Shades
Figure 3: Bulb Base (E26 Medium) and Dimming Compatibility
4.5 Restaurando o poder
- Once installation is complete, turn the electricity back on at the main circuit breaker panel or fuse box.
- Test the chandelier to ensure it functions correctly.
5. Instrucións de funcionamento
The Kichler Winslow Chandelier is designed for ease of use.
- Encendido/apagado: Operate the chandelier using your standard wall switch.
- Función regulable: This fixture is dimmable when used with compatible dimmable bulbs and a compatible wall dimmer switch. Ensure your bulbs are rated for dimming if you intend to use this feature.
- Tipo de lámpada: Uses five medium E26 base bulbs, up to 75W equivalent.
6. Mantemento
Proper care will ensure the longevity and appearance of your chandelier.
- Limpeza: Be certain the electric current is turned off before cleaning. Clean metal components with a soft cloth moistened with a mild liquid soap solution. Wipe clean and buff with a very soft dry cloth.
- Pantallas de vidro: The clear seeded glass shades can be cleaned with a soft, damp cloth. Avoid abrasive cleaners that may scratch the glass.
- Substitución da lámpada: Always turn off power before replacing bulbs. Allow bulbs to cool before handling.
7 Solución de problemas
If your chandelier is not functioning as expected, refer to the following common issues and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| A luz non se acende | Non hai enerxía para o dispositivo | Check circuit breaker/fuse. Ensure wall switch is ON. |
| A luz non se acende | Cableado solto ou incorrecto | Turn off power. Check all wire connections. Consult an electrician if unsure. |
| A luz non se acende | Lámpada(s) defectuosa(s) | Substitúa a(s) lámpada(s) por unha(s) nova(s) do tipo e da auga correctostage. |
| Luz parpadeante | Lámpada ou cableado solto | Turn off power. Tighten bulbs. Check wire connections. |
| Luz parpadeante | Incompatible dimmer switch or bulbs | Ensure dimmer and bulbs are compatible with each other and the fixture. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Marca | Kichler |
| Número de modelo | 44030 OZ |
| Cor | Old Bronze |
| Material | Metal, Vidro |
| Estilo | Industrial |
| Forma de luminaria | Candelabro |
| Tipo de habitación | Bedroom, Dining Room, Kitchen, Living Room |
| Uso interior/exterior | Interior |
| Fonte de enerxía | Eléctrico con cable |
| Características especiais | Regulable |
| Fonte de luz | Incandescent (compatible with LED equivalent) |
| Número de fontes de luz | 5 |
| Voltage | 120 voltios (CA) |
| Wattage | 75 vatios (máximo por lámpada) |
| Base de bulbo | E26 Medio |
| Dimensións do artigo (L x W x H) | 12 cm de longo x 16 cm de ancho x 19.75 cm de alto |
| Peso do elemento | 9.5 libras |
| Montaxe necesaria | Si |

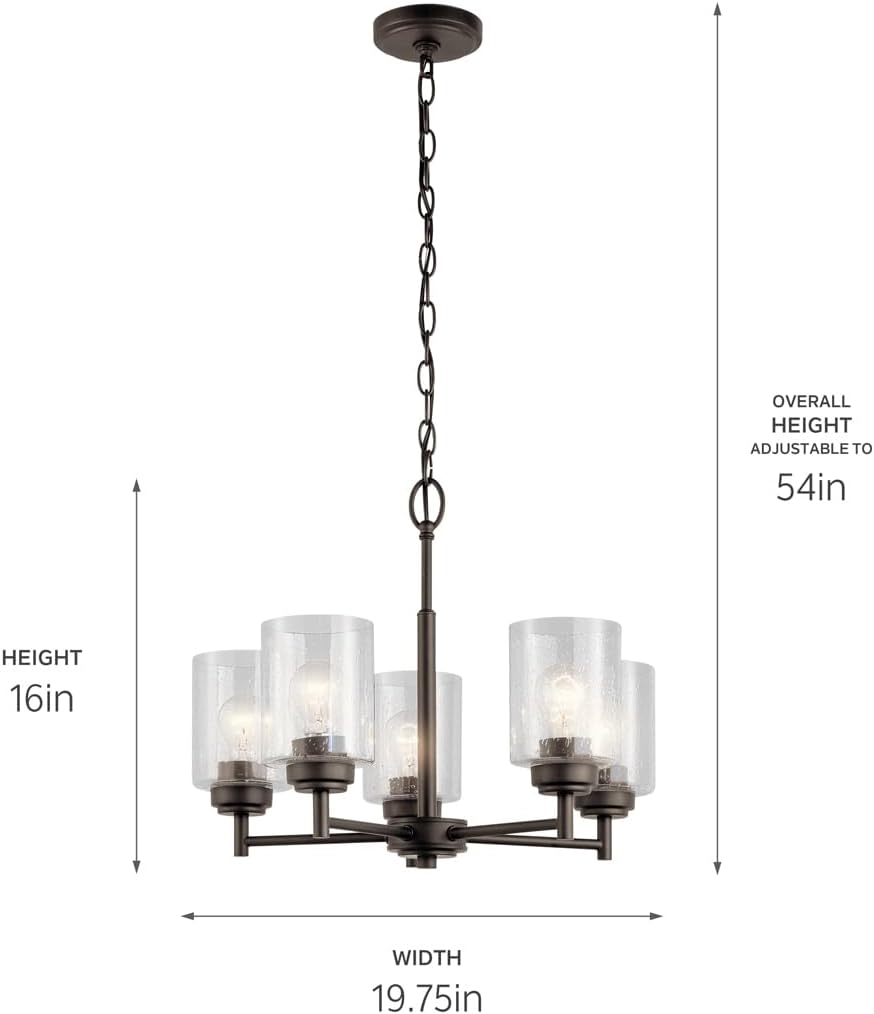

Figure 4: Chandelier Dimensions and Adjustable Height
Figure 5: Interior Hanging Light Size & Placement Guide
9. Garantía e soporte
This Kichler product comes with a Garantía limitada do fabricante de 1 anos. For warranty claims or technical support, please refer to the contact information provided with your product packaging or visit the official Kichler websitio.
For additional tips, guidance, and customer care, you may also visit Kichler.com.
