Thule TracRac TracOne Truck Rack User Manual

1. Introdución

The Thule TracRac TracOne Truck Rack is a robust and versatile solution designed for transporting various types of cargo, including ladders, lumber, and sports equipment. This universal truck bed rack is engineered for easy, drill-free installation on most truck models. It features an integrated T-Track mounting system on the load bars, allowing for seamless integration with a wide range of Thule accessories. The rack is built to handle significant loads, with a capacity of up to 800 lbs when properly installed and weight is evenly distributed.

This manual provides essential information regarding the setup, operation, maintenance, and specifications of your Thule TracRac TracOne Truck Rack. Please read it thoroughly before installation and use.

2. Información de seguridade

Adhering to safety guidelines is crucial for the proper and safe operation of your truck rack.

• Capacidade de carga: Do not exceed the maximum load capacity of 800 lbs (363 kg). Ensure the weight is distributed evenly across the rack.
• Vehicle Limits: Always verify your vehicle's specific load limits and consult the Thule Buyer's Guide or your vehicle's owner's manual, as vehicle limits may vary and could be lower than the rack's capacity.
• Instalación segura: Ensure all components, especially the C-clamps and load stops, are securely fastened before each use. Regularly check the tightness of all bolts and connections.
• Cargo Securement: Always properly secure all cargo to the rack using appropriate tie-downs or straps. Unsecured cargo can shift during transit, leading to dangerous situations.
• Liquidación: Be aware of the increased height of your vehicle with the rack and cargo installed. Check for overhead clearances, especially in garages, carports, and drive-thrus.
• Hábitos de condución: Adjust your driving speed and habits to account for the added weight and dimensions of the rack and cargo. Avoid sudden maneuvers.

3. Compoñentes Overview

The Thule TracRac TracOne Truck Rack typically includes the following main components:

• Load Bars: Two horizontal bars that span the width of your truck bed, featuring the T-track system for accessory attachment.
• Uprights/Supports: Four vertical supports that connect the load bars to the truck bed rails.
• C-Clamps: Specialized clamps used for securing the rack to the truck bed rails without drilling.
• Paradas de carga: Four adjustable stops that slide into the T-track system on the load bars, used to secure cargo laterally.
• Hardware de montaxe: Various bolts, washers, and other fasteners required for assembly.

4. Configuración e instalación

The Thule TracRac TracOne is designed for straightforward, drill-free installation. Follow these general steps for assembly and mounting. For detailed, step-by-step instructions, always refer to the official PDF user manual provided by Thule.

1. Desembalar e verificar: Carefully unpack all components and compare them against the parts list in the official manual to ensure everything is present and undamaged.
2. Assemble Uprights to Load Bars: Attach the four upright supports to the two load bars using the provided hardware. Ensure all connections are snug but do not overtighten until the rack is positioned on the truck.
3. Position Rack on Truck Bed: Carefully place the assembled rack onto your truck bed rails. Ensure it is centered and positioned according to your cargo needs and vehicle specifications.
4. Secure with C-Clamps: Coloque o C-clamps to the base of each upright and secure them to the truck bed rails. Tighten the clamps evenly and firmly. It is important to ensure the threads are clear and free of obstruction for proper tightening.
5. Apertura final: Once the rack is properly positioned and all clamps are in place, perform a final tightening of all bolts and clamps. Double-check all connections for security.
6. Install Load Stops: Slide the four load stops into the T-track channels on the load bars. These can be adjusted later to accommodate specific cargo widths.

5. Instrucións de funcionamento

Once installed, the Thule TracRac TracOne is ready for use. Its design allows for flexible cargo management.

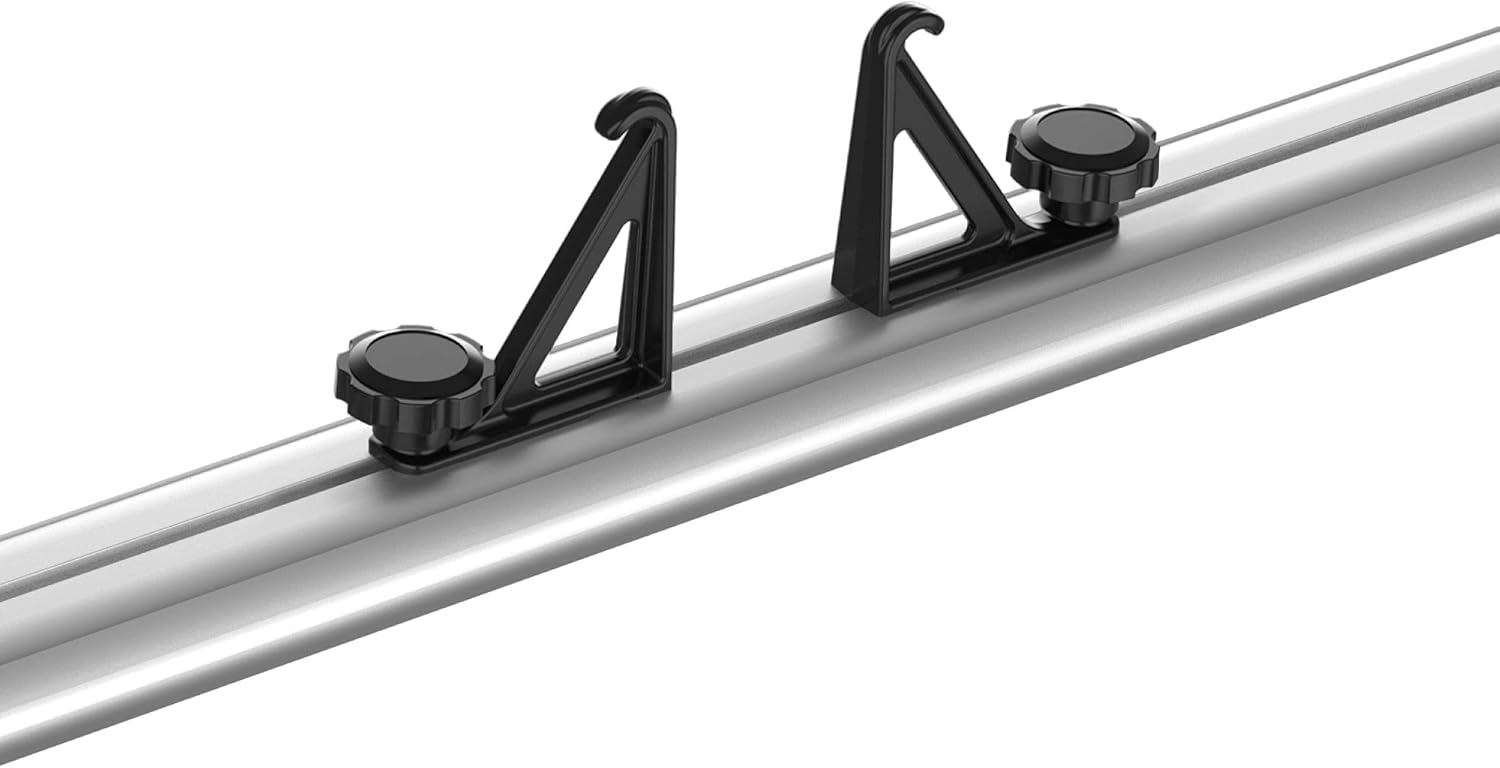

• Adjusting Load Stops: The included load stops can be easily repositioned along the T-track system on the load bars. Loosen the knob, slide the stop to the desired position to cradle your cargo, and then tighten the knob to secure it. This allows for precise fitment for various load widths.
• Utilizing the T-Track System: The integrated T-track system on the load bars is compatible with a wide range of Thule accessories, such as cargo boxes, kayak carriers, or bike racks. Consult the instructions for your specific Thule accessory for proper attachment to the T-track.
• Carga de carga: When loading items, ensure the weight is evenly distributed and does not exceed the rack's 800 lbs capacity or your vehicle's roof/bed load limit. Place longer items centrally across both load bars.
• Garantía de carga: Always use appropriate tie-down straps, ropes, or nets to firmly secure your cargo to the rack. Ensure there is no movement or shifting possible during transit. Periodically check cargo securement during long journeys.

6. Mantemento

Regular maintenance will ensure the longevity and safe operation of your Thule TracRac TracOne.

• Inspección periódica: Before each use, visually inspect the rack for any signs of wear, damage, or loose components. Pay close attention to the C-clamps, load bars, and upright connections.
• Apretar os fixadores: Periodically re-tighten all bolts and fasteners, especially after the first few uses and after driving on rough terrain. Vibrations can cause fasteners to loosen over time.
• Limpeza: Clean the aluminum surfaces with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish. Rinse thoroughly and dry.
• Coidados de inverno: In colder climates, ensure that moving parts and fasteners are free of ice and snow before operation.
• Almacenamento: If removing the rack for extended periods, store it in a dry, protected area to prevent corrosion and damage.

7 Solución de problemas

If you encounter issues with your Thule TracRac TracOne, consider the following common solutions:

• Rack Feels Loose After Installation:
  • Asegúrate de que todo o C-clamps are fully and evenly tightened to the truck bed rails.
  • Verify that the uprights are securely fastened to the load bars.
  • Check for any obstructions between the clamps and the truck bed that might prevent a secure grip.
• Difficulty Tightening C-Clamps:
  • Ensure the threads on the C-clamp bolts and within the clamp body are clean and free of debris or excess coating. Carefully work the bolt in and out to clear any obstructions if necessary.
  • Use the correct tool and apply steady, firm pressure.
• Ruído inusual durante a condución:
  • Check all connections and fasteners for tightness. Loose components can vibrate and cause noise.
  • Ensure cargo is securely fastened and not shifting.
  • While the rack is designed to be aerodynamic, some wind noise is normal, especially at higher speeds or with certain cargo.

If problems persist, refer to the official Thule TracRac TracOne PDF User Manual or contact Thule customer support.

8. Especificacións

9. Información da garantía

The Thule TracRac TracOne Truck Rack comes with a warranty covering defectos do fabricante. For specific details regarding the warranty period, coverage, and claims process, please refer to the official warranty documentation included with your product or visit the official Thule websitio.

Garda o comprobante de compra para calquera reclamación de garantía.

10. Apoio

For further assistance, detailed installation guides, or product support, please utilize the following resources:

• Manual de usuario oficial (PDF): Hai dispoñible para descargar un manual completo en PDF.Descargar manual PDF
• Thule Websitio: Visita o sitio web oficial de Thule website for product information, FAQs, and customer service contact details.www.thule.com
