Mobiclinic Tajo Adjustable Toilet Riser with Folding Armrests

1. Introdución

The Mobiclinic Tajo Toilet Riser is designed to provide a comfortable and secure solution for individuals who require assistance with toilet use, such as the elderly, those with reduced mobility, or individuals recovering from surgery. This product elevates the toilet seat, reducing strain on knees and hips, and features folding armrests for added support during transfer. Its design ensures stability and integrates seamlessly into most bathroom environments.

2. Información de seguridade

Please read all warnings and instructions carefully before using this product. Failure to do so may result in injury or product damage.

• Always ensure the toilet riser is securely attached to the toilet bowl before use.
• Non exceda o peso máximo soportado de 100 kg (220 lb).
• Comprobe regularmente todos os compoñentes para detectar desgaste ou danos. Deixar de usar se algunha peza está danada.
• Keep children away from the product during installation and adjustment.
• The product packaging may contain information different from that shown on our website. Please always read the label, warnings, and instructions provided on the product before using or consuming it.

3. Contido do paquete

Your Mobiclinic Tajo Toilet Riser package should include the following:

• 1 x Toilet Riser Unit with integrated seat and lid
• 2 x Folding Armrests (pre-attached or requiring simple assembly)
• Adjustment knobs for securing and height adjustment

4. Características do produto

• Altura axustable: Easily adjust the riser to 7 cm, 11 cm, or 15 cm to suit individual needs.
• Folding Armrests: Padded armrests provide additional support and can be folded up for easier transfer and space-saving.
• Anexo seguro: Designed to fit most standard oval toilets securely, preventing movement and enhancing safety.
• Integrated Lid: Maintains bathroom aesthetics and hygiene.
• Fácil de limpar: Made from waterproof material for simple and quick cleaning.

5. Configuración e instalación

The Mobiclinic Tajo Toilet Riser is designed for tool-free installation on most standard oval toilets. Please ensure your toilet is compatible before proceeding.

5.1 Comprobación de compatibilidade

This toilet riser is suitable for most standard oval-shaped toilet bowls. It is non compatible with square or rectangular toilet bowls. Please refer to the dimensions in the specifications section to verify compatibility with your toilet.

Figure 1: Toilet Riser Compatibility with Oval Toilets

5.2 Pasos da instalación

1. Preparar o inodoro: Ensure your toilet bowl is clean and dry. Remove your existing toilet seat and lid if necessary.
2. Colocar o elevador: Place the Mobiclinic Tajo Toilet Riser directly onto the toilet bowl, aligning the opening with the bowl.
3. Asegurar o elevador: Locate the adjustment knobs on the sides of the riser. Turn these knobs clockwise to tighten the riser securely onto the toilet bowl. Ensure it is stable and does not wobble.
4. Attach Armrests (if separate): If the armrests are not pre-attached, slide them into the designated slots on the sides of the riser until they click into place. Ensure they are firmly secured.

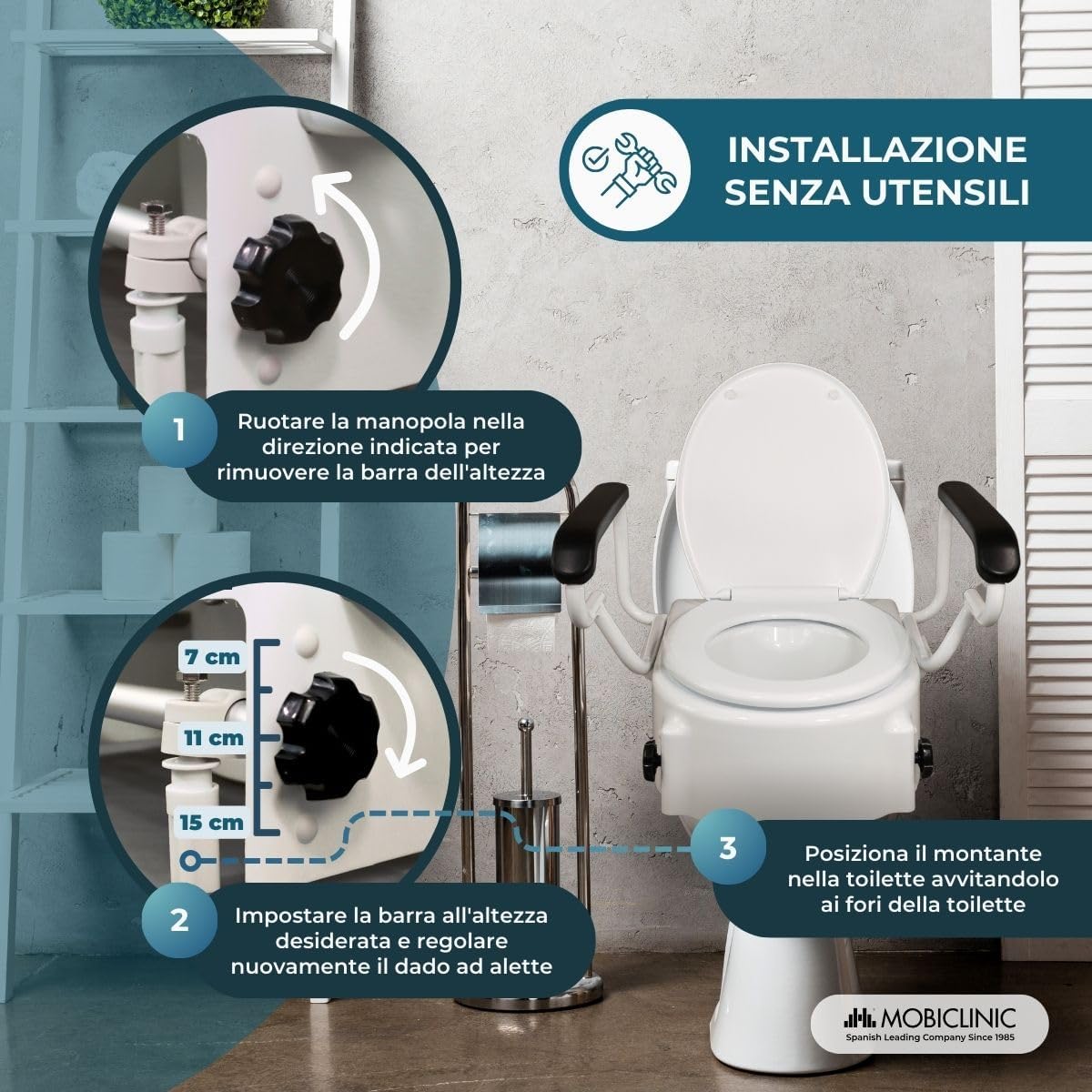

Figure 2: Tool-Free Installation Overview

5.3 Axuste de altura

The toilet riser offers three adjustable height settings: 7 cm, 11 cm, and 15 cm.

1. Loosen Adjustment Knobs: Turn the side knobs counter-clockwise to loosen the height adjustment mechanism.
2. Seleccionar altura: Adjust the internal bar to your desired height (7, 11, or 15 cm).
3. Altura segura: Tighten the side knobs clockwise to lock the riser at the chosen height. Ensure it is stable before use.

Figura 3: Mecanismo de axuste de altura

5.4 Video Guide: Installation and Adjustment

6. Funcionamento

Once installed and adjusted, the Mobiclinic Tajo Toilet Riser is ready for use. The folding armrests provide stable support for sitting down and standing up. The integrated lid can be closed to maintain hygiene and bathroom aesthetics when not in use.

6.1 Using the Armrests

The armrests can be easily folded up or down. To fold them up, gently lift them until they lock in the upright position. To fold them down, press the release button (if present) or gently push them down until they lock into the horizontal position. Always ensure armrests are securely locked in place before applying weight.

Figure 4: Stability and Comfort with Armrests

7. Limpeza e Mantemento

To ensure hygiene and prolong the life of your Mobiclinic Tajo Toilet Riser, regular cleaning and maintenance are recommended.

• Limpeza: Wipe down all surfaces with a mild household cleaner and a soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the material.
• Secado: Ensure the riser is thoroughly dried after cleaning to prevent water spots or residue buildup.
• Inspección: Periodically inspect the adjustment knobs, armrest mechanisms, and overall structure for any signs of wear, damage, or loosening. Tighten any loose components immediately.

8. Especificacións

Detailed technical specifications for the Mobiclinic Tajo Toilet Riser.

Figura 5: Dimensións do produto e capacidade de peso

9. Garantía e soporte

Mobiclinic is committed to providing high-quality products. For any questions, concerns, or warranty claims regarding your Mobiclinic Tajo Toilet Riser, please contact Mobiclinic customer support through their official channels or the retailer where the product was purchased. Please retain your proof of purchase for warranty purposes.
