1. Introdución
Thank you for choosing the ET2 Quartz E31242-20PC LED Mini Pendant Light. This fixture features clear beveled crystal stalactites suspended from polished chrome supports, designed to create a striking visual effect. Powered by 90 CRI LED dimmable modules, it provides 560 lumens of warm 3000K light, ensuring excellent color rendering and a comfortable ambiance.
This manual provides essential information for the safe installation, operation, and maintenance of your new pendant light. Please read it thoroughly before beginning installation and retain it for future reference.

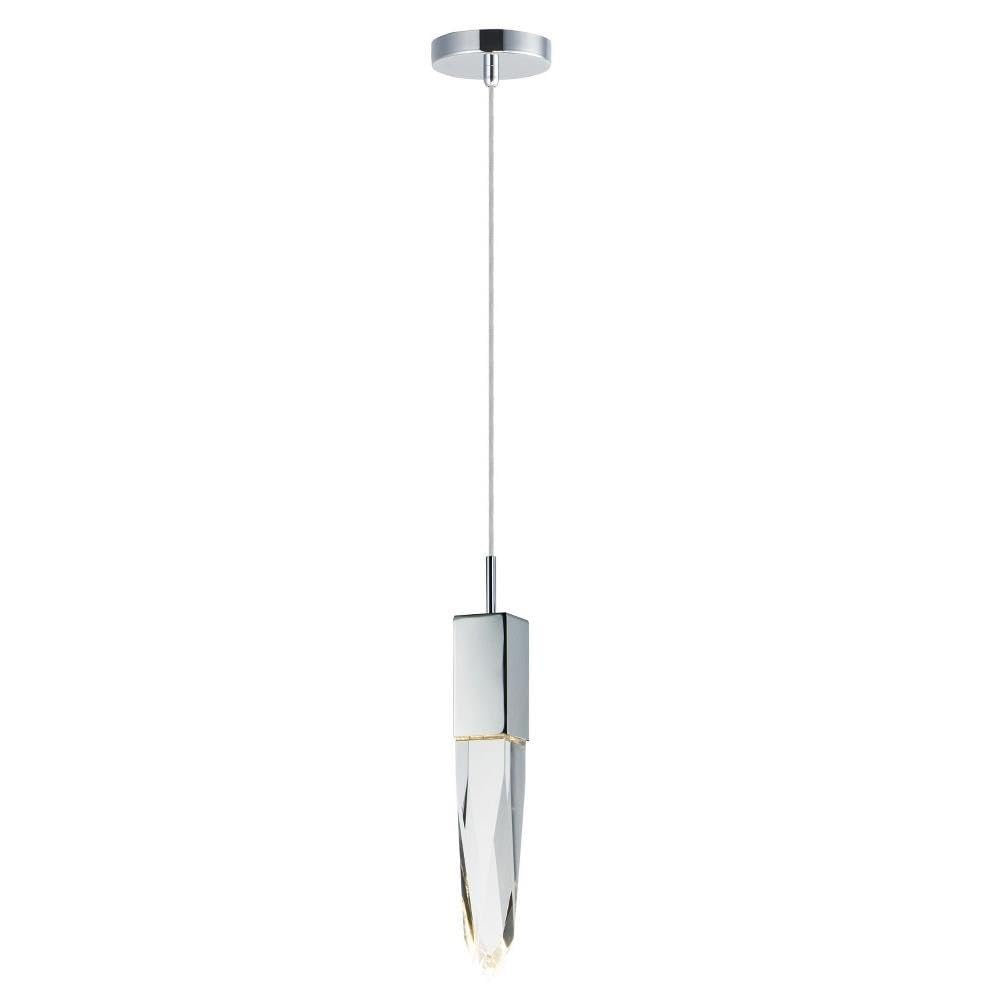

Figure 1.1: ET2 Quartz E31242-20PC LED Mini Pendant Light, showcasing its illuminated crystal design.
2. Información de seguridade
AVISO: Risco de descarga eléctrica. Desconecte a alimentación na caixa de fusibles ou no disyuntor antes da instalación ou do mantemento.
- Todas as conexións eléctricas deben cumprir cos códigos e ordenanzas locais ou co Código Eléctrico Nacional (NEC). Póñase en contacto cun electricista cualificado se non está familiarizado coas conexións de cableado eléctrico axeitadas.
- Esta luminaria está pensada só para uso en interiores. Non a expoña á auga nin á humidade.
- Asegúrate de que a superficie de montaxe poida soportar o peso da luminaria.
- Do not attempt to alter the fixture in any way. Any modifications may void the warranty and create a safety hazard.
- Handle crystal components with care to prevent breakage.
- Non mire directamente á fonte de luz LED cando estea acesa.
3. Contido do paquete
Carefully unpack your fixture and inspect all components for damage. Keep all packaging materials until you are satisfied with the product. The package should include:
- Pendant Light Fixture (with integrated LED module and crystal shade)
- Mounting Canopy (4.75 inches diameter)
- Ferraxes de montaxe (parafusos, porcas para cables, placa de montaxe)
- Manual de instrucións

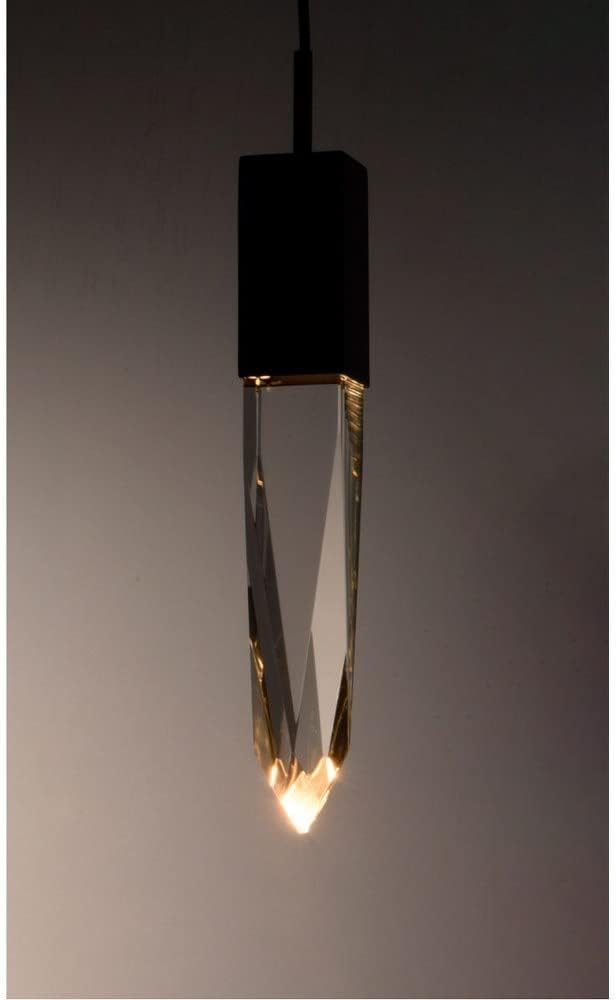

Figure 3.1: The ET2 Quartz E31242-20PC Mini Pendant Light in its unlit state, showing the polished chrome and crystal components.
4. Configuración e instalación
Ferramentas necesarias: Phillips screwdriver, flathead screwdriver, wire strippers, electrical tape, safety glasses, ladder.
- Apagar a enerxía: Before starting, ensure the power to the circuit at the main fuse box or circuit breaker is completely off.
- Preparar a localización de montaxe: Se vai substituír unha luminaria existente, retírea con coidado. Asegúrese de que a caixa de conexións estea montada de forma segura e sexa capaz de soportar o peso da luminaria.
- Instalación da placa de montaxe: Attach the mounting plate (usually included with the canopy) to the junction box using the provided screws. Ensure it is flush and secure.
- Axustar a lonxitude do cable: The pendant light comes with an adjustable cord. Determine the desired hanging height. Loosen the set screw on the canopy to adjust the cord length. Once the desired length is achieved, tighten the set screw firmly.
- Realizar conexións eléctricas:
- Conecta o cable negro da luminaria ao cable negro (vivo) da casa.
- Conecta o cable branco da luminaria ao cable branco (neutro) da casa.
- Connect the fixture's ground wire (bare copper or green) to the house's ground wire and the mounting plate's ground screw.
- Monte Canopy: Carefully push the excess wiring into the junction box. Align the canopy with the mounting plate and secure it using the canopy screws.
- Restaurar enerxía: Once installation is complete, restore power at the circuit breaker and test the fixture.

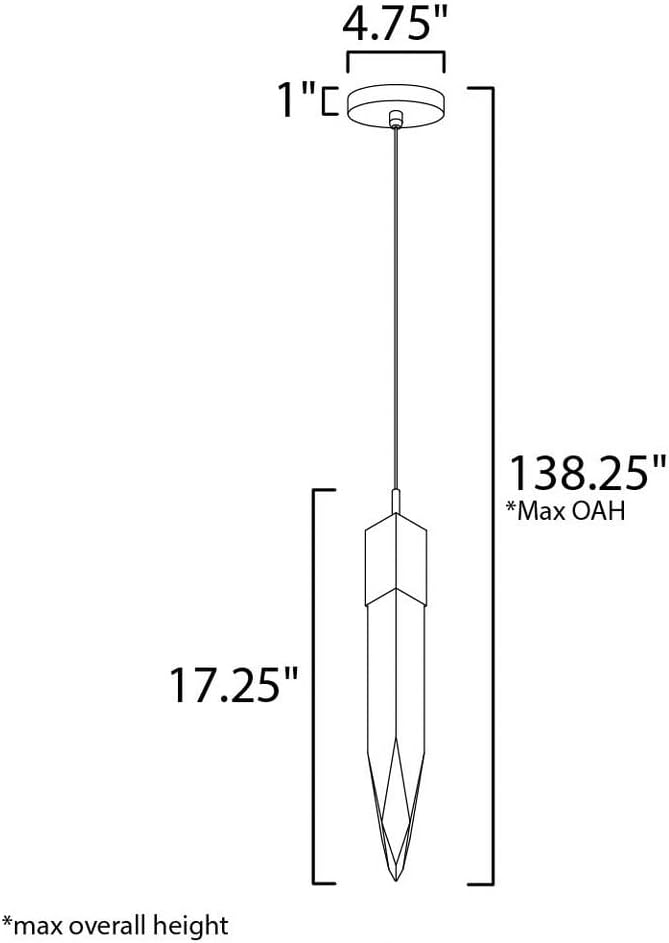

Figure 4.1: Dimensional diagram of the pendant light, indicating a 4.75-inch diameter canopy and a 17.25-inch fixture height, with a maximum overall height of 138.25 inches.
5. Instrucións de funcionamento
The ET2 Quartz E31242-20PC LED Mini Pendant Light is designed for simple operation.
- Encendido/apagado: Controla a luz cun interruptor de parede estándar conectado ao circuíto da luminaria.
- Función de atenuación: This fixture is equipped with dimmable LED modules. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed on the circuit. Follow the dimmer switch manufacturer's instructions for proper operation.
Figura 5.1: Detalle view of the clear beveled crystal stalactites, highlighting the intricate facets that diffuse light.
6. Mantemento
Un coidado axeitado garantirá a lonxevidade e o aspecto da túa lámpada colgante.
- Limpeza: Desconecte sempre a corrente antes de limpar. Use un pano suave, seco ou lixeiramente húmido.amp cloth to wipe the polished chrome finish. For the crystal components, a mild glass cleaner can be used, applied to a cloth first, not directly to the fixture. Avoid abrasive cleaners or solvents.
- Módulo LED: The LED module is integrated and designed for a long lifespan (50,000 hours). It is not user-replaceable. If the LED module fails within the warranty period, contact customer support.
- Inspección: Comprobe periodicamente todas as conexións e os accesorios de montaxe para garantir que se manteñan firmes.
7 Solución de problemas
If you experience issues with your pendant light, refer to the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| A luz non acende. | Non hai potencia para o dispositivo. Conexión de cableado solta. Interruptor de parede avariado. | Comprobe o interruptor ou o fusible. Asegúrate de que todas as conexións dos cables estean seguras (coa alimentación desconectada). Proba o interruptor de parede ou substitúeo se é necesario. |
| A luz parpadea ou se atenúa de forma inadecuada. | Interruptor regulador de intensidade incompatible. Cableado solto. | Asegúrate de usar un interruptor regulador compatible con LED. Comprobe todas as conexións eléctricas (coa alimentación desconectada). |
| Fixture is loose or wobbles. | Mounting hardware not secure. | Tighten mounting screws on the canopy and mounting plate (with power off). |
Se estas solucións non resolven o problema, póñase en contacto co servizo de atención ao cliente.
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | E31242-20PC |
| Marca | ET2 |
| Tipo de luminaria | Mini colgante |
| Dimensións (Accesorio) | 4.75 cm de longo x 17.25 cm de ancho x 4.75 cm de alto |
| Diámetro de Canopy | 4.75 polgadas |
| Altura total máxima | 138.25 polgadas |
| Fonte de luz | LED integrado |
| Wattage | 6 vatios |
| Brillo | 560 lúmenes |
| Temperatura da cor | 3000 Kelvin (Branco Cálido) |
| Índice de reproducción da cor (CRI) | 90 |
| Voltage | 120 voltios |
| Material | Aceiro inoxidable, cristal |
| Remate | Cromo pulido |
| Uso interior/exterior | Interior |
| Requírese montaxe | Si |
| Peso do elemento | 4.4 libras |
9. Garantía e soporte
Garantía: This ET2 Quartz E31242-20PC LED Mini Pendant Light is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.
Atención ao cliente: For technical assistance, warranty claims, or to report missing/damaged parts, please contact ET2 customer service. Please have your model number (E31242-20PC) and proof of purchase available when contacting support.
A información de contacto adoita atoparse na ficha do fabricante website or the original packaging.
