1. Introdución e finalview
This manual provides detailed instructions for the installation, operation, and maintenance of your DS18 NXL-N4 Hydro 4-Channel Class D Amplifier. Designed for marine and powersports applications, this amplifier delivers powerful audio performance in challenging environments. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Image 1.1: The DS18 NXL-N4 Hydro 4-Channel Class D Amplifier, a compact and durable unit.
2. Información de seguridade
Always observe the following safety precautions to prevent injury and damage to the ampvida útil ou vehículo:
- Desconecte o terminal negativo da batería do vehículo antes de comezar calquera traballo eléctrico.
- Asegúrate de que todo o cableado estea debidamente illado e asegurado para evitar curtocircuítos.
- Empregue un cableado do calibre axeitado para as conexións de alimentación e terra, tal e como se especifica neste manual.
- Monte o amplifier securely in a location that allows for adequate ventilation and is protected from excessive heat or direct sunlight.
- Evite instalar o amplifier in areas where it may be submerged, despite its water-resistant rating, to prolong its lifespan.
- If you are unsure about any installation steps, consult a professional audio installer.
3. Características do produto
O DS18 NXL-N4 amplifier is engineered with features to enhance your audio experience:
- Saída de alta potencia: Delivers up to 1800W peak power, suitable for various audio setups.
- Construción duradeira: Features a stable 4-layer PCB layout for consistent performance.
- Deseño impermeable: IP67 rated for water and dust resistance, ideal for marine and powersports environments.
- Tamaño compacto: Small footprint allows for flexible installation in tight spaces.
- Personalización de audio: Built-in selectable crossovers (LPF, FULL, HPF) provide precise control over your sound output.
- Full-Range Capability: Capable of powering a complete audio system, from deep bass to clear highs.
Image 3.1: The compact size and IP67 water resistance of the NXL-N4 ampmáis vivo.
4. Especificacións
| Especificación | Valor |
|---|---|
| Modelo | NXL-N4 |
| Número de canles | 4 |
| Potencia de saída (pico) | 1800 vatios |
| Potencia RMS @ 4 ohmios | 4 x 100 W |
| Potencia RMS @ 2 ohmios | 4 x 150 W |
| Potencia RMS @ ponte de 4 ohmios | 2 x 300 W |
| oferta mínima voltage | 12 voltios (DC) |
| Vol. Subministración máximatage | 10 voltios (DC) |
| Voltage | 5 voltios (en funcionamento) |
| Clasificación IP | IP67 |
| Tipo de montaxe | Montaxe en superficie |
| Lonxitude total | 7.87 polgadas |
| Ancho total | 3.67 polgadas |
| Altura total | 1.56 polgadas |
| Fabricante | DS18 |
| GTIN/UPC | 810005180603 |
5. Configuración e instalación
Unha instalación axeitada é fundamental para un rendemento óptimo e unha maior duración do seu amplificador. Siga estas pautas xerais:
5.1. Montaxe do Ampmáis vivo
Choose a mounting location that is secure, allows for adequate air circulation, and is accessible for wiring. The compact size of the NXL-N4 allows for installation in various tight spaces.

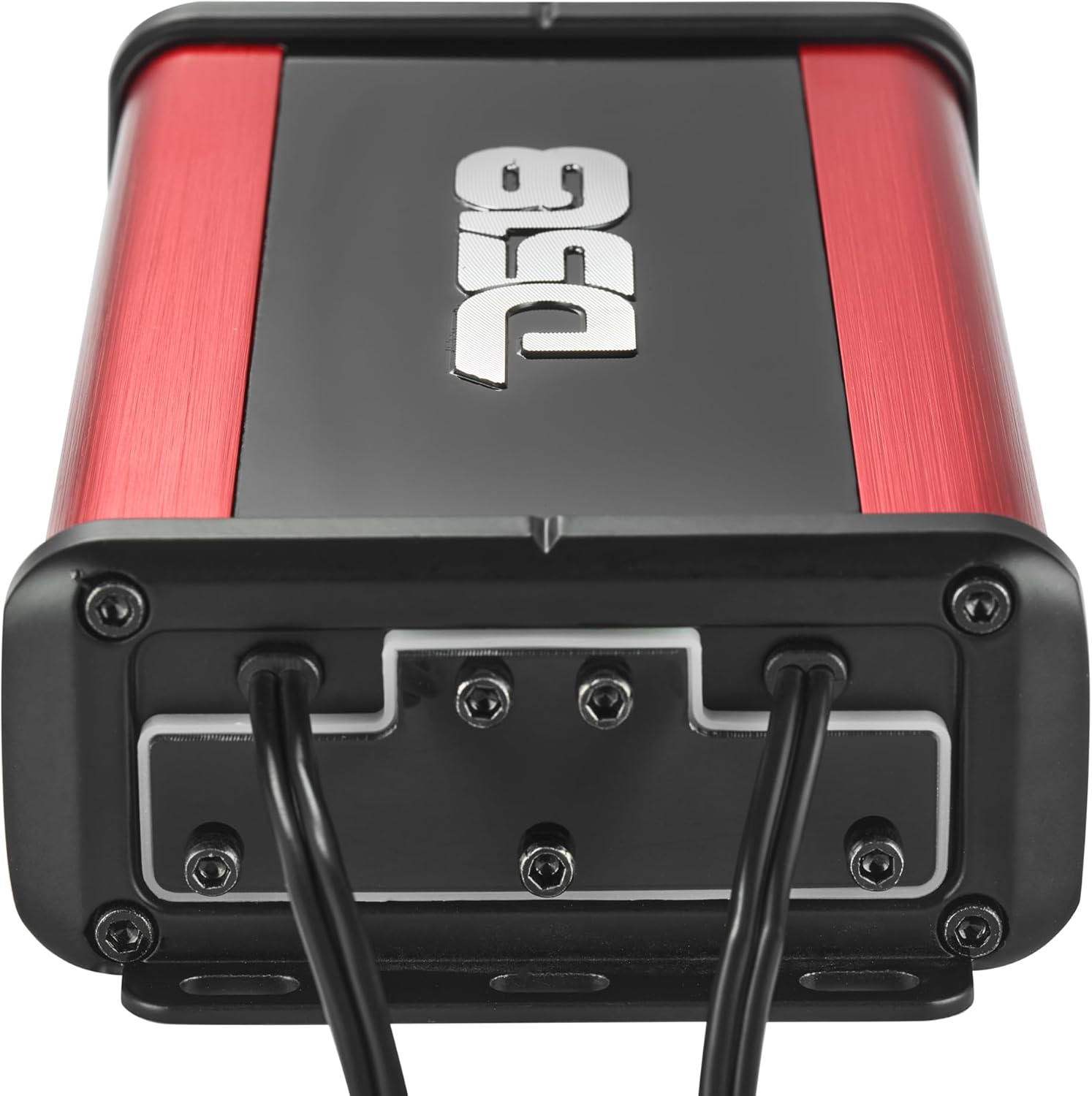

Imaxe 5.1: Parte inferior view da amplifier, illustrating the mounting points.
5.2. Conexións de cableado
Ensure all power, ground, remote, and speaker wires are connected correctly and securely. Use the provided wiring harness and fuse.
- Power (RED +12V): Connect directly to the positive terminal of the vehicle's battery. Install the 25A fuse (included) as close to the battery as possible.
- Ground (BLACK GND): Connect to a clean, unpainted metal surface of the vehicle chassis. Ensure a solid connection.
- Remote (BLUE REM): Connect to the remote output of your head unit or a switched 12V source.
- Speaker Outputs (FR+, FR-, FL+, FL-, RR+, RR-, RL+, RL-): Connect to your speakers according to their polarity. Refer to the diagram on the amplifier for correct channel assignments.
- Entrada de son RCA: Conecta as saídas RCA da unidade principal ao ampentradas RCA do lifier.
Image 5.2: The wiring harness and inline 25A fuse for the NXL-N4 ampmáis vivo.
Image 5.3: RCA audio input cables for connecting to a head unit.
5.3. Acendamento inicial
After all connections are made, reconnect the vehicle's battery. Turn on your audio system and check for proper functionality. If no sound is produced, refer to the Troubleshooting section.
Vídeo 5.1: Un overview of the DS18 Hydro NXL-N4 amplifier, highlighting its compact design and features for various applications.
6. Funcionamento
The NXL-N4 amplifier features adjustable controls to fine-tune your audio system.
6.1. Configuración do crossover
O amplifier includes selectable crossovers to optimize sound output for different speaker types:
- LPF (filtro paso baixo): Allows only low frequencies to pass through, typically used for subwoofers.
- HPF (filtro paso alto): Allows only high frequencies to pass through, typically used for full-range or component speakers.
- COMPLETO: Allows the full frequency range to pass through, suitable for full-range speakers without specific filtering.
Adjust the crossover switch according to your speaker configuration and desired sound profile.
Imaxe 6.1: Amplifier controls, including RCA inputs and the selectable X-Over switch.
6.2. Gaña o control
The gain control matches the output voltage da unidade principal á sensibilidade de entrada do amplifier. Start with the gain set to minimum and slowly increase it until you achieve a clear, undistorted sound at your desired volume level. Avoid setting the gain too high, as this can lead to distortion and potential speaker damage.
7. Mantemento
To ensure the longevity and performance of your DS18 NXL-N4 amplifer, siga estes consellos de mantemento:
- Limpeza: Limpar periodicamente o ampexterior do lifer cun suave, damp pano. Evite o uso de produtos químicos agresivos ou produtos de limpeza abrasivos.
- Conexións: Regularly check all wiring connections for tightness and corrosion, especially in marine environments.
- Ventilación: Asegúrese de que o amplifier's cooling fins are free from obstructions to maintain proper heat dissipation.
- Substitución de fusibles: If the fuse blows, replace it only with a fuse of the same type and rating (25A).
8 Solución de problemas
Se tes problemas co teu amplifier, consulte os seguintes problemas e solucións comúns:
| Problema | Causa posible | Solución |
|---|---|---|
| Sen son | No power, blown fuse, loose connections, incorrect input source. | Check power and ground connections, replace fuse, verify RCA and speaker connections, ensure head unit is on and source is selected. |
| Son distorsionado | Gain set too high, incorrect crossover settings, damaged speakers, poor ground connection. | Reduce gain, adjust crossover, inspect speakers, check ground wire. |
| Amplifier sobrequenta | Insufficient ventilation, impedance mismatch, prolonged high volume use. | Asegurar un fluxo de aire axeitado arredor amplificador, verificar a impedancia do altofalante, reducir o volume. |
| Ruído/xinxido do motor | Poor grounding, RCA cables too close to power wires, faulty head unit. | Improve ground connection, reroute RCA cables away from power wires, install a ground loop isolator. |
Se o problema persiste despois de intentar estas solucións, póñase en contacto co servizo de atención ao cliente de DS18 ou cun técnico cualificado.
9. Información da garantía
The DS18 NXL-N4 Hydro 4-Channel Class D Amplifier is covered by a manufacturer's warranty. Please refer to the official DS18 websitio web ou a documentación da compra para coñecer os termos e condicións específicos da garantía, incluídos os detalles da duración e a cobertura. Garda o comprobante de compra para as reclamacións de garantía.
10. Apoio
For further assistance, technical support, or inquiries regarding your DS18 NXL-N4 amplifier, please visit the official DS18 websitio web ou póñase en contacto co seu departamento de atención ao cliente. Pode atopar información de contacto e recursos adicionais en www.ds18.com.
