Thule T2 Classic 2 - 2" Bike Rack Instruction Manual

Introdución

The Thule T2 Classic 2 is a robust platform-style bike carrier designed for secure and convenient transport of your bicycles. It features a frame-free clamping system, making it suitable for various bike types, including carbon frames, mountain bikes, e-bikes, and fat bikes. This manual provides essential information for the proper setup, operation, and maintenance of your Thule T2 Classic 2 bike rack.

Figure 1: The Thule T2 Classic 2 - 2" hitch-mount bike rack.

Características clave

• Frame-Free Ratcheting Arm: Securely holds bikes without making contact with the bike frame, ideal for carbon frames.
• Adjustable Bike Mounts: Side-to-side adjustability allows for generous spacing between bikes, preventing interference.
• Ampla compatibilidade: Accommodates 20 - 29 inch wheels and tires up to 5 inches wide without requiring adapters, suitable for mountain, downhill, e-bikes, and fat bikes.
• HitchSwitch Lever: Provides convenient access to the rear of your vehicle by allowing the rack to tilt away, even with bikes loaded.
• Bloqueo integrado: The rack locks to the vehicle with the included SnugTite Lock for added security.
• Alta capacidade de carga: Supports a load capacity of up to 120 pounds.
• Nota importante: Not intended for tandems or recumbents. Do not install on a trailer or other towed vehicle. Do not use with bikes that have tire fenders, as this prevents snug hook grip on the tire.

Configuración e instalación

Carefully unpack all components and verify against the parts list in your packaging. Assembly requires basic tools, some of which are included. It is recommended to have assistance for certain steps due to the size and weight of the components.

1. Assemble the Main Hitch Unit

1. Begin by identifying the main hitch arm and the folding mechanism.
2. Remove any pre-installed bolts or pins that secure the folding mechanism for shipping.
3. Rotate the folding mechanism 180 degrees to its operational position. Ensure all holes align correctly.
4. Re-insert the main bolt and secure it with the washer and nut. Tighten firmly.
5. Insert the safety pin through the designated hole to prevent accidental folding.

Figure 2: The main hitch unit and its components.

2. Attach Wheel Trays and Upright Arms

1. Slide the wheel trays onto the main horizontal bars of the rack. Ensure they are oriented correctly (front and rear).
2. Secure the wheel trays using the provided bolts and tools. Do not overtighten, as this may damage plastic components.
3. Attach the upright arms (with the ratcheting mechanism) to the main horizontal bars. These arms will secure the front wheel of your bike.
4. Adjust the position of the upright arms and wheel trays according to the markings on the rack to ensure proper bike fit and spacing.

Figure 3: Fully assembled rack with bikes.

3. Mount Rack to Vehicle Hitch

1. Slide the main hitch arm into your vehicle's 2-inch receiver hitch.
2. Align the hitch pin hole on the rack with the hole on your vehicle's receiver.
3. Insert the SnugTite Lock pin through both holes and secure it. This pin is designed to reduce wobble and provide security.
4. Ensure the rack is firmly seated and does not wobble excessively.

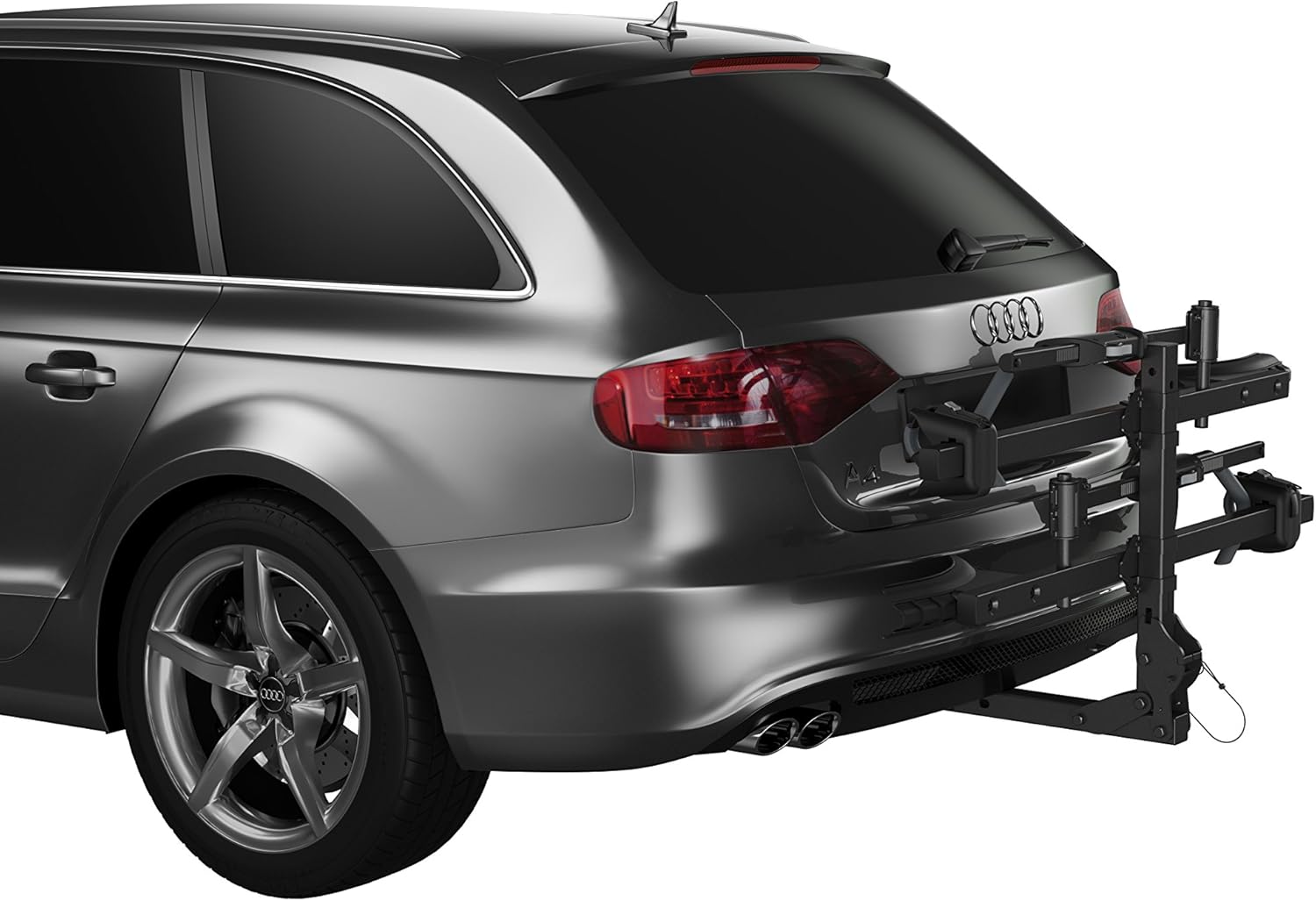

Figure 4: Rack mounted to vehicle in folded position.

Nota sobre os vídeos: No official seller-provided installation videos were available for this product. Please refer to the detailed text instructions and figures provided.

Operating the Bike Rack

1. Carga de bicicletas

1. Place the bike onto the wheel trays, ensuring both wheels are seated properly.
2. Bring the ratcheting arm over the front wheel and push it down until it firmly clamps the tire. The arm should not touch the bike frame.
3. Use the rear wheel strap to secure the rear wheel to the tray. Tighten until snug.
4. Repeat for the second bike, adjusting the side-to-side position of the mounts as needed to prevent contact between bikes.

Figura 5: Dúas bicicletas cargadas de forma segura no portabicicletas.

2. Tilting the Rack (HitchSwitch Lever)

The HitchSwitch lever allows you to tilt the rack down for rear vehicle access or fold it up for storage when not in use.

• To tilt down: Locate the HitchSwitch lever near the base of the rack. Pull the lever and carefully lower the rack. Be mindful of the weight of the bikes.
• To return upright: Lift the rack until it clicks securely into the upright position.
• To fold up for storage: With no bikes on the rack, pull the HitchSwitch lever and fold the main arm upwards until it locks into the vertical position.

Figure 6: Rack tilted down for rear vehicle access.

Figura 7: Outra view of the rack in the tilted position.

Mantemento

• Limpeza regular: Clean the rack regularly with mild soap and water, especially after exposure to dirt, salt, or harsh weather conditions. Rinse thoroughly and dry.
• Comprobar os elementos de fixación: Periodically inspect all bolts, nuts, and straps for tightness. Re-tighten as necessary to ensure secure operation.
• Lubricación: Apply a small amount of silicone spray or light grease to moving parts, such as the HitchSwitch lever mechanism, to ensure smooth operation.
• Almacenamento: When not in use, store the bike rack in a dry, protected area to prevent corrosion and prolong its lifespan.

Resolución de problemas

• A cremalleira oscila no enganche: Ensure the SnugTite Lock pin is fully inserted and tightened. Check that the hitch receiver on your vehicle is free of debris.
• Ratcheting Arm Not Securing Bike: Verify that the bike tire is fully seated in the wheel tray. Ensure the ratcheting arm is pulled down firmly over the tire and not obstructed by fenders.
• Difficulty Tilting Rack: Check for any obstructions or debris in the HitchSwitch lever mechanism. Ensure the rack is not overloaded beyond its 120-pound capacity. Lubricate moving parts if necessary.
• Bikes Touching Each Other: Adjust the side-to-side position of the individual bike mounts on the rack to create more clearance.

Especificacións

Garantía e Soporte

Thule products are tested and are subject to strict quality controls and are guaranteed against defects in material and workmanship. For detailed warranty information, product support, or to purchase replacement parts, please visit the official Thule websitio ou póñase en contacto co seu servizo de atención ao cliente.

You can often find additional support and product information by visiting the Tenda Thule en Amazon.
