Introdución
The RUPES LHR15 Mark III Random Orbital Polisher is engineered for precise paint correction across various surfaces, including curved and hard-to-reach areas. It features an ergonomic design with rubberized grips and integrated tool rests for enhanced comfort, control, and stability during operation and when idle. The polisher operates at a higher rotational speed compared to the LHR21 Mark III, facilitating efficient correction. Its electronic speed control dial allows for easy, precise adjustment of maximum speed, while the progressive trigger provides fine-tuned speed control within the selected range without interrupting the polishing process. The BigFoot random orbital platform ensures consistent and effective surface treatment.
Produto rematadoview

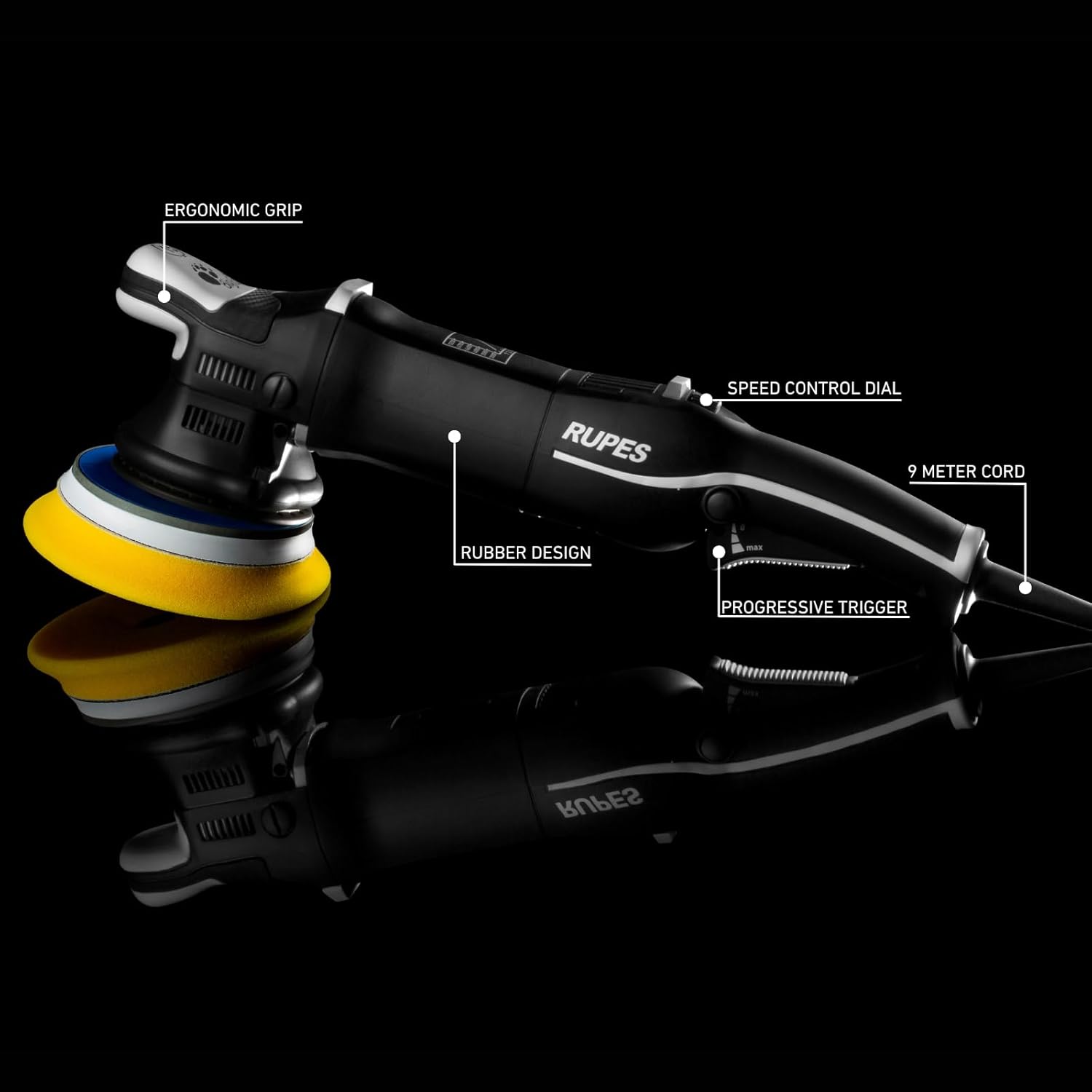

Esta imaxe ofrece unha vista máisview of the RUPES LHR15 Mark III polisher, highlighting its key components such as the ergonomic grip, speed control dial, rubberized body design, progressive trigger, and the long 9-meter power cord.
Características do produto
Agarre ergonómico
The Mark III features rubberized front and rear grips designed for superior operator comfort and non-slip control. Strategically placed tool rests provide stability when the tool is not in use and offer protection against impacts.
This image illustrates the ergonomic grip features of the RUPES LHR15 Mark III polisher, including the comfortable front handle, the stable tool rest, and the rubberized rear handle for improved control and feel.
Electronic Speed Control Dial
The electronic speed control dial allows for easy adjustment of the polisher's maximum speed without repositioning your hand. Its large size and high visibility numbers, combined with positive feedback, enable deliberate and precise speed changes, allowing operators to select the ideal working speed without interruption.
This image displays the electronic speed control dial on the RUPES LHR15 Mark III polisher, highlighting its clear numbering, large size for easy thumb adjustment, and the positive feedback it provides during speed changes.
Progressive Trigger
The progressive trigger functions as a throttle, providing smooth speed control within the selected dial range. This allows for subtle adjustments and precise control without interrupting the polishing process or needing to reposition your grip.
This image illustrates the progressive trigger feature of the RUPES LHR15 Mark III polisher, explaining how it provides precise, throttle-like control for subtle speed adjustments without interrupting the polishing process.
Random Orbital Motion
The BigFoot random orbital platform ensures optimal surface treatment quality. The backing plate orbits and spins freely, driven by outward force and friction, with rotation varying independently from orbits. If friction stops rotation, the tool transitions from random orbital to simple orbital action.
This diagram explains the random orbital motion of the RUPES polisher, detailing how the backing plate orbits and spins freely, the effect of friction on rotation, and how this motion achieves optimal surface finish quality.
Long Reach 9-Meter Cord
The polisher is equipped with an extra-long, heavy-duty 9-meter (approximately 29.5 feet) power cord. This extended length eliminates the need for extension cords, providing maximum power safely and efficiently, and allowing uninterrupted polishing without repositioning power sources.

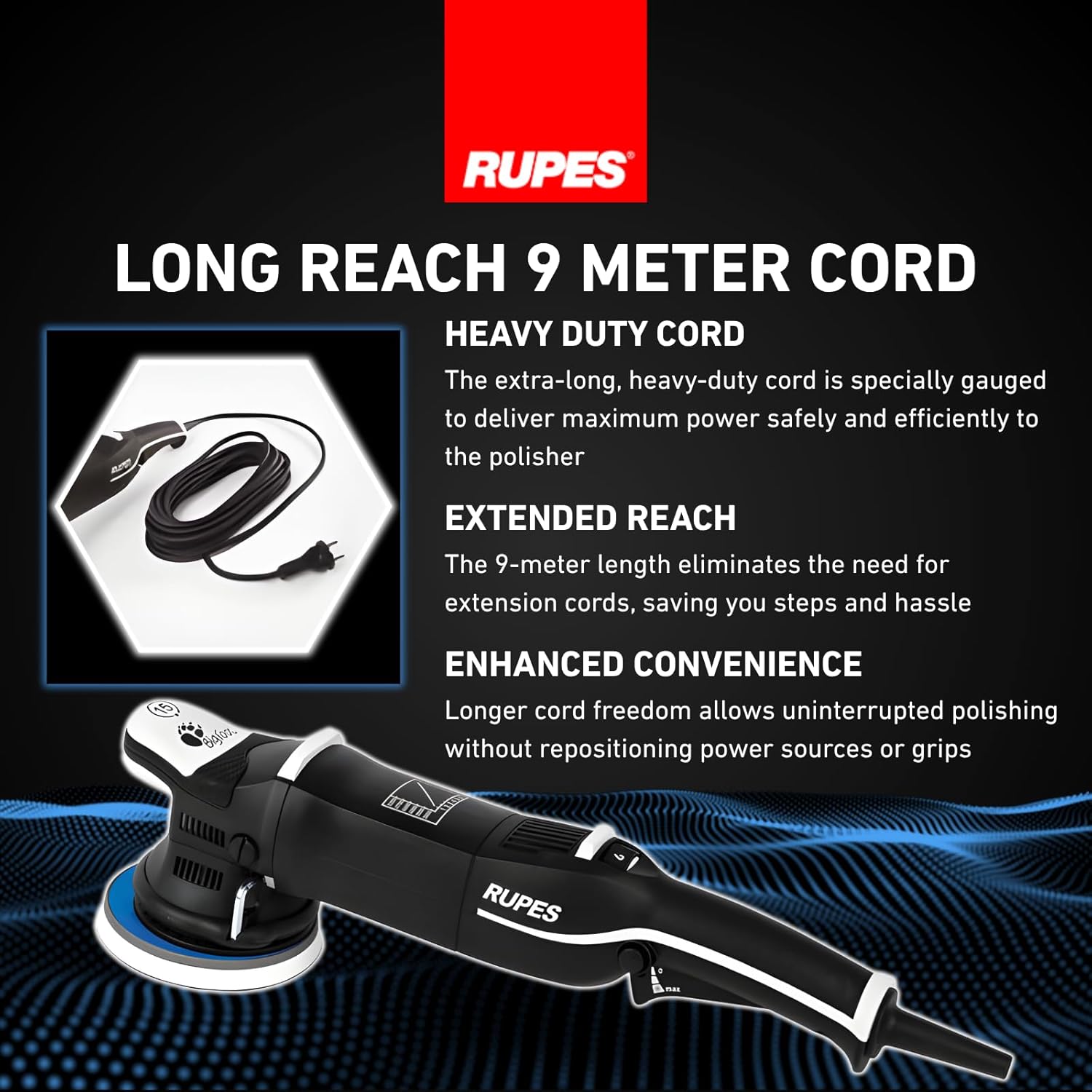

This image showcases the 9-meter long power cord of the RUPES polisher, explaining its heavy-duty construction, the extended reach it provides, and the convenience of uninterrupted polishing without needing to reposition power sources.
Configuración
Desembalaxe
Carefully remove the polisher and all accessories from the packaging. Inspect the tool for any signs of damage that may have occurred during shipping. Retain packaging for future storage or transport.
Attaching the Backing Plate
- Ensure the polisher is unplugged from the power source.
- Align the backing plate with the spindle on the polisher.
- Securely fasten the backing plate. Use the provided wrench, if necessary, to tighten it firmly but avoid overtightening.
Attaching the Polishing Pad
Press the desired polishing pad firmly onto the hook-and-loop surface of the backing plate. Ensure the pad is centered on the backing plate to prevent imbalance during operation.
Instrucións de funcionamento
Conexión de alimentación
Connect the power cord to a suitable 120V AC power outlet. Ensure the outlet is properly grounded.
Axuste de velocidade
Use the electronic speed control dial, located on the top of the tool, to select the desired maximum speed. It is recommended to start with a lower speed for initial product application and increase as needed for correction.
Starting the Polisher
Place the polishing pad flat on the work surface before starting the tool. Gently press the progressive trigger to start the polisher. The trigger allows for fine speed adjustments within the selected dial range, providing precise control.
Polishing Technique
- Maintain even pressure on the tool, allowing the polisher to do the work.
- Move the polisher in slow, overlapping passes across the work surface to ensure uniform coverage.
- Avoid tilting the polisher; keep the entire pad flat against the surface to maximize contact and effectiveness.
- Do not apply excessive pressure, as this can hinder the random orbital motion and reduce polishing efficiency.
Stopping the Polisher
Release the progressive trigger to stop the polisher. Always lift the tool from the surface after the pad has stopped rotating.
Mantemento
Limpeza
- Desconecte sempre a ferramenta da fonte de alimentación antes de realizar calquera limpeza ou mantemento.
- Wipe the tool body with a clean, damp cloth. Do not use harsh chemicals, solvents, or abrasive cleaners.
- Clean polishing pads regularly after use to ensure optimal performance and longevity.
Almacenamento
Store the polisher in a dry, clean place, away from direct sunlight, moisture, and extreme temperatures. Ensure the power cord is neatly coiled and not kinked.
Inspección de cordón
Regularly inspect the power cord for any signs of damage, cuts, or fraying. Do not use the tool if the cord is damaged; contact a qualified service technician for repair or replacement.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O pulidor non arranca. | No power supply; progressive trigger not pressed. | Check power cord connection and wall outlet. Ensure the progressive trigger is fully pressed. |
| Reduced polishing effectiveness. | Worn or dirty polishing pad; excessive pressure applied. | Clean or replace the polishing pad. Reduce applied pressure to allow random orbital action. |
| Vibracións ou ruídos excesivos. | Improperly attached backing plate or pad; damaged backing plate or internal components. | Ensure backing plate and pad are securely attached and centered. Inspect backing plate for damage. If problem persists, contact support. |
Especificacións
| Característica | Detalle |
|---|---|
| Modelo | LHR15 Mark III |
| Marca | RUPES |
| Velocidade | 15 RPM (rotacións por minuto) |
| Voltage | 120 Volts (Based on product number 120/H6/US/STd) |
| Peso do produto | 0.28 kg (aprox. 0.62 lbs) |
| Dimensións do produto (L x W x H) | 51.82 x 17.02 x 14.48 cm (20.4 x 6.7 x 5.7 polgadas) |
| Fonte de enerxía | Eléctrico con cable |
| Aplicación | Detalle de automoción |
| GTIN | 08055271656809 |
Información da garantía
For detailed warranty information regarding your RUPES LHR15 Mark III polisher, please refer to the official RUPES website or consult your authorized RUPES dealer. It is essential to retain your purchase receipt as proof of purchase for any warranty claims.
Apoio
If you require technical assistance, spare parts, or have questions regarding the operation or maintenance of your RUPES LHR15 Mark III polisher, please visit the official RUPES support page. Contact details for customer service can typically be found on the RUPES official websitio web ou a través do seu distribuidor local.
Avisos importantes de seguridade
Aviso da Proposición 65 de California: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Always wear appropriate personal protective equipment (PPE) including eye protection and hearing protection when operating the polisher. Ensure your work area is well-ventilated and free from flammable materials. Read and understand all safety instructions provided with the product before initial use to prevent injury and ensure proper operation.
