Thermaltake Riing Duo 140mm RGB Fan 3-Pack with Controller

1. Introdución

The Thermaltake Riing Duo 140mm RGB Radiator Fan 3-Pack with Controller (Model: CL-F078-PL14SW-A) is designed to provide efficient cooling and dynamic lighting for your PC system. Each fan features two individually addressable 16.8 million RGB LED rings with 18 patented LEDs, offering extensive customization options. This product supports TT RGB Plus software, Alexa Voice Service, and Razer Chroma software for integrated control. The 140mm high-static pressure fan is PWM controlled and incorporates a long-life hydraulic bearing and a compression fan blade design to ensure both effective cooling and quiet operation.

2. Contido do paquete

Verifique que todos os compoñentes que se indican a continuación estean incluídos no paquete:

• 3 x Thermaltake Riing Duo 140mm RGB Fans
• 1 x Digital Lighting Controller
• 1 x Bridge Cable
• 1 x Controller Cable
• 1 x Power Cable (Molex)
• 12 x Parafusos longos
• 12 x Short Screws
• 1 x Velcro (for controller mounting)

Figure 2.1: Included cables, screws, and velcro for installation.

3. Configuración e instalación

Follow these steps to install your Thermaltake Riing Duo fans and controller:

1. Prepara o teu sistema: Power off your computer and disconnect it from the power source. Open your PC case to access the fan mounting locations.
2. Montar os ventiladores: Securely attach the Riing Duo fans to your PC case or radiator using the provided long or short screws. Ensure the fan's airflow direction is appropriate for your cooling setup (typically intake or exhaust).

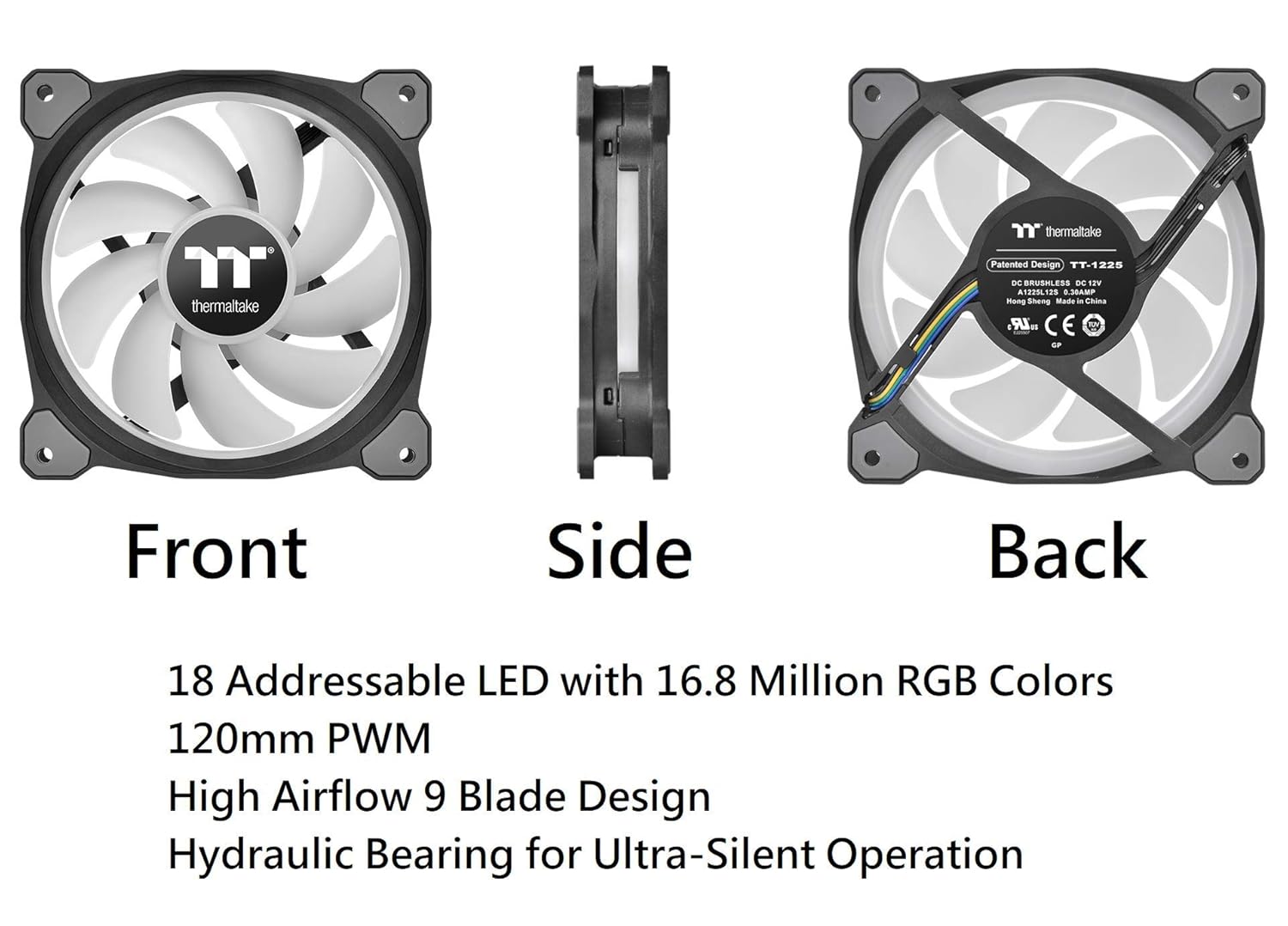

   Figure 3.1: Fan orientation and key features.
3. Conectar os ventiladores ao controlador: Connect each Riing Duo fan's 9-pin cable to an available port on the Digital Lighting Controller. The controller can support up to 5 devices.
4. Install the Digital Lighting Controller: Mount the controller inside your PC case using the provided Velcro. Ensure it is placed in a location that allows for cable management and access to the motherboard USB header and power supply.


   Figure 3.2: Digital Lighting Controller.

   The controller allows connection of up to 5 devices and up to 16 controllers can be managed by the software. Connect only one controller and up to 5 Riing Trio fans per peripheral (Molex) cable. Do not connect Riing Trio fans to other TT RGB PLUS controllers.

5. Conectar o controlador á placa base: Usa o cable do controlador para conectar o controlador de iluminación dixital a un conector USB 2.0 (9 pines) dispoñible na túa placa base.
6. Connect Controller to Power Supply: Use the Power Cable (Molex) to connect the Digital Lighting Controller to your PC's power supply.
7. Instalación de software: Download and install the latest version of the Thermaltake TT RGB Plus software from the official Thermaltake website. This software is required for full control over fan speed and lighting effects.
8. Encendido: Close your PC case, reconnect the power, and power on your computer.

4. Instrucións de funcionamento

The Thermaltake Riing Duo fans offer versatile control options:

• TT RGB Plus Software: This software provides comprehensive control over fan speed (PWM) and lighting effects. You can customize individual LED colors, choose from various lighting modes, and create profiles. The software also allows monitoring of fan RPM.


  Figure 4.1: TT RGB Plus Software Interface.

• Alexa Voice Service: Integrate your Riing Duo fans with Alexa-enabled devices to control lighting effects or fan speed using voice commands. Refer to the TT RGB Plus software documentation for specific Alexa commands and setup.
• Razer Chroma: Synchronize your fan lighting with other Razer Chroma-supported products for a unified gaming aesthetic. Enable this feature within the TT RGB Plus software settings.


  Figure 4.2: Sync lighting effects with Amazon Alexa and Razer Chroma.
• Motherboard Sync (Optional): With a compatible TT Sync controller (sold separately, CL-O015-PL00BL-A), lighting effects and fan speed can be controlled by select 5V addressable RGB enabled motherboards from brands like ASUS, Gigabyte, MSI, and ASRock.

5. Mantemento

Proper maintenance ensures the longevity and optimal performance of your fans:

• Limpeza: Periodically clean the fan blades and housing to prevent dust buildup, which can impede airflow and increase noise. Use a soft brush or compressed air. Ensure the system is powered off before cleaning.
• Comprobación de conexión: Regularly inspect all cable connections (fan to controller, controller to motherboard, controller to PSU) to ensure they are secure. Loose connections can lead to intermittent operation or lighting issues.
• Hydraulic Bearing: The fans feature a hydraulic bearing designed for long life and quiet operation. It is self-lubricating and generally does not require user maintenance.

6 Solución de problemas

If you encounter issues with your Thermaltake Riing Duo fans, refer to the following common problems and solutions:

7. Especificacións

8. Garantía e soporte

Garantía: This product is covered by a 3-year limited warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Soporte técnico: For further assistance, troubleshooting not covered in this manual, or warranty inquiries, please visit the official Thermaltake websitio en www.thermaltake.com and navigate to the support section. You may also find updated drivers, software, and FAQs there.
