1. Produto rematadoview

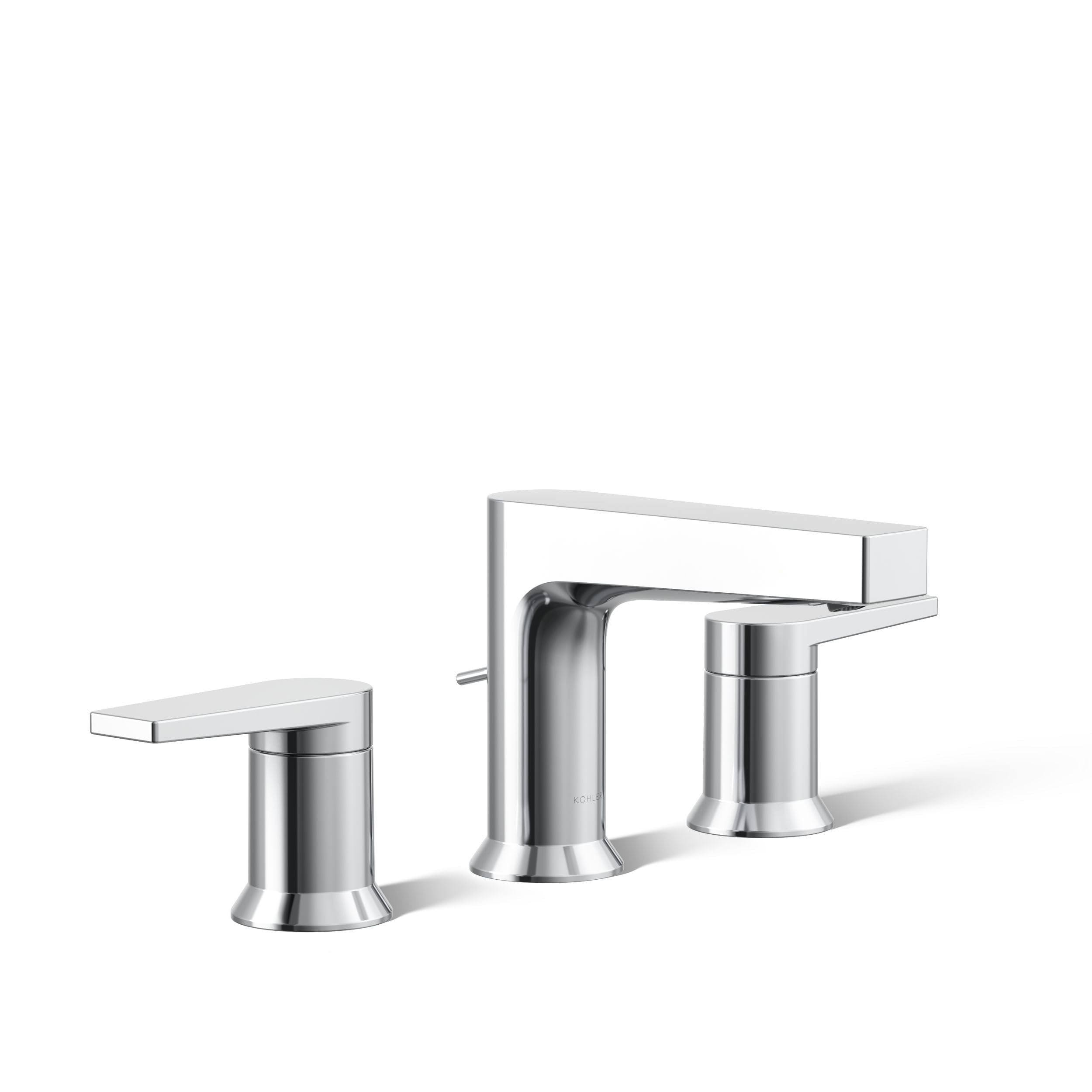

The KOHLER Taut widespread faucet, model K-97100-4-CP, is designed for bathroom sink installations, offering a minimalist aesthetic suitable for transitional or contemporary environments. This faucet features a 1.2 gallons per minute (gpm) flow rate and is finished in Polished Chrome. It is equipped with UltraGlide valves for easy installation and leak-free performance.
The faucet's design emphasizes clean lines and robust construction, ensuring both visual appeal and reliable functionality. It is part of the Taut collection, designed to coordinate with other KOHLER showering components.
2. Contido do paquete
Before beginning installation, verify that all components are present in the package. The standard package for the Kohler Taut K-97100-4-CP faucet typically includes the following:
- Fully assembled faucet spout
- Dúas manivelas
- Pop-up drain assembly with lift rod
- Preassembled supply lines
- Mounting hardware and gaskets
- Instrucións de instalación
3. Configuración e instalación
The Kohler Taut faucet is designed for straightforward installation, often preassembled to simplify the process. It is a widespread faucet, requiring three holes for mounting: one for the spout and one for each handle. Ensure your sink or countertop has the appropriate 8-inch spacing for a widespread installation.
3.1 Tools and Materials Required (Not Included)
- Chave inglesa axustable
- Masilla de fontaneiro ou selante de silicona
- Clave Phillips
- Basin chave inglesa (opcional, para espazos reducidos)
- Gafas de seguridade
3.2 Pasos da instalación
- Prepare a superficie de montaxe: Ensure the sink or countertop surface is clean and dry.
- Install Faucet Handles: Insert the handle assemblies into the outer holes. Secure them from underneath the counter using the provided washers and nuts.
- Instalar o bico da billa: Place the spout assembly into the center hole. Apply plumber's putty or silicone sealant around the base of the spout if recommended by local codes or the specific installation guide. Secure the spout from underneath with its washer and nut.
- Conectar as liñas de subministración: Attach the preassembled supply lines from the faucet to your hot and cold water supply valves. Hand-tighten first, then use an adjustable wrench for a final quarter-turn. Do not overtighten.
- Instalar o conxunto de drenaxe: Follow the specific instructions for installing the pop-up drain. Ensure a watertight seal with plumber's putty or silicone sealant around the drain flange. Connect the lift rod to the drain mechanism.
- Proba de fugas: Turn on the water supply and check all connections for leaks. Operate the faucet handles and drain stopper to ensure proper function.
4. Instrucións de funcionamento
The Kohler Taut widespread faucet is designed for intuitive operation with its lever handles and integrated pop-up drain.
4.1 Control do fluxo de auga e da temperatura
- Activar/Desactivar: Rotate the left handle counter-clockwise for hot water and the right handle counter-clockwise for cold water. Rotate clockwise to turn off.
- Axuste do fluxo: The further the handle is rotated, the greater the water flow.
- Axuste da temperatura: Mix hot and cold water by adjusting both handles simultaneously to achieve the desired temperature.
4.2 Drain Stopper Operation
The faucet includes a pop-up drain with a lift rod located behind the spout. To operate the drain:
- Close Drain: Push the lift rod down to close the drain and fill the sink.
- Open Drain: Pull the lift rod up to open the drain and allow water to flow out.
5. Mantemento e coidados
Proper care and maintenance will ensure the longevity and appearance of your Kohler Taut faucet.
5.1 Instrucións de limpeza
- Limpar a billa regularmente cun pano suave eamp pano e un xabón suave.
- Enxágüe ben con auga despois da limpeza.
- Dry the faucet with a soft cloth to prevent water spots.
5.2 Avoid Harsh Cleaners
Do not use abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the Polished Chrome finish. Products containing ammonia, bleach, or alcohol should also be avoided.
5.3 Valve Maintenance
The faucet is equipped with UltraGlide valves designed for leak-free performance. In case of reduced flow or persistent drips, the valve cartridges may need inspection or replacement. Consult a qualified plumber or Kohler customer service for assistance.
6 Solución de problemas
This section addresses common issues you might encounter with your Kohler Taut faucet.
| Problema | Causa posible | Solución |
|---|---|---|
| Baixo caudal de auga | Aireador atascado; válvula de subministración parcialmente pechada; residuos nas liñas de subministración. | Remove and clean the aerator. Ensure supply valves are fully open. Flush supply lines. |
| Fuga polo bico | Worn valve cartridge; debris in cartridge. | Replace valve cartridge. Clean debris from cartridge. |
| Fuga na base da billa | Loose mounting nuts; worn gaskets. | Tighten mounting nuts. Replace gaskets. |
| Stiff Handles | Acumulación de minerais no cartucho; cartucho desgastado. | Clean or replace valve cartridges. |
| O tapón de drenaxe non sela | Improperly adjusted lift rod; debris in drain. | Adjust lift rod connection. Clear drain of debris. |
If you are unable to resolve an issue using the troubleshooting steps above, it is recommended to contact Kohler customer service or a qualified plumbing professional.
7. Especificacións
Detailed specifications for the Kohler Taut K-97100-4-CP Widespread Bathroom Sink Faucet:
| Característica | Detalle |
|---|---|
| Marca | Kohler |
| Nome do modelo | Taut |
| Número de modelo | K-97100-4-CP |
| Tipo de acabado | Cromo pulido |
| Material | Metal (material da asa: cerámica) |
| Tipo de montaxe | Deck Mounted, Widespread |
| Número de tiradores | 2 (Lever Handles) |
| Número de buratos | 3 |
| Caudal | 1.2 galóns por minuto |
| Tipo de válvula | Cartridge Valve (UltraGlide) |
| Fonte de altura | 4 polgadas |
| Peso do elemento | 6 libras |
| UPC | 885612710277 |
| Característica especial | Fácil de instalar |
8. Información da garantía
The Kohler Taut K-97100-4-CP Widespread Bathroom Sink Faucet is covered by the Garantía limitada de por vida KOHLER Faucet. This warranty typically covers defects in material and workmanship for as long as the original consumer/purchaser owns their home. For complete details regarding terms, conditions, and limitations of the warranty, please refer to the official Kohler website or contact Kohler customer service directly.
9. Atención ao cliente
For further assistance, technical support, or warranty claims, please contact Kohler customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (K-97100-4-CP) and purchase date available.
You can visit the official Kohler website for additional resources, FAQs, and product registration: www.kohler.com
