Berkel Red Line 300 Electric Food Slicer Instruction Manual

1. Introdución

This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your Berkel Red Line 300 Electric Food Slicer. Please read this manual thoroughly before using the appliance for the first time and retain it for future reference.

Image 1.1: The Berkel Red Line 300 Electric Food Slicer in black. This image displays the overall design of the slicer, highlighting its compact and robust construction.

2. Instrucións de seguridade importantes

AVISO: O incumprimento destas instrucións de seguridade pode provocar descargas eléctricas, incendios ou lesións graves.

• Always unplug the slicer from the power outlet before cleaning, assembling, or disassembling parts.
• Keep hands clear of the blade at all times. The blade is extremely sharp.
• Never operate the slicer without all guards and covers properly in place.
• Ensure the slicer is placed on a stable, level, and dry surface during operation.
• Do not use the appliance for purposes other than its intended use (slicing food).
• Evite o contacto coas pezas móbiles.
• Non mergullo o motor en auga ou outros líquidos.
• Supervise os nenos e as persoas con capacidades físicas, sensoriais ou mentais reducidas cando estean preto do aparello.
• In case of power failure, the machine will automatically shut down for safety.
• The gauge plate must be fully closed for maximum safety during cleaning.

3. Compoñentes e características do produto

Familiarize yourself with the various parts of your Berkel Red Line 300 slicer for optimal use and maintenance.

Image 3.1: Diagram illustrating key components of the Berkel Red Line 300. This image highlights the premium steel spikes, gauge plate, detachable food plate, removable slice deflector, ON/OFF push buttons with LED indicators, and the adjustment knob for slice thickness.

• 12-inch Chromed Steel Blade: Designed for smooth and precise slicing.
• Afiador incorporado: Integrated system for maintaining blade sharpness.
• Gauge Plate: Adjustable plate that determines slice thickness (0 to 0.47 inches / 0 to 12 mm).
• Food Plate: Professional food plate with a quick detachable system for easy cleaning.
• Product Press Holder: Aluminum holder with spikes to secure food during slicing, featuring a disarmed position for safety.
• Slice Guard Deflector: Removable component to guide sliced food.
• ON/OFF Push Buttons: With LED indicators for operation control.
• Botón de axuste: For precise control of slice thickness.
• Pés antideslizantes: Asegura a estabilidade durante o funcionamento.

4. Configuración e primeiro uso

1. Desembalaxe: Retire con coidado a cortadora da súa embalaxe. Garde a embalaxe para futuros transportes ou almacenamentos.
2. Colocación: Position the slicer on a clean, stable, level, and dry surface. Ensure adequate space around the unit for safe operation and ventilation.
3. Limpeza inicial: Antes do primeiro uso, limpe todas as pezas que entrarán en contacto cos alimentos. Consulte a sección "Mantemento e limpeza" para obter instrucións detalladas.
4. Conexión de alimentación: Ensure the ON/OFF switch is in the "OFF" position. Plug the power cord into a grounded 115 V 60 HZ electrical outlet.

5. Instrucións de funcionamento

5.1 Preparing for Slicing

1. Ensure the slicer is clean and properly assembled.
2. Place the food item (e.g., meat, cheese, vegetables) onto the food plate.
3. Use the product press holder to firmly secure the food against the gauge plate. Ensure the disarmed position is released to engage the spikes.
4. Adjust the slice thickness using the adjustment knob. The numbers on the knob correspond to the slice thickness in millimeters (0 to 12 mm).

5.2 Procedemento de corte

1. Press the "ON" button to start the motor. The LED indicator will illuminate.
2. Gently push the product press holder and food item towards the rotating blade.
3. Move the food plate back and forth smoothly to achieve consistent slices.
4. Collect the sliced food from the slice guard deflector.
5. Once slicing is complete, press the "OFF" button to stop the motor.
6. Wait for the blade to come to a complete stop before handling the slicer or removing food.

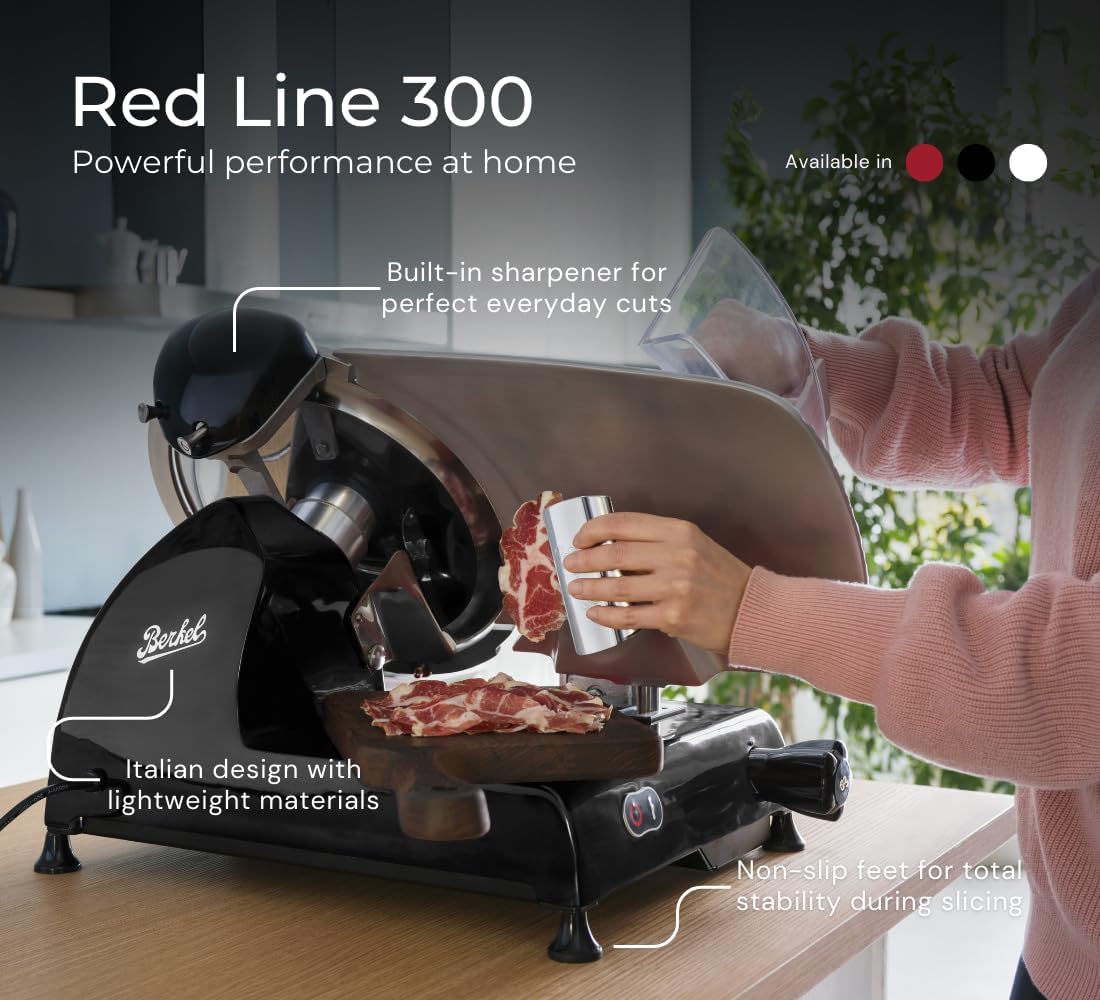

Image 5.1: The Berkel Red Line 300 in use, demonstrating the slicing process with a piece of meat. This image shows the user holding the product press holder and the sliced product accumulating on the cutting board.

Imaxe 5.2: Primeiro plano view of the 12-inch chromed steel blade of the Berkel Red Line 300, with sliced meat on a wooden board. This image emphasizes the blade's size and the quality of the slices.

6. Mantemento e Limpeza

Regular cleaning is crucial for hygiene and to maintain the performance and longevity of your slicer.

1. Desconectar a enerxía: Desenchufe sempre a cortadora antes de limpala.
2. Close Gauge Plate: Ensure the gauge plate is fully closed (set to '0' thickness) to cover the blade edge for safety during cleaning.
3. Remove Detachable Parts:
   • Detach the food plate.
   • Remove the blade guard disk.
   • Remove the slice guard deflector.
   These parts can be hand washed with warm, soapy water. Refer to product care instructions for specific dishwasher compatibility (some parts may be dishwasher safe, but hand washing is generally recommended for longevity).
4. Clean the Slicer Body: Usa anuncioamp cloth with mild detergent to wipe down the exterior surfaces of the slicer. Avoid abrasive cleaners or scouring pads.
5. Limpar a lámina: With the gauge plate closed, carefully wipe both sides of the blade with a damp cloth. Use extreme caution. Never touch the blade edge directly.
6. Clean Behind the Blade: The casting is made from a single mold with an absence of gaps, facilitating easy cleaning. Use a brush or damp cloth to clean any food debris from behind the blade and around the motor housing.
7. Secar ben: Ensure all parts are completely dry before reassembling or storing the slicer.
8. Remontar: Reattach all removable parts securely.

6.1 Afiado da folla

The Berkel Red Line 300 features a built-in sharpener to maintain optimal blade performance.

1. A seguridade primeiro: Asegúrate de que a cortadora estea desconectada.
2. Position Sharpener: Lift and rotate the built-in sharpener into its sharpening position. It is pre-set at a fixed angle, requiring no additional adjustments.
3. Afiado: Plug in the slicer. Turn the slicer ON. Gently press the blade against the sharpening stones for a few seconds. Do not apply excessive pressure.
4. Desbarbado: After sharpening, briefly engage the deburring stone (if applicable, typically part of the dual-motion system) to remove any burrs from the blade edge.
5. Apagar e desconectar: Turn the slicer OFF and unplug it.
6. Lámina limpa: Carefully clean the blade to remove any sharpening residue.
7. Return Sharpener: Rotate the sharpener back to its stored position.

7 Solución de problemas

If you encounter issues with your Berkel Red Line 300 slicer, refer to the table below for common problems and solutions.

Se o problema persiste despois de intentar estas solucións, póñase en contacto co servizo de atención ao cliente.

8. Especificacións

Imaxe 8.1: Lateral view of the Berkel Red Line 300 with indicated dimensions. This image shows the length and height measurements of the slicer.

Imaxe 8.2: Fronte view of the Berkel Red Line 300 with indicated dimensions. This image shows the width and height measurements of the slicer.

9. Atención ao cliente

For further assistance, warranty information, or service inquiries, please contact Berkel customer support.

• Refer to the official Berkel websitio para os detalles de contacto.
• Have your model number (RSEGL0U0000N) and purchase date available when contacting support.
