1. Introdución
Thank you for choosing the VASAGLE TV Cabinet, model ULTV46BX. This manual provides essential information for the safe assembly, operation, and maintenance of your new TV stand. Please read these instructions carefully before beginning assembly and retain them for future reference.
Image 1.1: The VASAGLE TV Cabinet ULTV46BX, showcasing its rustic brown and black industrial design with a television placed on its top surface.
2. Información de seguridade
- Por razóns de seguridade, os nenos non poden subir nin xogar no produto.
- Please attach the product to the wall with the included anti-tipping kit for safety.
- Asegúrate de que todos os parafusos e elementos de fixación estean ben axustados antes do uso. Comprobe periodicamente e volva a axustalos segundo sexa necesario.
- Do not exceed the maximum static load capacities specified in the 'Specifications' section.
- Place the TV cabinet on a level surface to prevent instability.
3. Contido do paquete
Verifique que todos os compoñentes que se indican a continuación estean presentes antes de comezar a montaxe. Se falta algunha peza ou está danada, póñase en contacto co servizo de atención ao cliente.
- 1 x TV Stand (all structural components)
- 1 x Kit de accesorios (ferramentas, accesorios)
- 1 x Kit antivuelco (para fixación á parede)
4. Especificacións
| Característica | Detalle |
|---|---|
| Tamaño do produto | 53.1" de longo x 15.7" de ancho x 29.9" de alto (135 x 40 x 76 cm) |
| Peso do produto | 91.3 lb (41.5 kg) |
| Max. Static Load Capacity of Tabletop | 66 lb (30 kg) |
| Capacidade máxima de carga estática por estante | 44 lb (20 kg) |
| Material | Taboleiro de partículas, aceiro |
| Cor | Marrón Rústico + Negro |
| Estilo | Industrial |

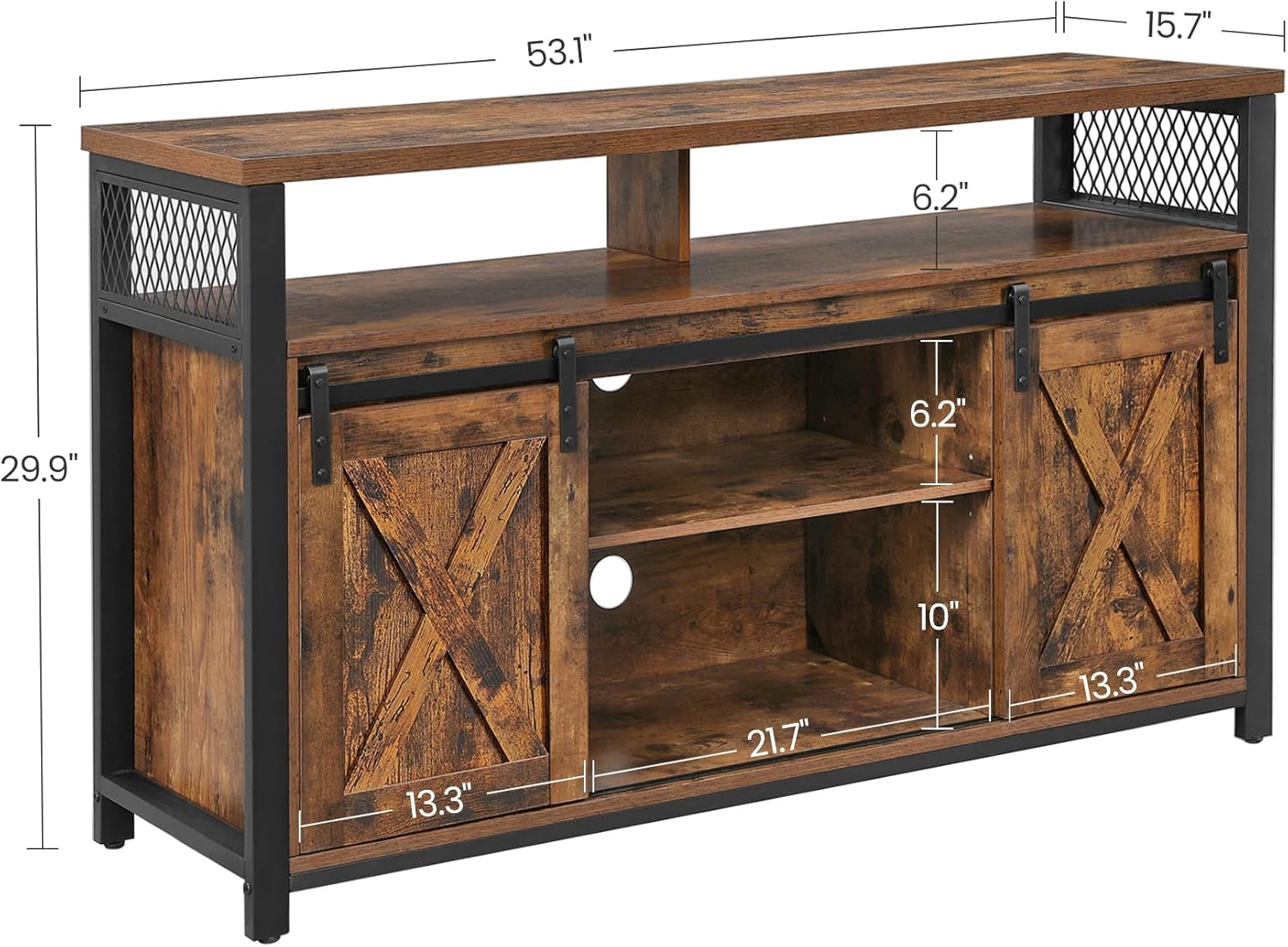

Image 4.1: Technical drawing illustrating the precise dimensions of the TV cabinet, including length, width, and height, as well as internal shelf spacing.
Image 4.2: Visual guide demonstrating the compatibility of the TV cabinet with various television sizes, specifically 32-inch, 40-inch, 55-inch, and 60-inch TVs.
5. Configuración e montaxe
Assembly of the VASAGLE TV Cabinet requires careful attention to the included step-by-step instructions. It is recommended to have a clear, spacious area for assembly. All necessary tools and hardware are provided in the accessory kit.
5.1 Características principais da montaxe
- Pés axustables: The media console is equipped with adjustable feet to compensate for uneven floor surfaces, ensuring stability.
- Xestión de cables Integrated cable holes on the back panel help organize and hide audio/video cables, maintaining a tidy appearance.
- Kit antivuelco: For enhanced safety, especially in households with children, secure the TV cabinet to the wall using the provided anti-tipping kit.
Imaxe 5.1: Detallada view of the cable management holes located on the rear panel of the TV cabinet, designed for routing and concealing electronic cables.
Video 5.1: An official product video from VASAGLE demonstrating the features and functionality of the TV cabinet, including its design and storage capabilities.
6. Instrucións de funcionamento
The VASAGLE TV Cabinet is designed for versatile storage and display. Utilize its features to organize your entertainment area efficiently.
6.1 Portas corredías de celeiro
The two barn doors slide smoothly along a metal track, allowing you to conceal or reveal different sections of the cabinet as needed. This provides flexibility in displaying decorative items or hiding electronic components and clutter.
Imaxe 6.1: Detallada view of the metal track and roller mechanism that enables the smooth operation of the sliding barn doors.
6.2 Adjustable Storage Shelves
The cabinet features two adjustable shelves behind the sliding doors, along with two open compartments and a large shelf under the tabletop. These shelves can be repositioned to accommodate items of various sizes, such as gaming consoles, media players, books, or decorative pieces.
Image 6.2: An interior perspective of the TV cabinet, highlighting the adjustable shelves and open compartments suitable for organizing various media and decorative items.
7. Mantemento
To ensure the longevity and appearance of your VASAGLE TV Cabinet, follow these simple maintenance guidelines:
- Limpeza: Limpa as superficies cun pano seco e suave. Evita o uso de produtos químicos agresivos ou produtos de limpeza abrasivos, que poden danar o acabado.
- Verquidos: Immediately wipe up any spills with a dry cloth to prevent moisture damage to the particleboard.
- Hardware: Comprobe periodicamente todos os parafusos e elementos de fixación para asegurarse de que permanecen axustados. Volva a apertalos se é necesario para manter a integridade estrutural.
- Luz solar: Evita a exposición prolongada á luz solar directa, xa que pode causar decoloración ou esvaecemento da madeira.
8 Solución de problemas
8.1 Unevenness
If the TV cabinet appears wobbly or uneven, adjust the leveling feet located at the bottom of the stand. Rotate each foot clockwise or counter-clockwise until the cabinet is stable and level on your floor.
8.2 Sliding Doors Not Moving Smoothly
Ensure the metal track is clean and free of debris. Check that the rollers on the barn doors are properly seated on the track. If the issue persists, verify that the door hardware was installed correctly during assembly, referring back to the assembly instructions.
9. Garantía e soporte
For any questions, concerns, or issues regarding your VASAGLE TV Cabinet, please refer to the warranty information provided with your purchase or contact VASAGLE customer support. Details for customer support can typically be found on the product packaging or the brand's official websitio.
Tamén podes visitar o Tenda VASAGLE en Amazon para obter información adicional sobre o produto e recursos de asistencia.
