Introdución
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your microSHIFT Advent Drop Bar Shifter Lever Set. Please read this manual thoroughly before use to ensure proper function and longevity of your product.
The microSHIFT Advent Drop Bar Shifter Lever Set is designed for 1x9 speed bicycle setups, offering precise and reliable shifting performance for drop bar bicycles. It is specifically compatible with microSHIFT Advent rear derailleurs and cassettes.
Produto rematadoview

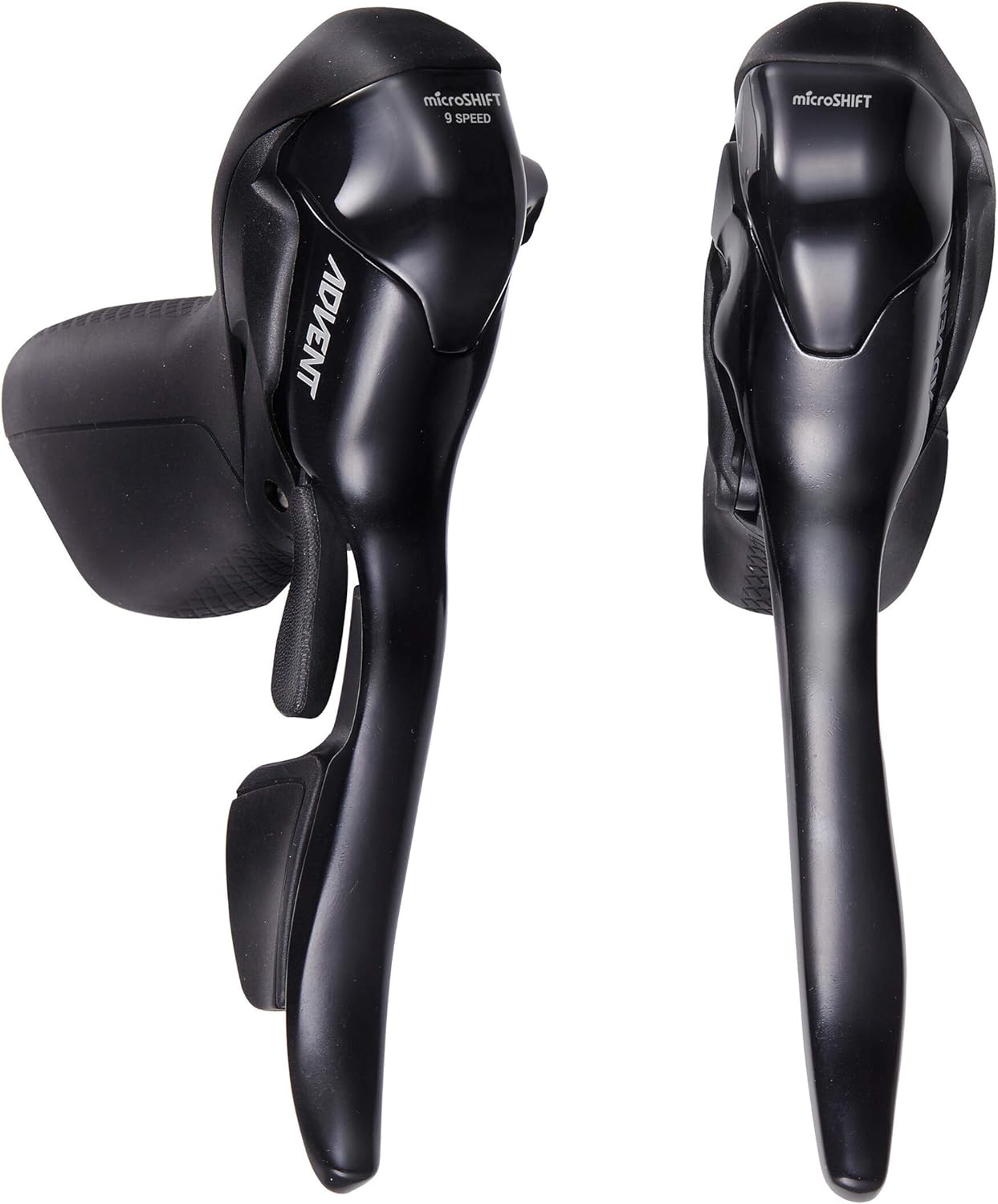

Figura 1: Fronte view of the microSHIFT Advent Drop Bar Shifter Lever Set, showing both left and right levers. The levers are black with "microSHIFT 9 SPEED" and "ADVENT" branding visible.
Figura 2: Lateral view of a single microSHIFT Advent Drop Bar Shifter Lever, highlighting the ergonomic shape and the separate shifter and brake lever design.
Figura 3: Lado alternativo view of the microSHIFT Advent Drop Bar Shifter Lever, showing the cable routing points and the textured grip area.
Características principais:
- Designed for 1x9 speed setups.
- Left side brake only for 1×9 setups.
- Shifter levers are separate from brake lever to avoid accidental braking.
- Crisp, positive shifting action.
- Compatible with ADVENT derailleurs only.
- Forged aluminum lever construction.
- External shifter cable routing, internal brake routing.
- Compatible only with Campagnolo shift cables.
Configuración e instalación
Proper installation is crucial for optimal performance and safety. If you are unsure about any step, it is recommended to seek assistance from a professional bicycle mechanic.
Ferramentas necesarias:
- Hex key set (e.g., 4mm, 5mm)
- Cortadores de cable
- Crimpadoras de cables
- Grease (for bolts)
- Chave dinamométrica (recomendado)
Pasos de instalación:
- Mounting the Shifters:
Slide the shifter/brake levers onto the drop handlebars. Position them ergonomically for comfortable reach to both brake and shift levers. Tighten the clamp bolts to the manufacturer's recommended torque specifications (typically found on the clamp itself or in a general bicycle component torque guide). Ensure the levers are securely mounted and do not rotate on the bars.
- Brake Cable Routing:
Route the brake cables internally through the levers and then externally along the handlebars, securing them with appropriate cable ties or tape. Connect the brake cables to your bicycle's brake calipers/mechanisms. Adjust cable tension to ensure proper brake function and lever feel. The internal brake routing provides a clean aesthetic.
- Shifter Cable Routing:
Insert the shift cable into the shifter lever. The microSHIFT Advent shifters use external shifter cable routing. Route the cable along the handlebars and frame to the rear derailleur. Ensure the cable path is smooth and free of sharp bends that could impede shifting performance. Note: Only compatible with Campagnolo shift cables.
- Derailleur Connection:
Connect the shift cable to your microSHIFT Advent rear derailleur. Secure the cable with the derailleur's cable fixing bolt. Ensure the cable is taut but not overly tight. Trim excess cable and crimp a cable end cap to prevent fraying.
- Axustes iniciais:
Perform initial adjustments for both braking and shifting. For shifting, ensure the derailleur limits are set correctly and that the chain moves smoothly across all 9 gears. Fine-tune cable tension using the barrel adjuster on the shifter or derailleur for crisp, positive shifting action.
Instrucións de funcionamento
The microSHIFT Advent Drop Bar Shifter Lever Set provides intuitive control over your bicycle's gearing and braking.
Cambio de marchas:
- Upshifting (to a smaller cog/higher gear): Use the smaller lever located behind the main brake lever. A short, crisp push will shift the chain to a smaller cog.
- Downshifting (to a larger cog/lower gear): Use the larger lever, which is the main brake lever itself. Pushing the brake lever inwards (without engaging the brake fully) will shift the chain to a larger cog.
- Ensure you are pedaling forward while shifting to prevent damage to the drivetrain.
- The shifter levers are designed to be separate from the brake lever to avoid accidental braking during shifting.
Freado:
- To engage the brakes, pull the main brake lever towards the handlebar.
- This product is designed for 1x9 setups, meaning the left lever functions as a brake only.
- Apply brake pressure smoothly and progressively.
Mantemento
Regular maintenance will extend the life and performance of your microSHIFT Advent shifters.
- Limpeza: Regularly wipe down the shifters with a clean, damp pano. Evite o uso de produtos químicos agresivos ou produtos de limpeza abrasivos.
- Inspección de cables: Periodically inspect brake and shift cables for fraying, corrosion, or kinks. Replace damaged cables promptly.
- Lubricación: Apply a small amount of light lubricant to the pivot points of the levers and where cables enter the housing. Avoid over-lubrication, which can attract dirt.
- Par de torsión do parafuso: Check the tightness of all mounting bolts periodically, especially after the first few rides. Refer to recommended torque specifications.
- Compatibilidade: Remember these shifters are compatible with ADVENT derailleurs only and Campagnolo shift cables. Using incompatible components may lead to poor performance or damage.
Resolución de problemas
This section addresses common issues you might encounter with your shifters.
| Problema | Causa posible | Solución |
|---|---|---|
| Difficulty shifting, sluggish shifts |
|
|
| Chain skips gears or shifts erratically |
|
|
| Brake lever feels spongy or ineffective |
|
|
If problems persist after attempting these solutions, please contact microSHIFT customer support or consult a qualified bicycle mechanic.
Especificacións
| Característica | Detalle |
|---|---|
| Marca | microSHIFT |
| Número de modelo | MSH-SB-M090 |
| Speed Compatibility | 1x9 Speed (Advent Compatible Only) |
| Brake Lever Actuation | Tiro curto |
| Cor | Negro |
| Material | Aluminio forjado |
| Dimensións do produto | 4.01" de longo x 3.07" de ancho |
| Peso do elemento | 0.15 quilogramos (aprox. 5.3 onzas) |
| Enrutamento de cables | External Shifter, Internal Brake |
| Shift Cable Compatibility | Campagnolo Shift Cables Only |
| Derailleur Compatibility | microSHIFT Advent Derailleurs Only |
Información da garantía
microSHIFT products are manufactured to high standards and are backed by a limited warranty against defects in materials and workmanship. For specific warranty terms, duration, and claim procedures, please refer to the official microSHIFT websitio web ou póñase en contacto directamente co servizo de atención ao cliente. Garde o comprobante de compra para reclamacións de garantía.
Atención ao cliente
For technical assistance, parts inquiries, or warranty service, please contact microSHIFT customer support through their official website or authorized distributors. When contacting support, please have your product model number (MSH-SB-M090) and purchase information ready.
Oficial Websitio: www.microshift.com
