Manual do usuario da cámara de seguridade para interiores Denver SHC-150 WiFi/IP

1. Introdución

This manual provides detailed instructions for the installation, operation, and maintenance of your Denver SHC-150 WiFi/IP Indoor Security Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety. Keep this manual for future reference.

Imaxe 1.1: Fronte view of the Denver SHC-150 Indoor Security Camera.

2. Produto rematadoview

2.1 Características principais

• Indoor IP dome camera with infrared LEDs for night use.
• 1 Megapixel HD video camera at 12 frames per second.
• WiFi (WEP/WPA/WPA2) and LAN function.
• Compatible with Tuya IoT platform and Denver Smart Home app (iOS/Android).
• Motorized pan (355°) and tilt (90°).
• Integrated speaker and microphone for two-way audio.
• Infrared range up to 10 meters.
• Motion detection with manual access.
• Micro SD card slot for up to 128GB storage (memory card not included).

2.2 Compoñentes da cámara

Imaxe 2.1: Diagram illustrating the main components of the SHC-150 camera.

The camera features a photoresistance sensor, IR LEDs, HD lens, microphone (MIC), and motorized pan/tilt mechanism on the front. The rear includes a reset hole, TF (Micro SD) card slot, speaker, antenna, and DC power port.

3. Configuración

3.1 Que hai na caixa

• Denver SHC-150 Security Camera
• Adaptador de alimentación
• Mounting Accessories (for wall mounting)
• Manual de usuario

3.2 Instalación física

The Denver SHC-150 camera is designed for indoor use and can be placed on a flat surface or mounted on a wall. Ensure the camera is positioned within range of your WiFi network and has a clear view da zona que desexa controlar.

1. Escolle un lugar axeitado para a cámara.
2. If wall-mounting, use the provided mounting accessories to securely attach the camera.
3. Connect the power adapter to the DC port on the camera and plug it into a power outlet. The camera will power on and initiate its startup sequence.

3.3 Instalación e emparellamento da aplicación

The SHC-150 camera operates with the Tuya IoT platform, compatible with the Denver Smart Home app.

1. Descarga o Casa intelixente de Denver aplicación desde a App Store (iOS) ou Google Play Store (Android).
2. Rexístrate para obter unha nova conta ou inicia sesión se xa tes unha.
3. Na aplicación, toca a icona "+" para engadir un novo dispositivo.
4. Select "Security Camera" or search for "SHC-150".
5. Follow the on-screen instructions to connect the camera to your WiFi network. This typically involves scanning a QR code displayed on your phone with the camera lens or entering your WiFi credentials.
6. Once connected, the camera will appear in your device list within the app.

4. Instrucións de funcionamento

4.1 En directo View e control de panorámica/inclinación

Access the live video feed from your camera through the Denver Smart Home app. You can remotely control the camera's viewángulo de ing.

Imaxe 4.1: Remote control of camera pan and tilt via smartphone app.

• Do directo view screen in the app, use the directional controls to pan the camera horizontally up to 355 degrees and tilt it vertically up to 90 degrees.

4.2 Audio bidireccional

A cámara ten un micrófono e un altofalante incorporados, o que permite a comunicación bidireccional.

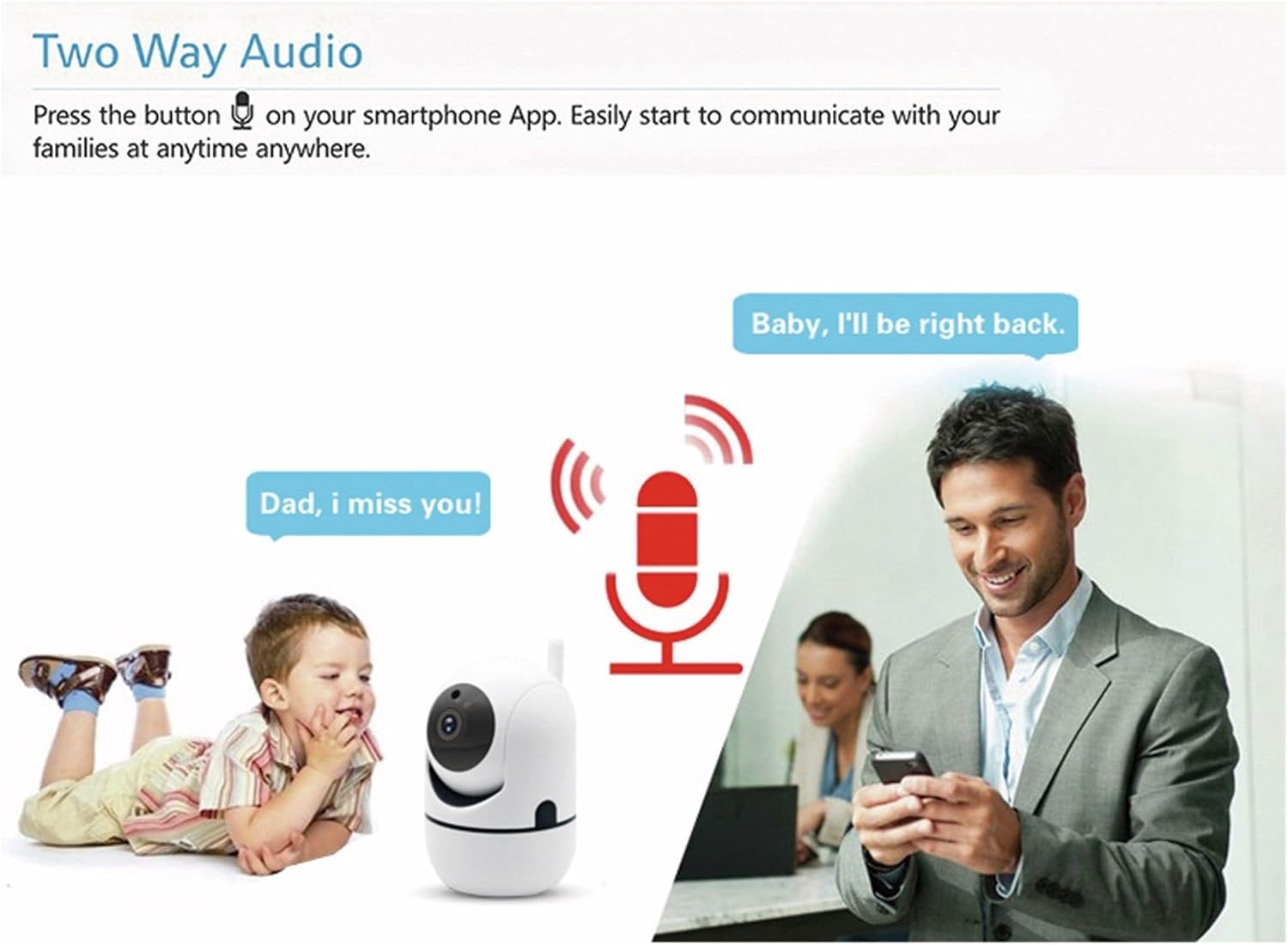

Imaxe 4.2: Two-way audio allows communication through the camera.

• Toca a icona do micrófono na aplicación en directo view falar polo altofalante da cámara.
• The camera's microphone will pick up audio from its surroundings, which you can hear through your smartphone.

4.3 Detección de movemento

The camera can detect motion and send alerts to your smartphone.

• Enable motion detection in the Denver Smart Home app settings for your camera.
• Configure alert sensitivity and notification preferences as needed.
• The camera also supports automatic motion tracking, allowing it to follow detected movement within its 355° pan and 120° tilt range.

4.4 Visión nocturna

The integrated infrared LEDs provide clear video monitoring in low-light or no-light conditions.

Imaxe 4.3: Infrared night vision automatically activates in low light, with a range of up to 10 meters.

• Night vision activates automatically when ambient light levels are low.
• The infrared range extends up to 10 meters.

4.5 Gravación e almacenamento

The camera supports local storage via a Micro SD card.

• Insert a Micro SD card (up to 128GB, not included) into the TF card slot on the camera.
• Configure recording settings (e.g., continuous recording, event-triggered recording) within the Denver Smart Home app.
• Foo gravadotage can be accessed and reviewed a través da aplicación.

5. Mantemento

• Limpeza: Usa un pano suave e seco para limpar a lente e o corpo da cámara. Evita o uso de produtos químicos agresivos ou produtos de limpeza abrasivos.
• Actualizacións de software: Regularly check the Denver Smart Home app for firmware updates to ensure optimal performance and security.
• Ciclo de enerxía: Se a cámara ten problemas, proba a desconectala da fonte de alimentación durante uns segundos e logo volve a conectala.

6 Solución de problemas

6.1 Camera Not Connecting to WiFi

• Ensure your WiFi network is 2.4GHz. The camera does not support 5GHz WiFi.
• Verifica que o contrasinal wifi introducido na aplicación sexa correcto.
• Place the camera closer to your WiFi router during the initial setup process.
• Reset the camera by pressing the reset button (refer to Image 2.1 for location) and attempt pairing again.

6.2 Mala calidade de vídeo

• Check your internet connection speed. A stable and fast connection is required for HD streaming.
• Asegúrate de que a lente da cámara estea limpa e libre de po ou manchas.
• Adjust the video quality settings within the Denver Smart Home app if available.

6.3 A detección de movemento non funciona

• Verifica que a detección de movemento estea activada na configuración da aplicación.
• Axusta a sensibilidade da detección de movemento.
• Asegúrate de que non haxa obstáculos que bloqueen a cámara view.

6.4 Micro SD Card Not Recording

• Asegúrate de que a tarxeta Micro SD estea inserida correcta e completamente.
• Check if the Micro SD card is formatted correctly (usually FAT32). Format it via the app if necessary.
• Verify that recording settings are configured in the app.
• The card might be full; consider enabling loop recording or replacing the card.

7. Especificacións

Imaxe 7.1: Product label on the back of the SHC-150 camera.

8. Garantía e soporte

Denver products are manufactured to high quality standards. This product is covered by a warranty period as per local consumer protection laws. For warranty claims, technical support, or service inquiries, please contact your retailer or visit the official Denver support websitio.

Conserve o recibo de compra como proba de compra para calquera reclamación de garantía.
