BTF-LIGHTING WS2812B ECO Individually Addressable RGB LED Strip User Manual

1. Introdución

The BTF-LIGHTING WS2812B ECO RGB LED Strip is an individually addressable lighting solution designed for dynamic and customizable lighting effects. Each 5050SMD LED features an embedded WS2812B IC, allowing for independent control of each pixel with 24-bit color depth and 256 brightness levels. This enables a wide range of effects such as chasing, rainbow, and meteor patterns.

This LED strip is UL-certified, ensuring safety and reliability. It is suitable for various indoor applications, including LED screens, video walls, advertising boards, commercial venues, and festive decorations. The strip comes with pre-installed 3-pin JST-SM connectors for easy integration into your projects.

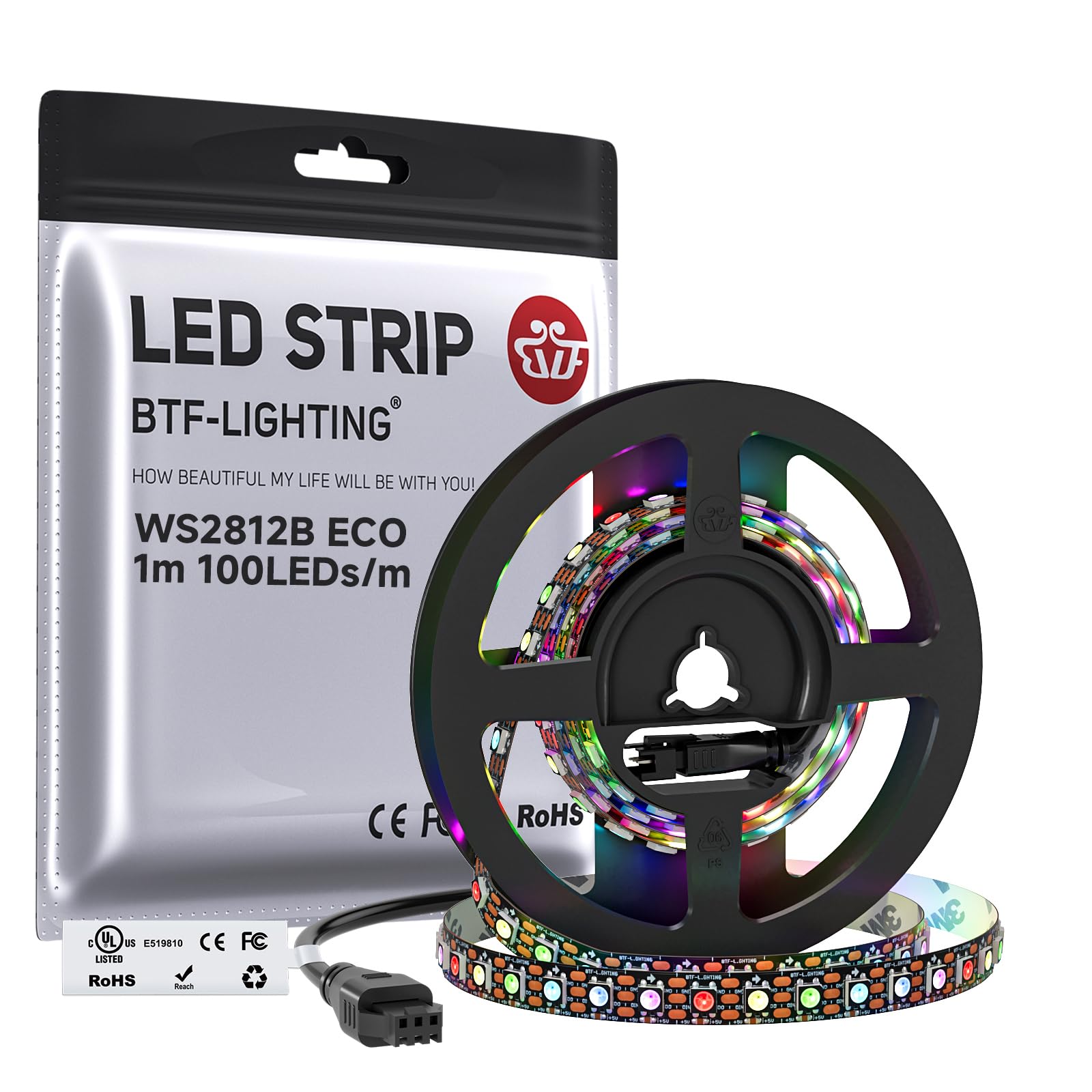

Image: The BTF-LIGHTING WS2812B ECO RGB LED Strip, coiled, showcasing its vibrant, individually addressable colors.

2. Información de seguridade

Lea atentamente todas as instrucións de seguridade antes da instalación e o uso. O incumprimento destas instrucións pode provocar descargas eléctricas, incendios ou outros perigos.

• Voltage Requisito: This LED strip operates on DC5V ONLY. Connecting it to a DC12V or DC24V power supply will permanently damage the strip.
• Listado UL: The LED strip is UL-certified, ensuring it meets recognized safety standards. This includes UL-approved wires and circuit boards.
• Uso en interiores: This specific model (IP30) is designed for indoor use only. Avoid exposure to moisture or outdoor elements.
• Fonte de alimentación e controlador: A power supply and controller are non incluído and must be purchased separately. Ensure they are compatible with DC5V LED strips.
• Instalación: Ensure proper insulation and secure connections. Avoid bending the strip sharply or applying excessive force.

Image: Graphic highlighting the UL-Listed status of the LED strips, emphasizing safety and reliability with certificates of compliance.

Image: Details on the benefits of UL certification, including peace of mind, reliable performance, and global recognition for safety.

3. Contido do paquete

Verifica que todos os elementos estean presentes no paquete:

• 1x WS2812 LED Strip
• 1x Voltage Compensation Wire
• 1 conector macho de 3 pines
• 1 x Manual de usuario
• 1x Upgraded Connector Instruction Card

Image: A visual representation of the package contents, including the LED strip, voltage compensation wire, 3-pin male connector, user manual, and instruction card.

4. Configuración

4.1. Preparación

1. Superficie limpa: Asegúrate de que a superficie de instalación estea limpa, seca e lisa para unha adhesión óptima.
2. Power Supply & Controller: Have a compatible DC5V power supply and an appropriate controller ready. These are sold separately.

4.2. Instalación

The IP30 version of this LED strip comes with 3M double-sided adhesive for easy mounting.

1. Adhesivo despegable: Carefully peel off the protective backing from the 3M double-sided adhesive on the back of the LED strip.
2. Fixar a tira: Press the LED strip firmly onto the desired clean surface.
3. Corte: The LED strip is cuttable every 50cm at designated solder joints. Ensure to cut only at these marked points to avoid damaging the circuit.

Image: Step-by-step guide for convenient installation, showing surface wiping, peeling 3M tape, and attaching the strip. Also illustrates installation with clips for IP67 versions.

4.3. Conexión

The LED strip features UL-certified male and female 3-pin connectors for flexible connections.

• Conexión básica: Connect the 3-pin JST-SM connector of the LED strip to a compatible DC5V controller. Ensure the data direction is correct (Din for data input, DO for data output).
• Fonte de alimentación: Connect the DC5V power supply to the controller.
• Conexión en serie: Multiple strips can be connected in series (daisy-chain). Ensure the data direction is consistent.
• Conexión paralela: For longer runs or higher power demands, parallel connections with a signal amplifier and a robust power supply are recommended.
• Voltage Compensación: For longer strips, voltage compensation wires may be necessary to prevent voltage drop and ensure consistent brightness along the entire length.

Image: A detailed diagram illustrating how to connect the WS2812B RGB+IC LED strip to a DC5V power supply and an SP630E controller, showing Data, GND, and 5VDC+ connections.

Image: A wiring diagram demonstrating how to connect multiple LED strips in series, emphasizing that the power supply output depends on the LED strip requirements.

Image: A parallel connection diagram showing how to connect multiple LED strips to a single power supply and controller using a signal amplifier, compatible with various control methods.

Imaxe: Examples of different LED strip connection types, including L-shaped, T-shaped, single-end, extension, and dual-end connections, with a warning about data direction.

5. Instrucións de funcionamento

The BTF-LIGHTING WS2812B ECO LED Strip offers versatile control options to achieve various lighting effects.

• Controller Dependent: The functionality and available effects depend entirely on the chosen controller (sold separately).
• Axuste de brillo: Most compatible controllers allow for brightness adjustment from 1% to 100%.
• Millóns de cores: With a suitable controller, you can access millions of colors and create custom color schemes.
• Efectos dinámicos: Enjoy advanced dynamic effects such as chasing, rainbow, meteor, and more, thanks to the individually addressable LEDs.
• Proxectos DIY: Compatible with DIY project controllers like SP803E, SP805E, ESP32, ESP8266, WLED, Raspberry Pi, and UNO R3.
• Control da aplicación: Many controllers support smartphone apps like Tuya APP (DR03W) or BanlanX APP (SP630E, SP530E, SP611E, SP602E, SP608E, SP107E, SP105E) for easy control.
• Control de voz: With compatible controllers (e.g., SP530E), the LED strip can be integrated with third-party voice assistants like Alexa or Google Home.

Image: Comparison of RGB+IC (multiple colors at once) and standard RGB (one color at a time) lighting effects, demonstrating the dynamic capabilities of the WS2812B ECO strip.

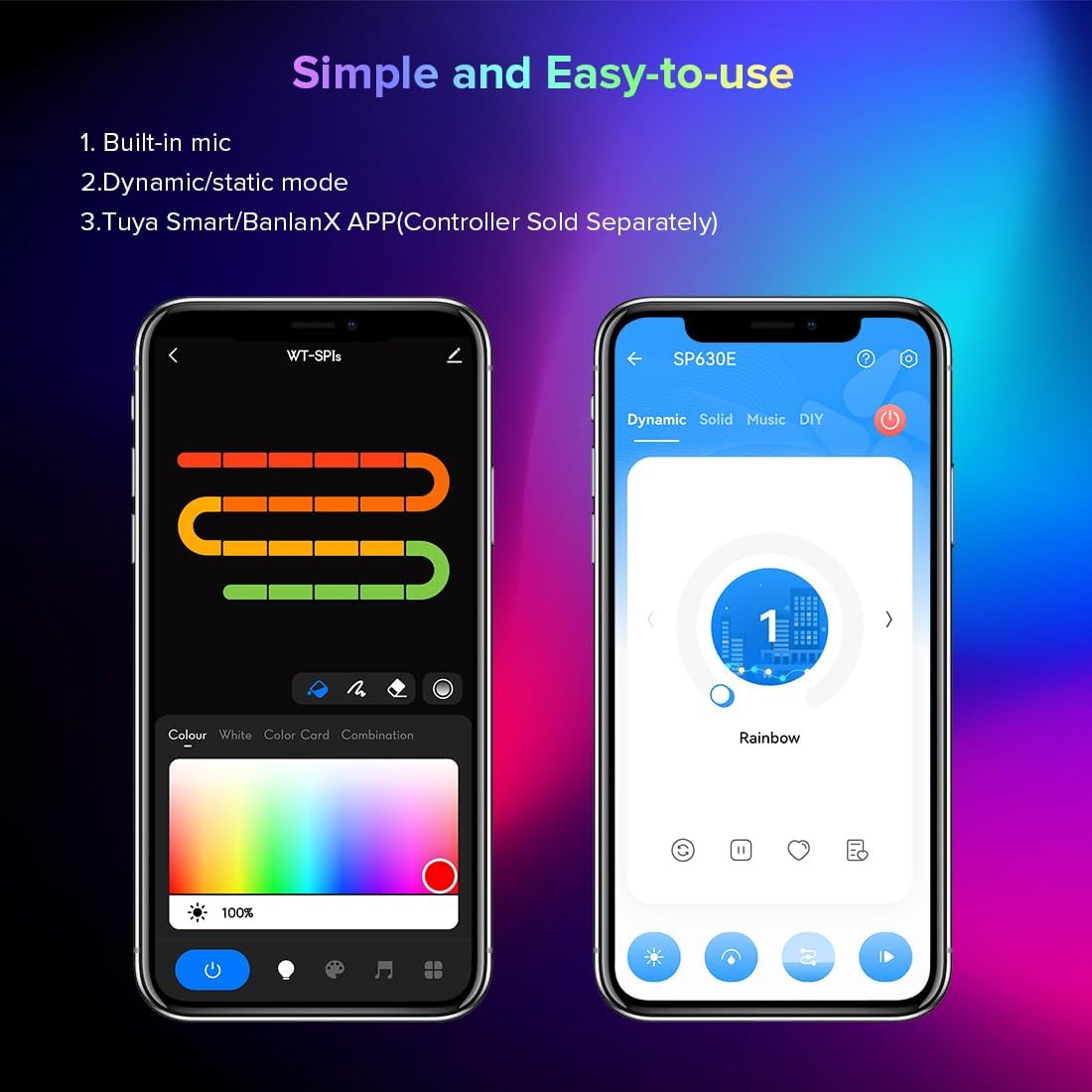

Image: Screenshots of smartphone applications (Tuya Smart and SP630E) demonstrating simple and easy-to-use controls for dynamic/static modes and color selection.

6. Mantemento

To ensure the longevity and optimal performance of your LED strip, follow these maintenance guidelines:

• Limpeza: Gently wipe the surface of the LED strip with a soft, dry cloth to remove dust. Avoid using harsh chemicals or abrasive materials.
• Comprobación de conexión: Periodically inspect all connections (power supply, controller, strip connectors) to ensure they are secure and free from corrosion.
• Evita o estrés físico: Do not bend, twist, or pull the LED strip excessively, especially at connection points or cut sections.
• Almacenamento: If storing the LED strip, ensure it is coiled loosely and kept in a dry, cool environment away from direct sunlight.

7 Solución de problemas

If you encounter issues with your BTF-LIGHTING WS2812B ECO LED Strip, refer to the following common solutions:

• Strip Not Lighting Up:
  • Check if the power supply is connected and providing DC5V.
  • Verify all connections are secure, especially the 3-pin connectors.
  • Ensure the controller is powered on and functioning correctly.
  • Confirm the data input (Din) and data output (DO) connections are in the correct direction.
• Cores incorrectas ou parpadeo:
  • Check the controller settings for color mode and effects.
  • Ensure the power supply is adequate for the length of the strip. Voltage drop can cause color inconsistencies or flickering; consider adding voltage compensación.
  • Inspect the strip for any physical damage or loose solder joints.
• Only Part of the Strip Lights Up:
  • This often indicates a break in the data line or power line at the point where the lights stop. Inspect the strip carefully at that section.
  • If you cut the strip, ensure the connections at the cut point are properly re-soldered or connected with appropriate connectors.
• O controlador non responde:
  • Ensure the controller is correctly paired with its remote or app.
  • Check the controller's power connection.

For complex issues or further assistance, please contact BTF-LIGHTING support.

8. Especificacións

Imaxe: Detallada view of the WS2812B IC, 9 alloy wires, copper bracket, and data direction markings on the LED strip. Also shows 3M self-adhesive tape for IP30/IP65 and lack of tape for IP67.

Image: Visual comparison of different LED densities (30LED/M, 60LED/M, 100LED/M, 144LED/M) and clear markings for cuttable sections and data direction.

9. Garantía e soporte

BTF-LIGHTING is committed to providing high-quality products and customer satisfaction. For any questions regarding your product, including technical support, compatibility, or project design solutions, please contact BTF-LIGHTING support.

We offer professional design solutions, circuit layout planning, and recommendations for compatible controllers and power supplies to help ensure the success of your DIY projects. Please inquire before purchase if you have specific project requirements.

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact BTF-LIGHTING customer service directly.
