FLEXISPOT EN2 Electric Standing Desk User Manual

1. Información importante de seguridade

Read all instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Esta mesa está deseñada só para uso en interiores.
• Ensure all screws are tightened securely before use. Periodically check and re-tighten all fasteners.
• Do not overload the desk. The maximum weight recommendation is 176 pounds (80 kg).
• Manteña os nenos e as mascotas lonxe da mesa durante o funcionamento.
• Avoid placing the desk in direct sunlight or in damp ambientes.
• Do not disassemble or modify the desk's electrical components. Contact customer support for service.

Warning: The product will arrive in two separate packages and may be shipped separately. Do not discard any packaging until assembly is complete and the desk is fully functional.

2. Contido do paquete

Your FLEXISPOT EN2 Electric Standing Desk is shipped in two packages. Please ensure you have received both packages before beginning assembly.

• Paquete 1: Desktop (48" Mahogany Top)
• Paquete 2: Desk Frame (Gray Frame), Motor, Control Panel, Power Strip, Cable Management Tray, Hardware, and User Manual.

Figure 2.1: The FlexiSpot EN2 desk components are shipped in two separate packages for safe delivery.

3. Configuración e montaxe

Assembly typically requires one person and approximately 30-60 minutes. An electric drill (not included) may be helpful for certain steps.

1. Desempaquetar compoñentes: Carefully remove all parts from both packages and lay them out on a soft, clean surface to prevent scratches. Verify all components are present against the packing list.
2. Montar a estrutura do escritorio: Attach the lifting columns to the feet. Ensure the crossbeam is correctly oriented.
3. Attach Crossbeam: Secure the crossbeam to the lifting columns. Note that while some holes are pre-drilled for legs, the center holes for the crossbeam and cable tray may require self-tapping screws. Apply firm pressure with an electric drill for easy installation.
4. Instalar os motores e a caixa de control: Follow the manual to connect the motor cables to the control box and secure the control box to the frame.
5. Adxuntar escritorio: Carefully place the desktop onto the assembled frame. Align the pre-drilled holes on the desktop with the frame and secure with screws.
6. Install Control Panel and Power Strip: Mount the 6-button digital control panel and the clamp-on power strip to the desired location on the desktop. The power strip can be clipped to the back or side.
7. Xestión de cables Utilize the included cable management device to organize and secure all power and data cables underneath the desk. This helps prevent cables from snagging during height adjustments.

Figure 3.1: Assembled FLEXISPOT EN2 Electric Standing Desk.

Figure 3.2: Effective cable management keeps your workspace tidy and safe.

4. Instrucións de funcionamento

The desk features a 6-button digital controller for easy height adjustment and memory presets.

4.1 Axuste de altura

• Subir escritorio: Press and hold the 'Up' arrow button (▲) to raise the desk. The LED display will show the current height.
• Escritorio inferior: Press and hold the 'Down' arrow button (▼) to lower the desk. The LED display will show the current height.
• The motorized system adjusts smoothly from 28.1 inches to 45.7 inches. The motor operates quietly at less than 50 dB.

4.2 Predefinicións de memoria

The controller features 4 programmable memory presets to quickly switch between your preferred sitting and standing heights.

1. Axuste o escritorio á altura desexada usando os botóns de frecha arriba/abaixo.
2. Press the 'M' button (Memory). The display will show 'S-'.
3. Press one of the number buttons (1, 2, 3, or 4) within 3 seconds. The display will show 'S-1', 'S-2', etc., indicating the height is saved to that preset.
4. To recall a saved height, simply press the corresponding number button (1, 2, 3, or 4). The desk will automatically move to the saved position.

4.3 Integrated Power Strip and USB Ports

The desktop is equipped with a removable power strip for convenient device charging and power access.

• A regleta inclúe 3 ​​tomas de corrente alterna (125 V/12 A) e 2 portos de carga USB (5 V/2 A).
• It can be clipped to the back or side of your desk to suit your setup.

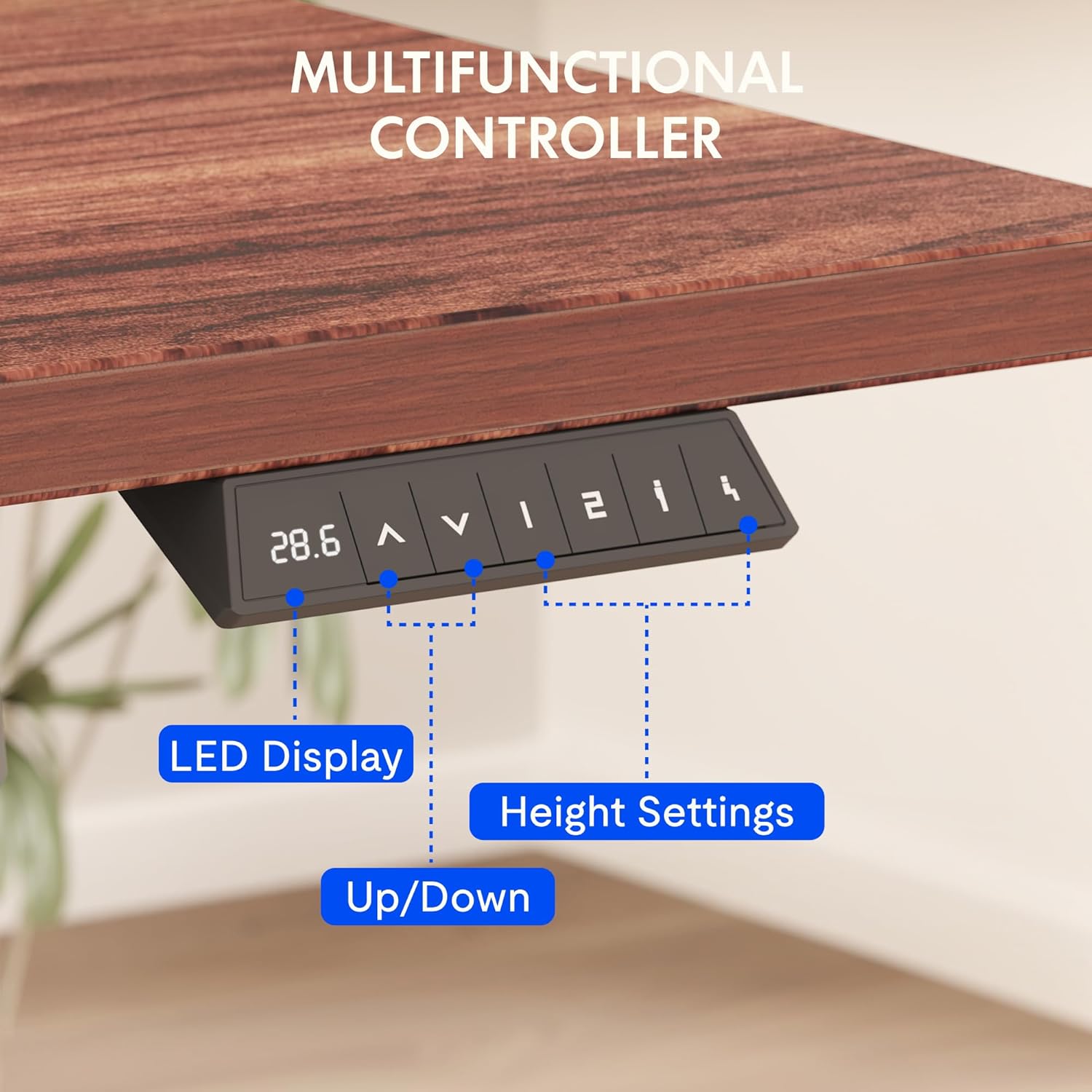

Figure 4.1: Digital control panel for height adjustment and memory presets.

Figure 4.2: Integrated power strip with AC outlets and USB charging ports.

4.4 Timer Function (if available on your model)

Some models may include a timer function to remind you to switch between sitting and standing positions. Refer to your specific model's manual for details on setting and using this feature.

5. Características

• Escritorio enteira: The 1-inch eco-friendly desktop provides a seamless and spacious work surface, offering enhanced stability compared to multi-piece desktops.
• Construción duradeira: Constructed with an industrial-grade steel frame and solid tabletop, the desk can support up to 176 pounds (80 kg). Each frame undergoes rigorous testing for performance and durability.
• Esquinas redondeadas: The desktop features rounded corners for safety and to prevent accidental bumps or damage.
• Funcionamento silencioso: The motor operates at less than 50 dB, ensuring a quiet work environment during height adjustments.

Figure 5.1: The whole-piece desktop offers enhanced stability and a smooth surface.

Figure 5.2: The desk operates with a quiet motor, producing less than 50 dB of noise.

Figure 5.3: The desk's robust construction supports up to 176 lbs.

6. Mantemento

• Limpeza: Limpa o escritorio e o marco cun pano suave eamp pano. Evite produtos de limpeza abrasivos ou produtos químicos agresivos que poidan danar o acabado.
• Inspección: Comprobe periodicamente todos os parafusos e bulóns para asegurarse de que estean ben axustados. Volva a apertalos se é necesario.
• Xestión de cables Ensure cables remain neatly organized and are not pinched or strained during height adjustments.

7 Solución de problemas

• O escritorio non se move: Check all cable connections, especially the power cord and motor cables. Ensure the power outlet is functional.
• Movemento irregular: Perform a reset procedure (refer to the full user manual for specific steps). Ensure the desk is not overloaded or obstructed.
• Códigos de erro: If an error code appears on the LED display, consult the comprehensive user manual for specific troubleshooting steps related to that code.

8. Especificacións

Figure 8.1: Key dimensions and features of the FLEXISPOT EN2 desk.

9. Garantía e soporte

FLEXISPOT provides comprehensive warranty coverage for your EN2 Electric Standing Desk:

• 5 ano de garantía: Applies to frames, motors, and other mechanical devices.
• 2 ano de garantía: Applies to controllers, switches, and electronics.

For customer support, troubleshooting assistance, or warranty claims, please visit the official FLEXISPOT websitio web ou póñase en contacto directamente co seu departamento de atención ao cliente.
