Renkforce USB-C RF-DKS-650 Universal Laptop Docking Station

Introdución

The Renkforce USB-C RF-DKS-650 is a versatile universal docking station designed to expand the connectivity of your laptop, convertible, or tablet equipped with a USB-C port. It enables multitasking by supporting up to four monitors simultaneously and offers a wide array of ports for various peripherals. The docking station is powered by the included AC/DC power adapter, ensuring stable performance for all connected devices.

To optimize cable management and maintain a tidy workspace, the 15 available ports are thoughtfully distributed across the front and rear panels. Thicker cables for monitors and power are typically connected to the rear, while frequently accessed devices like headsets, USB drives, or smartphones can be conveniently plugged into the front.

This docking station also includes a practical charging function for smartphones and other small devices. Please note that for charging your laptop via USB-C, a separate power supply with sufficient wattage (not included) is required.

Figure 1: Renkforce USB-C RF-DKS-650 Universal Laptop Docking Station - Overall View

Instrucións de configuración

Follow these steps to set up your Renkforce RF-DKS-650 docking station:

1. Conectar enerxía: Plug the supplied AC/DC power adapter (12V 3A @36W) into the 'POWER' port on the rear of the docking station and then into a wall outlet.
2. Conectar ao dispositivo anfitrión: Use a USB-C cable to connect your laptop, convertible, or tablet to the 'HOST' USB-C port on the docking station.
3. Conectar monitores: Connect your monitors to the available HDMI (3 ports) and/or VGA (1 port) outputs on the docking station. The rear panel is ideal for these connections.
4. Conectar periféricos: Connect your USB devices (e.g., keyboard, mouse, external drives) to the USB-A (USB 3.0) ports or additional USB-C ports. For audio, connect your headset or speakers to the 3.5mm microphone/audio jack.
5. Conectar á rede (opcional): For a wired network connection, plug an Ethernet cable into the LAN port on the docking station.

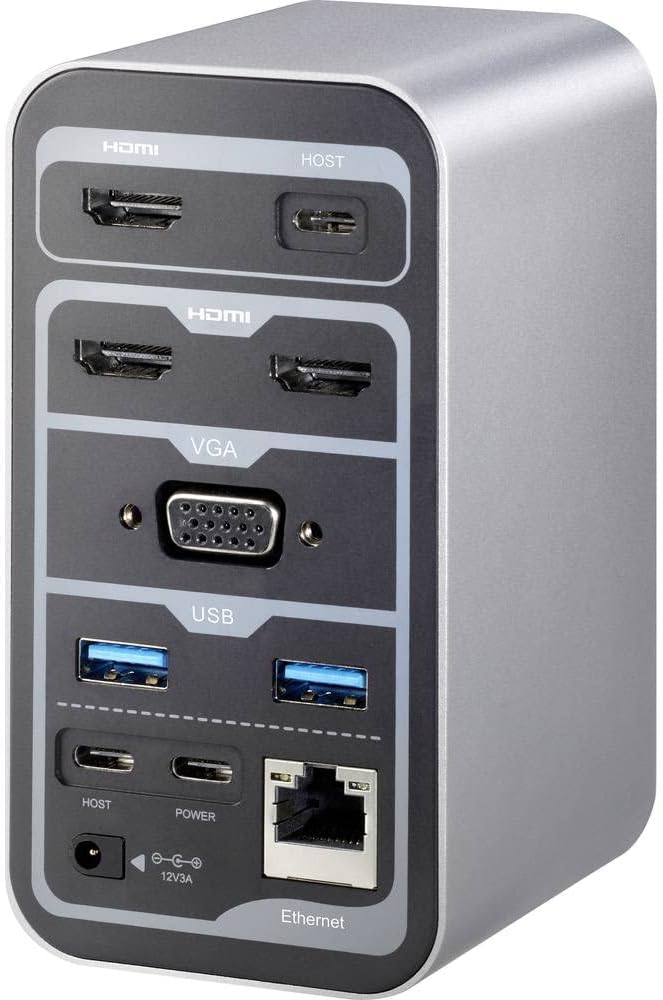

Figure 2: Rear Panel Connections (HDMI, VGA, USB, Ethernet, Power Input)

Figure 3: Front Panel Connections (USB, USB-C, Audio Jack)

Instrucións de funcionamento

Multi-Monitor Display

The RF-DKS-650 supports various multi-monitor configurations depending on your operating system:

• Windows 8 ou superior: Supports 1 or 3 simultaneous display outputs. Mirroring and extension modes are supported.
• MAC OS 10.12 or higher: Supports up to 4 simultaneous display outputs. Mirroring and extension modes are supported. For Intel and M1 chips, specific configurations like HDMI1 or HDMI2+HDMI3+VGA are possible.
• iPad OS 13 or higher: Supports 1 or 3 simultaneous display outputs. Mirroring is supported, but extension mode is not.
• Sistema operativo Android: Supports 1 or 3 simultaneous display outputs. Mirroring is supported, but extension mode is not.

Adjust display settings (resolution, arrangement, mirroring/extension) through your operating system's display settings menu.

Carga do dispositivo

The docking station provides a convenient charging function for smartphones and other small USB-powered devices through its USB ports. Simply connect your device to an available USB-A or USB-C port.

Nota importante: While the docking station can charge small devices, it does not provide sufficient power to charge your laptop via its USB-C connection. For laptop charging, you must use your laptop's original power adapter or a separate, sufficiently powerful USB-C PD (Power Delivery) charger (not included).

Mantemento

To ensure the longevity and optimal performance of your Renkforce RF-DKS-650 docking station, follow these simple maintenance guidelines:

• Limpeza: Disconnect the docking station from power and all devices before cleaning. Use a soft, dry, lint-free cloth to wipe the exterior. Avoid using liquid cleaners, aerosols, or solvents, as these can damage the finish or internal components.
• Xestión de cables Utilize the strategic port placement to keep cables organized. Regularly check cable connections to ensure they are secure and free from kinks or damage.
• Ventilación: Ensure the docking station is placed in a well-ventilated area to prevent overheating. Do not block any ventilation openings.
• Almacenamento: Cando non a use durante períodos prolongados, garde a estación de carga nun lugar fresco e seco, lonxe da luz solar directa e de temperaturas extremas.

Resolución de problemas

If you encounter issues with your Renkforce RF-DKS-650 docking station, refer to the following common problems and solutions:

• Sen visualización no monitor:
  • Asegúrate de que a estación de acoplamento estea acendida e que o adaptador de corrente estea conectado correctamente.
  • Verify that the USB-C cable connecting the docking station to your host device is properly seated.
  • Check that the HDMI/VGA cables are securely connected to both the docking station and the monitors.
  • Confirm that your monitor is set to the correct input source (e.g., HDMI 1, VGA).
  • Tenta reiniciar o teu dispositivo anfitrión.
  • Actualiza os controladores gráficos no teu dispositivo anfitrión.
• Dispositivos USB non recoñecidos:
  • Ensure the docking station is properly connected to your host device via USB-C.
  • Tenta conectar o dispositivo USB a un porto diferente da estación de acoplamento.
  • Connect the USB device directly to your host device to confirm it is functional.
  • Reinicia o teu dispositivo anfitrión.
• Problemas de conexión á rede:
  • Verifique que o cable Ethernet estea conectado correctamente tanto á estación de acoplamento como ao seu enrutador/módem.
  • Comproba a configuración de rede no teu dispositivo anfitrión.
  • Try connecting your host device directly to the router/modem to isolate the issue.
• Charging Function Not Working for Laptop:
  • As noted, the docking station does not provide power to charge your laptop. Use your laptop's dedicated power adapter or a separate USB-C PD charger.

Especificacións técnicas

Garantía e Soporte

The Renkforce RF-DKS-650 Universal Laptop Docking Station comes with a 1-year spare parts availability guarantee from the manufacturer.

For technical support, warranty claims, or further assistance, please contact Renkforce customer service or refer to the official Renkforce websitio para información de contacto.
