BOURGINI Kitchen Chef Plus Black Food Processor 5.5 L

1. Introdución

Thank you for choosing the BOURGINI Kitchen Chef Plus Black Food Processor. This appliance is designed to assist you with various kitchen tasks, including kneading dough, mixing batters, and whipping cream. With its powerful motor and versatile attachments, it aims to simplify your cooking and baking processes. Please read this manual carefully before first use to ensure safe and efficient operation.

Instrucións de seguridade importantes

• Asegúrese sempre de que o aparello estea apagado e desconectado da toma de corrente antes de montalo, desmontalo ou limpalo.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from moving parts during operation to prevent injury and damage to the appliance.
• Non faga funcionar ningún aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou se caia ou estea danado de calquera xeito.
• Non mergullo o motor en auga nin en ningún outro líquido.
• Este aparello non está pensado para o seu uso por persoas (incluídos nenos) con capacidades físicas, sensoriais ou mentais reducidas, ou con falta de experiencia e coñecementos, a menos que teñan supervisión ou instrucións sobre o uso do aparello por unha persoa responsable da súa seguridade.
• Vixiar aos nenos para asegurarse de que non xoguen co aparello.
• Evite o contacto coas pezas móbiles.
• Non use ao aire libre.
• Este aparello é só para uso doméstico.

2. Compoñentes do produto

The BOURGINI Kitchen Chef Plus Food Processor comes with several key components designed for various culinary tasks:

1. Unidade principal (base do motor): Houses the powerful 1400-watt motor and control knob.
2. 5.5L Stainless Steel Mixing Bowl: A large capacity bowl for preparing various mixtures.
3. Protección contra salpicaduras: Evita que os ingredientes salpiquen fóra do recipiente durante o funcionamento.
4. Cast Aluminum Mixer Hook (Flat Beater): Ideal for mixing cake batters, cookie doughs, and frostings.
5. Cast Aluminum Dough Hook: Specifically designed for kneading heavy doughs like bread and pizza dough.
6. Stainless Steel Mixer (Whisk): Perfect for whipping cream, egg whites, and light batters.

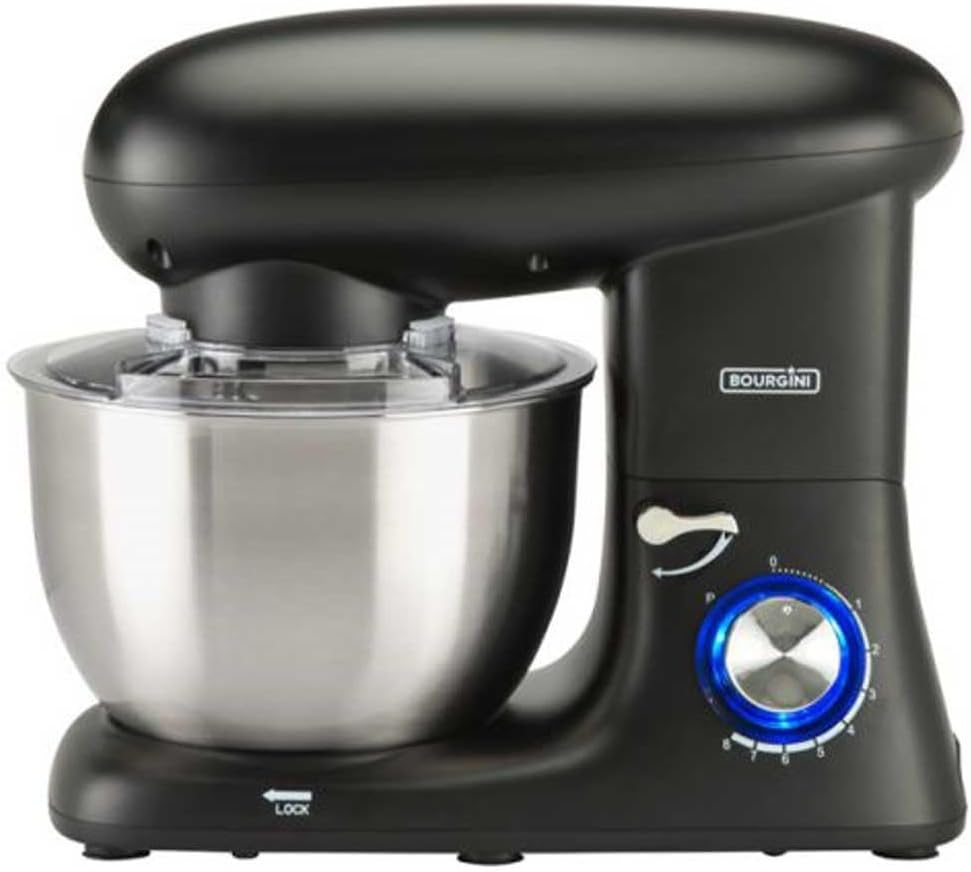

Figure 2.1: The BOURGINI Kitchen Chef Plus Black Food Processor, fully assembled with its stainless steel mixing bowl and clear splash guard. The main unit is black, featuring a control knob with blue illumination.

Figure 2.2: The food processor with its head tilted upwards, revealing the attachment point for accessories and the spacious stainless steel mixing bowl. This position is used for attaching or removing accessories and the bowl.

Figura 2.3: Primeiro plano view of the 5.5-liter stainless steel mixing bowl, designed for durability and easy cleaning.

Figure 2.4: The stainless steel whisk attachment, featuring multiple wires for aerating ingredients like egg whites and cream.

Figure 2.5: The cast aluminum dough hook attachment, characterized by its spiral shape, optimized for kneading heavy doughs.

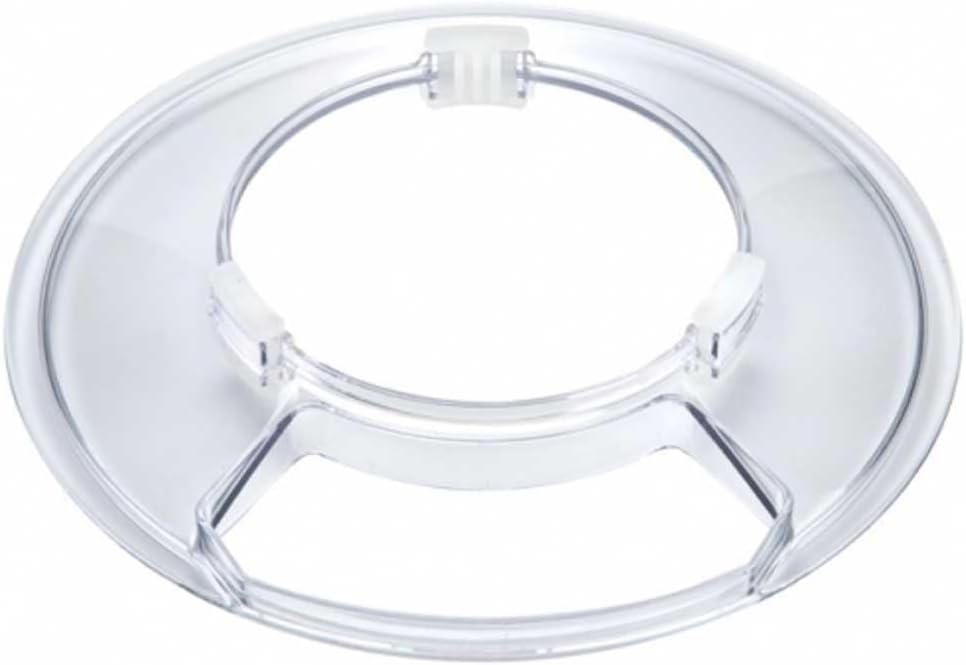

Figure 2.6: The clear plastic splash guard, designed to fit over the mixing bowl to prevent splattering during operation.

3. Configuración

Follow these steps to set up your food processor for use:

1. Colocación: Place the main unit on a clean, dry, and stable surface. Ensure there is enough space around the appliance for ventilation and operation.
2. Levantar a cabeza: Push the release lever (often located on the side of the main unit) and gently lift the motor head until it locks into place.
3. Fixar o bol: Place the 5.5L stainless steel mixing bowl onto the base, aligning the grooves, and twist clockwise until it locks securely.
4. Select and Attach Accessory: Choose the appropriate accessory (dough hook, whisk, or flat beater) for your task. Insert the accessory into the attachment shaft on the underside of the motor head and twist until it clicks into place.
5. Baixar a cabeza: Push the release lever again and gently lower the motor head until it locks into its operating position.
6. Colocar o protector contra salpicaduras: If desired, place the splash guard over the mixing bowl. Ensure it is properly seated to prevent ingredients from escaping.

4. Instrucións de funcionamento

The BOURGINI Kitchen Chef Plus is equipped with a powerful 1400-watt motor and an intuitive control system for efficient mixing.

Usando o mando de control

Figura 4.1: Detalle view of the illuminated control knob, showing speed settings from 1 to 8 and the 'P' (Pulse) function.

• Configuración de velocidade: The appliance features 8 different speed settings, allowing you to adjust the mixing intensity according to your recipe. Turn the knob clockwise to increase the speed from 1 (slowest) to 8 (fastest).
• Función de pulso (P): For short bursts of maximum power, turn the knob to the 'P' position and hold it. The appliance will operate at its highest speed as long as the knob is held in this position. Release the knob to stop.
• Double Eccentric Mixing Movement: The mixer head and the attachment rotate simultaneously in opposite directions, ensuring all ingredients are thoroughly incorporated and reach all edges of the bowl.

Directrices xerais de funcionamento

1. Ensure the appliance is properly assembled and the motor head is locked down.
2. Add your ingredients to the stainless steel mixing bowl.
3. Enchufe o aparello nunha toma de corrente adecuada.
4. Xire a perilla de control ata a configuración de velocidade desexada.
5. After mixing, turn the control knob to '0' (off) and unplug the appliance.
6. Lift the motor head to remove the accessory and the mixing bowl.

Recommended Usage Times

To ensure the longevity of your appliance, it is recommended not to operate the food processor continuously for more than minutos 10. After 10 minutes of continuous use, allow the appliance to cool down for at least 10 minutes before resuming operation.

5. Mantemento e Limpeza

Regular cleaning and maintenance will help ensure the optimal performance and lifespan of your BOURGINI Kitchen Chef Plus Food Processor.

Instrucións de limpeza

• Desenchufe sempre o aparello antes de limpar.
• Mixing Bowl and Stainless Steel Whisk: The 5.5L stainless steel mixing bowl and the stainless steel whisk attachment are dishwasher safe. Alternatively, they can be washed by hand with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely.
• Cast Aluminum Dough Hook and Flat Beater: These attachments should be washed by hand with warm, soapy water. Do not place them in the dishwasher as this may cause discoloration or damage to the aluminum finish. Rinse thoroughly and dry immediately.
• Protección contra salpicaduras: Wash the plastic splash guard by hand with warm, soapy water. Rinse and dry.
• Unidade principal (base do motor): Limpar o exterior da base do motor con publicidadeamp cloth. Do not use abrasive cleaners or immerse the motor unit in water. Ensure all parts are dry before storing or next use.

6 Solución de problemas

If you encounter any issues with your BOURGINI Kitchen Chef Plus Food Processor, please refer to the following common problems and solutions:

• O aparello non se acende:
  • Asegúrate de que o cable de alimentación estea conectado correctamente a unha toma de corrente que funcione.
  • Check if the motor head is fully lowered and locked into position. The appliance has a safety mechanism that prevents operation if the head is not locked.
  • Verify that the speed control knob is turned to a setting other than '0'.
• O motor para durante o funcionamento:
  • The appliance may have overheated. Turn off the appliance, unplug it, and let it cool down for at least 30 minutes before attempting to use it again.
  • Check if the load is too heavy. Reduce the amount of ingredients if you are processing very thick or dense mixtures.
• Attachments are difficult to install or remove:
  • Ensure the motor head is in the fully raised and locked position when attaching or removing accessories.
  • Make sure the accessory is aligned correctly with the shaft before twisting to lock or unlock.
• Ruído forte durante o funcionamento:
  • Some noise is normal, especially at higher speeds or with heavy loads.
  • Ensure the appliance is on a stable, flat surface to minimize vibrations.
  • Check that all components (bowl, attachments, motor head) are securely locked in place.

If the problem persists after following these steps, please contact customer support.

7. Especificacións

8. Garantía e soporte

BOURGINI is committed to providing quality products. For information regarding warranty coverage and customer support, please refer to the documentation included with your purchase or visit the official BOURGINI websitio.

Dispoñibilidade de pezas de reposto na UE: Spare parts for this product are available for a duration of 2 years from the date of purchase within the EU.

For further assistance, please contact BOURGINI customer service through their official channels.
