HISTTON Fanless Industrial Mini PC Intel Core i7-10510U User Manual

1. Introdución

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your HISTTON Fanless Industrial Mini PC. Please read this manual thoroughly before using the device to ensure proper functionality and longevity.

2. Contido do paquete

Verifique que todos os elementos que se indican a continuación estean incluídos no paquete do produto:

• 1 x HISTTON Mini PC
• 1 x adaptador de alimentación
• 1 x Manual de usuario
• 1 x cable HDMI
• 1 x DVD for drivers (if applicable)

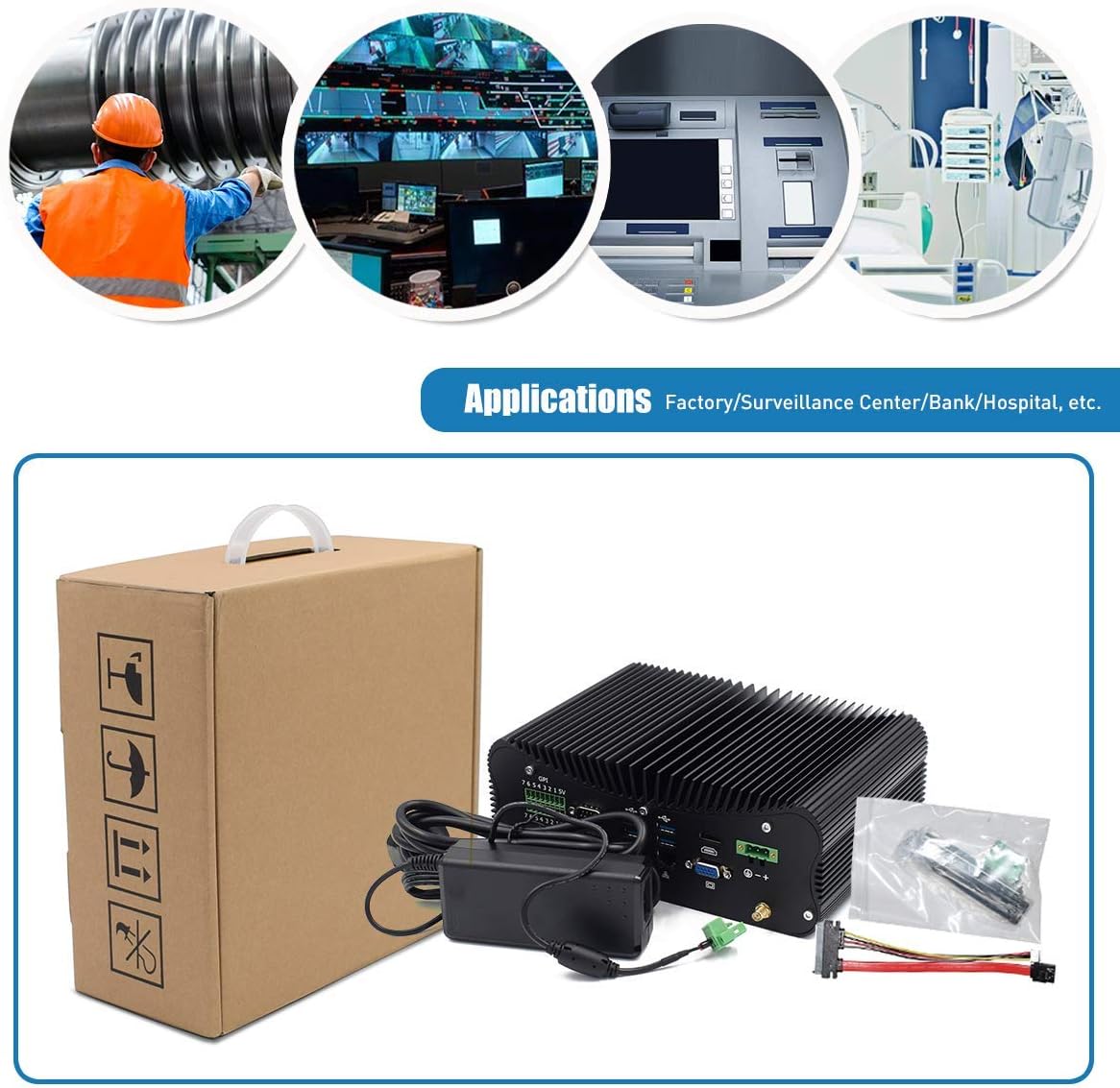

Figure 2.1: Included accessories and the Mini PC.

3. Produto rematadoview

Familiarize yourself with the various ports and features of your HISTTON Mini PC.

3.1 Portos do panel traseiro

Figura 3.1: Opcións de conectividade do panel traseiro.

• GPIO (General Purpose Input/Output): 7 input and 7 output ports for industrial control.
• COM Ports (RS232/422/485): 4 ports for serial communication.
• Portos USB 3.0: 4 ports for high-speed peripheral connections.
• LAN Ports (RJ45 Gigabit Ethernet): 2 ports for wired network connectivity.
• Porto HDMI: For digital video and audio output.
• Porto VGA: For analog video output.
• Entrada DC: 3-pin Phoenix terminal for DC 9-36V power input.
• WiFi Antenna Connectors: For external WiFi antennas.

3.2 Side Panel Ports

Figure 3.2: Side panel connectivity and controls.

• Interruptor de encendido/apagado: Control da alimentación principal.
• Portos USB 2.0: 2 ports for peripheral connections.
• Conectores de son: 1 x SPK Out (speaker), 1 x MIC In (microphone).
• Porto PS/2: Para conexións de teclado e rato herdadas.
• ATX/AT Switch: For power mode selection.
• CMOS Button Hole: For resetting CMOS settings.

3.3 Compoñentes internos

Figure 3.3: Internal layout for storage and memory expansion.

• Ranura SSD M.2: For M.2 solid-state drives.
• mSATA SSD Slot: For mSATA solid-state drives.
• 2.5 inch HDD Slot: For 2.5-inch SATA SSD/HDD.
• Ranuras para memoria RAM DDR4: Two 260-pin SO-DIMM slots supporting up to 64GB DDR4 memory.
• WiFi Module Slot: M.2 slot for dual-band 802.11AC WiFi with Bluetooth 4.0.

4. Instrucións de configuración

Follow these steps to set up your Mini PC for first use.

1. Conectar periféricos: Connect your monitor(s) to the HDMI and/or VGA ports. Connect a USB keyboard and mouse to the available USB ports.
2. Conexión de rede: For wired internet, connect an Ethernet cable to one of the RJ45 LAN ports. For wireless internet, attach the provided WiFi antennas to the connectors on the rear panel.
3. Conexión de alimentación: Connect the power adapter to the DC In port on the rear panel, then plug the adapter into a power outlet.
4. Encendido: Press the power button on the side panel to turn on the Mini PC. The power indicator light will illuminate.

5. Operating System and Basic Use

Your Mini PC comes with Windows 10 Pro 64bit pre-installed and activated, ready for immediate use.

5.1 Dual Display Setup

The Mini PC supports dual display output via HDMI and VGA ports, allowing for extended desktop or mirrored display configurations. Connect two monitors to the respective ports and configure display settings within the Windows operating system.

Figure 5.1: Dual monitor setup for enhanced productivity.

5.2 Funcionamento xeral

The Intel Core i7-10510U processor and Intel UHD Graphics provide stable and efficient performance for various tasks, including office applications, web browsing, multimedia playback, and light gaming. The integrated M.2 Dual Band 802.11AC WiFi with Bluetooth 4.0 ensures reliable wireless connectivity.

6. Mantemento

The HISTTON Mini PC features a fanless cooling design, which contributes to its durability and silent operation. This design minimizes dust accumulation and reduces the need for frequent internal cleaning.

Figure 6.1: Fanless cooling system for silent and reliable operation.

Para manter un rendemento óptimo:

• Keep the exterior of the device clean by wiping it with a soft, dry cloth.
• Ensure adequate airflow around the device, especially around the heat sink fins, to facilitate heat dissipation.
• Avoid placing the Mini PC in direct sunlight or near heat sources.
• Do not obstruct the heat sink fins.

7 Solución de problemas

If you encounter issues with your Mini PC, refer to the following common troubleshooting steps:

• Sen enerxía: Ensure the power adapter is securely connected to both the Mini PC and a working power outlet. Check if the power indicator light is on.
• Sen visualización: Verify that the monitor cable(s) are securely connected to both the Mini PC and the monitor(s). Ensure the monitor is powered on and set to the correct input source (HDMI/VGA).
• Sen conexión a Internet: For wired connections, check the Ethernet cable and router status. For wireless connections, ensure WiFi antennas are attached, WiFi is enabled in the operating system, and you are connected to the correct network.
• Periféricos que non funcionan: Ensure USB devices (keyboard, mouse) are properly connected. Try connecting them to different USB ports.
• O sistema non responde: Press and hold the power button for 5-10 seconds to force a shutdown, then restart the device. If issues persist, consider resetting the CMOS using the button hole on the side panel (refer to Section 3.2).

8. Especificacións

Detailed technical specifications for the HISTTON Fanless Industrial Mini PC:

9. Garantía e soporte

For warranty information and technical assistance, please use the following contact methods:

Figure 9.1: Support contact details.

• Soporte de Amazon: Log in to your Amazon account, navigate to 'Your Account' > 'Your Orders', and select 'Ask Product Question' for assistance.
• Soporte posvenda: For direct technical support, you may send an email to the After-Sales Team at minipc_service@yeah.net. This service is available 24/7.

Aviso: Please connect the power supply correctly. Keep away from damp and high-temperature environments, as well as sources of fire and water. Parents should strictly control kids' device time and content access.
