ViewSonic VP2768a 27-Inch IPS 1440p Monitor Instruction Manual

Introdución

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your ViewSonic VP2768a 27-inch IPS 1440p Monitor. Please read this manual thoroughly before using your monitor to ensure proper functionality and to maximize your viewexperiencia ing.

1. Configuración

1.1 Que hai na caixa

Comprobe que todos os compoñentes estean presentes na embalaxe:

• Pantalla VP2768a
• Cable de alimentación
• Cable DP a DP
• Cable USB tipo C
• USB Type B Uplink Cable
• Guía de inicio rápido
• Informe calibrado de fábrica

Figura 1: Contido do ViewSonic VP2768a monitor box. Includes the monitor, power cable, DisplayPort cable, USB-C cable, USB-B uplink cable, quick start guide, and factory calibration report.

1.2 Montaxe do monitor

The monitor stand is designed for easy assembly. The stand column is pre-attached to the display. To attach the base:

1. Carefully remove the monitor from its packaging, keeping the display protected.
2. Locate the stand base and align it with the bottom of the stand column.
3. Secure the base to the column, typically by tightening a captive screw on the underside of the base. This is a tool-less design, allowing for hand-tightening.
4. Once assembled, carefully place the monitor on a stable, flat surface.

1.3 Conexión do monitor

The VP2768a offers versatile connectivity options. Ensure your computer is powered off before making any connections.

• Conexión de alimentación: Connect the provided power cable to the monitor's power input and then to a power outlet.
• Conexión USB-C: For a simplified setup, connect your laptop or device to the monitor using the supplied USB Type-C cable. This single cable can deliver video, audio, data, and up to 90W of power to charge your connected device.
• Conexión DisplayPort: Use the provided DisplayPort (DP to DP) cable to connect your computer's DisplayPort output to the monitor's DisplayPort input for high-resolution video.
• Conexión HDMI: Alternatively, connect your computer's HDMI output to the monitor's HDMI 1.4 input using an HDMI cable (not included).
• USB Type B Uplink: If not using USB-C, connect the USB Type B Uplink cable from your computer to the monitor to enable the monitor's integrated USB Type A ports.
• Ethernet RJ45: Connect an Ethernet cable to the monitor's RJ45 port for a stable wired network connection, especially useful when using USB-C with a laptop.

Figura 2: Traseira view of the monitor highlighting the connectivity ports. This includes HDMI 1.4, DisplayPort In, DisplayPort Out (DaisyChain), 2x USB Type A, 1x USB Type B, 1x 65W Powered USB Type C, and 1x Ethernet LAN (RJ45).

2. Funcionamento do monitor

2.1 Power On/Off and OSD Menu

To power on the monitor, press the power button, usually located on the backside or bottom edge. The On-Screen Display (OSD) menu allows you to adjust various settings such as brightness, contrast, color modes, and input sources. The OSD menu buttons are located on the backside of the monitor for a clean front bezel design.

2.2 Axustes ergonómicos

The VP2768a features an advanced ergonomic stand for optimal viewconfort:

• Axuste de altura: Subir ou baixar a pantalla á altura dos ollos.
• Inclinación: Adjust the screen's vertical angle to reduce glare and improve viewing.
• Xiratorio: Rotate the screen horizontally to share content or adjust your viewángulo de ing.
• Pivote: Rotate the screen 90 degrees for portrait mode, ideal for document viewing ou web navegación.

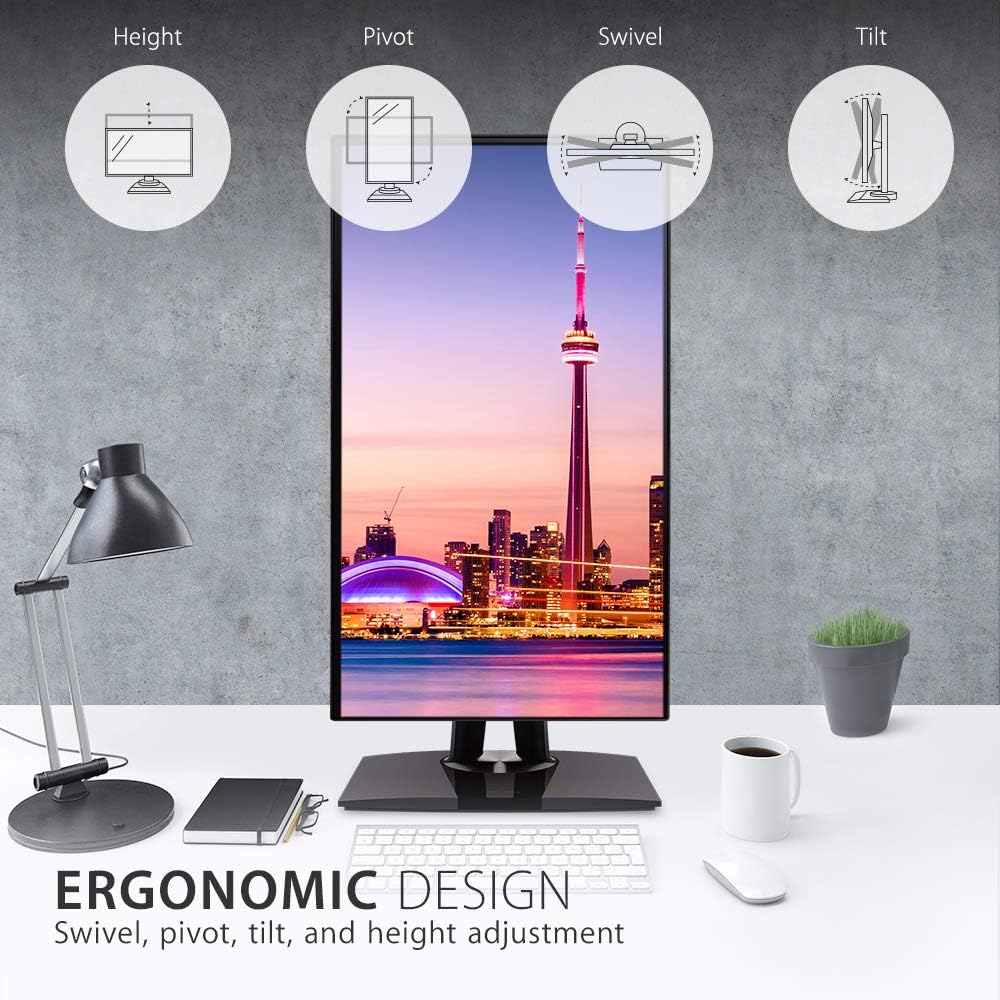

Figure 3: Ergonomic design features of the monitor, illustrating height, pivot, swivel, and tilt adjustments.

2.3 Precisión e calibración da cor

This monitor is designed for professional color-critical applications:

• Calibración de fábrica: Each monitor is factory calibrated to achieve an impressive Delta E<2 value, ensuring high color accuracy right out of the box.
• Color Spaces: Supports 100% sRGB, EBU, SMPTE-C, Rec. 709, and DICOM-SIM color spaces.
• 14-bit 3D LUT: A 14-bit 3D Look-Up Table generates a smooth palette of 4.39 trillion colors for precise color reproduction.
• 6-Axis Color Adjustment: Provides advanced control over color settings.
• Uniformidade de cor: An integrated function ensures consistent chromaticity across the entire screen.
• Calibración de hardware: For the most precise color management, hardware calibration is available with the optional ViewSonic Colorbration Kit (sold separately).

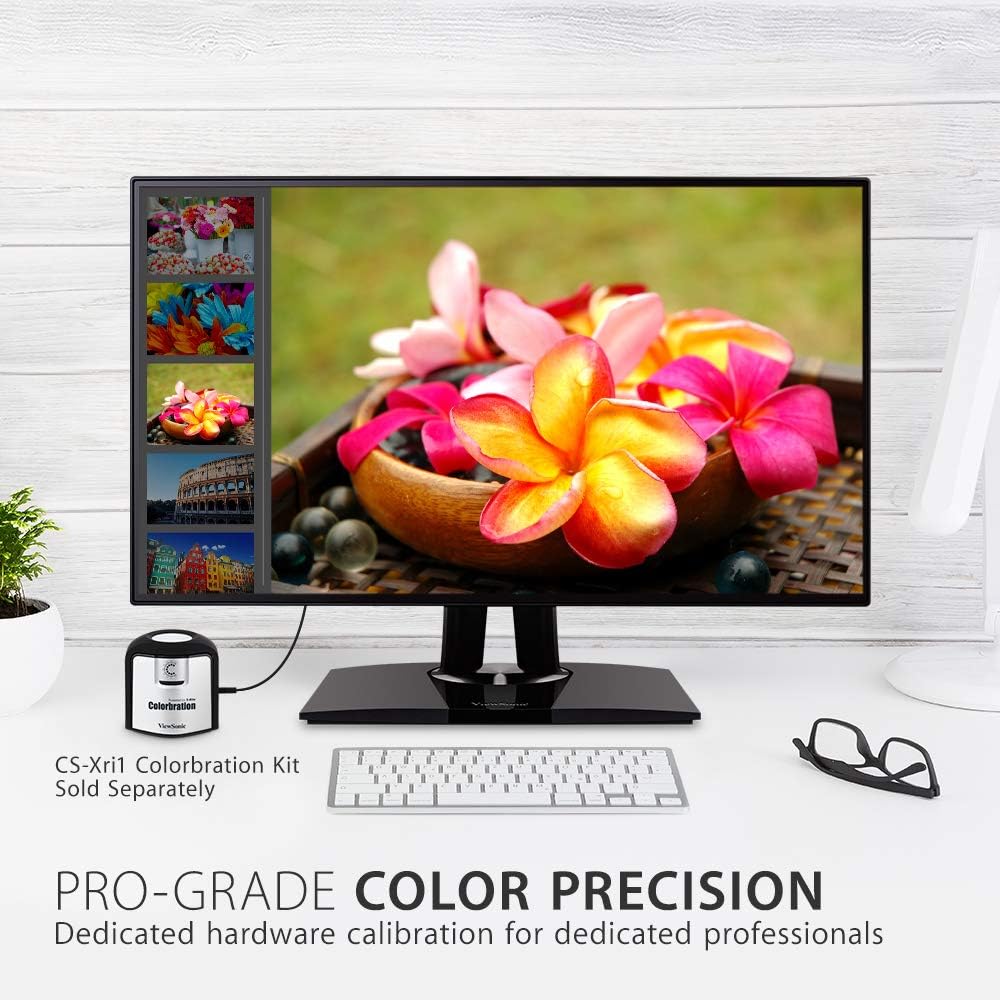

Figure 4: The monitor showcasing its color precision, with an optional Colorbration Kit for hardware calibration.

2.4 Tecnoloxía para o coidado dos ollos

The monitor incorporates Flicker-Free technology and a Blue Light Filter to minimize eye strain and fatigue during extended use.

2.5 Daisy Chaining

The DisplayPort out feature allows for seamless daisy-chaining of multiple monitors. Connect your primary monitor to your computer via DisplayPort, then connect the primary monitor's DisplayPort out to the DisplayPort in of a second monitor. This reduces cable clutter and simplifies multi-monitor setups.

2.6 USB-C Docking Functionality

The USB-C port on the VP2768a acts as a powerful docking station. A single USB-C cable from your laptop can provide:

• Potencia de entrega de 90 W: Carga o teu portátil ou dispositivo conectado.
• Sinal de vídeo: Transmits high-resolution video to the monitor.
• Sinal de audio: Transmits audio.
• Transferencia de datos: Enables data transfer for connected USB peripherals.
• Ethernet RJ45: Provides a stable wired network connection through the monitor's integrated Ethernet port.

Figure 5: USB-C connectivity for power, video, audio, and data, simplifying your workspace.

3. Mantemento

To maintain the performance and appearance of your monitor:

• Limpeza da pantalla: Limpe a pantalla con suavidade cun pano suave e sen pelusa. Para marcas difíciles, d suavementeampEnxágüe o pano con auga ou cun limpador de pantallas especializado. Evite o uso de produtos químicos agresivos ou materiais abrasivos.
• Limpeza do Casing: Use un pano suave e seco para limpar o monitor casing.
• Ventilación: Asegúrate de que as aberturas de ventilación do monitor non estean bloqueadas para evitar o sobrequecemento.

4 Solución de problemas

4.1 No Image or Intermittent Display

• Comprobar a potencia: Asegúrate de que o cable de alimentación estea conectado correctamente tanto ao monitor como á toma de corrente.
• Check Video Cables: Verify that the video cable (USB-C, DisplayPort, or HDMI) is firmly connected to both the monitor and your computer.
• Fonte de entrada: Confirm the correct input source is selected in the monitor's OSD menu.
• USB-C Connectivity Issues: Some users have reported intermittent display cut-outs or erratic behavior when using USB-C with other USB devices. If you experience this, try using a different USB-C cable, or connect via DisplayPort/HDMI and use a separate USB hub for peripherals.

4.2 Color or Brightness Issues

• Configuración OSD: Access the OSD menu to adjust brightness, contrast, and color settings.
• Restablecemento de fábrica: If color issues persist, consider performing a factory reset through the OSD menu.
• Calibración: For professional use, ensure your monitor is properly calibrated using the factory calibration report or an optional hardware calibration kit.

5. Especificacións

Figure 6: Key dimensions of the ViewSonic VP2768a monitor.

6. Garantía e soporte

O teu ViewSonic VP2768a monitor comes with a 3-year warranty. For technical assistance or warranty claims, please contact ViewSonic customer support. US-based customer support is available to assist you with any product-related inquiries.

Figura 7: Máisview of ViewSonic's commitment to warranty, support, and product features.
