Introdución
This manual provides essential instructions for the proper use, setup, and maintenance of your FORSINING WD19 Men's Mechanical Hand-Wind Skeleton Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.
Produto rematadoview
The FORSINING WD19 is a mechanical hand-wind skeleton watch featuring a stainless steel mesh bracelet. Its design showcases the intricate internal movement through a transparent dial and case back.
Figura 1: Fronte view of the FORSINING WD19 Skeleton Watch, showcasing the visible mechanical movement and mesh bracelet.

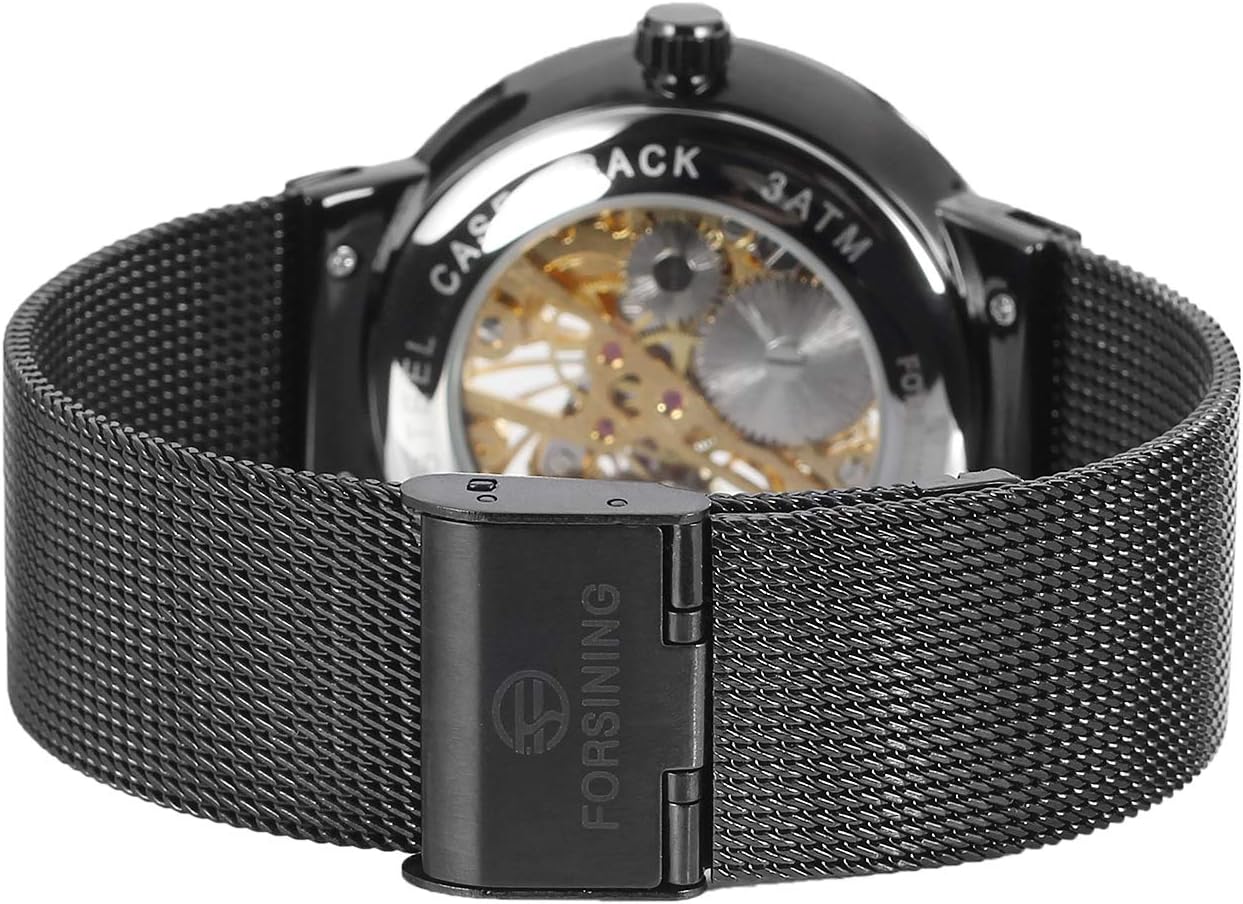

Figura 2: Traseira view of the watch, highlighting the stainless steel case back and the clasp mechanism of the mesh bracelet.
Figura 3: Lado view illustrating the watch's profile and the visible mechanical gears through the transparent case.
Figura 4: Close-up of the fold-over clasp with safety on the stainless steel mesh bracelet.
Configuración
1. Darlle corda ao reloxo
Your FORSINING WD19 is a mechanical hand-wind watch. It does not use a battery and requires manual winding to operate.
- Localiza a coroa no lateral da caixa do reloxo.
- Ensure the crown is pushed fully in towards the watch case.
- Rotate the crown clockwise approximately 18-20 times. This will fully wind the mainspring and provide approximately 36 hours of power reserve.
- For daily use, it is recommended to wind the watch once every 24 hours to maintain consistent timekeeping.
Vídeo 1: Demonstration of how to wind a mechanical watch and set the time. This video shows the crown being rotated clockwise to wind the watch and pulled out to adjust the time.
2. Axustar a hora
- Gently pull the crown out one position.
- Xire a coroa para mover as agullas no sentido horario ou antihorario ata que se axuste a hora desexada.
- Once the time is set, push the crown back in firmly to its original position to engage the movement and prevent dust or moisture from entering.
3. Adjusting the Mesh Bracelet
The stainless steel mesh bracelet features a fold-over clasp with safety, which can be adjusted for a comfortable fit.
- Locate the small lever on the clasp.
- Use a small tool (like a flat-head screwdriver or a spring bar tool) to lift the lever, which will allow the clasp to slide along the mesh band.
- Adjust the clasp to the desired position for your wrist size.
- Press the lever back down firmly to secure the clasp in place. Ensure it clicks securely to prevent accidental opening.
Funcionamento do reloxo
After winding and setting the time, your watch will begin to operate. The skeleton design allows you to observe the intricate gears and springs in motion.
Nota: Mechanical watches may have a slight deviation in timekeeping compared to quartz watches. Regular winding and proper care will help maintain accuracy.
Mantemento
- Limpeza: Wipe the watch case and crystal with a soft, dry cloth. For the mesh bracelet, a slightly damp cloth can be used, ensuring it is dried thoroughly afterward. Avoid harsh chemicals.
- Resistencia á auga: The watch has a water-resistant structure. However, it is not suitable for swimming, diving, or showering. Avoid direct contact with water to prevent damage to the mechanical movement.
- Almacenamento: When not wearing the watch for extended periods, store it in a dry, cool place away from direct sunlight and strong magnetic fields, which can affect timekeeping accuracy.
- Evitar choques: Os reloxos mecánicos son delicados. Evita deixalos caer ou someteros a impactos fortes.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O reloxo para ou funciona de forma intermitente | Enrolamento insuficiente | Manually wind the watch fully (18-20 clockwise rotations of the crown). |
| Time is inaccurate (running fast or slow) | Magnetic interference, shock, or need for regulation | Keep the watch away from strong magnetic fields. If inaccuracy persists, professional servicing may be required. |
| Condensación baixo o cristal | Entrada de humidade | Avoid contact with water. If condensation appears, seek professional repair immediately to prevent corrosion. |
Especificacións
- Número de modelo: WD19
- Movemento: Mechanical Hand-Wind, 17-Jewels
- Material da caixa: Aliaxe
- Material da banda: Malla de aceiro inoxidable
- Tipo de peche: Fold-over-clasp-with-safety
- Cristal: Protective Mineral Crystal
- Resistencia á auga: Water-resistant (not for swimming/diving/showering)
- Reserva de enerxía: Approximately 36 hours (when fully wound)
Garantía e soporte
This FORSINING watch comes with a Garantía de dous anos from the manufacturer, covering manufacturing defects.
For warranty claims or technical support, please contact the seller, Forsining Watch, or refer to the contact information provided with your purchase.
Importante: Any unauthorized repair or modification may void your warranty.
Recursos adicionais
Vídeo 2: Un xeneral rematadoview of a SEWOR mechanical skeleton watch, demonstrating its aesthetic and movement. This video provides a visual representation of a similar watch type.
