WOWOW 2 Handle Bathroom Faucet - Model 2320500B

Introdución

Thank you for choosing the WOWOW 2 Handle Bathroom Faucet. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new faucet. Please read this manual thoroughly before installation and keep it for future reference.

This widespread bathroom faucet features a durable brass construction with a matte black finish, designed for 3-hole installations. It includes a convenient pop-up drain and dual handles for precise control over water temperature and flow.

Información de seguridade

• Always shut off the main water supply before beginning any installation or repair work.
• Use equipos de protección individual axeitados, como lentes e luvas de seguridade, durante a instalación.
• Ensure all connections are tight to prevent leaks, but do not overtighten.
• Se ten algunha dúbida sobre algunha parte da instalación, consulte cun fontaneiro cualificado.

Contido do paquete

Comprobe que todos os compoñentes estean presentes antes de comezar a instalación:

• Faucet body with 1.2 GPM NEOPERL aerator (CEC certified)
• 2 Handle assemblies (Hot and Cold)
• Quick connect hose (Y-shaped)
• Pop-up drain stopper with overflow hole
• 2 Water supply hoses (23.6-inch, cUPC-certified)
• Teflon tape and wrench
• Additional 2.2 GPM aerator for high flow rates
• Par de luvas
• Manual de instrucións

Figure 1: All components included in the package for the WOWOW 2 Handle Bathroom Faucet.

Configuración e instalación

The WOWOW faucet features a humanized easy installation design with a unique 'Y' shaped quick connect hose structure, allowing for installation without professional plumbing assistance.

Ferramentas que pode necesitar:

• Chave inglesa axustable
• Destornillador de cabeza Phillips
• Plumber's putty or silicone sealant (not included)

Pasos de instalación:

1. Preparar o fregadero: Shut off the water supply to the sink. Remove your old faucet and clean the sink surface thoroughly.
2. Install Faucet Handles: Remove the nuts and washers from the faucet handles. Insert the hot and cold handles into the outer sink holes. Secure them from underneath the sink using the washers and nuts. Tighten with a screwdriver.
3. Instalar o bico da billa: Remove the nut and washer from the faucet spout. Insert the spout into the center sink hole. Secure it from underneath the sink using the washer and nut. Tighten with a screwdriver.
4. Conectar as mangueiras de subministración de auga: Connect the 23.6-inch cUPC-certified hot and cold water supply lines to the corresponding hot and cold inlets on the faucet handles. Use the provided wrench to tighten connections.
5. Connect Quick Connect Hose: Attach the 'Y' shaped quick connect hose to the hot and cold outlets of the handles. Push firmly until you hear a click, ensuring a secure connection.
6. Instalar sumidoiro emerxente: Disassemble the pop-up drain stopper. Insert the top part of the drain into the sink's drain hole. From underneath, reassemble and tighten the drain components to secure it.
7. Connect to Main Water Supply: Connect the other ends of the hot and cold water supply hoses to your home's hot and cold water supply valves. Tighten with a wrench.
8. Proba de fugas: Turn on the main water supply. Check all connections for leaks. If leaks occur, tighten the connections slightly until they stop.

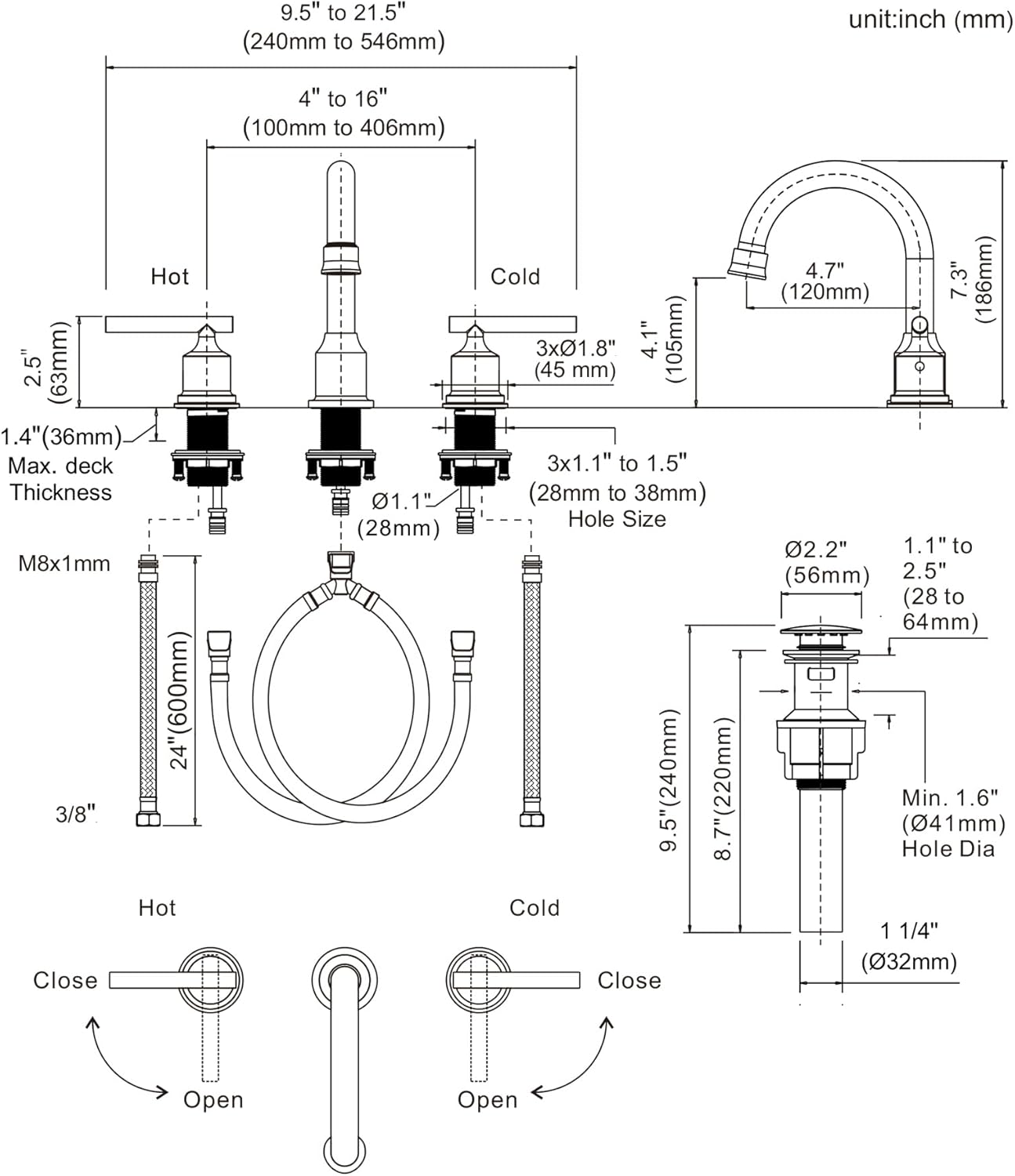

Figure 2: Dimensional drawing for the WOWOW 2 Handle Bathroom Faucet, showing hole sizes and spacing.

Instrucións de funcionamento

Your WOWOW faucet is designed for ease of use and precise control.

• Control do fluxo de auga e da temperatura: The dual handles allow for precise control of water volume and temperature. Turn the left handle for hot water and the right handle for cold water. Adjust both handles to achieve your desired temperature and flow.
• Boca giratoria: The 360-degree rotating spout provides extended reach and flexibility, allowing you to direct water flow as needed for various tasks.
• Drenaxe emerxente: The included pop-up drain stopper is operated by pressing down to close the drain and pressing again to open it. This design simplifies usage compared to traditional lift rod assemblies.

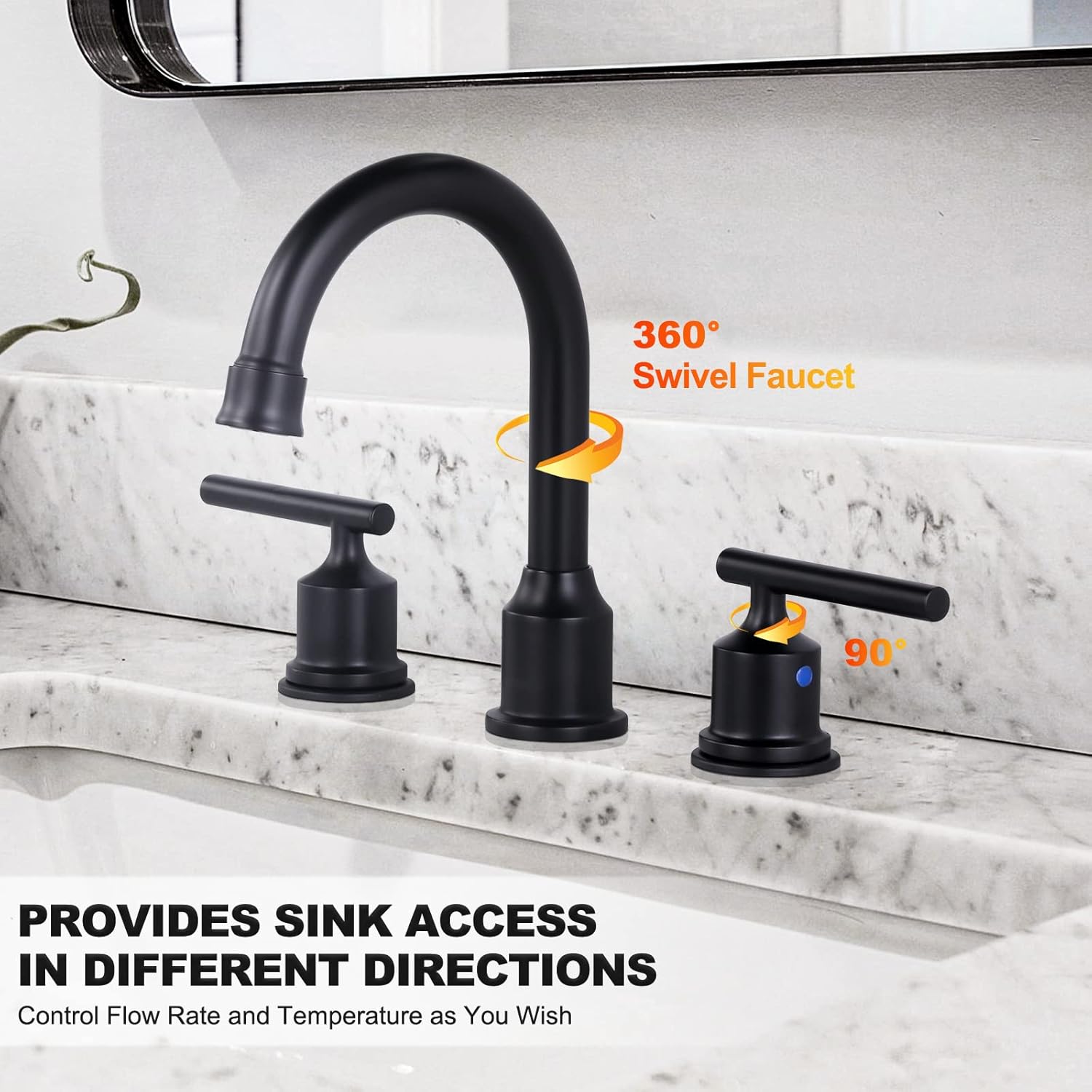

Figure 3: The 360-degree swivel spout offers enhanced sink access.

Mantemento

Un mantemento regular garantirá a lonxevidade e o rendemento óptimo da túa billa.

• Limpeza do acabado: Limpar o acabado negro mate cun pano suave eamp pano. Evite produtos de limpeza abrasivos, produtos químicos agresivos ou estropaxos, xa que poden danar o acabado.
• Limpeza do aireador: The faucet features a removable aerator. If water flow becomes restricted, unscrew the aerator from the spout (no tools required) and clean any mineral deposits or debris. Rinse thoroughly and reattach.
• Prevención de fugas: Periodically check all connections under the sink for any signs of leaks. Tighten connections as necessary, but do not overtighten.

Figure 4: The pop-up drain can be easily removed for cleaning.

Figure 5: The durable matte black finish is easy to clean.

Resolución de problemas

Se tes algún problema coa túa billa, consulta os seguintes problemas e solucións comúns:

For further assistance, please contact WOWOW customer support.

Especificacións

Garantía e soporte

The WOWOW 2 Handle Bathroom Faucet comes with a 5 ano de garantía limitadaEsta garantía cobre defectos de material e fabricación en condicións de uso e mantemento normais.

For warranty claims, technical support, or any questions regarding your product, please contact WOWOW customer service through the retailer where the product was purchased or visit the official WOWOW websitio.
