Terratec TERRA-324195

Terratec Aureon 5.1 USB Sound Card

Model: TERRA-324195

Introdución

This instruction manual provides essential information for the proper setup, operation, and maintenance of your Terratec Aureon 5.1 USB Sound Card. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

Contido do paquete

Verifica que todos os elementos estean presentes no paquete:

  • TERRATEC Aureon 5.1 USB sound card
  • Instrucións de inicio rápido
  • Tarxeta de garantía

Produto rematadoview

The Terratec Aureon 5.1 USB Sound Card is an external audio device designed to enhance your computer's sound capabilities. It features a Signal-to-Noise Ratio (SNR) of 80 dB and a frequency range of 15 Hz to 25 kHz, ensuring clear audio output. The device includes two stereo outputs, allowing for simultaneous connection of two audio devices, and an integrated volume control for convenient adjustment. Its 10 cm USB 2.0 cable provides broad compatibility with various systems.

Terratec Aureon 5.1 USB Sound Card, front view with volume knob and ports

Figura 1: Fronte view of the Terratec Aureon 5.1 USB Sound Card, showing the central volume knob, microphone and headphone input/output ports, and the USB cable.

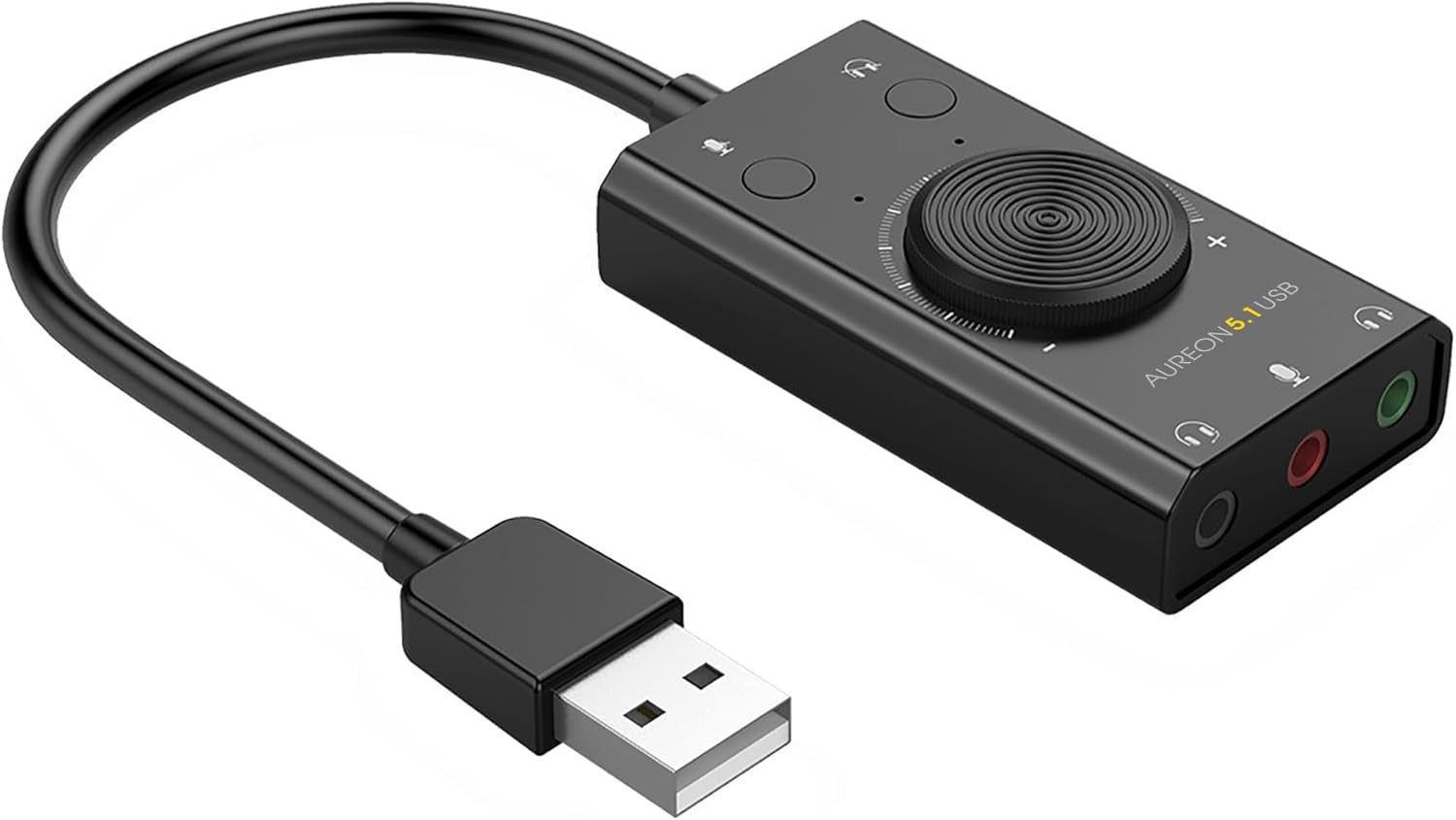

Terratec Aureon 5.1 USB Sound Card, angled view showing ports and USB connector

Figura 2: En ángulo view of the Terratec Aureon 5.1 USB Sound Card, highlighting the various audio ports and the USB connector.

Configuración

  1. Conectar ao ordenador: Plug the USB connector of the Aureon 5.1 USB Sound Card into an available USB port on your computer. The device is designed for plug-and-play operation and typically does not require additional driver installation on most modern operating systems (e.g., Windows 10/11).
  2. Conectar dispositivos de audio:
    • Connect your headphones or speakers to one of the two stereo output jacks (usually green).
    • If using a microphone, connect it to the microphone input jack (usually pink).
  3. Configure Audio Settings (if necessary):
    • On your computer, navigate to your operating system's sound settings.
    • Select the Terratec Aureon 5.1 USB Sound Card as your default playback and recording device.

Instrucións de funcionamento

  1. Control de volume: Use the large rotary knob on the sound card to adjust the output volume. Turn clockwise to increase volume and counter-clockwise to decrease it.
  2. Mute Functions: The sound card features dedicated buttons for muting the microphone input and the audio output. Press the respective button to toggle the mute function.
  3. Dual Stereo Outputs: The two stereo output jacks allow you to connect two sets of headphones or speakers simultaneously. Audio will be routed to both outputs.
  4. 5.1 Channel Processing: While the device provides 5.1 channel audio processing, its physical outputs are two stereo jacks. For true 5.1 surround sound experience, ensure your software and connected audio system (e.g., a 5.1 speaker system with an appropriate amplifier) are configured to utilize the 5.1 channel output from your computer's audio settings, if supported by your operating system's interpretation of the device.

Mantemento

  • Limpeza: Use a soft, dry cloth to clean the exterior of the sound card. Avoid using liquid cleaners or solvents, as they may damage the device.
  • Almacenamento: When not in use, store the sound card in a cool, dry place away from direct sunlight and extreme temperatures.
  • Coidado do cable: Evite dobrar ou retorcer o cable USB excesivamente para evitar danos internos.

Resolución de problemas

  • Sen saída de son:
    • Ensure the sound card is securely connected to a USB port.
    • Check the volume knob on the sound card and your computer's system volume.
    • Verify that the output mute button on the sound card is not active.
    • Confirm that the Terratec Aureon 5.1 USB Sound Card is selected as the default playback device in your operating system's sound settings.
    • Test with different headphones or speakers.
  • O micrófono non funciona:
    • Ensure the microphone is correctly plugged into the microphone input jack.
    • Check the microphone mute button on the sound card.
    • Verify that the Terratec Aureon 5.1 USB Sound Card is selected as the default recording device in your operating system's sound settings.
    • Axusta os niveis de entrada do micrófono na configuración de son do teu ordenador.
  • Distorted or Low Quality Sound:
    • Asegúrese de que todos os cables estean conectados de forma segura.
    • Try connecting the sound card to a different USB port.
    • Reduce the volume level on both the sound card and your computer to avoid clipping.
    • Comprobe se hai posibles interferencias doutros dispositivos electrónicos.

Especificacións

Dimensións do produto0.39 x 0.39 x 0.39 polgadas
Peso do elemento0.847 onzas
FabricanteTerratech
Número de modelo do artigoTERRA-324195
Dispositivos compatiblesTablet (and other devices with USB audio support)
Interface de hardwareUSB
Modo de saída de audioStereo (with 5.1 channel processing)
Data de primeira dispoñibilidade29 de maio de 2024

Garantía e Soporte

This product comes with a limited manufacturer's warranty. Please refer to the included warranty card for specific terms and conditions, including the warranty period and coverage details. For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Terratec customer service through their official websitio web ou a información de contacto que aparece na tarxeta de garantía.
