1. Introdución
Thank you for choosing the Candy FCT625WXL/E Ventilated Oven. This manual provides essential information for the safe and efficient use, installation, and maintenance of your appliance. Please read these instructions carefully before using the oven and keep them for future reference.
The Candy FCT625WXL/E oven combines linear design with advanced technology, offering 8 functions and a 77-liter capacity. Its A+ energy class and Aquactiva hydrolytic cleaning system ensure efficiency and ease of maintenance.
2. Información de seguridade
Importante: Lea todas as instrucións antes de usar o aparello. Garde este manual para futuras consultas.
- Ensure the oven is correctly installed and earthed by a qualified technician.
- Non permita que os nenos fagan funcionar o forno sen supervisión.
- O forno quéntase durante o uso. Evite tocar os elementos calefactores ou as superficies interiores. Use luvas de forno.
- Never use flammable liquids or aerosols near the oven.
- Do not store items that could melt or catch fire in the oven.
- Desconecte sempre o aparello da fonte de alimentación antes da limpeza ou mantemento.
3. Instalación e configuración
The Candy FCT625WXL/E is designed for freestanding installation. Ensure adequate ventilation around the appliance.
3.1 Desembalaxe
Carefully remove all packaging materials. Check the oven for any damage. If damaged, do not install or use it, and contact your retailer.
3.2 Conexión eléctrica
This appliance must be connected to the mains supply by a qualified electrician, in accordance with local wiring regulations. Ensure the voltage and frequency rating on the appliance data plate match your household supply.
3.3 Posicionamento
Place the oven in a stable and level position. Ensure there is sufficient space for the door to open fully. Refer to the installation dimensions provided in the specifications section.
4. Instrucións de funcionamento
Your Candy FCT625WXL/E oven features mechanical controls with a digital timer for precise cooking.

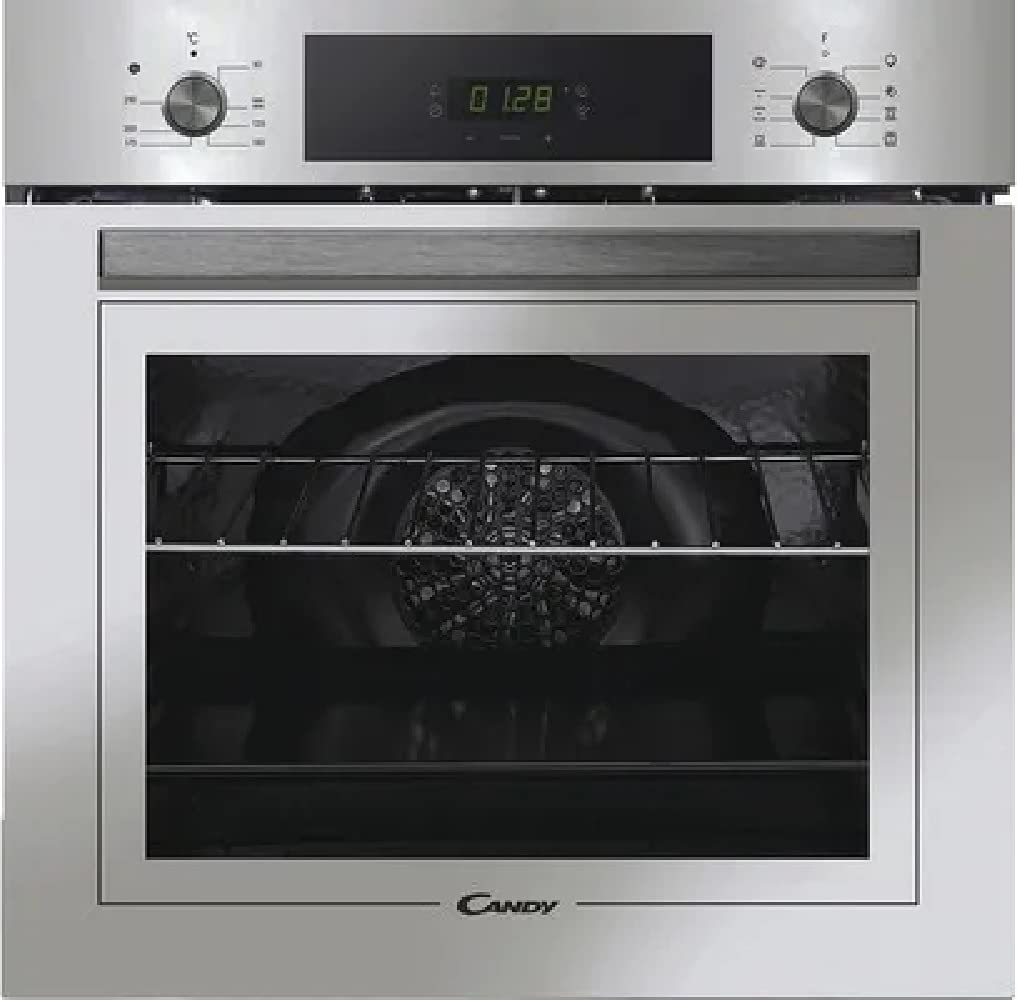

Figura 1: Fronte view of the Candy FCT625WXL/E ventilated oven, showing the control panel, door, and handle. This image illustrates the overall design and key external components.
4.1 Panel de control rematadoview
The control panel consists of function selector knobs, a temperature control knob, and a digital timer display with associated buttons.
4.2 Axustar a hora
Upon first connection, the digital timer will flash. Use the timer buttons to set the current time. Confirm the setting as per the timer's specific instructions (usually by pressing a button or waiting a few seconds).
4.3 Selecting a Cooking Function (8 Functions)
Turn the function selector knob to choose one of the 8 available cooking functions. These typically include:
- Convencional: Top and bottom heating elements for traditional baking and roasting.
- Asistido por fans: Combines conventional heat with a fan for even heat distribution, ideal for multiple dishes.
- Grella: Para grellar e dourar.
- Fan Grill: Combines grill with fan for faster grilling and even browning.
- Calor inferior: For dishes requiring more heat from the base.
- Desconxelar: Fan only, no heat, for thawing frozen foods.
- Cook Light: A special function for healthier cooking with reduced fat.
- Función Pizza: Optimized for baking pizzas with a crispy base.
4.4 Axustar a temperatura
After selecting a function, turn the temperature control knob to the desired temperature. The oven will begin to heat up.
4.5 Uso do temporizador
The digital timer can be used to set a cooking duration or a delayed start. Refer to the specific instructions for your timer model for detailed programming steps.
4.6 Telescopic Guides and Side Grids
The oven is equipped with telescopic guides, making it easy to slide out and reposition shelves and trays for checking food during cooking. The side grids simplify the insertion of trays at different levels.
5. Limpeza e Mantemento
Unha limpeza e un mantemento regulares garantirán a lonxevidade e o rendemento óptimo do teu forno.
5.1 Aquactiva Hydrolytic Cleaning System
The Aquactiva system provides effective daily cleaning at low temperatures. To use:
- Pour 300 ml of distilled water into the bottom of the oven.
- Activate the Aquactiva function at 90°C for 30 minutes.
- Once the cycle is complete and the oven has cooled, wipe away any remaining residue with a damp pano.
5.2 Limpeza xeral
- Asegúrate sempre de que o forno estea frío e desconectado da rede eléctrica antes de limpalo.
- Limpar as superficies exteriores cun pano suave eamp pano e deterxente suave. Evite produtos de limpeza abrasivos.
- O vidro da porta do forno pódese limpar cun limpador de cristais.
- Remove side grids and wash them in warm soapy water or in a dishwasher.
- Trays and shelves can be washed in warm soapy water.
6 Solución de problemas
If you encounter problems with your oven, consult the following common issues before contacting technical assistance.
| Problema | Causa posible | Solución |
|---|---|---|
| O forno non quenta | No power supply; Function/temperature not set; Timer not set correctly. | Check power connection and circuit breaker; Ensure function and temperature knobs are set; Check timer settings. |
| A comida non se cociña uniformemente | Incorrect shelf position; Overcrowding the oven; Door not fully closed. | Use recommended shelf positions; Avoid overcrowding; Ensure door is sealed properly. |
| Fume ou cheiro durante o primeiro uso | Residuos do proceso de fabricación. | This is normal. Run the oven empty at maximum temperature for 30-60 minutes to burn off residues. Ensure good ventilation. |
| A pantalla dixital non funciona | Power interruption; Faulty component. | Check power supply; If problem persists, contact service. |
7. Especificacións
Here are the technical specifications for the Candy FCT625WXL/E oven:
- Modelo: FCT625WXL/E
- Código do produto: 33703301
- Código EAN: 8059019031729
- Tipo de forno: Ventilado
- Fonte de alimentación: Eléctrico
- Sistema de limpeza: Aquactiva (Hydrolytic)
- Volume útil: 70 litros
- Tipo de control: Mechanical with digital timer
- Guías: Castelletto (Side Grids)
- Bandexas: 1 x 15mm + 1 x 35mm
- Grids (Cavity 1): 1
- Número de funcións: 8
- Cor: Branco
- Material da porta: Vidro
- Cor do botón: Inox
- Cor do mango: Inox
- Clase enerxética: A+
- Dimensións do produto (mm): 595 (alto) x 595 (ancho) x 568 (fondo)
- Installation Compartment Dimensions (mm): 585 (alto) x 560 (ancho) x 560 (fondo)
- Peso neto (kg): 28.56
- Peso bruto (kg): 30.26
8. Garantía e soporte
Your Candy FCT625WXL/E oven comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions.
For technical assistance, spare parts, or further information, please contact Candy customer support or visit the official Candy website. When contacting support, please have your model number (FCT625WXL/E) and serial number ready.
