The Radtel R260 is a Family Radio Service (FRS) two-way radio designed for reliable communication in various environments. It features IP67 waterproofing, NOAA weather channels, an SOS emergency light, and a built-in flashlight. This manual provides essential instructions for its proper setup, operation, and maintenance.
Image: Radtel R260 Walkie Talkie highlighting its key features such as VOX, IP67 waterproofing, NOAA weather channels, high-intensity flashlight, floating capability, and SOS emergency light.
Vídeo: Un overview of the Radtel R260 FRS radio, demonstrating its features, charging methods, and durability tests including waterproofing, salt fog, and button life cycle.
Contido do paquete
Verifique que o seu paquete inclúa todos os seguintes elementos:
- Radtel R260 Walkie Talkie (2 units)
- AA Rechargeable Batteries (6 units, 3 per radio)
- Clips de cinto (2 unidades)
- Cable de carga micro-USB
- Charger Station (for 2 units)
- Manual de usuario (este documento)
Image: The complete set of items included with the Radtel R260 walkie talkie, such as the radios, batteries, and charging accessories.
Configuración
1. Instalación da batería
- Abra a tapa do compartimento das baterías que se atopa na parte traseira da radio.
- Insert 3 AA rechargeable batteries into each radio, ensuring correct polarity as indicated inside the compartment.
- Peche a tapa do compartimento da batería firmemente ata que encaixe no seu lugar.
Imaxe: Detallada view of the battery compartment, showing the proper insertion of AA rechargeable batteries.
2. Carga das baterías
The Radtel R260 offers multiple charging options:
- Charger Station: Place the walkie talkie into the charging station. Ensure the charging contacts on the radio align with those in the station.
- Cable Micro-USB: Connect the Micro-USB cable to the radio's charging port and a compatible USB power source (e.g., wall adapter, computer USB port).
The battery indicator on the LCD screen will display the charging status. A full charge typically takes several hours.
Image: Visual representation of the three available charging methods for the Radtel R260 walkie talkie.
Instrucións de funcionamento
1. Acendido/apagado
Manteña premido o Potencia / Menú button until the display illuminates or turns off.
2. Axuste do volume
Usa o Up e Abaixo arrow buttons to increase or decrease the listening volume.
3. Selección dunha canle
- Preme o Menú unha vez. O número da canle actual parpadeará na pantalla.
- Usa o Up e Abaixo botóns de frecha para seleccionar o canal desexado (1-22).
- Preme o Menú button again or wait a few seconds for the selection to be confirmed automatically.
4. Transmisión e recepción
- Para transmitir, manteña premido o botón PTT (Push-To-Talk) botón situado no lateral da radio. Fala con claridade no micrófono.
- Soltar o PTT botón para deter a transmisión e escoitar unha resposta.
5. Función VOX (mans libres)
The VOX (Voice Operated Exchange) function enables hands-free transmission, allowing you to speak without pressing the PTT button.
- Preme o Menú button repeatedly until the VOX setting appears on the display (often indicated by "VOX").
- Usa o Up e Abaixo arrow buttons to select a VOX sensitivity level (1-3, with 3 being the most sensitive) or to turn the function off.
- Preme o Menú botón de novo para confirmar a súa selección.
Image: The VOX function allows for hands-free communication, useful during activities like cycling or driving.
Image: A visual icon indicating the VOX function.
6. NOAA Weather Channel
The Radtel R260 can scan 11 NOAA Weather (WX) band channels to provide timely weather alerts (US only).
- To activate NOAA weather scan, press the Menú button repeatedly until the WX channel option appears.
- Usa o Up e Abaixo arrow buttons to enable the scan. The radio will automatically lock onto the strongest weather channel.
- Preme o Menú button to exit the WX channel mode.
Image: The NOAA Weather Alert feature provides timely updates on severe weather conditions.
7. Flashlight and SOS Emergency Light
- Lanterna: Preme o LAMP button to toggle the built-in LED flashlight on or off.
- Luz de emerxencia SOS: En caso de emerxencia, manteña premido o botón SOS button (often integrated with the LAMP button or a dedicated button) to activate the SOS signal, which includes a flashing red light and an audible emergency alert.

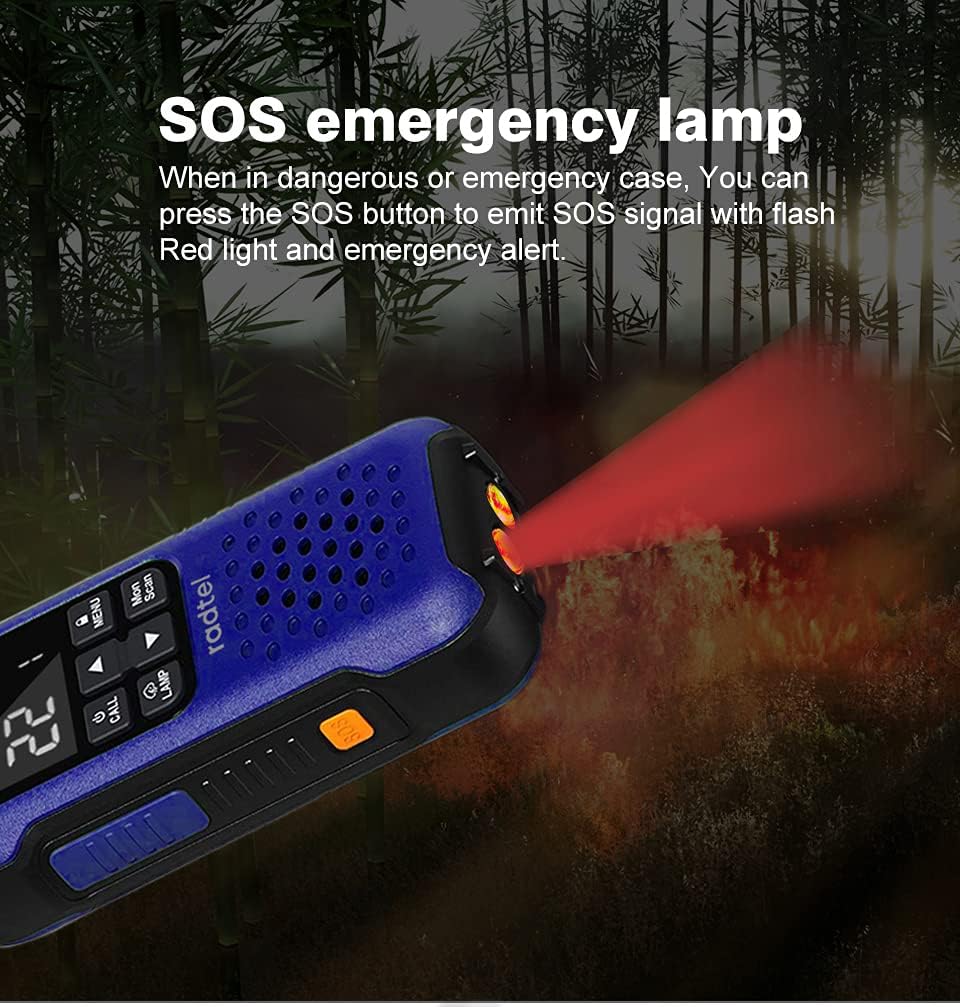

Image: The SOS emergency lamp feature, emitting a red light for signaling in dangerous or emergency situations.

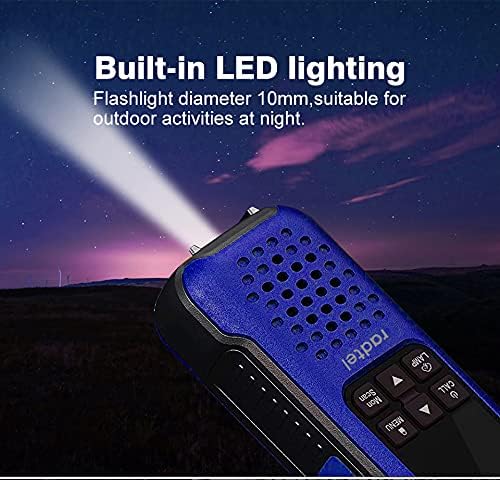

Image: The built-in LED flashlight provides illumination for outdoor activities at night.
8. Monitor and Scan Functions
- Monitor: Preme o lun botón para desactivar temporalmente o silenciador e escoitar sinais débiles no canal actual.
- Escanear: Preme o Escanear button to scan through all available channels for activity. The radio will stop on an active channel. Press again to resume scanning.
9. Bloqueo do teclado
Para evitar cambios accidentais na configuración, manteña premido o botón Bloqueo button (often indicated by a padlock icon) to lock or unlock the keypad.
Mantemento
- Limpeza: Limpe a radio cun suave, damp cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the radio's finish and seals.
- Exposición á auga: While the radio is IP67 waterproof, always ensure the battery compartment cover and charging port cover are securely closed before exposing the radio to water. After water exposure, gently shake off any excess water and allow the radio to air dry completely before charging or opening any compartments.
- Coidado da batería: Use only the specified AA rechargeable batteries. If the radio will not be used for an extended period, remove the batteries to prevent leakage and damage.
- Almacenamento: Store the radio in a cool, dry place, away from direct sunlight, extreme temperatures, and corrosive materials.
Image: The Radtel R260 is designed to float and remain waterproof, making it suitable for use near water.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| A radio non se acende. | Pilas baixas ou gastadas; pilas instaladas incorrectamente. | Charge batteries or replace with fresh ones. Ensure batteries are installed with correct polarity. |
| Non se pode transmitir nin recibir. | Incorrect channel selected; PTT button not pressed; radio out of range; squelch too high. | Verify both radios are on the same channel. Press and hold PTT firmly. Move closer to the other radio. Use the Monitor function to check for weak signals. |
| Mala calidade de audio. | Low battery; radios too far apart; water in speaker/microphone. | Charge batteries. Move closer to the other radio. Shake off water and allow the speaker/microphone to dry. |
| O teclado non responde. | O bloqueo do teclado está activado. | Press and hold the Lock button to unlock the keypad. |
Especificacións
- Modelo: Radtel R260
- Canles: 22 canles FRS
- Resistencia á auga: Impermeable IP67
- Tipo de batería: 3x AA Rechargeable (included)
- Duración da batería: Aproximadamente 10 Horas
- Dimensións: 7.87 x 2.36 x 1.57 polgadas
- Peso: 1.76 libras
- Características especiais: NOAA Weather Channel, SOS Emergency Light, Built-in Flashlight, VOX Function
Garantía e Soporte
For detailed warranty information, technical support, or customer service inquiries, please refer to the official Radtel website or contact their customer support team directly. It is recommended to retain your purchase receipt for any warranty claims.
