1. Introdución
Thank you for choosing the Gateman GRAB100-FH Digital Door Lock. This manual provides essential information for the proper installation, operation, and maintenance of your new digital door lock. The GRAB100-FH features advanced fingerprint recognition, IPX4 class waterproofing, and fire-resistant properties, ensuring both convenience and enhanced security for your home or office.
Image 1.1: The Gateman GRAB100-FH Digital Door Lock installed on a door, showcasing o seu elegante deseño.
2. Configuración e instalación
Proper installation is crucial for the optimal performance and security of your Gateman GRAB100-FH Digital Door Lock. It is highly recommended to have the lock installed by a qualified professional. This section provides general guidelines.
2.1 Contido do paquete
Before installation, verify that all components are present in the package. Refer to the product packaging for a detailed list of included items.
2.2 Instalación da batería
- The lock requires four (4) 1.5V AA alkaline batteries.
- Locate the battery compartment on the interior unit of the door lock.
- Open the battery cover and insert the batteries, ensuring correct polarity (+/-).
- Pecha a tapa da batería de forma segura.

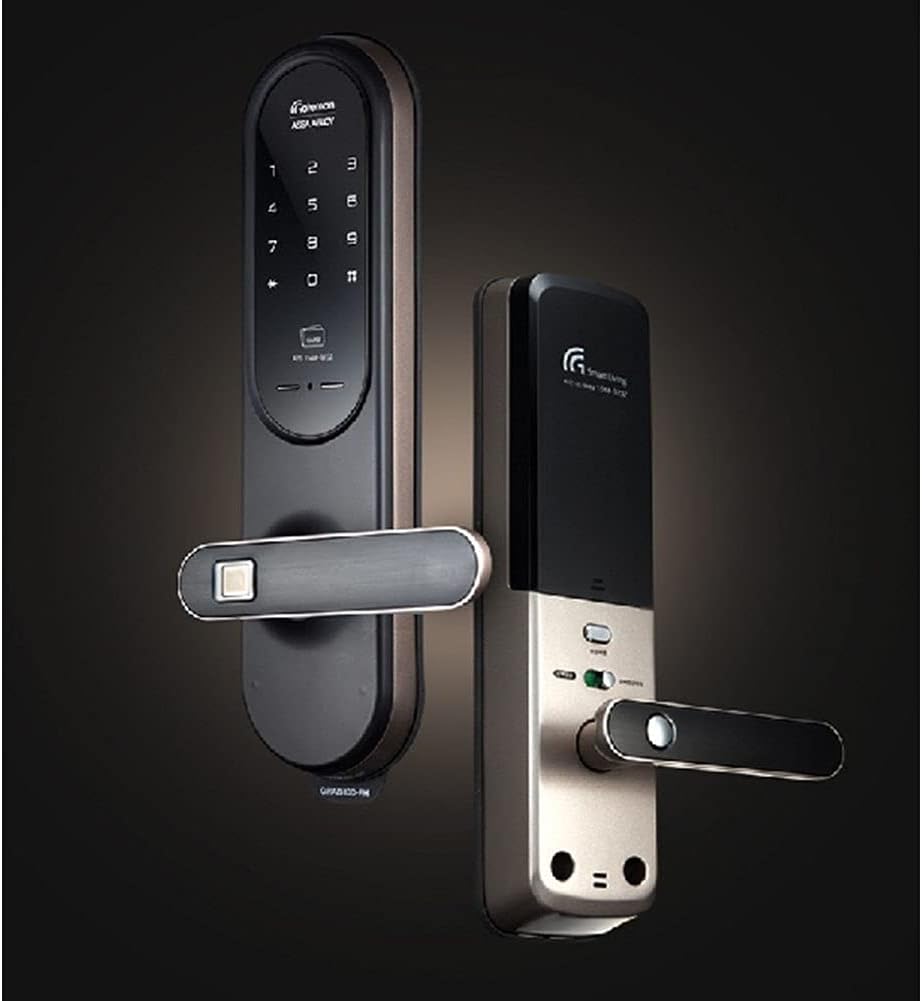

Image 2.1: The interior and exterior units of the Gateman GRAB100-FH Digital Door Lock, showing the components.
3. Instrucións de funcionamento
The Gateman GRAB100-FH offers multiple convenient and secure ways to operate your door lock.
3.1 QuickPass Fingerprint Recognition
This feature allows for rapid and natural door unlocking. Simply place your registered finger on the fingerprint sensor, and the lock will authenticate and open the door.
Imaxe 3.1: Primeiro plano view of the QuickPass fingerprint recognition sensor, designed for quick access.
3.2 Smart Etiquette Function
Activate the Smart Etiquette Function for silent operation of the door lock. This is useful in situations where minimizing sound is desired, such as late at night or early morning.
3.3 External Forced Lock Function
When activated from the outside, this function enhances security by triggering an intrusion alarm if the door is opened from the inside. This provides an additional layer of protection when you are away.
3.4 Internal Forced Lock Function
When set from the inside, this function disables all external authentication methods, including passwords, card keys, and fingerprints. This ensures privacy and prevents unauthorized entry from the outside.
Imaxe 3.2: Detallada view of the digital keypad and fingerprint sensor on the Gateman GRAB100-FH.
4. Mantemento
Regular maintenance ensures the longevity and reliable operation of your digital door lock.
4.1 Limpeza
- Limpa a superficie da fechadura cun pano suave e seco.
- Evita o uso de produtos de limpeza abrasivos, solventes ou produtos químicos agresivos, xa que poden danar o acabado e os compoñentes internos.
- Keep the fingerprint sensor clean and free of dirt or moisture for optimal recognition.
4.2 Substitución da batería
- Replace all four (4) AA alkaline batteries when the low battery indicator appears or when the lock's response becomes slow.
- Always replace all batteries at once with new ones of the same type. Do not mix old and new batteries.
5 Solución de problemas
If you encounter issues with your Gateman GRAB100-FH, refer to the following common problems and solutions.
5.1 O bloqueo non responde
- Comprobe as baterías: Asegúrate de que as baterías estean instaladas correctamente e teñan a carga suficiente. Substitúeas se é necesario.
- Ciclo de enerxía: Remove batteries, wait 30 seconds, then reinsert them.
5.2 Impresión dixital non recoñecida
- Sensor limpo: Ensure the fingerprint sensor is clean and dry.
- Colocación adecuada: Asegúrate de que o teu dedo cobre toda a superficie do sensor.
- Volver rexistrar a pegada dixital: If issues persist, try deleting and re-registering your fingerprint.
5.3 Alarm Sounds Unexpectedly
- Check Forced Lock Function: Verify if the External Forced Lock Function is active.
- Aliñación da porta: Ensure the door is properly closed and aligned, as misalignment can sometimes trigger alarms.
6. Especificacións
Detailed technical specifications for the Gateman GRAB100-FH Digital Door Lock.
| Número de modelo | GRAB100-FH |
| Voltage | DC 6 V |
| Temperatura de funcionamento | -15°C a 55°C |
| Temperatura de funcionamento do sensor | 55°C |
| Exterior Unit Dimensions (L x W x H) | 76 x 31 x 312 mm (2.99 x 1.22 x 12.28 polgadas) |
| Interior Unit Dimensions (L x W x H) | 76 x 36 x 312 mm |
| Baterías | 4 pilas alcalinas AA de 1.5 V |
| Tipo de bloqueo | Electrónica |
| Características especiais | Fingerprint Recognition, Fire Resistant, IPX4 Waterproofing |
| Método de control | Toca |
| UPC | 191997047007 |
Image 6.1: Visual representation of the fire-resistant properties of the Gateman GRAB100-FH, designed to withstand high temperatures.
7. Garantía e soporte
For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Gateman is committed to providing reliable products and assistance.
- Garantía: Specific warranty terms and conditions may vary by region and retailer. Please retain your proof of purchase.
- Soporte técnico: For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact the authorized Gateman service center or your product supplier.
