Introdución
This manual provides essential information for the safe and efficient operation of your BALLU Apollo Portable Convection Panel Space Heater. Please read all instructions carefully before use and retain this manual for future reference.
Image: The BALLU Apollo Portable Convection Panel Space Heater, showcasing its sleek white design and freestanding feet.
Configuración e instalación
The BALLU Apollo heater offers versatile installation options: freestanding or wall-mounted. No additional tools are required for assembly.
Configuración independente
- Retire con coidado o quentador da súa embalaxe.
- Attach the provided caster wheels to the base of the heater. Ensure they are securely fastened.
- Place the heater on a stable, level surface, ensuring adequate clearance from walls and flammable materials.
Instalación de montaxe en parede
- Remove the caster wheels if they are already attached.
- Identify a suitable wall location. The wall must be heat-resistant and capable of supporting the heater's weight.
- Use the provided wall-mounting brackets and hardware to secure the heater to the wall. Follow the detailed instructions in the included wall-mount guide for proper installation.
Video: Demonstrates the assembly of the freestanding feet and highlights the wall-mounting bracket on the rear of the heater.
Instrucións de funcionamento
The BALLU Apollo heater features a TFT Digital Display control panel for easy operation.
Image: Close-up of the heater's TFT Digital Display control panel, showing temperature, mode, and power buttons.
Panel de control rematadoview
- Botón de encendido: Manteña premido durante 2 segundos para acender ou apagar a unidade.
- Axuste de temperatura: Use the arrow buttons to set the desired temperature between 41°F and 95°F.
- Selección de modo: Cycle through available modes: Comfort, Eco, and Anti-frost.
- Función de temporizador: Program the heater to operate for specific durations or at scheduled times (7 days, 24 hours).
- Bloqueo para nenos: Activate to prevent accidental changes to settings.
- Detección de ventá aberta: The heater automatically adjusts temperature if a sudden drop is detected, optimizing energy use.
Heating Efficiency and Comfort
The Apollo heater utilizes a patented hedgehog heating element for 100% conversion of electrical energy to thermal energy, resulting in rapid heating (within 30 seconds) and even room temperature distribution. It operates silently, without consuming oxygen or moisture, which helps maintain comfortable air quality.

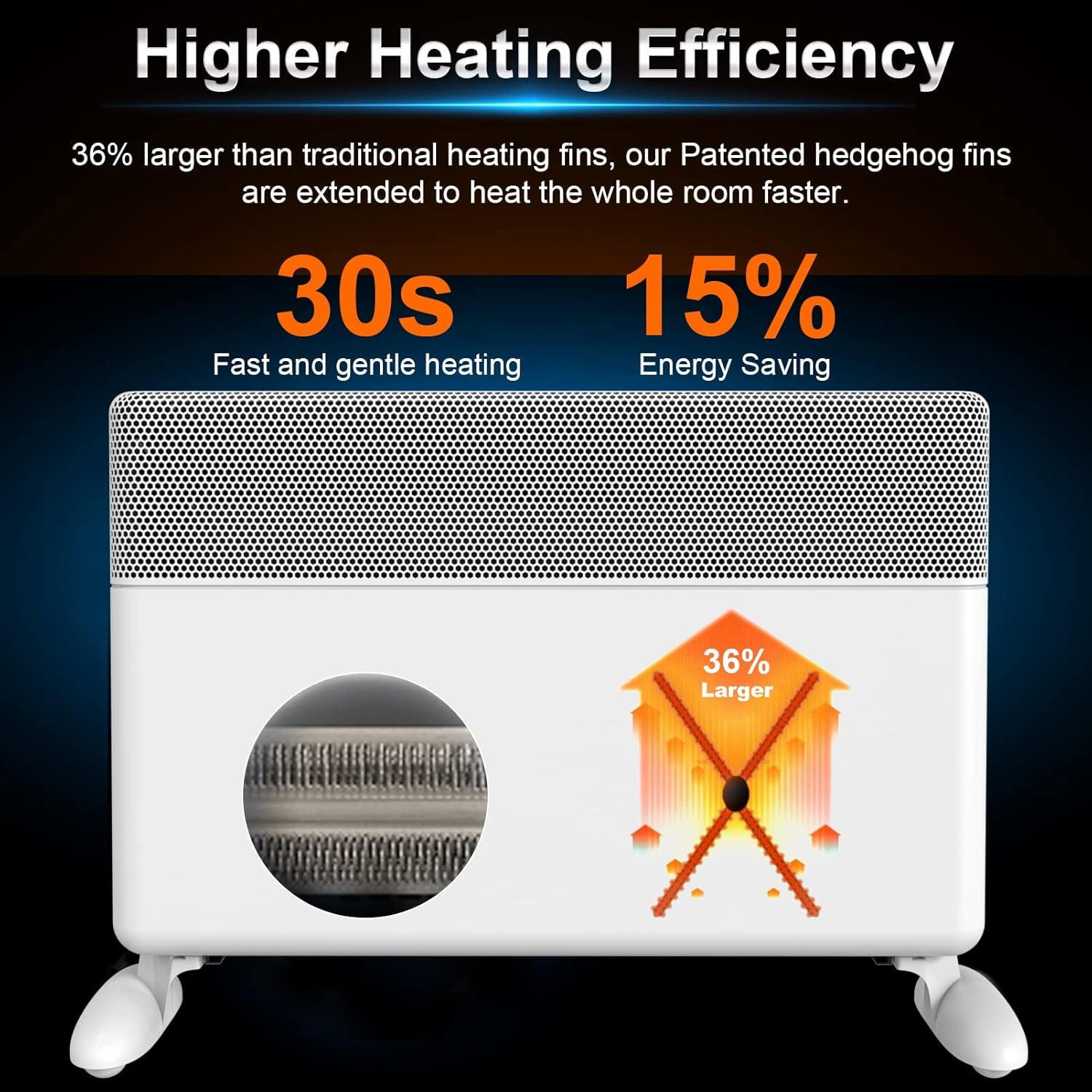

Image: Diagram illustrating the heater's high heating efficiency and rapid warm-up time.
Image: Illustration showing how the BALLU Apollo heater effectively warms a room up to 300 sq ft through natural convection.
Image: Depiction of the heater's silent operation, emphasizing no fan, no dry air, and no dazzling light for a comfortable environment.
Características de seguridade
Your BALLU Apollo heater is equipped with multiple safety mechanisms to ensure secure operation:
- Protección contra envorcamentos: Automatically shuts off the unit if it is accidentally knocked over.
- Protección contra sobrecalentamento: The heater will power down if internal components reach an unsafe temperature.
- Bloqueo para nenos: Prevents unauthorized access to the control panel settings.
- Materiais ignífugos V0: Constructed with high-quality, flame-retardant power cord and plug.
Image: Icons representing the heater's safety features: Tip-over protection, Child lock, and Overheat protection.
Mantemento
To ensure optimal performance and longevity of your heater, follow these maintenance guidelines:
- Desconecte sempre o quentador e déixeo arrefriar completamente antes de limpalo.
- Limpe as superficies exteriores cun suave, damp pano. Non use produtos de limpeza ou disolventes abrasivos.
- Ensure the air intake and exhaust grilles are free from dust and debris. Use a vacuum cleaner with a brush attachment to gently clean these areas.
- Non mergullo o aquecedor en auga ou en calquera outro líquido.
- Almacene o aquecedor nun lugar fresco e seco cando non estea en uso.
Resolución de problemas
If you encounter issues with your BALLU Apollo heater, please refer to the following common solutions:
- O calefactor non se acende: Ensure the power cord is securely plugged into a functional outlet. Check if the main power switch (if applicable) is in the 'ON' position. Verify that the child lock is not activated.
- Sen emisión de calor: Confirm the desired temperature setting is higher than the current room temperature. Check the selected operating mode.
- Heater shuts off unexpectedly: This may indicate activation of the overheat or tip-over protection. Ensure the heater is on a stable surface and not obstructed. Allow the unit to cool down before restarting.
- Display shows an error or locked symbol: Consult the detailed troubleshooting section in the full user manual or contact customer support for assistance.
Especificacións
| Característica | Detalle |
|---|---|
| Marca | Ballu |
| Modelo | Apolo |
| Característica especial | Energy Efficient, Noiseless, Portable |
| Cor | Branco |
| Factor de forma | Pedestal |
| Uso interior/exterior | Interior |
| Tipo de montaxe | Soporte de parede |
| Tipo de habitación | Dormitorio, oficina, sala de estudo |
| Cobertura de calefacción | 300 metros cadrados |
| Tipo de queimador | Radiante |
| Saída de calor | 1500 vatios |
| Dimensións do produto | 25.2 x 4 x 15.9 polgadas |
| Peso do elemento | 17.56 libras |
| Data de primeira dispoñibilidade | 17 de setembro de 2021 |
Garantía e Soporte
For warranty information, technical support, or service inquiries, please refer to the contact details provided with your product packaging or visit the official Ballu websitio. Garde o recibo da compra como xustificante da mesma.
