1. Introdución
This manual provides essential information for the safe and efficient use of the Legrand Emdx3 Three-Phase Energy Meter, Model 412043. This device is designed for accurate measurement of electrical energy in three-phase systems, compliant with MID (Measuring Instruments Directive) standards, making it suitable for billing applications. Please read this manual thoroughly before installation and operation.
2. Instrucións de seguridade
ADVERTENCIA: Perigo de descarga eléctrica. A instalación e o mantemento só deben ser realizados por persoal cualificado.
- Desconecte sempre a alimentación antes de instalar ou realizar o mantemento do dispositivo.
- Asegúrese de que se cumpran todos os códigos eléctricos locais e nacionais.
- Non poñas en funcionamento o dispositivo se parece estar danado.
- Manteña o dispositivo lonxe da humidade e das temperaturas extremas.
- Use o equipo de protección individual (EPI) axeitado durante a instalación.
3. Produto rematadoview
The Legrand Emdx3 Three-Phase Energy Meter (Model 412043) is a robust device for monitoring energy consumption. It is designed for use with external current transformers (P/Ti 5A) to measure energy in industrial and commercial three-phase electrical installations. Its MID certification ensures accuracy and reliability for revenue metering.

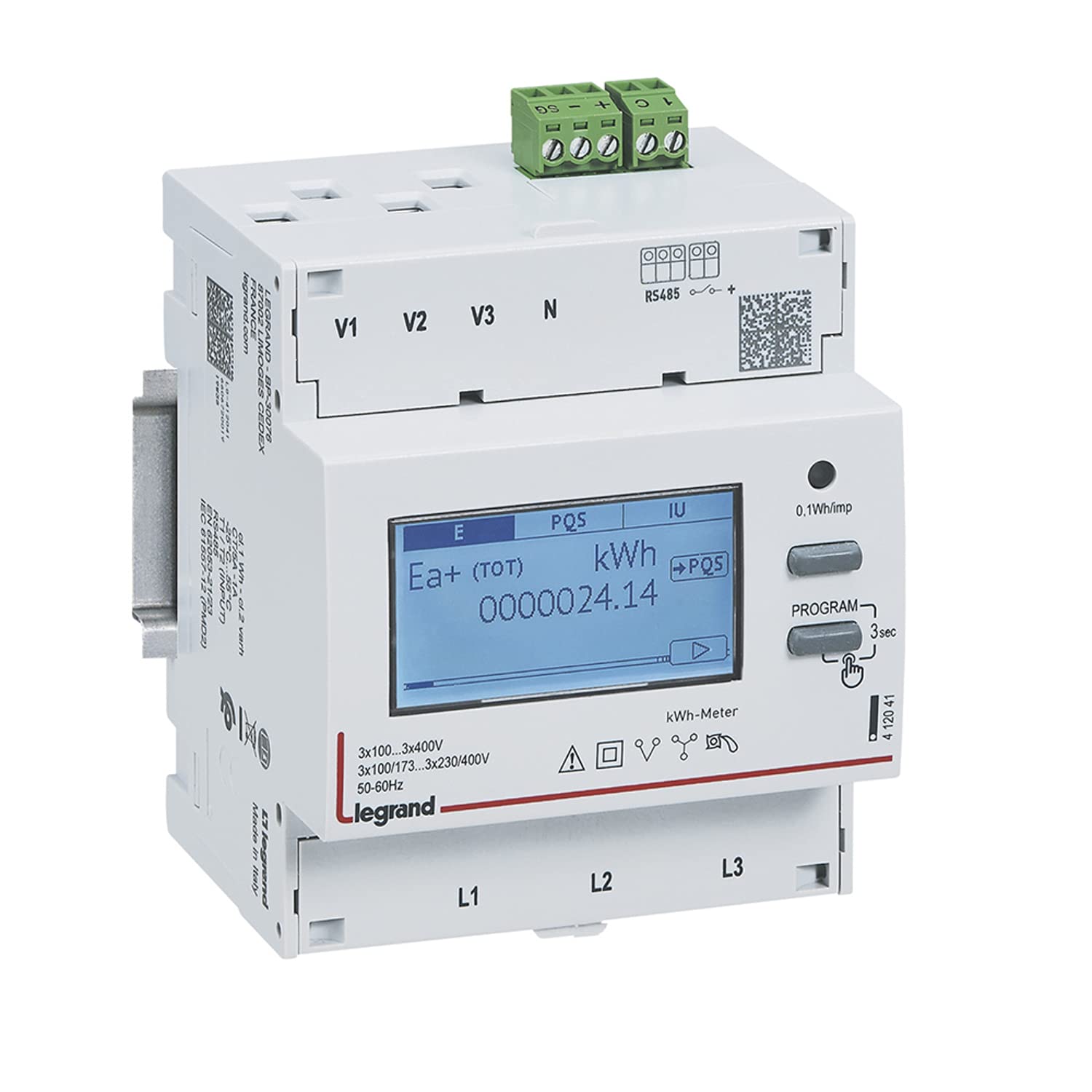

Figura 1: Fronte view of the Legrand Emdx3 Three-Phase Energy Meter. This image shows the display, control buttons, and general housing of the energy meter.
4. Configuración e instalación
Installation of the Legrand Emdx3 energy meter requires expertise in electrical systems. It must be installed by a qualified electrician in accordance with the provided wiring diagrams and local regulations.
4.1 Montaxe
The meter is typically mounted on a DIN rail within an electrical enclosure. Ensure adequate ventilation and clearance around the device.
4.2 Conexións eléctricas
Conecta o voltage inputs and current transformer (CT) secondary wires (5A) to the designated terminals on the meter. Pay close attention to phase sequence and polarity for accurate measurements. Refer to the detailed wiring diagram supplied with the product packaging for specific terminal assignments.
- Voltage Conexións: Connect the three-phase voltage lines (L1, L2, L3) and neutral (N) to the meter's voltage terminais.
- Current Transformer Connections: Connect the secondary outputs of the external current transformers (P/Ti 5A) to the corresponding current input terminals on the meter. Ensure correct phasing.
- Auxiliary Power (if applicable): Some models may require separate auxiliary power. Consult the wiring diagram.
CAUTION: Incorrect wiring can damage the meter and connected equipment, and pose a safety risk.
5. Instrucións de funcionamento
Once properly installed and powered, the Legrand Emdx3 meter will begin measuring energy consumption. The display provides real-time data and accumulated values.
5.1 Navegación da pantalla
The meter typically features buttons on the front panel for navigating through various display screens. These screens may show:
- Total active energy (kWh)
- Total reactive energy (kvarh)
- Vol. Instantáneotage (V) per phase
- Instantaneous current (A) per phase
- Instantaneous active power (kW)
- Factor de potencia
- Frecuencia (Hz)
Consult the specific product documentation for detailed instructions on button functions and display modes, as these can vary slightly between firmware versions.
5.2 Reading Data
The primary function is to display accumulated energy. For billing purposes, record the total active energy (kWh) reading at specified intervals. The MID certification ensures the accuracy of these readings.
6. Mantemento
The Legrand Emdx3 energy meter is designed for long-term, maintenance-free operation. However, periodic checks are recommended.
- Limpeza: Clean the exterior of the meter with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Inspección visual: Periodically inspect the meter and its connections for any signs of damage, loose wiring, or overheating.
- Non hai pezas reparables polo usuario: The device contains no user-serviceable parts. Do not attempt to open or repair the meter. Refer all servicing to qualified Legrand service personnel.
7 Solución de problemas
If the energy meter is not functioning as expected, consider the following common issues:
| Problema | Causa posible | Solución |
|---|---|---|
| Sen pantalla/Sen alimentación | No power supply to the meter; loose connections. | Check circuit breaker. Verify all voltage and auxiliary power connections are secure. |
| Lecturas incorrectas | Incorrect CT wiring (polarity/phasing); incorrect CT ratio settings (if configurable); faulty CTs. | Verify CT connections and polarity. Ensure CT ratio settings match the installed CTs. Consult a qualified electrician. |
| Meter not responding | Internal fault; temporary software glitch. | Cycle power to the meter (turn off and on). If the problem persists, contact Legrand support. |
For issues not covered here, or if troubleshooting steps do not resolve the problem, contact Legrand technical support or a qualified electrician.
8. Especificacións
- Número de modelo: 412043
- Marca: Legrand
- Tipo: Three-Phase Energy Meter
- Entrada actual: P/Ti 5A (via external Current Transformers)
- Conformidade: MID (Measuring Instruments Directive)
- Dimensións (L x W x H): 10 x 10 x 15 cm
- Peso: 500 gramos
- Fabricante: Legrand
- Pilas necesarias: Non
- Cantidade de artigos: 1
9. Garantía e soporte
Legrand products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Legrand websitio.
For technical assistance, troubleshooting, or service inquiries, please contact Legrand customer support. Ensure you have your product model number (412043) and purchase details available when contacting support.
Legrand Oficial Websitio: www.legrand.com
