Kratos 30-inch Commercial Electric Countertop Griddle (Model 29M-007) User Manual

1. Introdución e finalview

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Kratos 30-inch Commercial Electric Countertop Griddle, Model 29M-007. Designed for demanding commercial kitchen environments, this griddle offers a durable stainless steel construction and precise temperature control for a variety of cooking tasks.

Figura 1: Fronte view of the Kratos 30-inch Commercial Electric Countertop Griddle.

2. Información de seguridade

Please read all safety instructions carefully before operating the appliance. Failure to follow these instructions may result in property damage, personal injury, or death. This appliance is intended for commercial use only. Use in a residential setting will void the product warranty.

Requisitos Eléctricos

• Voltage: 208 / 240V
• Wattage: 3375-4500 watts
• Tipo de enchufe: NEMA 6-20P
• Ensure the griddle is connected to a properly grounded electrical outlet with the correct voltage e ampera.

Precaucións xerais de seguridade

• Always operate the griddle on a stable, non-combustible surface.
• Keep hands and clothing away from hot surfaces during operation.
• Non mergullo o aparello en auga ou outros líquidos.
• Desconecte a enerxía antes de limpar ou reparar.
• Do not use abrasive cleaners or pads that could damage the stainless steel surface.

3. Características do produto

The Kratos 30-inch Commercial Electric Countertop Griddle is engineered for performance and durability in busy commercial kitchens. Key features include:

• Construción de grao comercial: Durable stainless steel body designed for long-lasting use.
• Spacious Cooking Surface: Measures 30 inches wide by 15.5 inches deep, ideal for high-volume cooking.
• Thermostatic Controls: Easy-to-use dial controls allow for precise temperature adjustments from 150°F to 570°F.
• Built-in Splash Guards: 3-inch high rear and side splash guards protect surrounding areas from grease splatter.
• Thick Griddle Plate: A 1/2-inch thick stainless steel griddle plate ensures balanced heat distribution for consistent cooking results.
• Sistema de xestión de graxas: Features a removable grease tray for easy cleaning.

Figure 2: Thermostatic controls for precise temperature management.

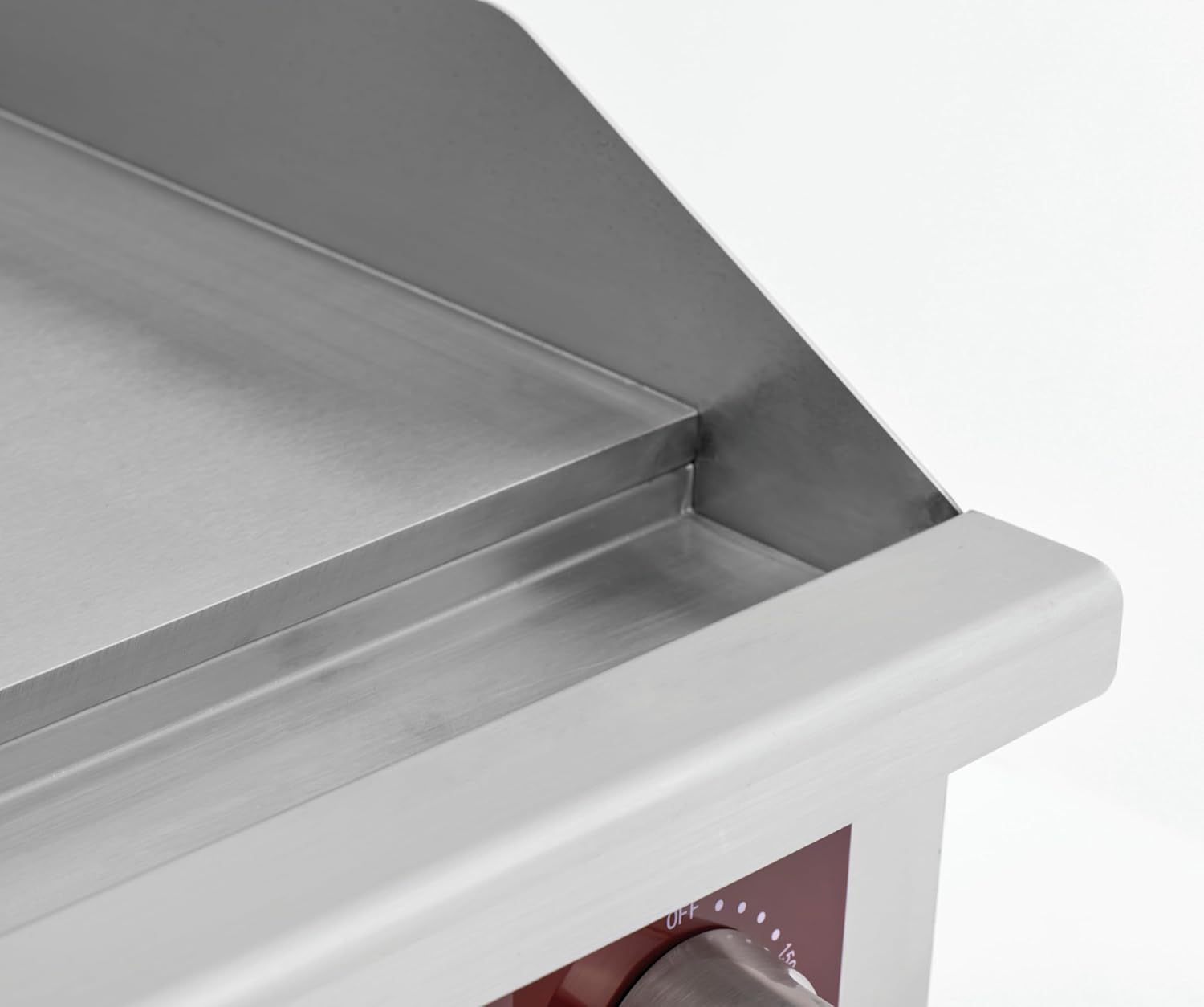

Figure 3: Integrated splash guards to minimize splatter.

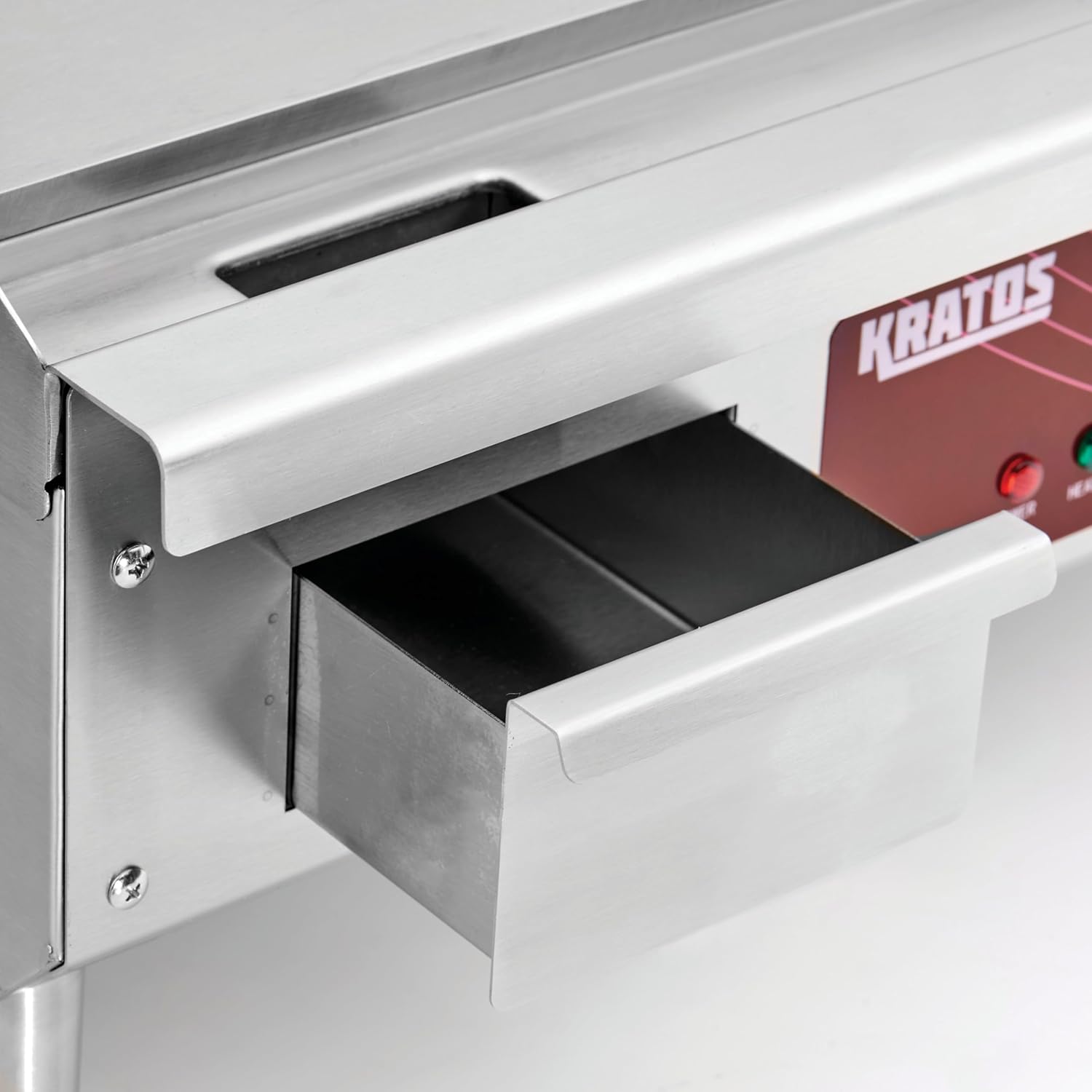

Figure 4: Convenient removable grease trap for easy cleaning.

4. Configuración

Proper setup ensures optimal performance and safety of your griddle.

Desembalaxe e colocación

1. Carefully remove the griddle from its packaging. Inspect for any shipping damage.
2. Place the griddle on a sturdy, level, and heat-resistant countertop or work surface. Ensure adequate clearance from walls and other equipment for ventilation.
3. Attach the four stainless steel legs by screwing them into the designated holes on the bottom of the unit. Adjust leg height if needed to ensure stability.

Figure 5: Adjustable legs for stable placement.

Initial Cleaning and Seasoning

Before first use, the griddle plate must be thoroughly cleaned and seasoned.

1. Wipe off any anti-rust oil or manufacturing residue from the griddle plate using a soft cloth and warm, soapy water. Rinse thoroughly with clean water.
2. Dry the griddle completely.
3. Apply a thin, even layer of high-temperature cooking oil (e.g., vegetable oil, flaxseed oil) to the entire cooking surface.
4. Turn on the griddle to a low-medium temperature (around 250-300°F or 120-150°C) and allow the oil to bake onto the surface for 20-30 minutes until it stops smoking.
5. Turn off the griddle and let it cool. Repeat the oil application and heating process 2-3 times to build a good seasoned layer. This helps create a non-stick surface and protects against rust.

5. Instrucións de funcionamento

Operating your Kratos electric griddle is straightforward. Follow these steps for optimal cooking results.

Powering On and Temperature Setting

1. Ensure the griddle is properly plugged into a 208/240V NEMA 6-20P outlet. The green 'POWER' indicator light will illuminate.
2. Turn the thermostatic control dial to your desired cooking temperature. The temperature range is 150-570°F (65-300°C). The orange 'HEATING' indicator light will turn on, indicating the heating elements are active.
3. Allow the griddle to preheat for 15-20 minutes, or until the 'HEATING' light cycles off, indicating the set temperature has been reached.

Consellos de cociña

• For best results, apply a thin layer of cooking oil or butter to the griddle surface before adding food.
• The 1/2-inch thick griddle plate provides excellent heat retention and even distribution.
• Utilize the different temperature zones if your model features them, or adjust the single control for overall cooking.
• The built-in splash guards help contain food and grease, making cleanup easier.

6. Limpeza e Mantemento

Regular cleaning and maintenance will extend the life of your griddle and ensure sanitary operation.

Limpeza diaria

1. After each use, turn off the griddle and allow it to cool slightly but remain warm.
2. Scrape off any food residue and excess grease into the removable grease tray using a griddle scraper.
3. Remove the grease tray and empty its contents. Clean the tray with warm, soapy water.
4. Wipe the griddle surface with a damp cloth. For stubborn residue, use a mild griddle cleaner and a non-abrasive pad.
5. Rinse the surface with clean water and dry thoroughly to prevent water spots and rust.

Coidado do aceiro inoxidable

• Limpar as superficies exteriores de aceiro inoxidable cun pano suave e un limpador de aceiro inoxidable.
• Avoid using abrasive materials or harsh chemicals that can scratch or damage the finish.

7 Solución de problemas

If you encounter issues with your griddle, refer to the following common problems and solutions.

8. Especificacións

Detailed technical specifications for the Kratos 30-inch Commercial Electric Countertop Griddle.

Figure 6: Product dimensions for planning counter space.

9. Garantía e soporte

Kratos is committed to providing reliable commercial kitchen equipment and excellent customer service.

Información da garantía

This Kratos griddle comes with a Garantía limitada de pezas e man de obra de 1 ano. Please retain your proof of purchase for warranty claims. The warranty is void if the product is used in a residential setting.

Atención ao cliente

For technical assistance, parts, or warranty inquiries, please contact Kratos customer service. Our US-based customer service team is available to assist you.
