Introdución
This user manual provides comprehensive instructions for the TERIOS Wireless Controller, designed for an enhanced gaming experience. This controller is compatible with PlayStation 4, PS4 Pro, and PS4 Slim consoles.
Imaxe: Fronte view of the green TERIOS Wireless Controller, showcasino seu deseño ergonómico e a disposición dos botóns.
O que hai na caixa
Ao abrir o paquete, asegúrese de que estean presentes todos os seguintes elementos:
- 1 x TERIOS Wireless Controller
- 1 x cable de carga USB
- 1 x Controller User Manual (this document)
Image: The TERIOS Wireless Controller, USB charging cable, and user manual laid out, representing the package contents.
Características do produto
The TERIOS Wireless Controller is equipped with several features designed to enhance your gaming experience:
- Conectividade sen fíos: Connects wirelessly to your PS4 console via Bluetooth 4.2 for a stable connection up to 8 meters.
- Built-in Speaker & Headset Jack: Features an integrated speaker and a 3.5mm stereo headset jack for immersive audio.
- Multitouch Pad: A central multitouch pad expands gaming possibilities and interaction.
- Botón Compartir: Allows for live-streaming and sharing gameplay moments without interrupting your session.
- Manetas analóxicas duplas: Provides pinpoint accuracy and enhanced sensitivity for precise control.
- Double Shock Vibration: Integrated motors provide haptic feedback for an immersive gaming experience.
- Turbo Feature: Enables rapid-fire functionality for certain in-game actions.
- Batería recargable: Equipped with a 1000mAh lithium battery, offering 10-12 hours of continuous use on a single charge.
- Deseño ergonómico: Conforms to the palm structure for comfortable extended gaming sessions.
Imaxe: Primeiro plano views highlighting the built-in speaker, share button, and multitouch pad functionalities of the controller.
Image: Visuals illustrating the Bluetooth 4.2 connection, ergonomic design for comfortable grip, and the placement of advanced gaming buttons.
Image: The controller with a visual emphasis on its dual analog sticks, indicating their role in providing a better gaming experience.

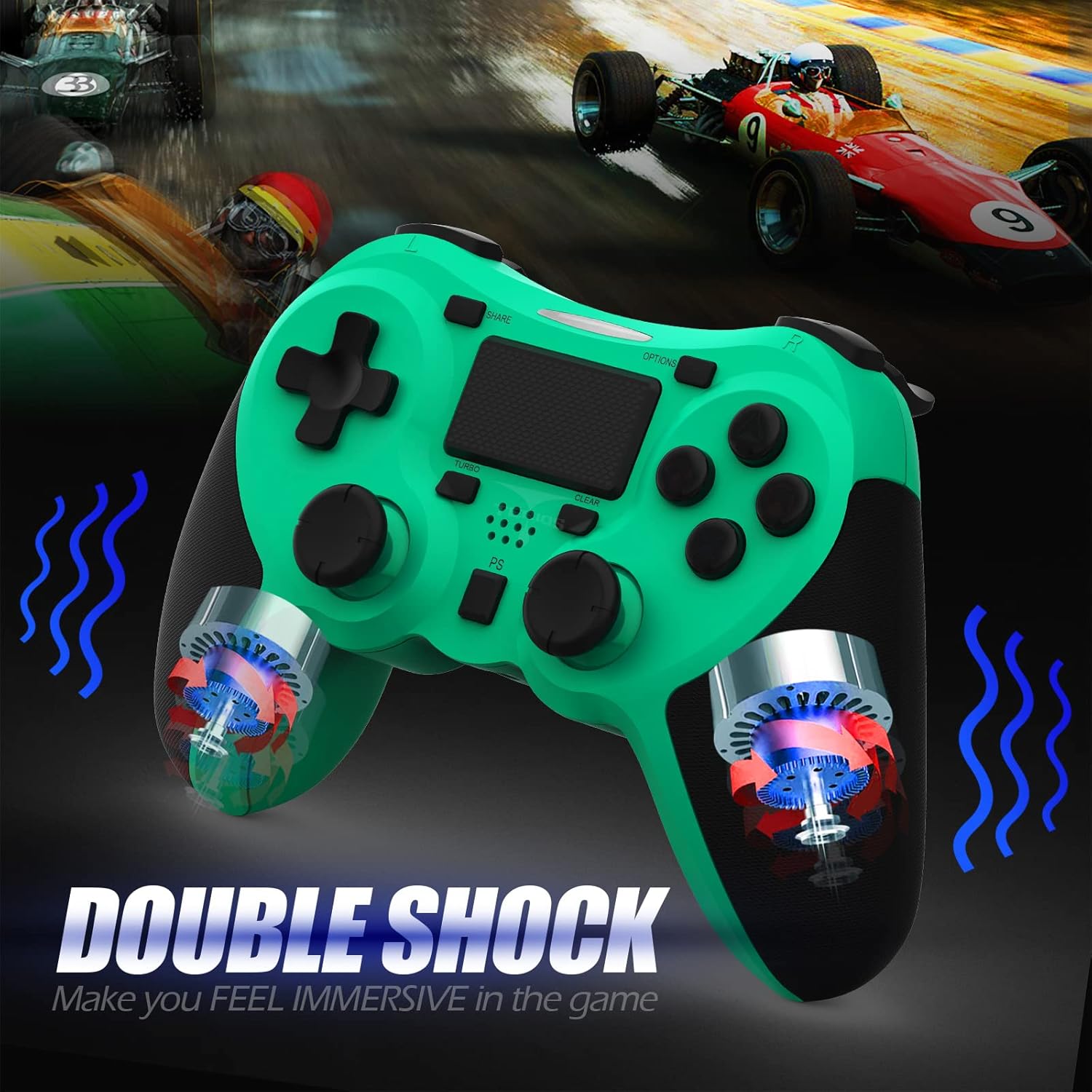

Imaxe: Unha interna view of the controller highlighting the double shock vibration motors, designed to provide immersive haptic feedback.
Guía de configuración
1. Carga inicial
Before first use, fully charge the controller. Connect the supplied USB charging cable to the controller's micro USB port and the other end to a USB port on your PlayStation 4 console or a compatible USB wall adapter.
- Tempo de carga: Aproximadamente 2-3 horas para unha carga completa.
- Battery Life: Up to 10-12 hours of continuous gameplay.
- Tempo de espera: ata 30 días.

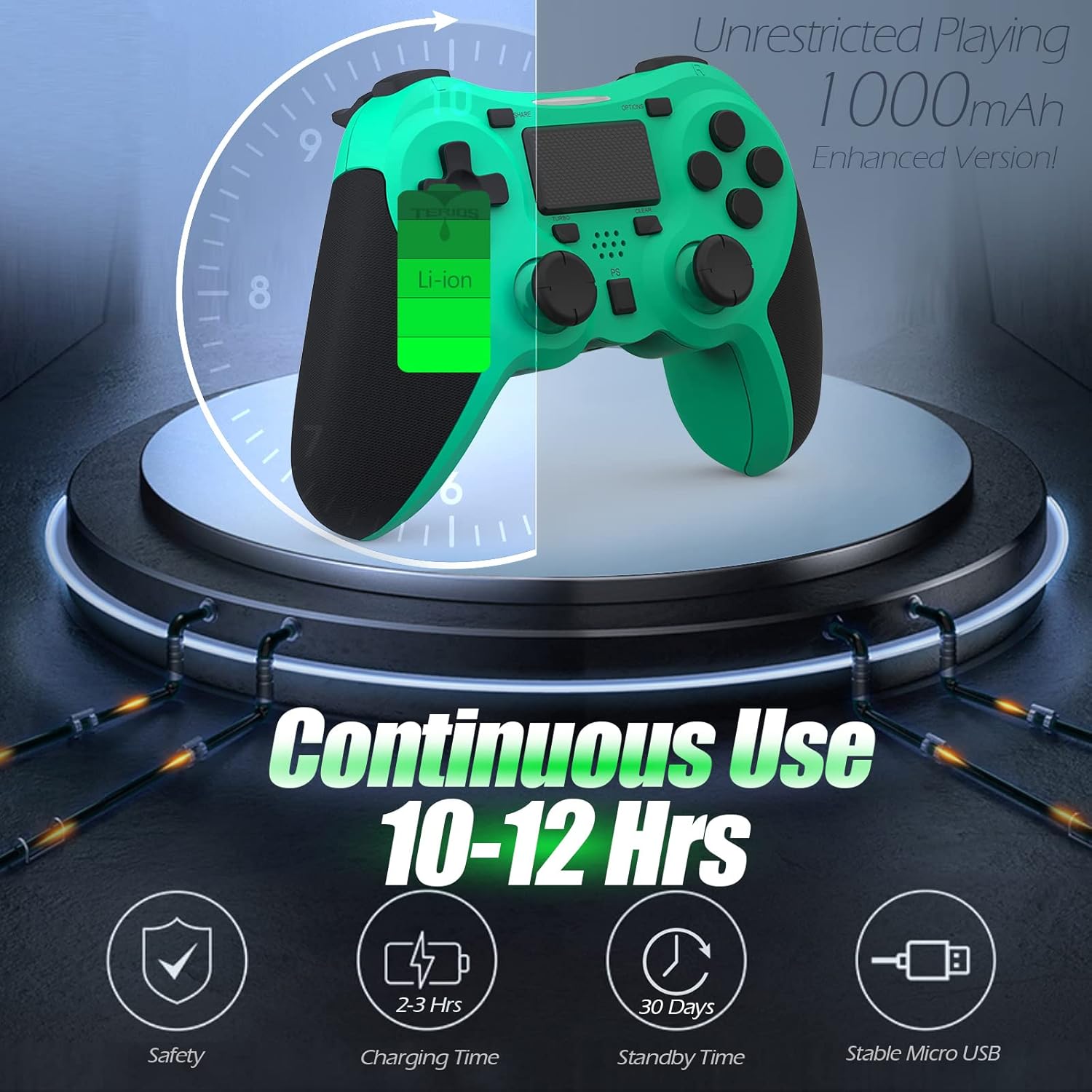

Image: A visual representation of the controller's 1000mAh battery, indicating 10-12 hours of continuous use, 2-3 hours charging time, and 30 days standby time.
2. Emparellamento con PlayStation 4
Para vincular o controlador coa túa consola PS4:
- Asegúrate de que a túa consola PS4 estea acendida.
- Connect the controller to the PS4 console using the USB charging cable.
- Preme o Botón PS (located in the center of the controller). The light bar on the controller will flash, then glow a solid color, indicating successful pairing.
- Once paired, you can disconnect the USB cable for wireless play.
Nota: If the controller does not pair, ensure it is charged and try connecting it to a different USB port on the console. For persistent issues, refer to the Troubleshooting section.
Instrucións de funcionamento
Controis básicos
| Compoñente | Función |
|---|---|
| Botón PS | Powers on the controller, accesses the PS4 home screen, switches users, or turns off the console (long press). |
| Botón COMPARTIR | Accesses the Share menu to capture screenshots, record video clips, or broadcast gameplay. |
| Botón OPCIÓNS | Pauses games, accesses in-game menus, or confirms selections. |
| Botóns direccionais (D-Pad) | Navigates menus and provides directional input in games. |
| Botóns de acción (triángulo, círculo, cruz, cadrado) | Performs in-game actions, confirms, or cancels selections. |
| Left/Right Sticks (L3/R3) | Controls character movement, camera, or other analog inputs. Pressing down on the sticks activates L3/R3 buttons. |
| L1/R1 Buttons | Trigger various in-game actions, often for aiming or secondary functions. |
| Disparadores L2/R2 | Analog triggers for actions like accelerating, braking, or firing weapons. |
| Multitouch Pad | Provides touch input for specific game interactions or navigation. |
| Conector para auriculares de 3.5 mm | Connects compatible headsets for game audio and voice chat. |
Funcións especiais
Función Turbo
The Turbo feature allows for rapid, continuous input of a button press, useful for actions like rapid firing in games.
- Manteña premido o Botón TURBO (located below the touchpad).
- While holding TURBO, press the action button you wish to apply the rapid-fire function to (e.g., Square, Cross, Circle, Triangle, L1, R1, L2, R2).
- Release both buttons. The selected action button will now continuously register presses as long as it is held down.
- To disable Turbo for a specific button, repeat the process: hold TURBO and press the button again.

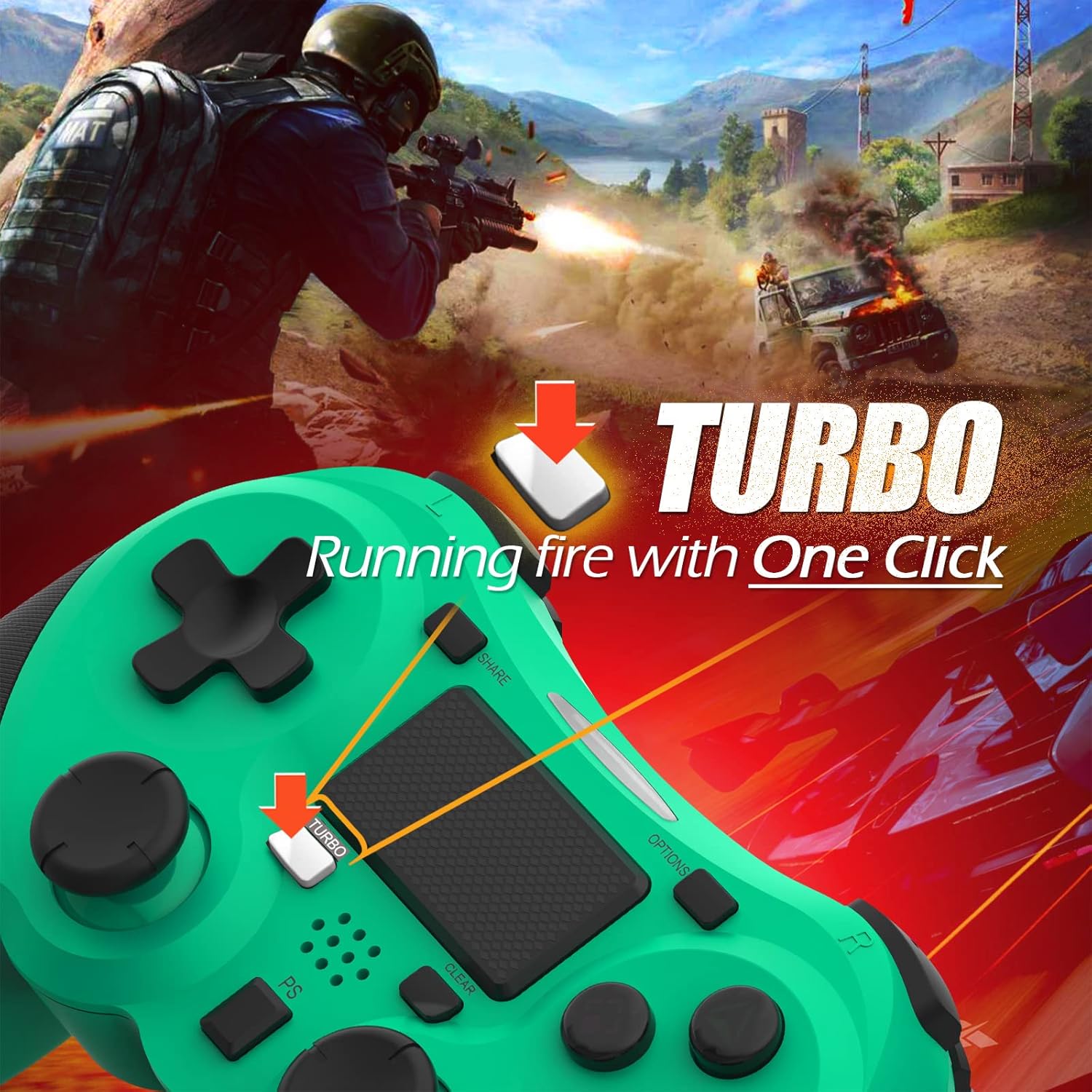

Image: A visual guide demonstrating how to activate the Turbo feature on the controller for rapid-fire actions.
Share Button Functionality
The SHARE button provides quick access to PS4's sharing features:
- Prensa individual: Opens the Share menu, allowing you to save a screenshot, save a video clip, or start a broadcast.
- Prensa longa: Takes a screenshot directly.
- Prema por dobre: Inicia/detén a gravación de vídeo.
Mantemento
Proper maintenance ensures the longevity and optimal performance of your TERIOS Wireless Controller.
Limpeza
- Usa un pano suave e seco para limpar a superficie do controlador.
- Para a sucidade persistente, d lixeiramenteampEnxágüe o pano con auga ou un limpador suave e non abrasivo. Evite a humidade excesiva.
- Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the controller's finish and internal components.
Almacenamento
- Store the controller in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
- Avoid placing heavy objects on the controller to prevent damage to buttons or analog sticks.
Coidado da batería
- To preserve battery life, avoid fully discharging the controller frequently.
- Se garda a batería durante un período prolongado, cargue a batería aproximadamente ao 50 % antes de gardala.
- Recharge the controller at least once every three months if not in use to prevent deep discharge.
Resolución de problemas
If you encounter issues with your TERIOS Wireless Controller, please refer to the following common solutions:
Controller Not Connecting/Pairing
- Comprobar a batería: Ensure the controller is sufficiently charged. Connect it to the PS4 via USB cable to charge.
- Volver emparellar: Connect the controller to the PS4 with the USB cable and press the PS button to re-establish the connection.
- Reset Controller: Locate the small reset button hole on the underside of the controller (near the L2 button). Use a straightened paperclip or a similar thin object to press and hold the button for 3-5 seconds. This will reset the controller. After resetting, attempt to re-pair it with the PS4.
- Interferencia: Move closer to the PS4 console to rule out wireless interference.
Buttons or Sticks Unresponsive/Lagging
- Reset Controller: Perform a hard reset as described above.
- Limpar: Ensure no debris is lodged around the buttons or sticks. Clean the controller as per the Maintenance section.
- Firmware: Ensure your PS4 system software is up to date.
Vibración excesiva
- Reset Controller: A reset can often resolve unexpected vibration issues.
- Configuración do xogo: Check in-game settings for vibration intensity.
Especificacións
| Atributo | Detalle |
|---|---|
| Modelo | TERIOS 5S |
| ASIN | B09KLR5DCZ |
| Compatibilidade | PlayStation 4, PS4 Pro, PS4 Slim |
| Conectividade | Wireless (Bluetooth 4.2), USB |
| Tipo de batería | Polímero de litio (1 incluído) |
| Capacidade da batería | 1000 mAh |
| Tempo de uso continuo | 10-12 horas |
| Tempo de carga | 2-3 horas |
| Tempo de espera | Ata 30 días |
| Peso do elemento | 10.8 onzas (aprox. 306 gramos) |
| Dimensións do paquete | 6.69 x 5.24 x 2.72 polgadas |
| Fabricante | TERIOS |
| Data de primeira dispoñibilidade | 28 de outubro de 2021 |
Garantía e Soporte
TERIOS stands behind the quality of its products. This controller comes with a 1 ano de garantía desde a data de compra, cubrindo defectos de fabricación.
For customer support, technical assistance, or warranty claims, please contact TERIOS customer service through the platform where you purchased the product or visit the official TERIOS store page for contact information.
We are committed to providing premium customer support and ensuring your satisfaction with our products.
