Introdución
This instruction manual provides detailed information for the assembly, operation, and maintenance of your Amazon Basics Adjustable Rolling Garment Rack. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of the product.
Información de seguridade
- Always ensure all parts are securely fastened before placing items on the rack.
- Do not overload the rack beyond its specified weight capacity of 10 kg (22 lbs).
- Manteña as pezas pequenas e os materiais de embalaxe lonxe dos nenos e das mascotas.
- Use the product on a flat, stable surface to prevent tipping.
- Do not hang from or climb on the garment rack.
Contido do paquete
Antes da montaxe, comproba que todos os compoñentes estean presentes e non estean danados. Se falta algunha peza ou está danada, non procedas coa montaxe. Ponte en contacto co servizo de atención ao cliente para obter axuda.
- 1x Horizontal Hanging Bar (Chrome)
- 2x Adjustable Vertical Poles (Chrome/Black)
- 2x Base Supports (Black)
- 4x Wheels (2 with locking mechanism)
- 2x Lower Support Bars (Black)
- Assorted connectors and fasteners
Image: Components of the Amazon Basics Adjustable Rolling Garment Rack, showing the horizontal bar, vertical poles, base supports, and wheels.
Configuración e montaxe
Assembly typically requires one person. Refer to the image below for visual guidance during assembly.
- Attach Wheels to Base Supports: Insert the four wheels into the designated holes on the underside of the two black base supports. Ensure the two locking wheels are placed on the same side for easier access. Press firmly until they click into place.
- Connect Lower Support Bars: Insert the ends of the two lower support bars into the corresponding holes on the base supports. These bars provide stability to the base.
- Inserir postes verticais: Slide the black lower sections of the adjustable vertical poles into the upright openings on the base supports. Ensure they are fully seated.
- Attach Horizontal Hanging Bar: Place the chrome horizontal hanging bar onto the top of the two vertical poles. The black plastic connectors on the horizontal bar should align with the top of the vertical poles. Secure them by pressing down or tightening any integrated fasteners.
- Axustar a altura (opcional): Loosen the black adjustment clamps on the vertical poles. Extend the chrome upper sections of the poles to the desired height. Tighten the clamps securely to lock the height.
Image: The Amazon Basics Rolling Garment Rack fully assembled and ready for use.
Instrucións de funcionamento
Axuste de altura
The garment rack features adjustable height to accommodate various clothing lengths.
- Locate the black adjustment clamps on each vertical pole.
- Open or loosen both clamps.
- Carefully raise or lower the chrome upper section of the poles to the desired height. Ensure both sides are adjusted evenly.
- Close or tighten both clamps firmly to secure the poles in place.
Image: Detail of the height adjustment clamp and the connection point for the horizontal bar.
Moving the Garment Rack
The integrated wheels allow for easy relocation of the rack.
- Ensure the locking mechanisms on the wheels are disengaged (unlocked).
- Gently push or pull the rack to its new location.
- Once in position, engage the locking mechanisms on the two designated wheels to prevent unintended movement.
Image: Detail of the base of the garment rack, showing the wheels and lower support bars.
Mantemento
- Limpeza: Limpar as superficies metálicas e plásticas cun pano suave eamp pano. Evite produtos de limpeza abrasivos ou solventes que poidan danar o acabado.
- Comprobacións periódicas: Periodically check all connections and fasteners to ensure they remain tight and secure. Retighten if necessary.
- Coidado das rodas: Keep the wheels free of dust, hair, and debris to ensure smooth rolling.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O bastidor é inestable ou tambaleante. | Conexións soltas; superficie irregular; sobrecarga. | Ensure all screws and clamps are tightened. Move the rack to a flat, level surface. Reduce the weight of items on the rack. |
| As rodas non xiran suavemente. | Restos nas rodas; rodas bloqueadas. | Clean any debris from the wheel casters. Ensure wheel locks are disengaged. |
| Regulación de altura clampOs s non se sosteñen. | Clamps not tightened sufficiently; excessive weight. | Asegurar clamps are fully tightened. Do not exceed the maximum weight capacity. |
Especificacións
- Número de modelo: GAR-053C
- Material: Metal (Chrome finish)
- Adjustable Dimensions (L x W x H): 91.5-145 cm x 42 cm x 134-161 cm (approximately 36-57 inches x 16.5 inches x 53-63 inches)
- Peso do produto: 2.18 kg (4.8 lb)
- Capacidade de carga máxima: 10 kg (22 lb)
- Características: Telescopic design for adjustable height, smooth-rolling casters (two with locking brakes).

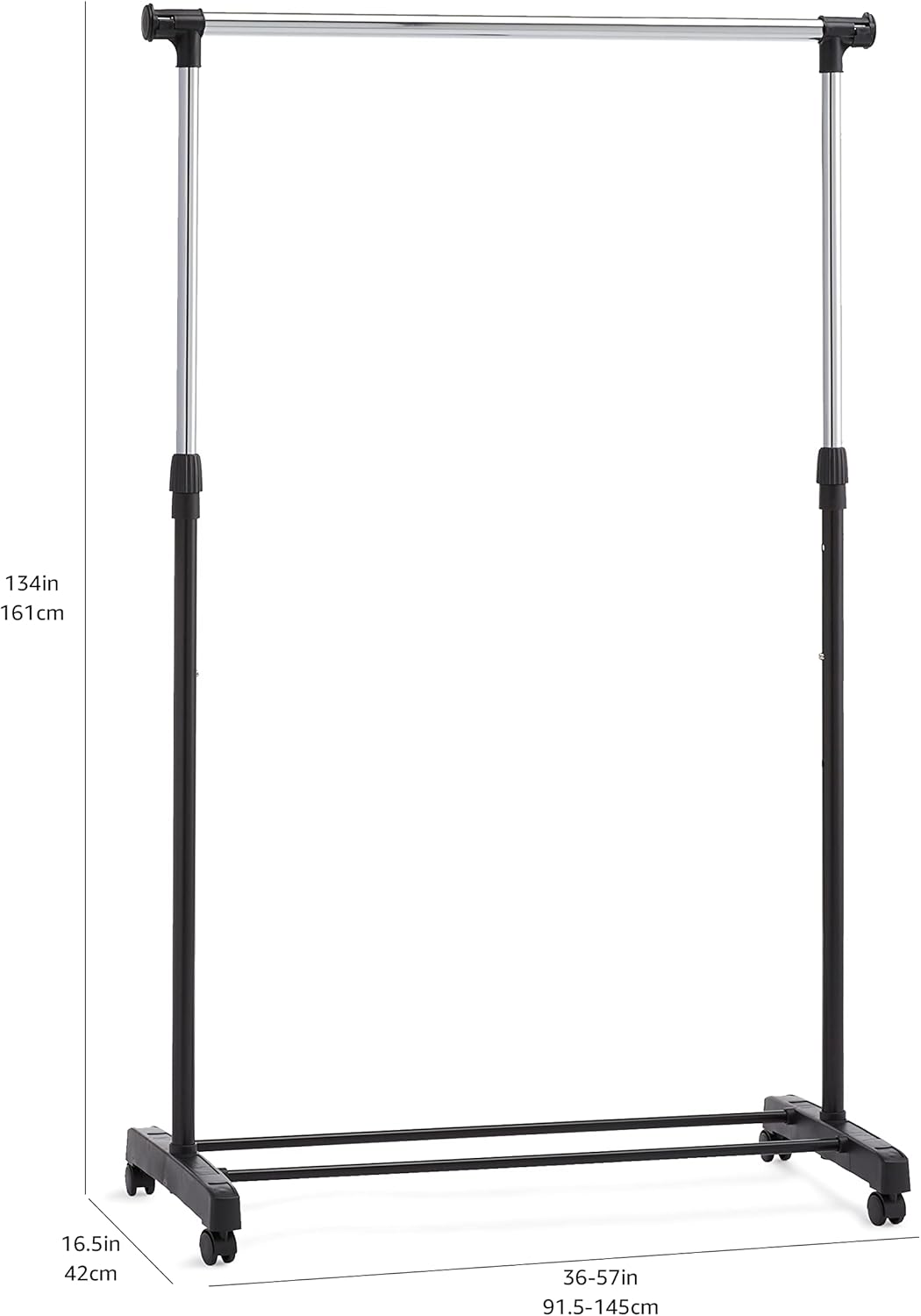

Image: The Amazon Basics Garment Rack with key dimensions (height and width) indicated.
Garantía e Soporte
For warranty information or customer support, please refer to the Amazon Basics official website or contact Amazon customer service directly. Keep your purchase receipt for any warranty claims.
