Aucma BL-601 Blender Instruction Manual

Información importante de seguridade

Please read all instructions carefully before using your Aucma BL-601 Blender. Keep this manual for future reference. Failure to follow these safety instructions may result in electric shock, fire, or serious injury.

• Always unplug the blender from the power outlet before assembling, disassembling, or cleaning.
• Do not immerse the motor unit in water or any other liquid. Wipe with a damp só tea.
• As láminas están afiadas. Manéxeas con extremo coidado ao montalas, desmontalas ou limpalas.
• Ensure the jar and lid are correctly assembled and the safety lock is engaged before operating.
• Do not operate the blender with an empty jar.
• Never place hands or utensils into the blender jar while the appliance is operating. Use the measuring cup opening in the lid to add ingredients during blending.
• Manteña o aparello fóra do alcance dos nenos.
• Do not use the blender for purposes other than its intended use.
• Se o cable de alimentación está danado, debe substituílo o fabricante, o seu axente de servizo ou persoas similares para evitar riscos.

Compoñentes do produto

Your Aucma BL-601 Blender includes the following parts:

• Unidade motora (base)
• 1.5L Plastic Jar with Level Indicator
• Tapa
• Measuring Cup (fits into lid opening)
• 4-Piece Stainless Steel Blade Assembly (detachable)

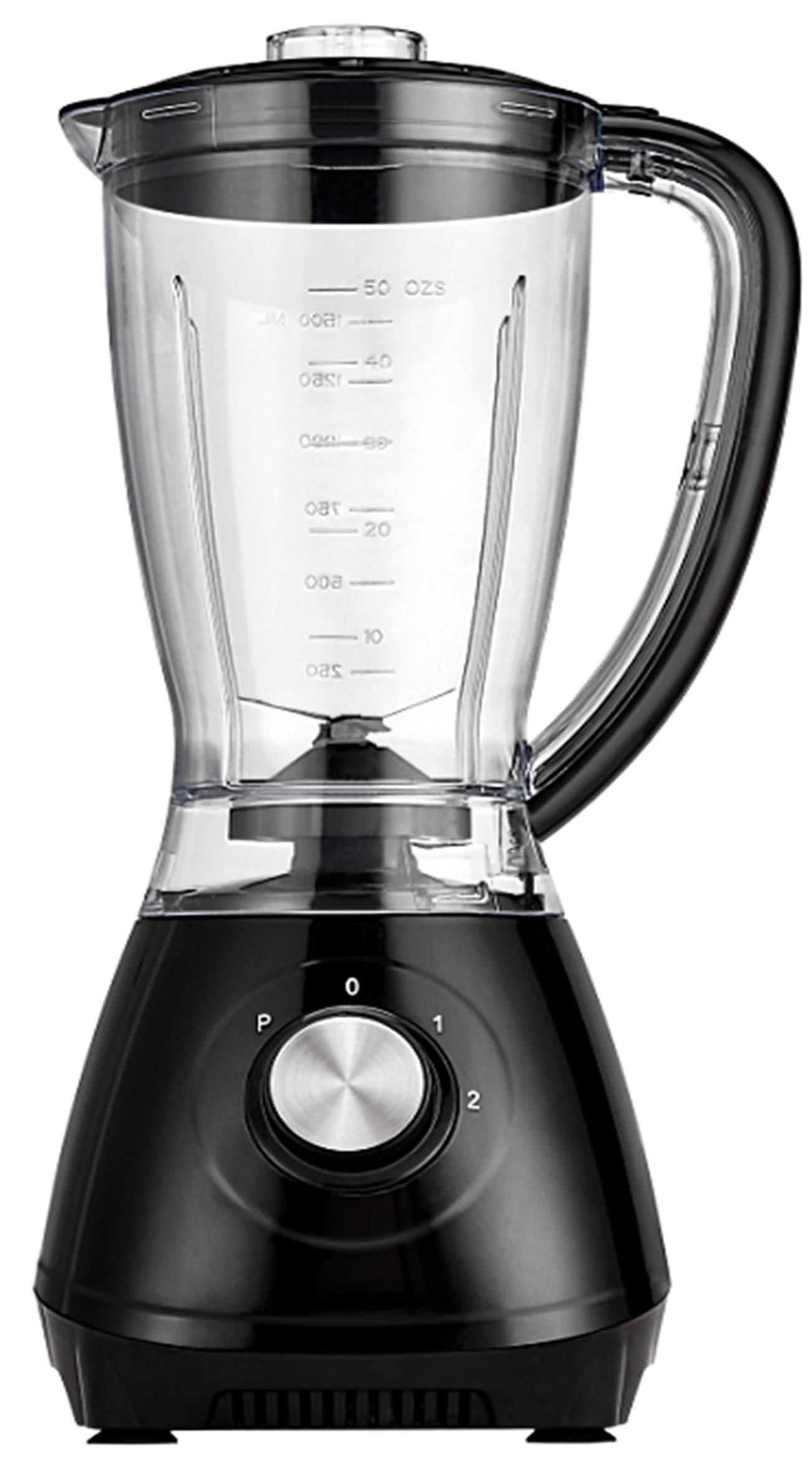

Image: The Aucma BL-601 Blender, showcasing its main components including the motor base and the 1.5-liter plastic jar with its lid.

Configuración

1. Desempaquetar: Retire con coidado todos os compoñentes da embalaxe. Garde a embalaxe para o seu almacenamento ou eliminación.
2. Limpar antes do primeiro uso: Wash the 1.5L plastic jar, lid, and 4-piece stainless steel blade assembly in warm, soapy water. Rinse thoroughly and dry. The motor unit should only be wiped with a damp pano.
3. Montar a lámina: Ensure the detachable 4-piece stainless steel blade assembly is securely attached to the bottom of the plastic jar.
4. Place Jar on Motor Unit: Position the assembled jar onto the motor unit. Rotate the jar clockwise until it locks securely into place. The blender features a double safety lock, ensuring it will not operate unless the jar is correctly seated.
5. Conectar enerxía: Plug the power cord into a standard 110-120V, 50/60Hz electrical outlet.

Instrucións de funcionamento

Siga estes pasos para unha mestura segura e eficaz:

1. Engadir ingredientes: Place your desired ingredients into the 1.5L plastic jar. Do not exceed the maximum fill level indicated on the jar. For best results, cut solid ingredients into smaller pieces.
2. Tapa segura: Place the lid firmly onto the jar. Ensure the measuring cup is inserted into the lid's opening.
3. Seleccionar velocidade: The blender offers 2 speeds and a pulse function. Turn the control knob to your desired speed setting (1 or 2) for continuous blending. For short bursts of power, turn the knob to the 'P' (Pulse) setting and release.
4. Ice-Crush Function: For crushing ice, use the pulse function with short, powerful bursts until the desired consistency is achieved. Ensure there is sufficient liquid or other ingredients to assist the process.
5. Engadindo ingredientes durante a mestura: If you need to add ingredients while the blender is operating, remove the measuring cup from the lid and carefully add items through the opening. Replace the measuring cup immediately.
6. Rematando a mestura: Once blending is complete, turn the control knob to the 'OFF' position.
7. Desconectar: Desconecte sempre a batidora da toma de corrente despois de usala.

Importante: To prevent motor overheating, do not operate the blender continuously for more than 1-2 minutes. Allow the motor to rest for several minutes between cycles.

Limpeza e Mantemento

Proper cleaning and maintenance will ensure the longevity of your blender.

1. Desconectar: Always ensure the blender is unplugged before cleaning.
2. Desmontar: Remove the jar from the motor unit. Carefully detach the blade assembly from the bottom of the jar. Remove the lid and measuring cup.
3. Lavar pezas: The 1.5L plastic jar, lid, measuring cup, and 4-piece stainless steel blade assembly are dishwasher safe. Alternatively, wash them in warm, soapy water using a brush for the blades to ensure thorough cleaning. Rinse and dry completely.
4. Limpar a unidade motora: Limpe a unidade do motor con anuncioamp pano. Non o mergullo en auga nin en ningún outro líquido.
5. Almacenamento do cable: The motor unit features a cord storage function for neat and tidy storage.
6. Almacenamento: Garda a batidora nun lugar seco, lonxe da luz solar directa e da calor.

Resolución de problemas

Se tes problemas coa túa batidora, consulta os seguintes problemas e solucións comúns:

• A batidora non se acende:
  • Asegúrate de que o cable de alimentación estea conectado correctamente a unha toma de corrente que funcione.
  • Check that the jar is correctly seated and locked onto the motor unit. The double safety lock prevents operation if not properly assembled.
• Os ingredientes non se mesturan ben:
  • Add more liquid to the mixture.
  • Cut solid ingredients into smaller, more manageable pieces.
  • Use the pulse function for short bursts to dislodge ingredients.
  • Non enche demasiado o bote.
• Motor stops during operation or smells burnt:
  • The motor may be overheating. Turn off the blender, unplug it, and allow it to cool down for at least 15-20 minutes before attempting to use it again.
  • Reduce the load by removing some ingredients or adding more liquid.

Especificacións

Garantía e Soporte

This Aucma BL-601 Blender comes with a Garantía limitada. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or contact Aucma customer support.

If you require technical assistance, have questions about your product, or need to claim warranty service, please contact the manufacturer directly using the contact information provided in your product packaging or on the official Aucma websitio.
