1. Produto rematadoview
The Hard-Nox Collection 1-Light fixture features a double-banded frame with softly rounded edges. Both the frame and the lens are constructed of durable polycarbonate. This fixture is rated for wet locations, making it suitable for both indoor and outdoor use.
Características principais:
- Deseño moderno: Double-banded frame with softly rounded edges.
- Construción duradeira: Frame and lens made of polycarbonate.
- Satin White Finish: Two softly rounded square bands in satin white.
- LED integrado: Includes 25W integrated LED, 90 CRI, 3000K light.
- Localización húmida listada: cETLus Wet Location Listed, suitable for indoor or outdoor environments. Weather resistant.
2. Información de seguridade
LER CONSELLOS IMPORTANTES DE SEGURIDADE ANTES DE PROCEDER COA INSTALACIÓN
- Place wall switch in OFF position. If fixture has built-in switch or chain pull, switch or pull chain is OFF.
- Turn OFF power source at the circuit breaker before installation or maintenance.
- This fixture must have an integral photo sensor that turns the fixture off during the day and on at night. The photo sensor is not adjustable. The fixture could possibly cycle on and off due to light reflected from nearby surfaces into the photo sensor. If cycling occurs, remove the photo sensor nut and install the swivel hood and base.
- A capucha e a base son axustables. O capó pódese xirar e a base pódese cortar ao longo da liña de puntos para reducir a lonxitude total. Comprobe o funcionamento antes de cortar a base.
- Clean only with mild soap and water. Avoid spraying with cleansers, insecticides, and pesticides that are petroleum-based hydrocarbon products. These will degrade the Luminaire.
- CAUTION: Do not turn ON without diffuser installed. Do not touch LEDs or circuit board. LED optics could be damaged. No lamp substitución necesaria! Motor de luz LED integrada subministrado. Non retire a tapa protectora do motor de luz LED.
3. Compoñentes incluídos
The product package includes the fixture itself and an installation sheet.
4. Instrucións de instalación
Refer to the detailed installation sheet image below for visual guidance on each step.
Image: Full installation sheet showing all steps and diagrams for the fixture. This includes diffuser removal, mounting, wiring, and final assembly.
Step 1: Prepare the Fixture (Refer to Diagram 1 on Installation Sheet)
Remove the diffuser. Insert a flat-bladed screwdriver into the rectangular slot and rotate the blade. The diffuser will then pop out.
Step 2: Prepare the Mounting Plate (Refer to Diagram 2 on Installation Sheet)
Remove the screws that secure the Lamp Holder Plate to the fixture body. The Lamp Holder Plate and the square fixture has the hood in the Lamp Holder Plate.
Step 3: Select Mounting Method (Refer to Diagram 3 on Installation Sheet)
Select desired mounting method: Over an outlet box or with conduit and fixture mounted directly to desired surface. If the fixture is designed to be mounted to an outlet box, remove two of the oval slots that match the outlet mounting box threaded holes and where the location will result in the desired fixture orientation. If the fixture is designed to be mounted directly to the desired surface, remove the round hole and secure the enclosure to the mounting surface with two 8 x 32 x 1/2 screws (provided). Remove two of the oval slots that are opposite of each other. Orientate the enclosure to the desired position. Mark slot location on the mounting surface. Drill out desired conduit outlet(s). Attach the enclosure to the surface with appropriate fasteners. Attach the conduit to the fixture. Use fittings suitable for a wet location if the fixture is to be installed outside.
NOTE: TO ENSURE WATER AND INSECT RESISTANT SEAL, ALL ENTRY POINTS MUST BE CAULKED.
Step 4: Wiring (Refer to Diagram 4 on Installation Sheet)
Connect the black fixture wire(s) to the black supply wire (the white fixture wire(s) to the white supply wire and the fixture ground to the supply ground wire using wire connectors (provided). Take the black fixture wire(s) and place evenly against the black wire from the conduit or outlet box. Do not twist wires together before using a wire connector. Use a wire connector that is too small and thread the connector clockwise until you feel a firm resistance. Gently try to remove the wire from the connector; if you can remove the wires carefully. Repeat process for the connection of white fixture wire(s) to white wire from outlet box or conduit and fixture ground wire and ground wire from outlet box or conduit.
Step 5: Install LED Light Engine (Refer to Diagram 5 on Installation Sheet)
Attach the driver plate to the enclosure with three (round) or four (oval) slot screws. No lamp substitución necesaria! Motor de luz LED integrada subministrado. Non retire a tapa protectora do motor de luz LED.
Step 6: Attach Diffuser (Refer to Diagram 6 on Installation Sheet)
Attach the diffuser to the fixture enclosure. Align the three or four tabs on the diffuser with the slots on the enclosure and push them into the enclosure.
Outdoor Fixtures must be caulked with an outdoor rated caulk where the base of the enclosure meets the mounting surface.
5. Instrucións de funcionamento
This fixture features an integrated LED light engine, which does not require lamp replacement. It also includes an integral photo sensor designed to automatically turn the light off during the day and on at night. The photo sensor is not adjustable. If the light cycles on and off due to reflected light, ensure proper placement or adjust the hood and base as described in the safety section.
6. Mantemento
To clean the fixture, use only mild soap and water. Avoid spraying with cleansers, insecticides, and pesticides that contain petroleum-based hydrocarbon products, as these can degrade the luminaire's materials.
7 Solución de problemas
- A luz non se acende: Ensure the power supply is active at the circuit breaker and the wall switch is in the ON position. Check all wiring connections.
- Light cycling on/off: This may be due to the photo sensor detecting reflected light. Refer to the "Safety Information" section for guidance on adjusting the hood and base or ensuring proper placement.
- Dim or inconsistent light: Verify that the fixture is receiving the correct voltage. If the issue persists, contact a qualified electrician or customer support.
For issues not covered here, please contact Progress Lighting customer support or consult a qualified electrician.
8. Especificacións do produto
| Fabricante | Iluminación de progreso |
| Número de peza | P550115-028-30 |
| Peso do elemento | 2.4 libras |
| Número de modelo | P550115-028-30 |
| Tamaño | Medium (10 in. diameter x 4.5 in. height) |
| Cor | Branco |
| Estilo | Moderno |
| Remate | Branco Satinado |
| Material | Plástico (policarbonato) |
| Fonte de enerxía | Eléctrico con cable |
| Voltage | 120 voltios |
| Wattage | 25 vatios |
| Tipo de Bombilla | LED (integrado) |
| Tipo de montaxe | Down Lighting (Wall or Ceiling Mounted) |
| Certificacións | cETLus Listado de localización húmida |

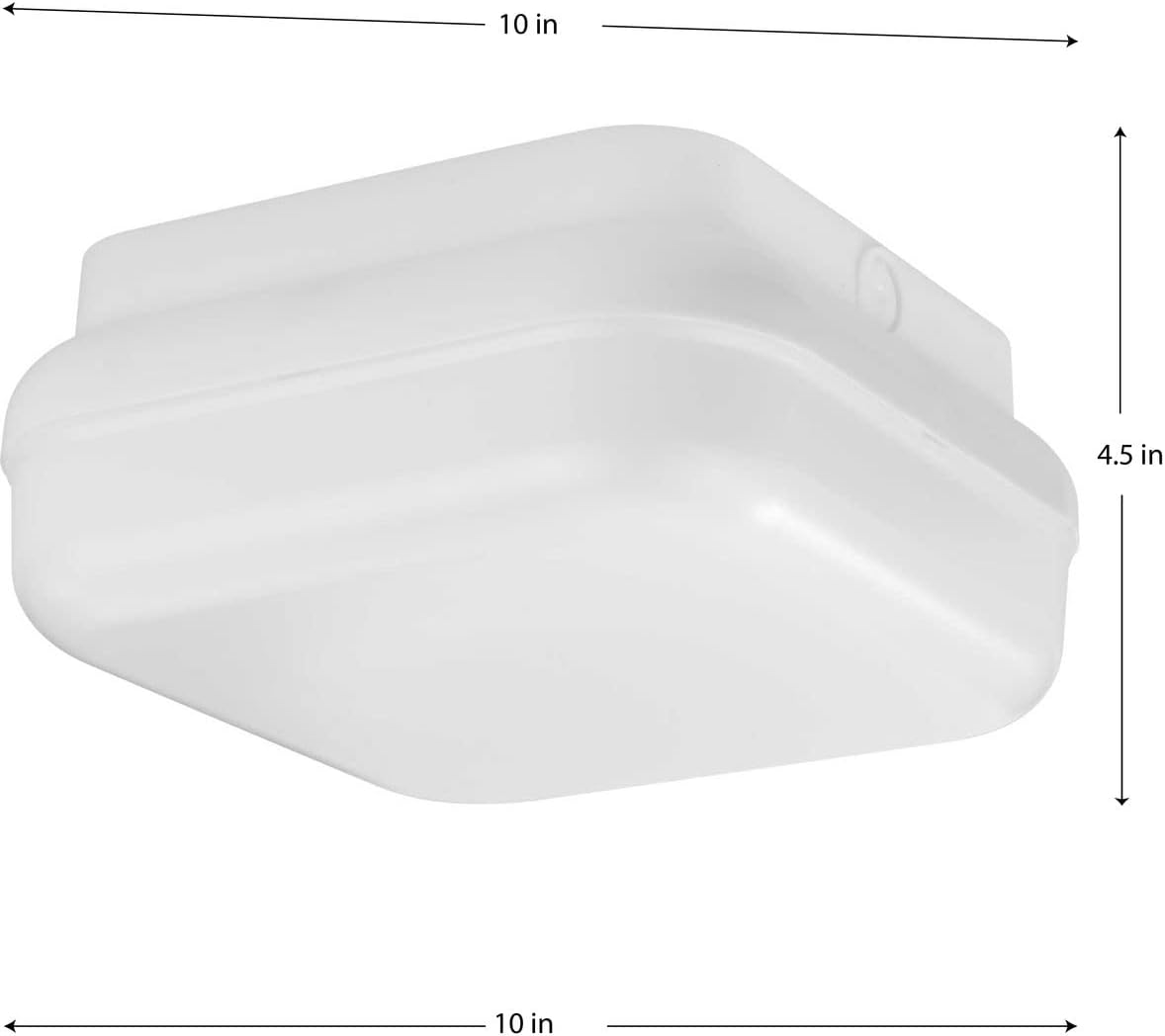

Image: Product dimensions, indicating a 10-inch width and 4.5-inch height for the fixture.
9. Garantía e soporte
Este produto vén cun 5 ano de garantía limitada. For warranty claims or technical support, please contact Progress Lighting customer service. Refer to the original purchase documentation for specific warranty terms and conditions.
